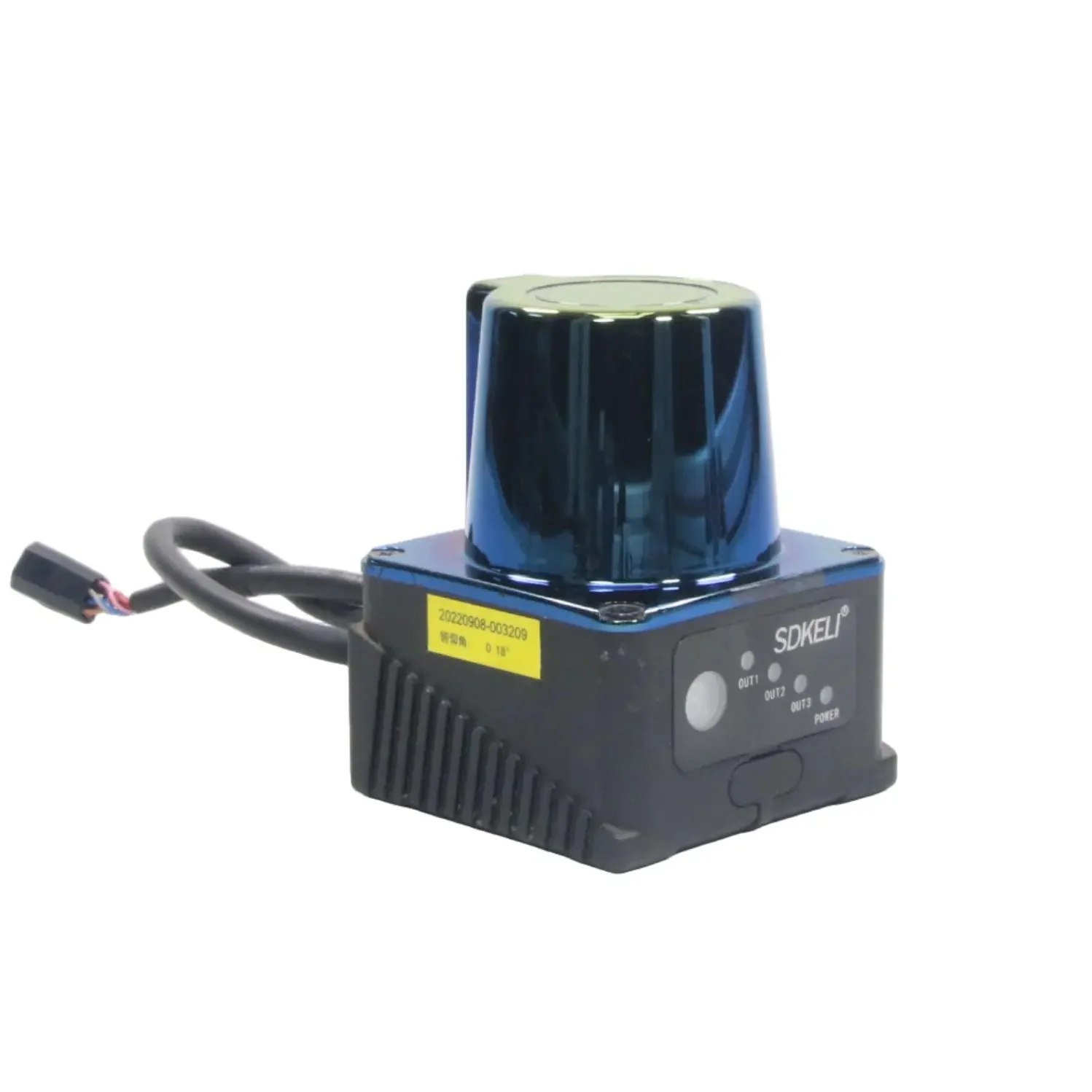

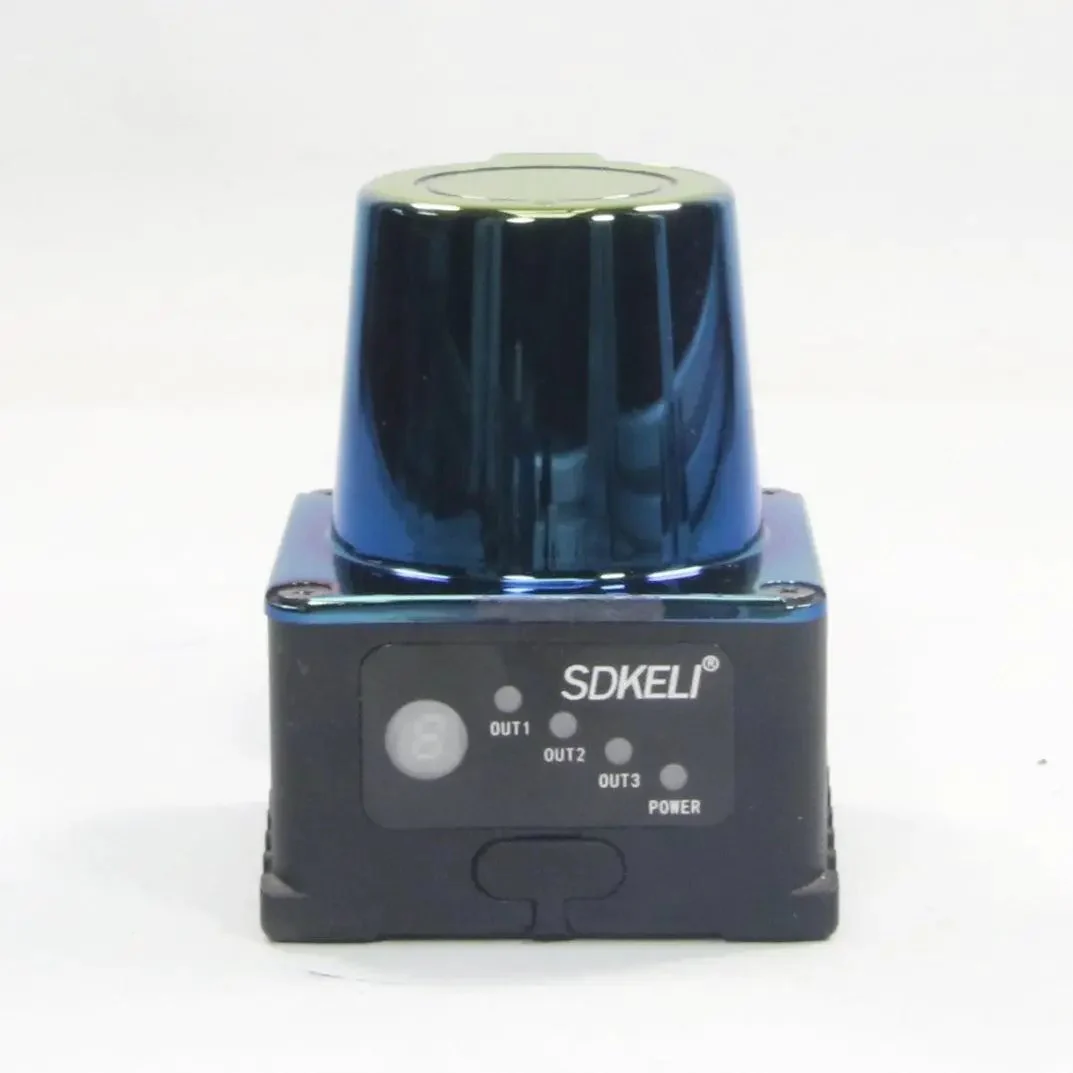

SDKELI LS0627BN/M05 Laser Lidar Specifications:

Brand: SDKELI
Model: LS0627BN/M05 (also referred to as LS2-0627BN/M05)
Product Type: Laser Lidar (Obstacle Avoidance Type)
Technical Specifications:
- Power Supply: DC 9 V to DC 30 V
- Power Consumption: Typical 3 W
- Power-On Time: Typical 6 s
- Outputs:
  - OUTPUT1: Protection zone 1 enters OFF state when any obstacle is detected
  - OUTPUT2: Protection zone 2 enters OFF state when any obstacle is detected
  - OUTPUT3: Protection zone 3 enters OFF state when any obstacle/system failure is detected (configurable)
  - Output Form: NPN (for BN models); supports PNP in BP variants
- Laser Light Source: 905 nm wavelength, Class 1 laser product (safe for human eyes)
- Scanning Angle: 270°
- Angle Resolution: 0.5°
- Scanning Speed: 25,000 measurements per second
- Single Turn Scanning Time: 40 ms
- Detection Range:
  - Maximum scan radius: 20 m
  - 6 m @ 70% reflectance (white object)
  - 2 m @ 10% reflectance (black object)
- Accuracy: Maximum measurement error: ±4 cm @ 1sigma
- Configurable Functions:
  - Protection zone configuration
  - Response time adjustable (40 ms/r)
  - Zone group switching: 4 groups of external input signals (Z1, Z2, Z3, Z4) for 16 zone groups
  - 4 working modes (default Mode 1)
  - Up to 16 groups of definable detection areas, customizable to any complex/irregular shape
- Cable Length: ≤ 30 m
- Ambient Light Immunity: 15,000 Lux
- Shock Resistance: Acceleration 10 g, pulse duration 16 ms, three axes, 1000 ± 10 times per axis
- Vibration Resistance: Frequency 10 Hz ~ 55 Hz, amplitude 0.35 ± 0.05 mm, three axes, 20 times per axis
- Electromagnetic Compatibility (EMC): Meets EN 61326-1:2013, EN 55011:2009 + A1:2010, EN 61000-4-2:2009, EN 61000-4-3:2006 + A1:2009 + A2:2010, EN 61000-4-4:2004 + A1:2010, EN 61000-4-6:2009, EN 61000-4-8:2010, EN 61000-4-11:2004
- Standards Compliance: EN 61558-2-3 (safety standard for transformers, applicable to laser safety)
Device Application: Mobile robot obstacle avoidance, navigation, and two-dimensional area detection/contour scanning in industrial and automation environments
Physical Specifications:
- Dimensions: 62 mm (width) × 64 mm (height) × 84.2 mm (depth)
- Weight: 250 g
- Protection Rating: IP65
- Installation Options: Horizontal (SZ), Vertical (CZ), Scatter shield (FZ)
Country of Origin: China
HS Code: 9013.80.90

Industrial Scanners at Used Industrial Parts

Price

Collections

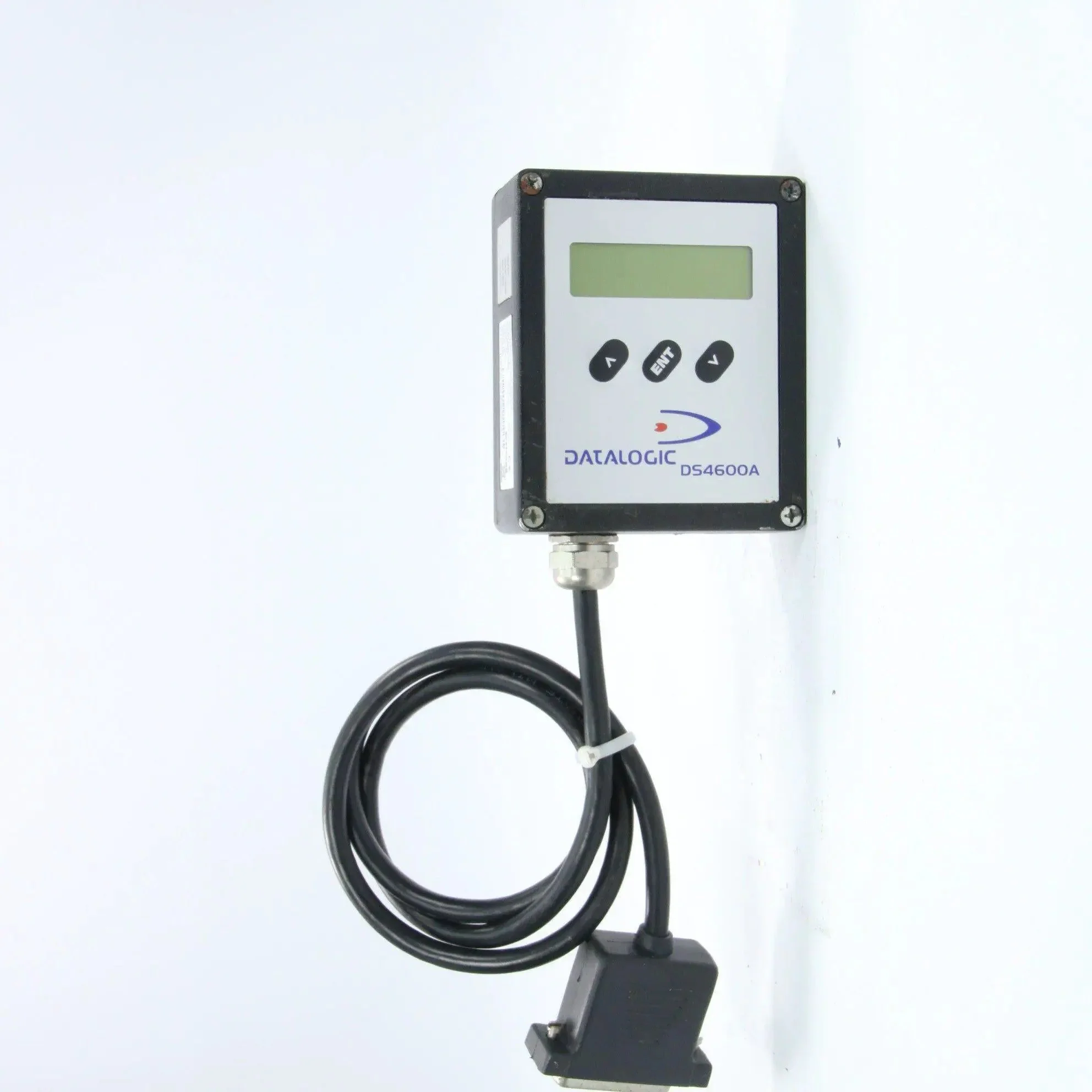

DATALOGIC DS4600A-2200 SCANNER

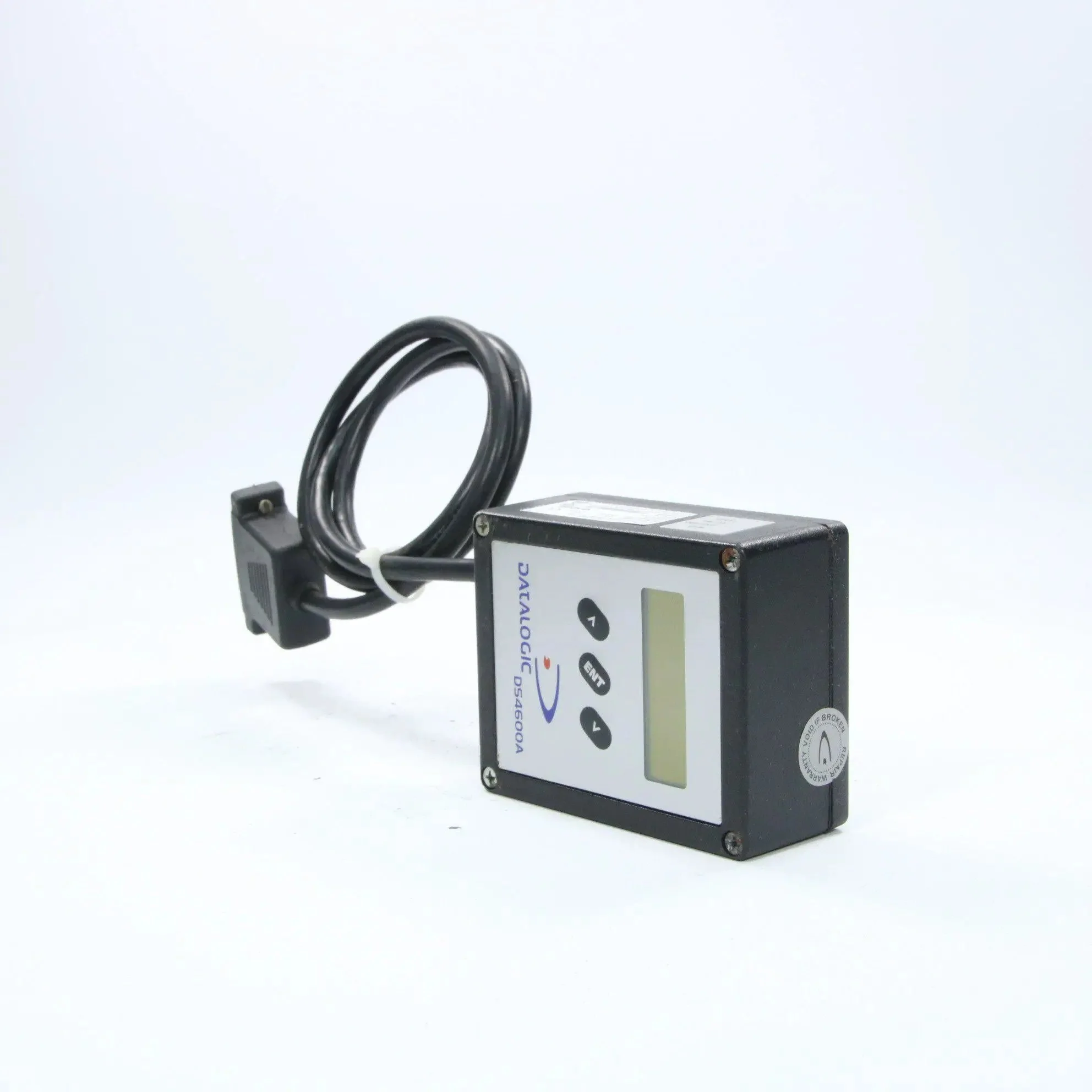

DATALOGIC DS4600A-2000 SCANNER

SDKELI LS0627BN M05 Laser Lidar

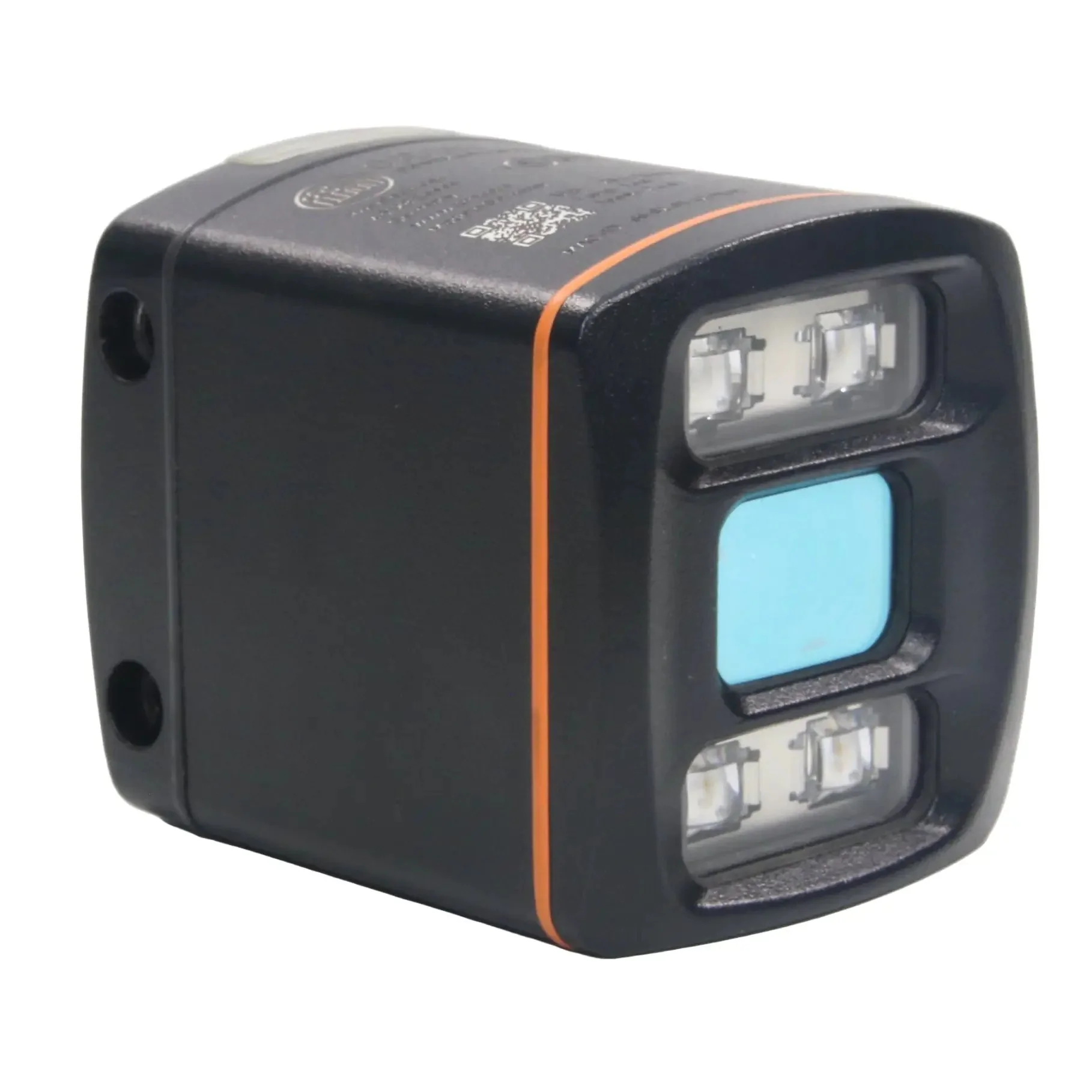

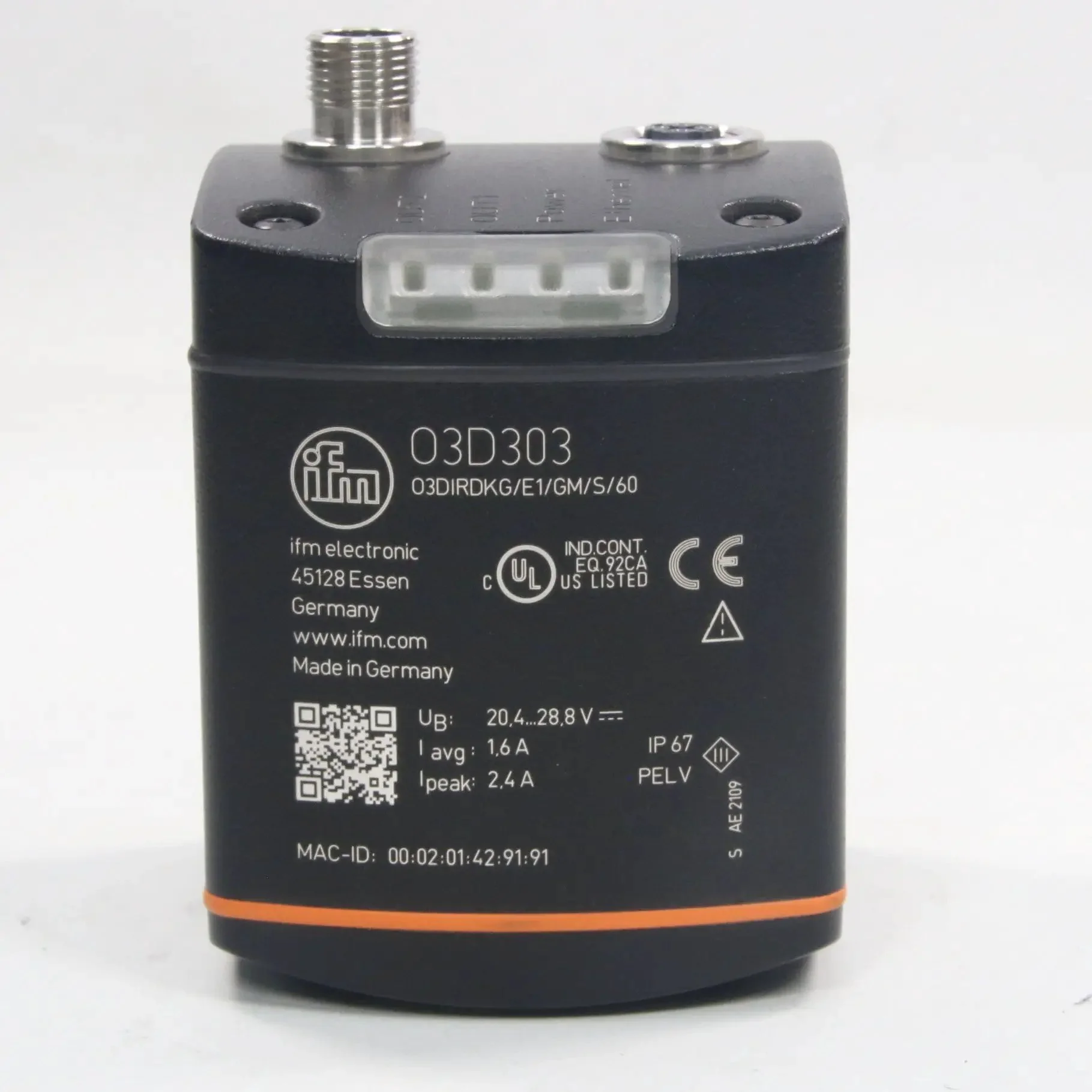

IFM O3D303 O3DIRDKG/E1/GM/S/60
