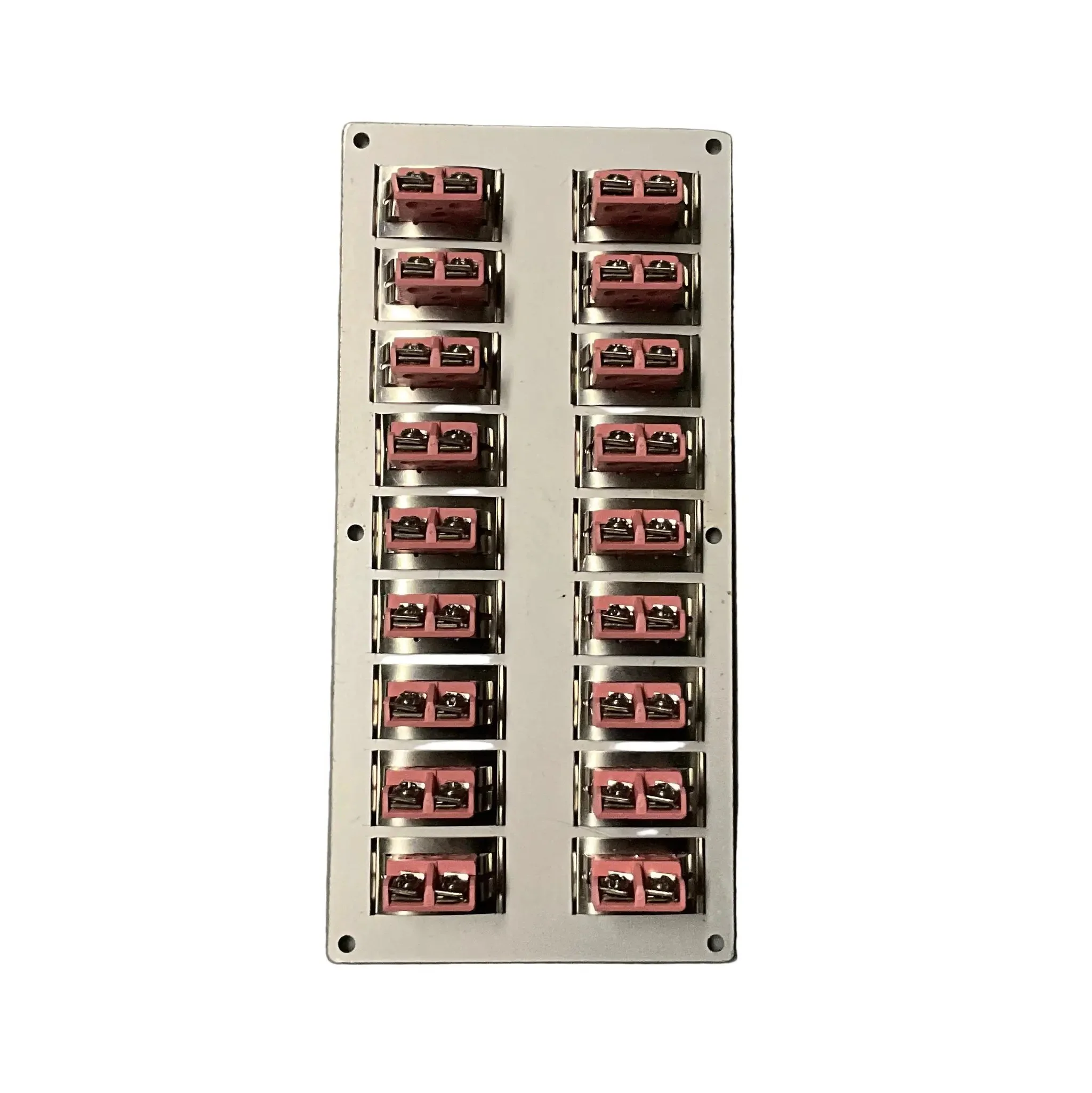

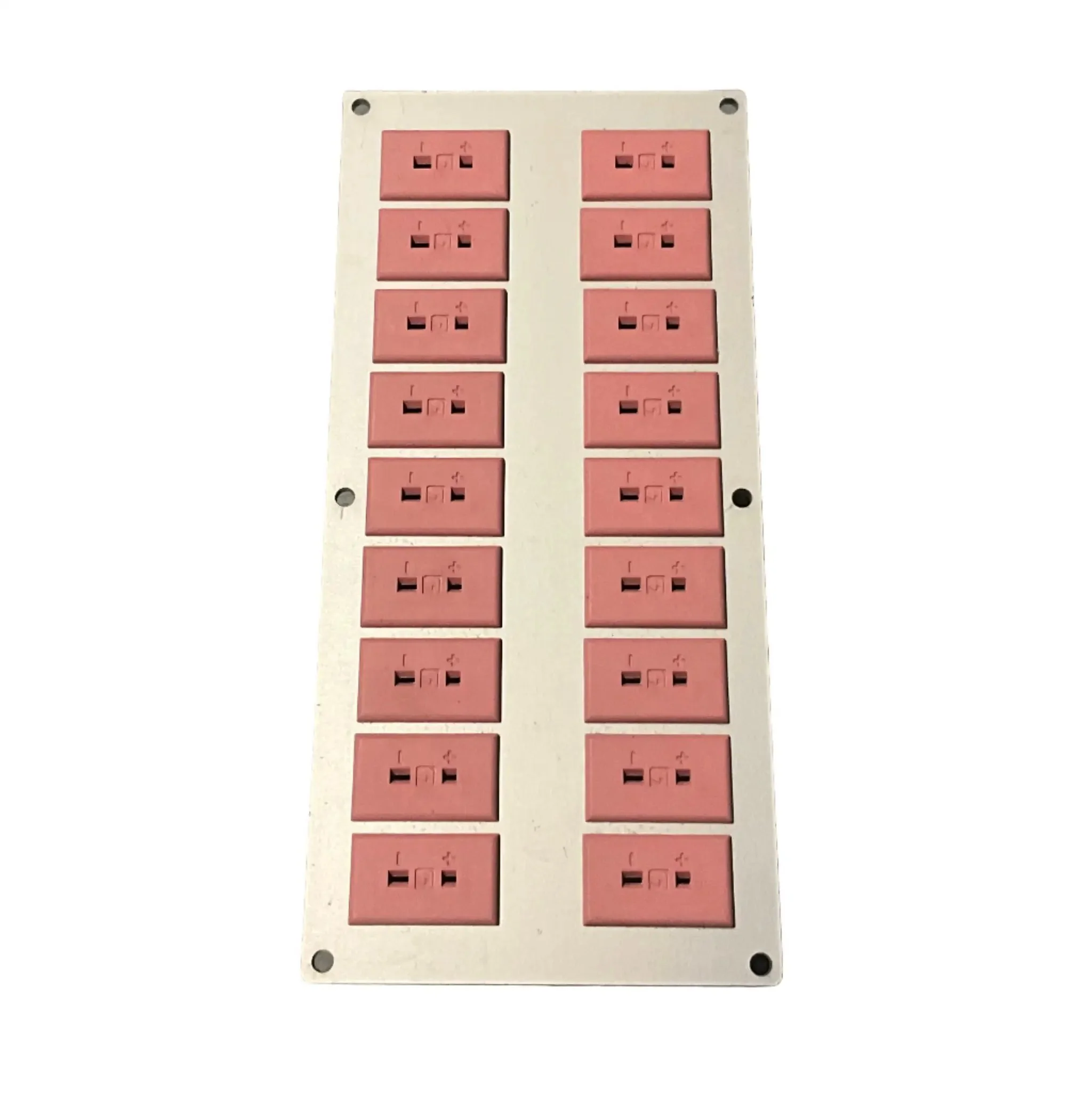

Pentronic Thermocouple Connector Panel - 18 Way

Brand: Pentronic
Product Type: Thermocouple Connector Panel (Type N)
Channel Count: 18‑way

Specifications:

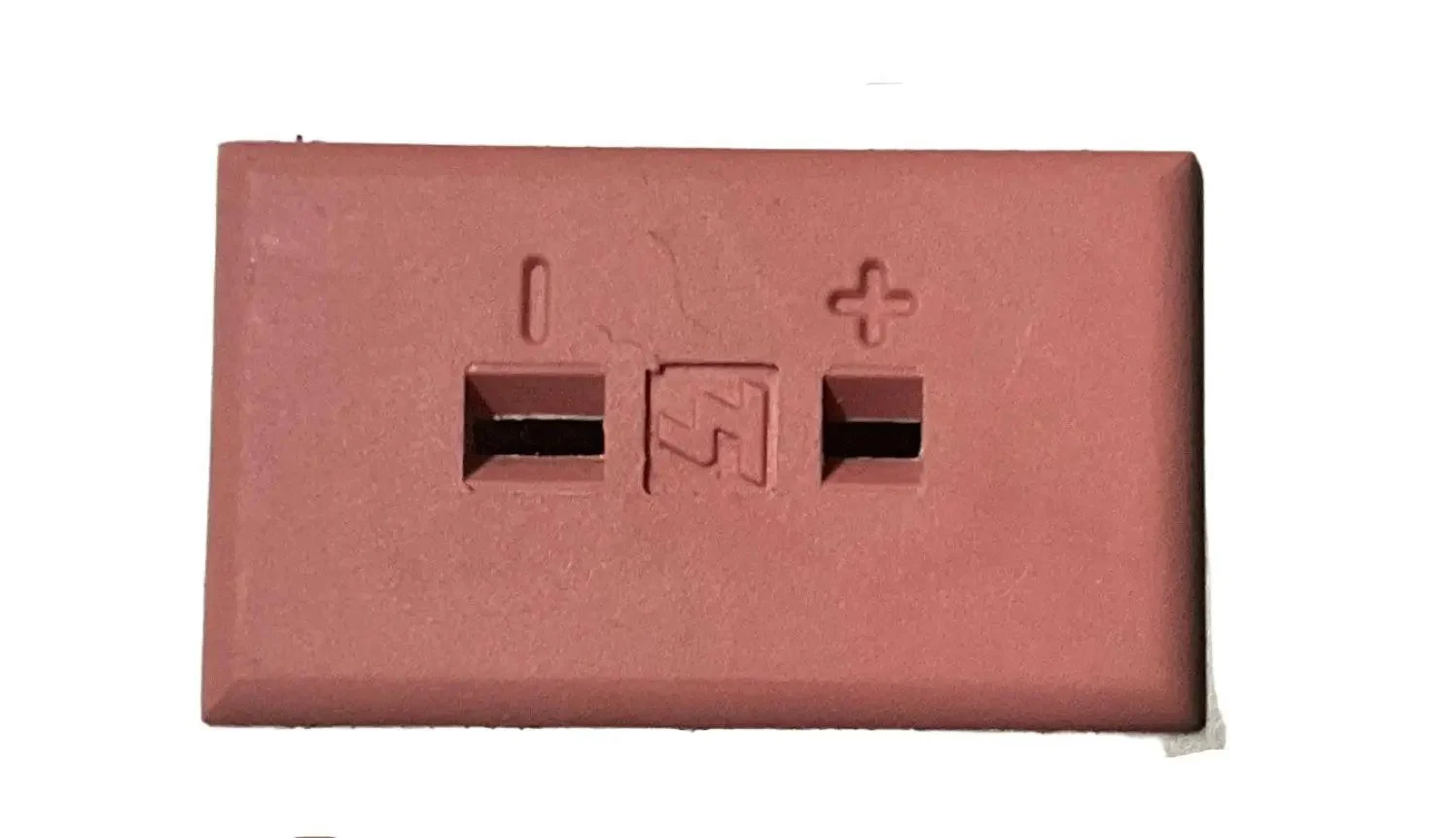

Socket Type: Miniature thermocouple jack, Type N (IEC standard)
Housing Material: Panel-mount, anodised aluminium
Maximum Ambient Temperature: Up to 120 °C
Panel Dimensions: 75 mm (H) × 160 mm (W) × 20mm (D)
Mounting: Designed for instrumentation panels or enclosure lids
Typical Applications: Test cells, instrumentation cabinets, process control panels, data acquisition systems
