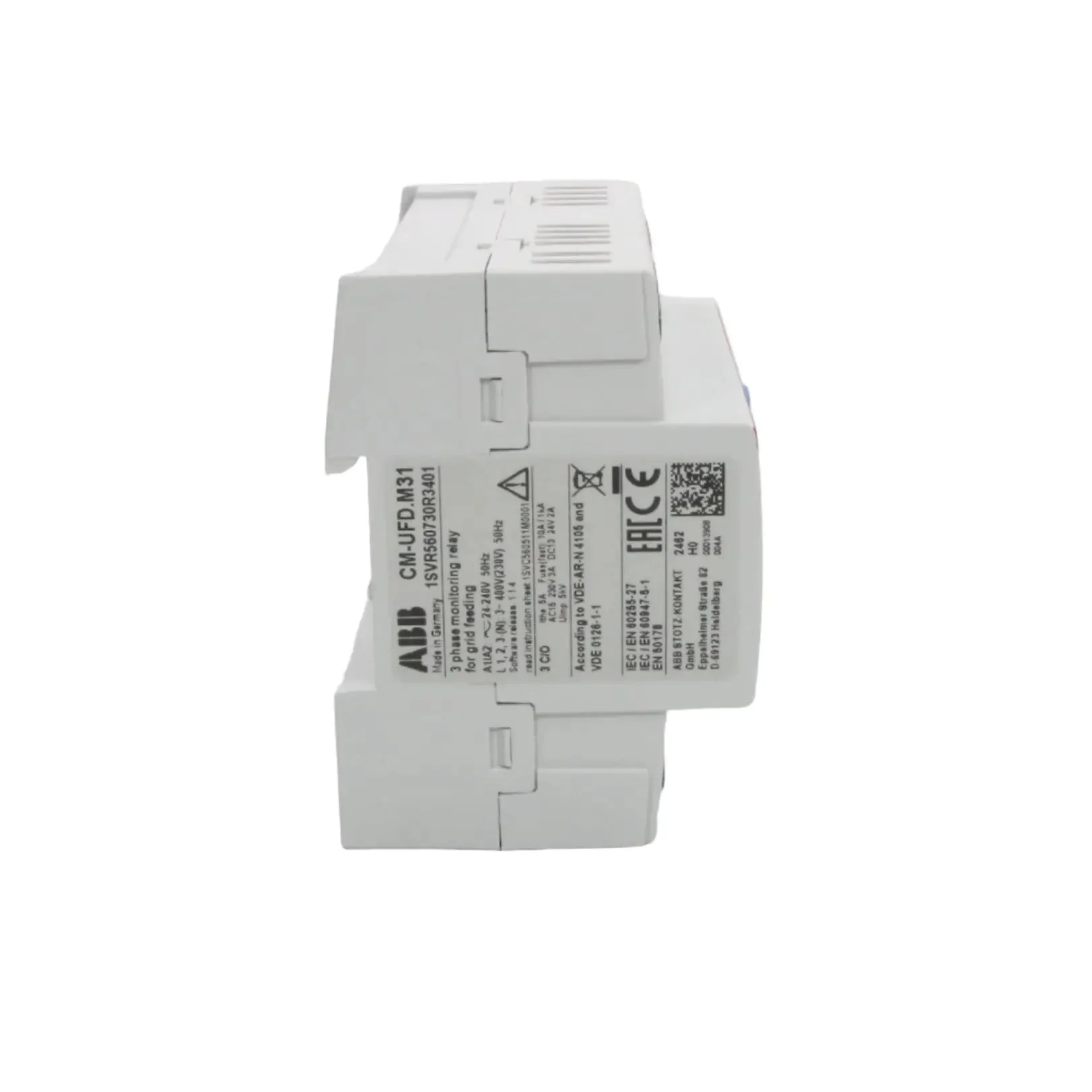

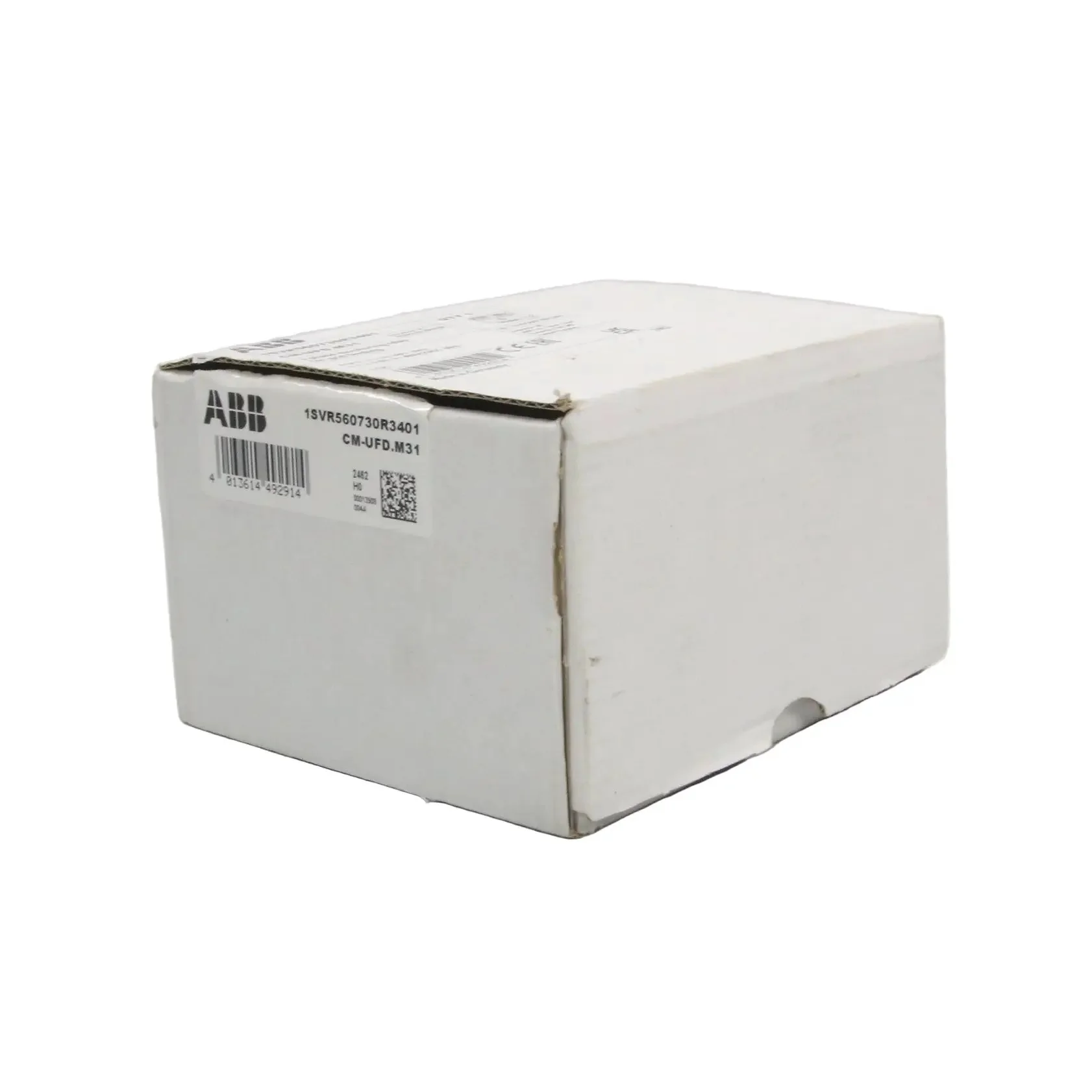

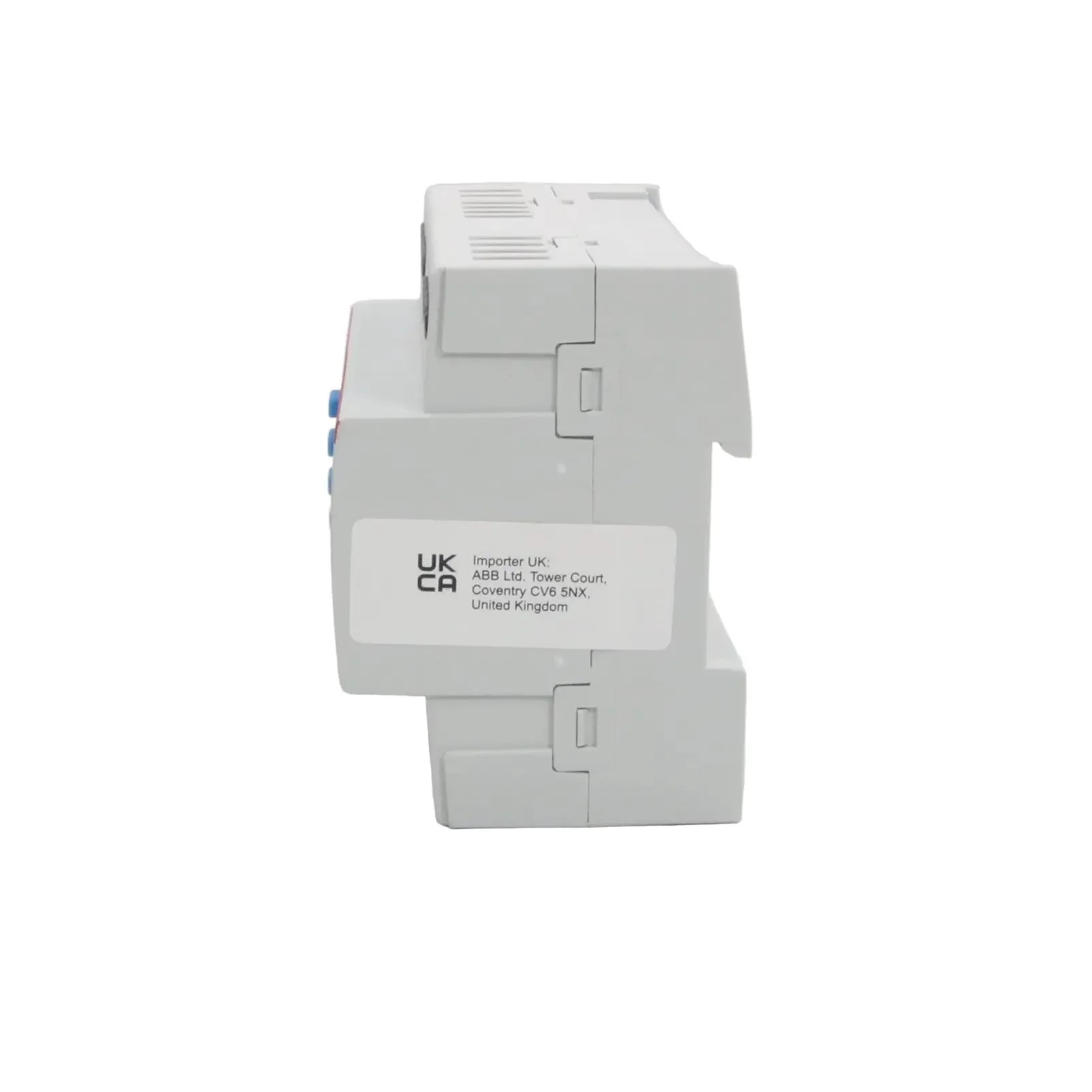

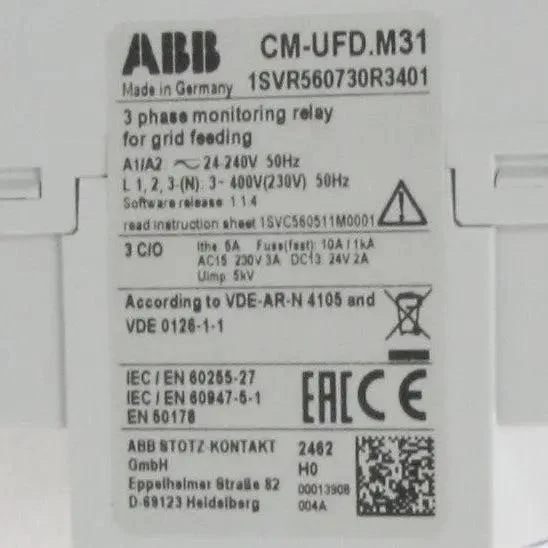

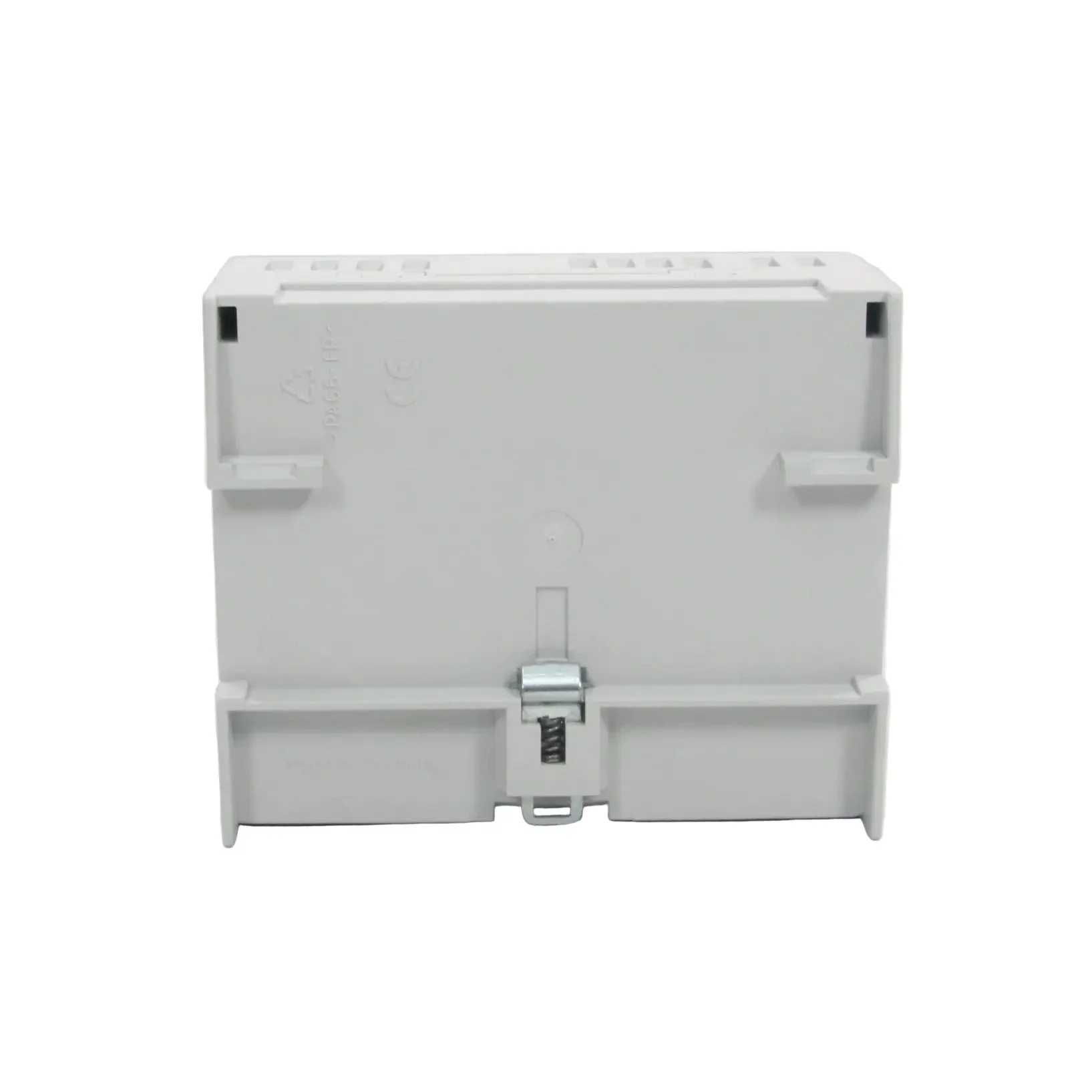

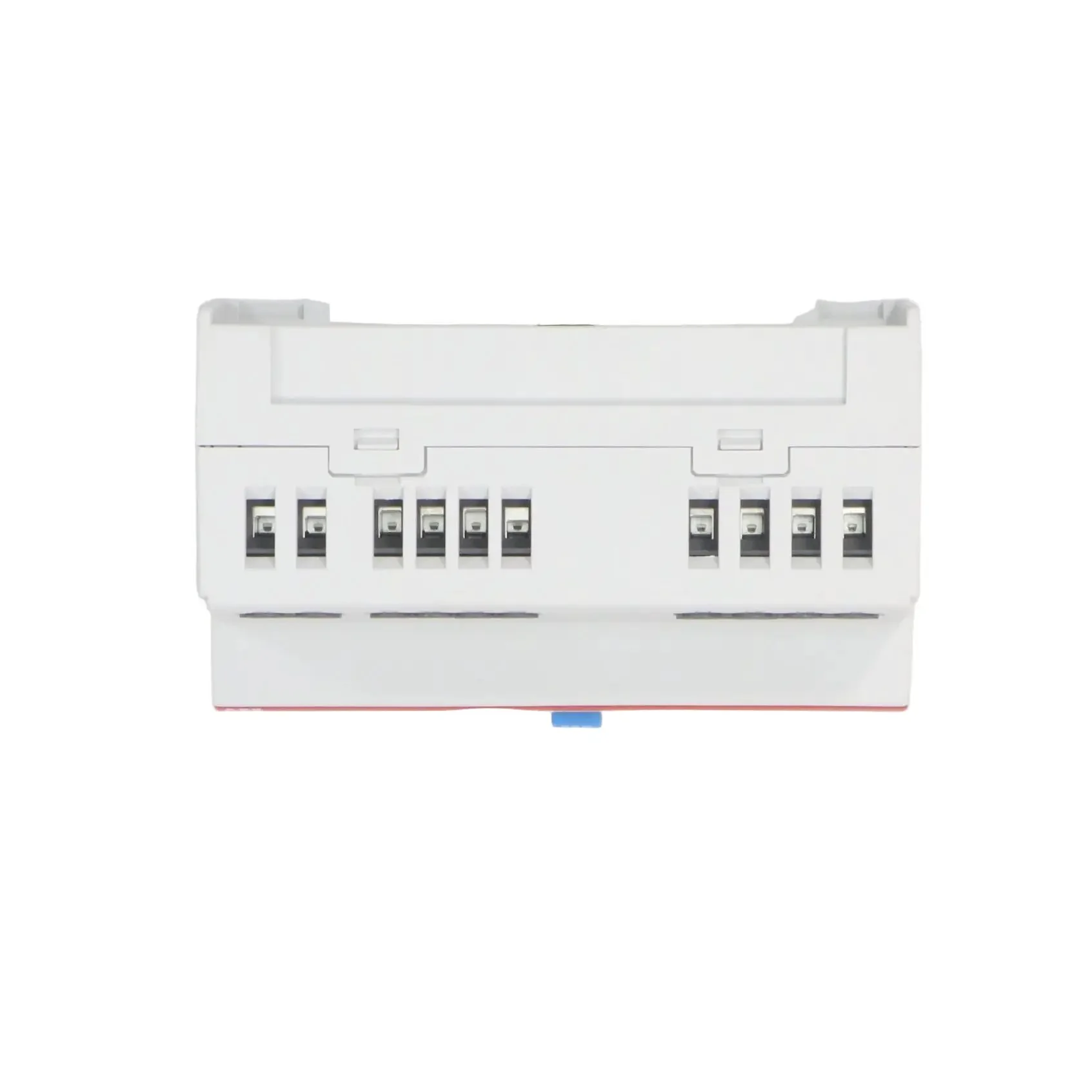

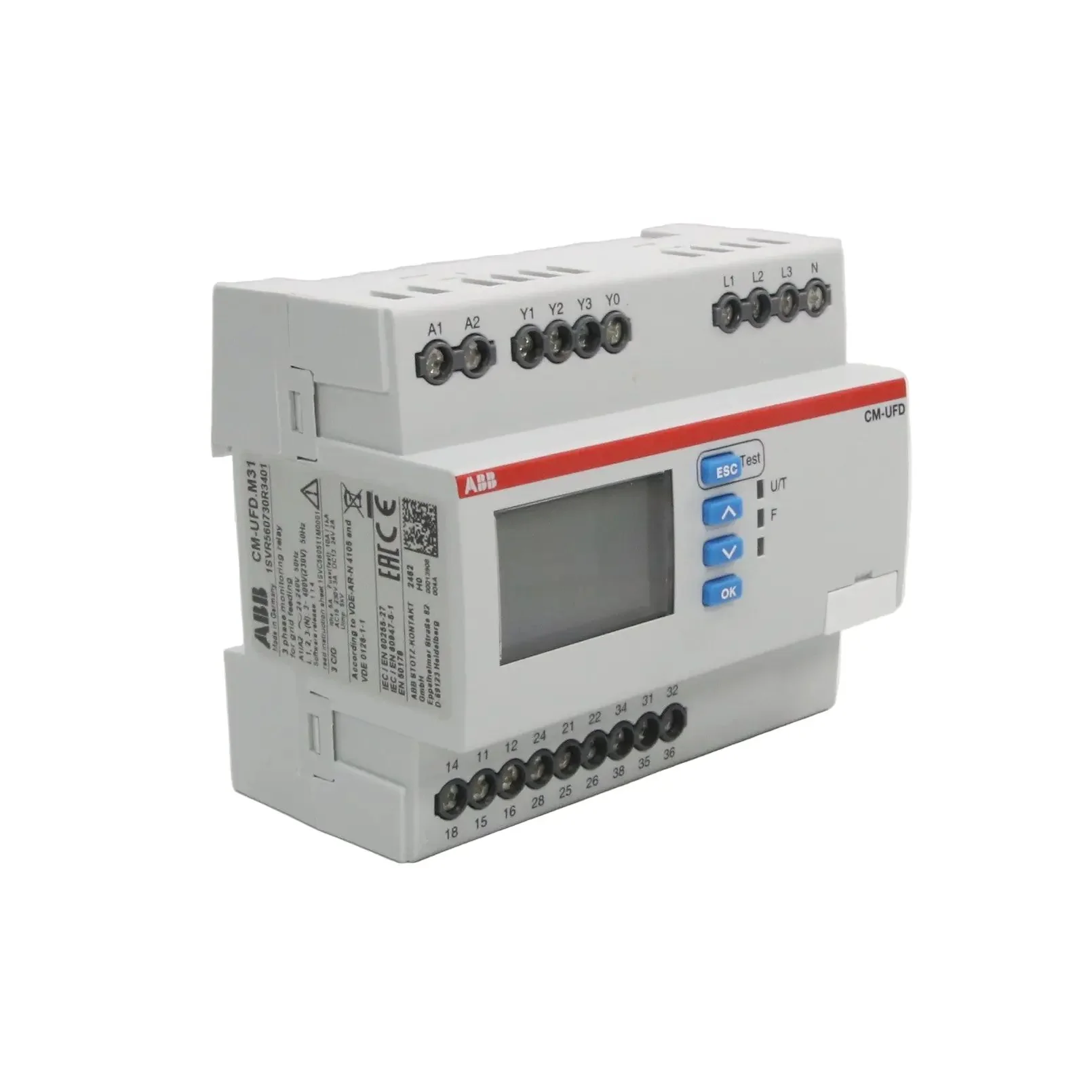

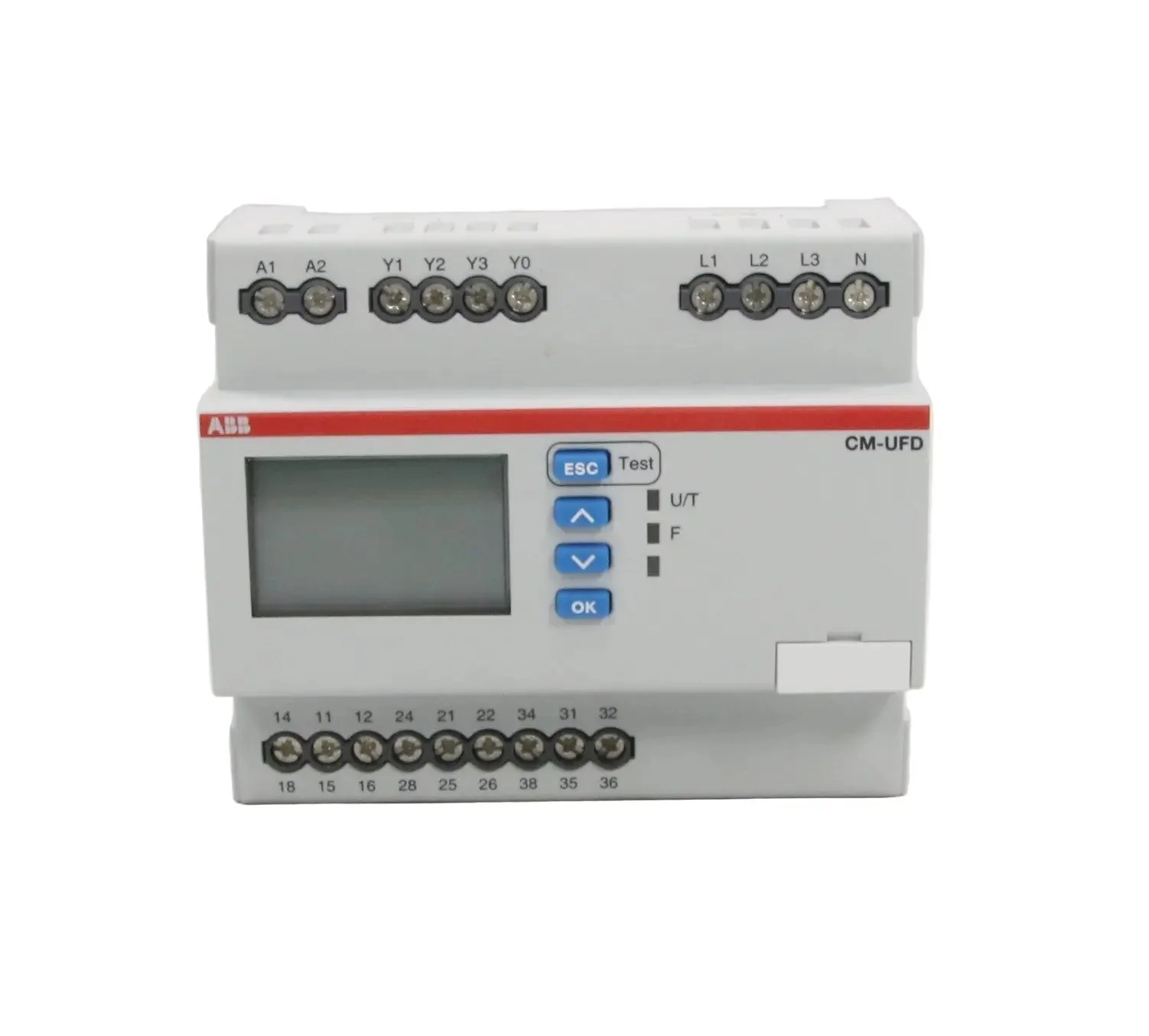

ABB CM-UFD.M31 3~Phase Monitoring Relay
Brand: ABB
Model: CM-UFD.M31
Type: 3~Phase Monitoring Relay
Part Number: 1SRV560730R3401
- Voltage: A1/A2 AC/DC 24 - 240 VAC, 50 Hz, L 1,2,3 (N): 3~ 400V(230V) 50Hz
- Monitoring Functions: Phase sequence, phase loss, asymmetry, under/overvoltage
- Accuracy: True RMS measurement
- Output Contacts: 2 changeover relays (SPDT, 5 A at 250 VAC)
- Reset: Automatic or manual (via test button)
- LED Indicators: Power on, fault status, relay energized
- Operating Temperature Range: -25°C to +65°C
- Humidity: 5-95% RH
- Protection Rating: IP20 (housing)
- Standards: IEC/EN 60255-6; CE marked; EMC compliant (Class A)
- Certification: CE; RoHS compliant; UL listed (optional)
- Features: Adjustable asymmetry threshold (2-20%); delay on energization (0.1-10 s); suitable for motors/pumps/compressors; compact design for control panels
Dimension: 120 x 100 x 80 mm
Weight: 400 g
Country of Origin: Germany
HS Code: 8536.49
Original: $869.67
-70%$869.67
$260.90
Description
Brand: ABB
Model: CM-UFD.M31
Type: 3~Phase Monitoring Relay
Part Number: 1SRV560730R3401
- Voltage: A1/A2 AC/DC 24 - 240 VAC, 50 Hz, L 1,2,3 (N): 3~ 400V(230V) 50Hz
- Monitoring Functions: Phase sequence, phase loss, asymmetry, under/overvoltage
- Accuracy: True RMS measurement
- Output Contacts: 2 changeover relays (SPDT, 5 A at 250 VAC)
- Reset: Automatic or manual (via test button)
- LED Indicators: Power on, fault status, relay energized
- Operating Temperature Range: -25°C to +65°C
- Humidity: 5-95% RH
- Protection Rating: IP20 (housing)
- Standards: IEC/EN 60255-6; CE marked; EMC compliant (Class A)
- Certification: CE; RoHS compliant; UL listed (optional)
- Features: Adjustable asymmetry threshold (2-20%); delay on energization (0.1-10 s); suitable for motors/pumps/compressors; compact design for control panels
Dimension: 120 x 100 x 80 mm
Weight: 400 g
Country of Origin: Germany
HS Code: 8536.49
