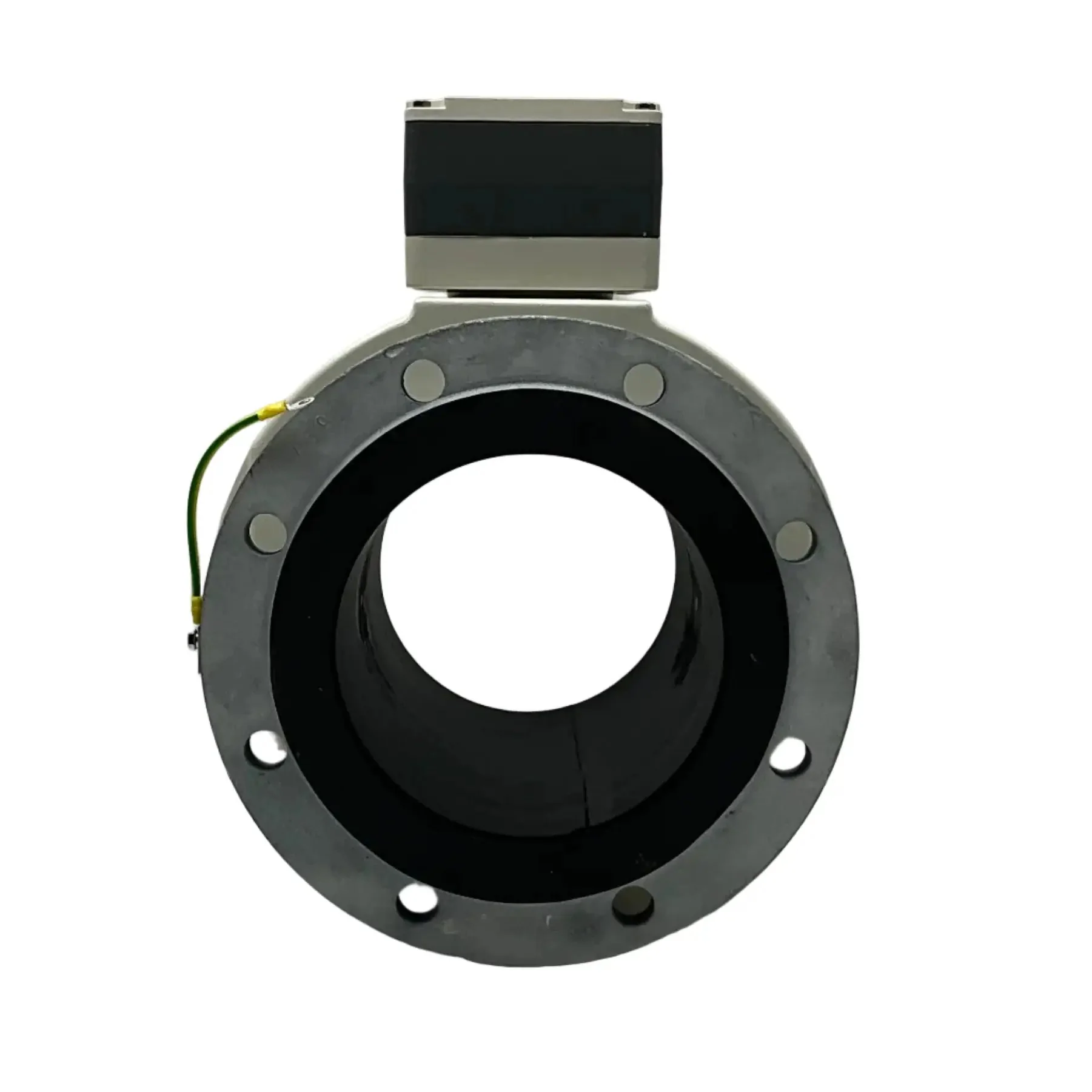

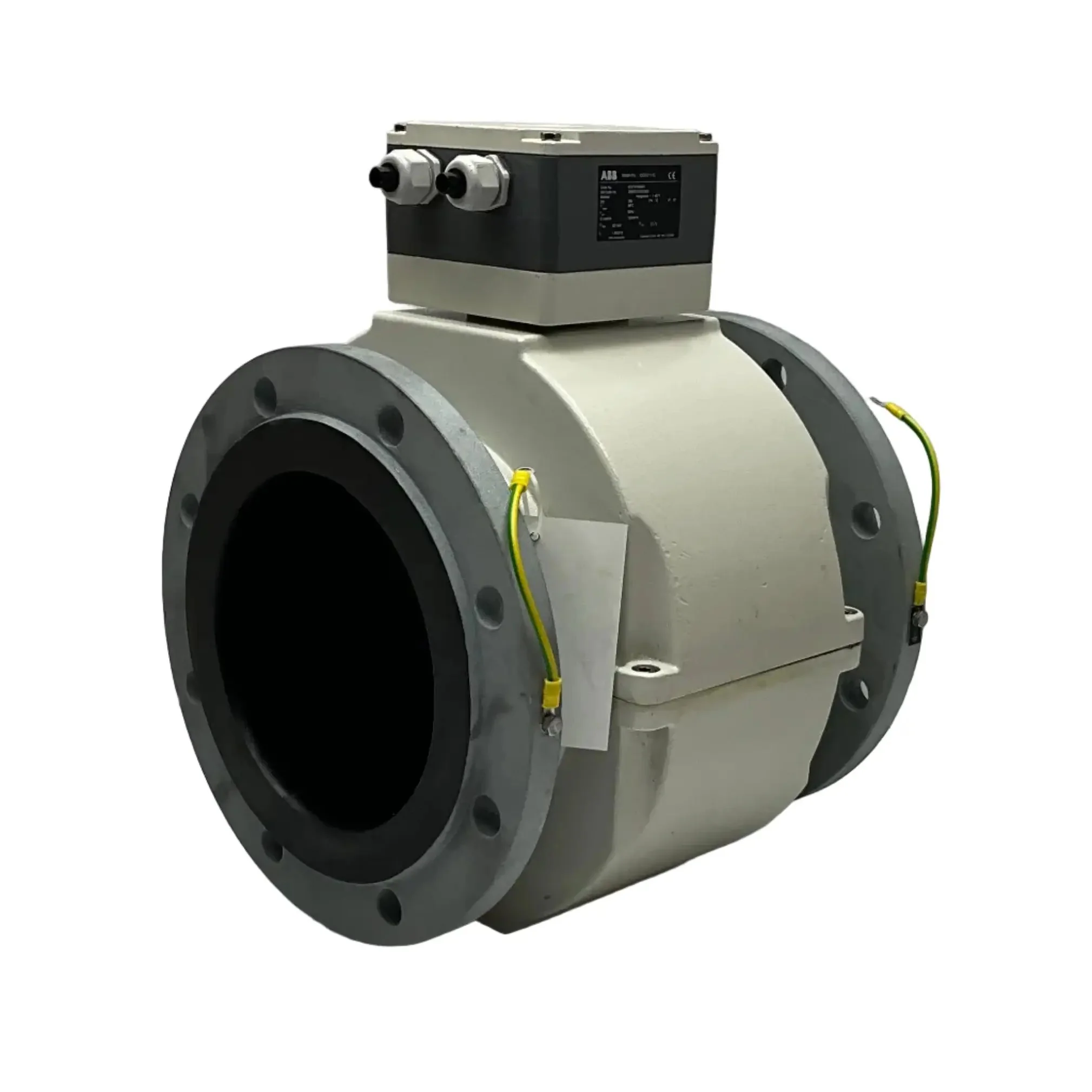

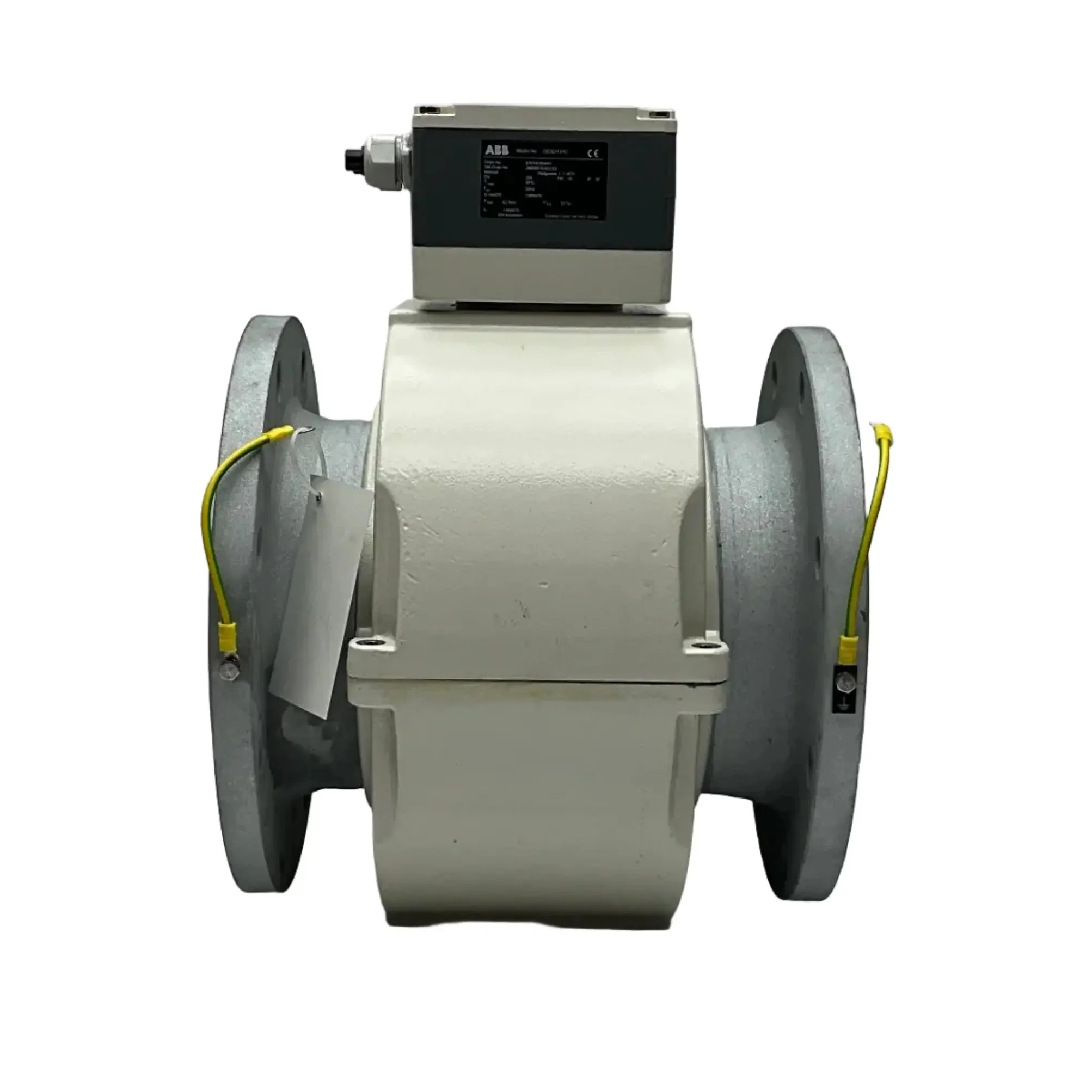

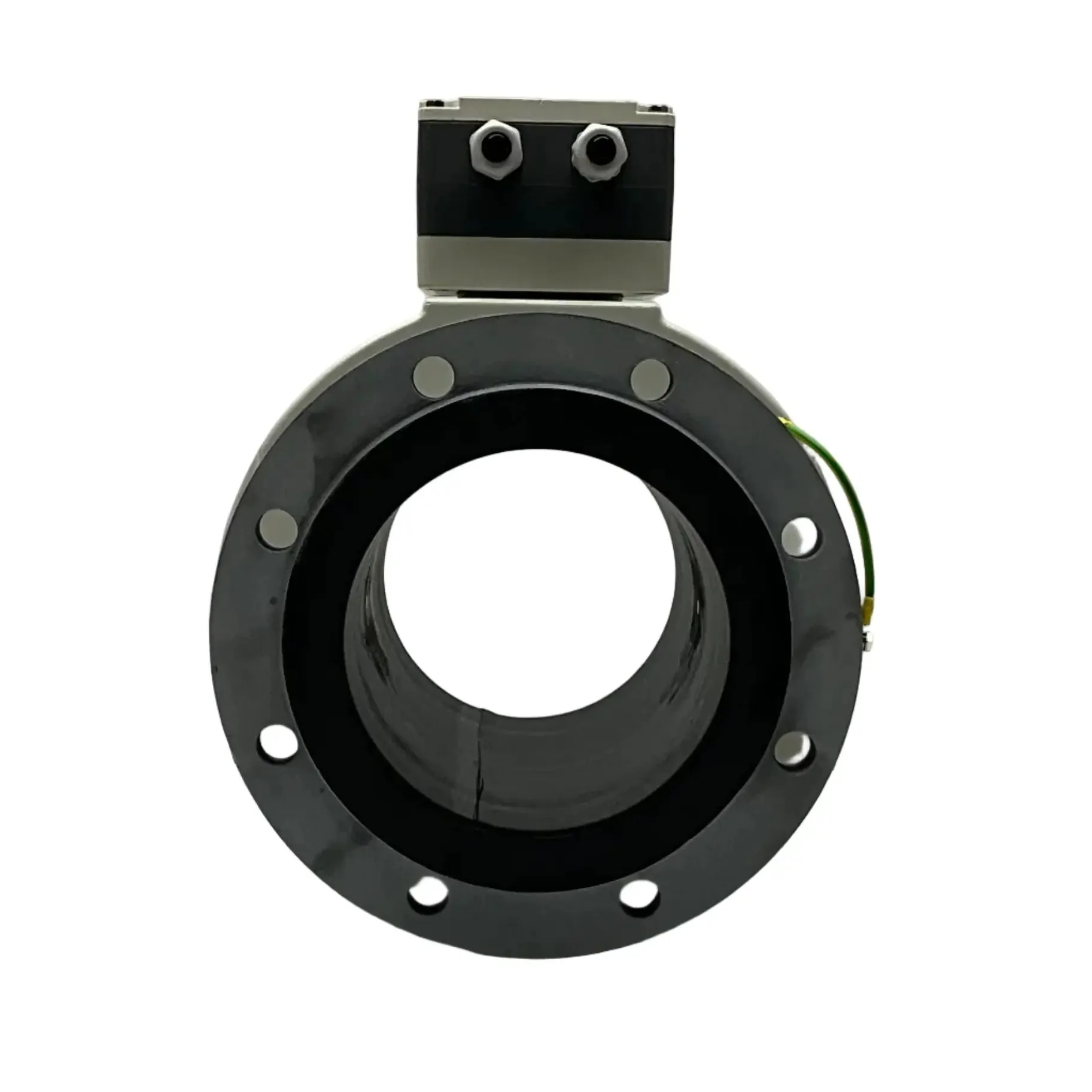

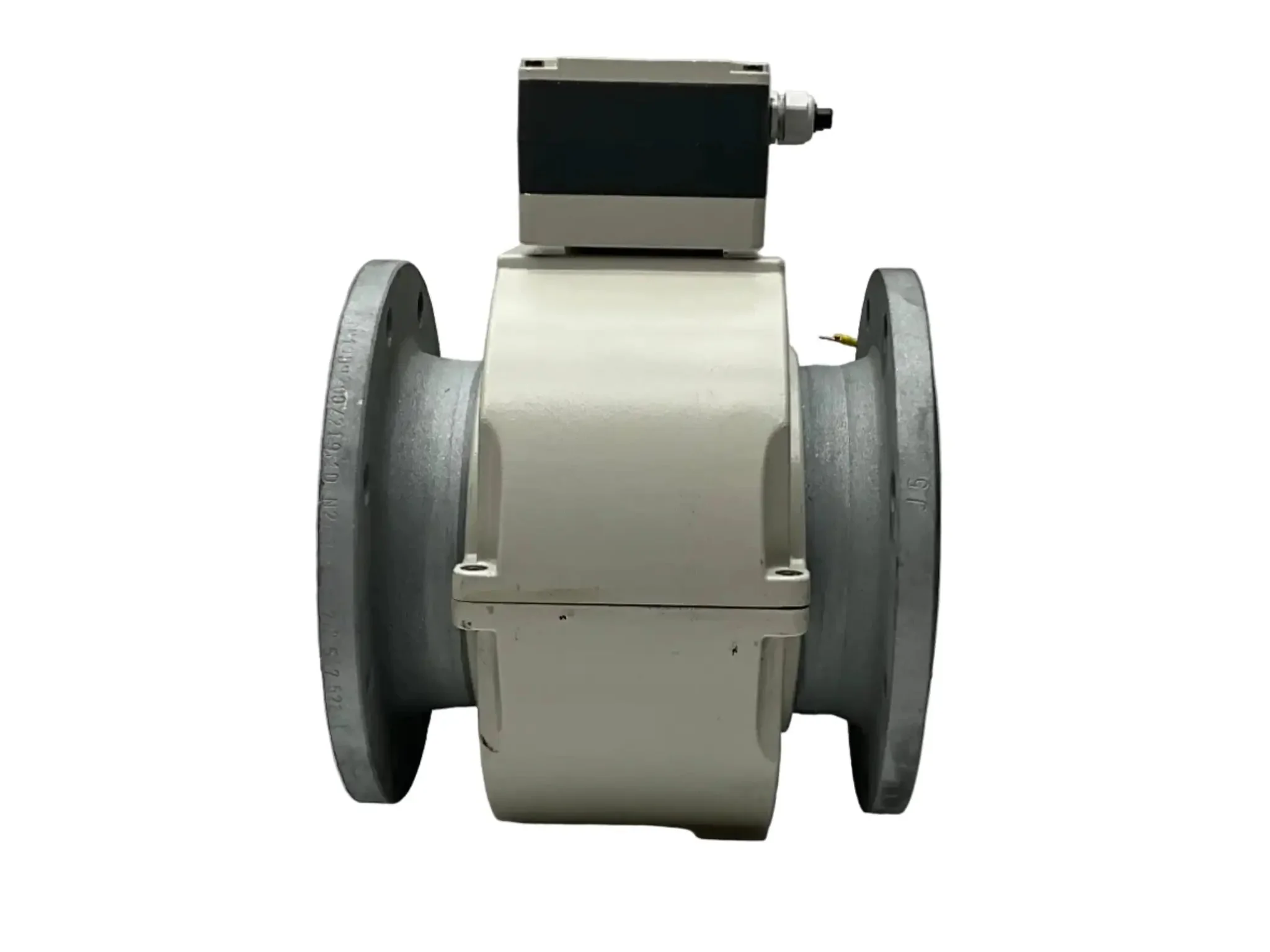

ABB 10DS3111C Electromagnetic Flow Meter
- Brand: ABB
- Model: 10DS3111C
- Type: Electromagnetic Flow Meter

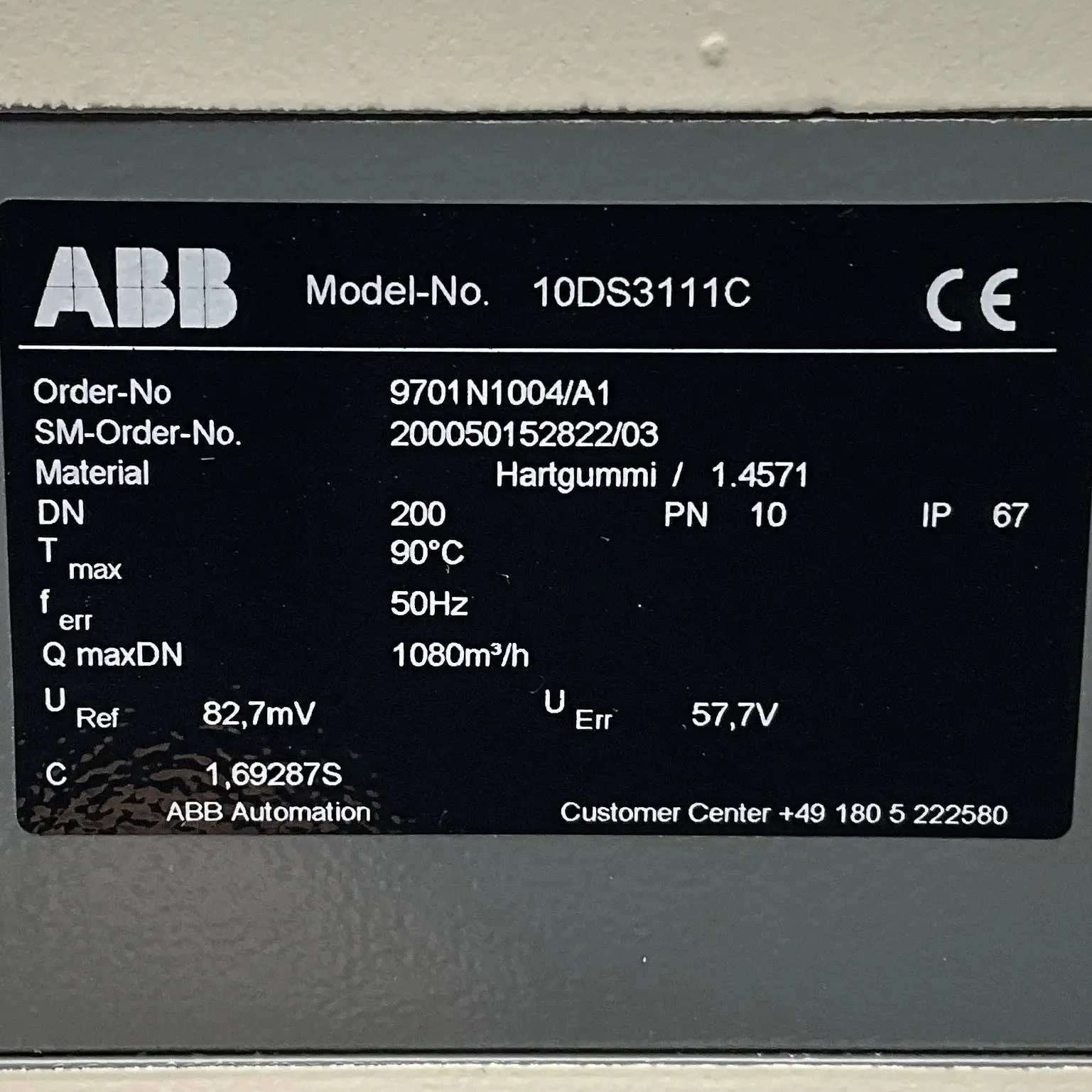

- Order Number: 9701N1004/A1
- Technical Specs:
- Measuring Principle: Electromagnetic
- Nominal Diameter: DN 200
- Materials: Hard Rubber liner/ 1.4571 Titanium stabilised steel (AISI 316Ti)
- Electrode Material: Hastelloy C (A1 likely indicates Hastelloy C)

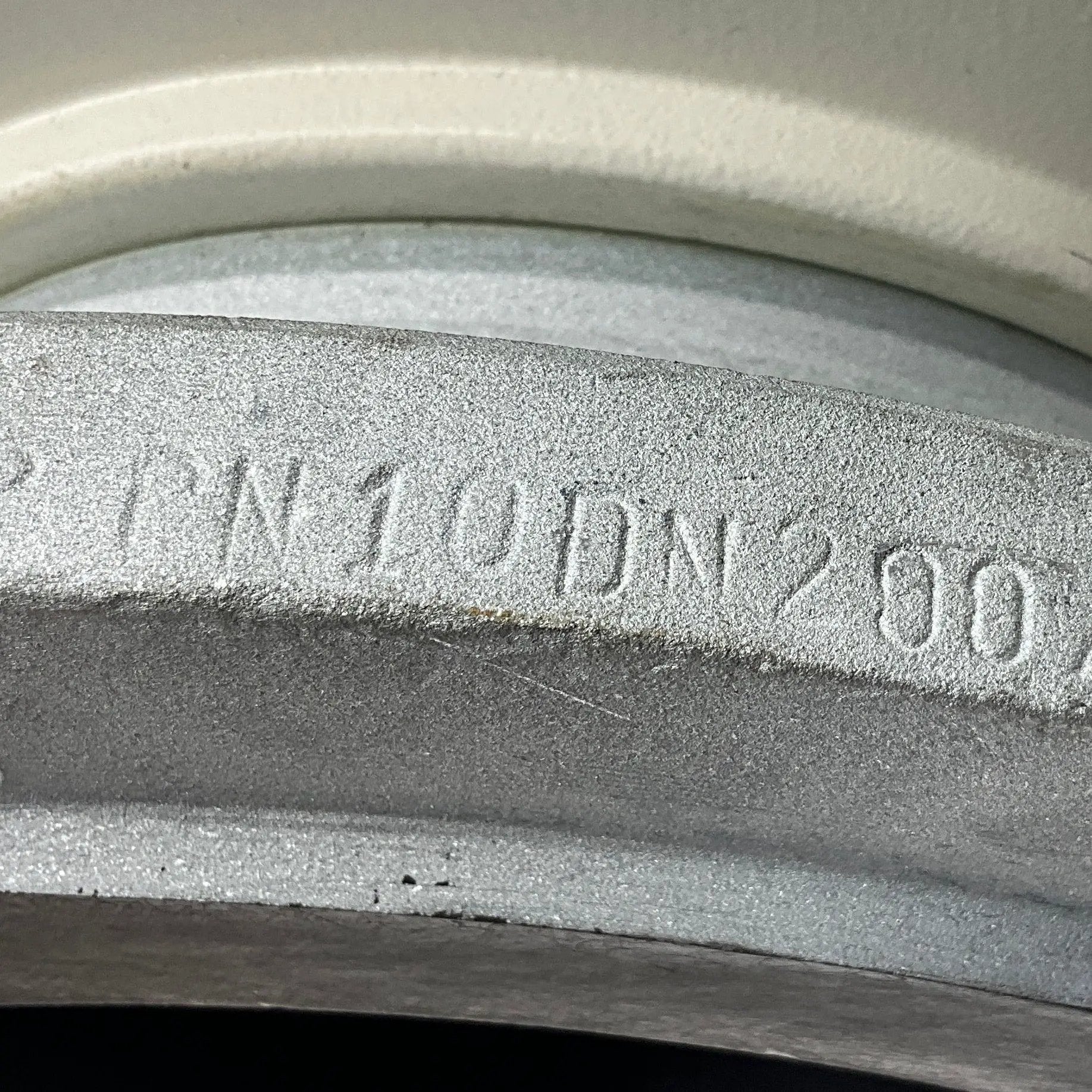

- Process Connection: Flange DN 200 PN 10
- Maximum Pressure Rating: 10 bar at 20 °C
- Process Temperature Range: -20 °C to +90 °C
- Ambient Temperature Range: -20 °C to +60 °C
- Q. MaxDN: 1080 m3/h
- Accuracy: ±0.5 % of rate
- Repeatability: ±0.15 % of rate
- Conductivity: ≥ 5 µS/cm
- Output Signal: 4–20 mA (active/passive)
- Power Supply: 100–240 V AC, 50/60 Hz or 24 V DC/AC (depending on transmitter)
- Protection Class: IP67 / NEMA 6P
- Additional Features:
- Fully welded construction for high durability
- No moving parts – maintenance-free
- Empty pipe detection
- Bi-directional flow measurement
- Low pressure drop
- Grounding/earthing electrodes included
- Certifications: CE, PED (Category III), WRAS (drinking water)
Dimensions: 360 x 330 x 480 mm
Weight: 45 kg
Country of Origin: Germany
HS Code: 9026.10
