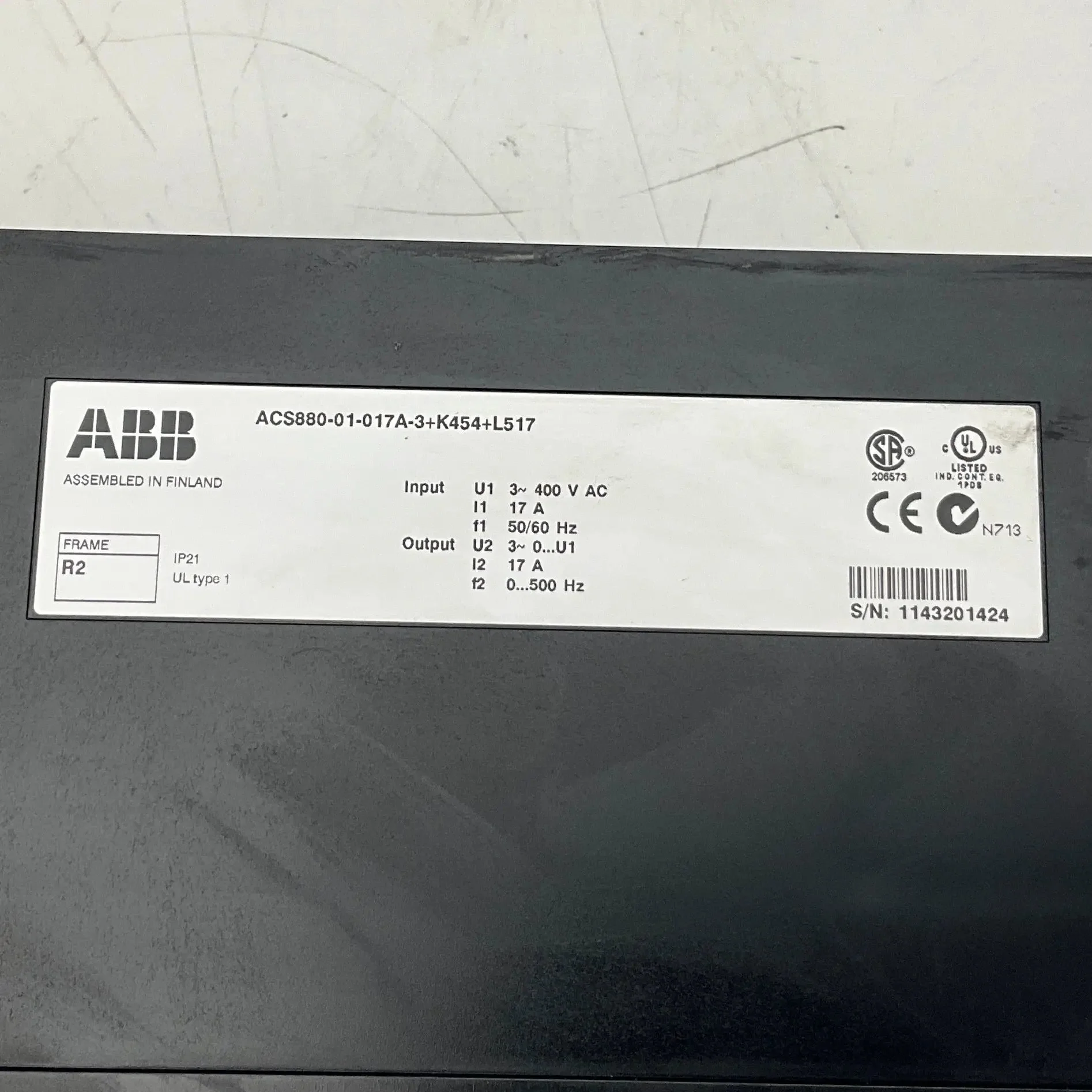

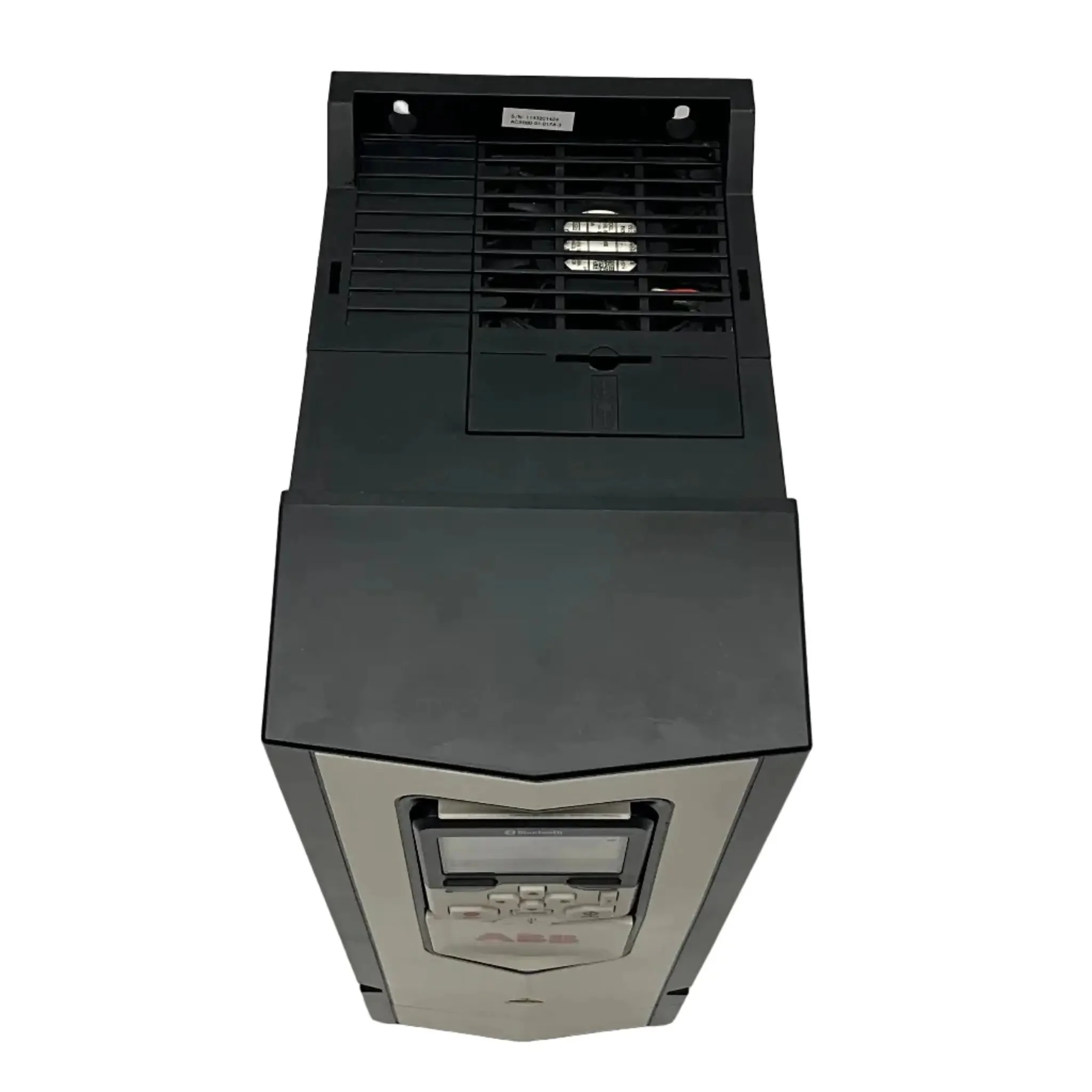

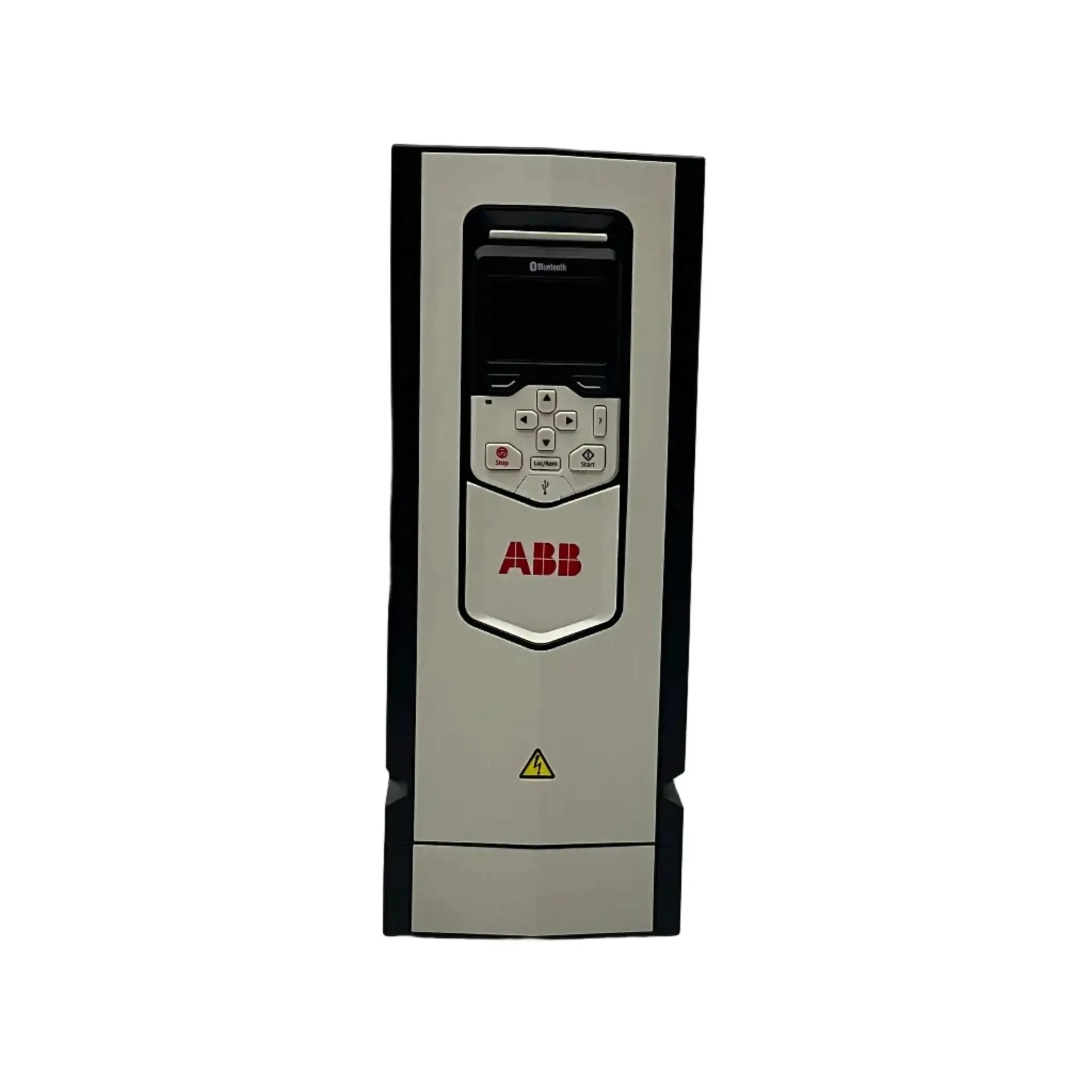

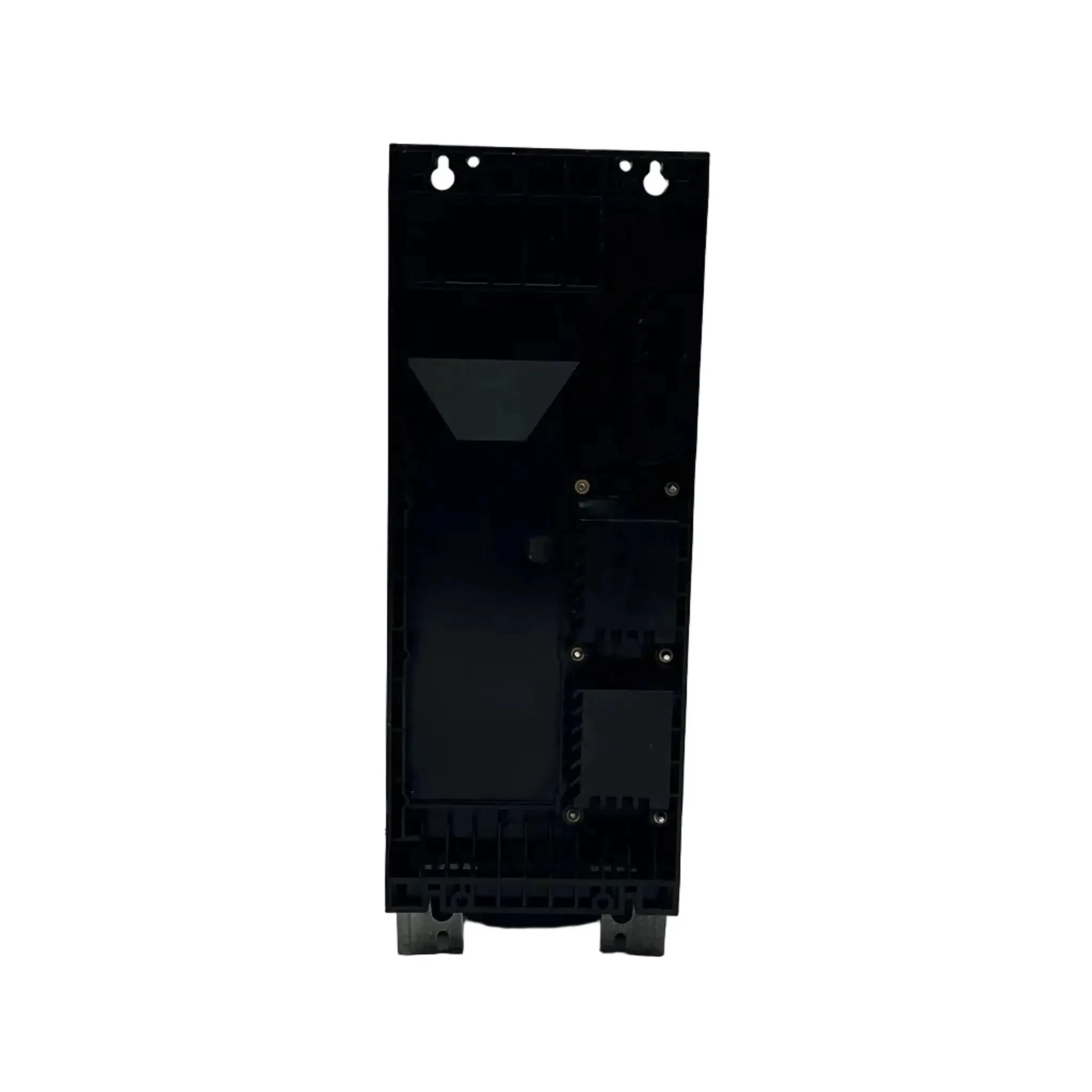

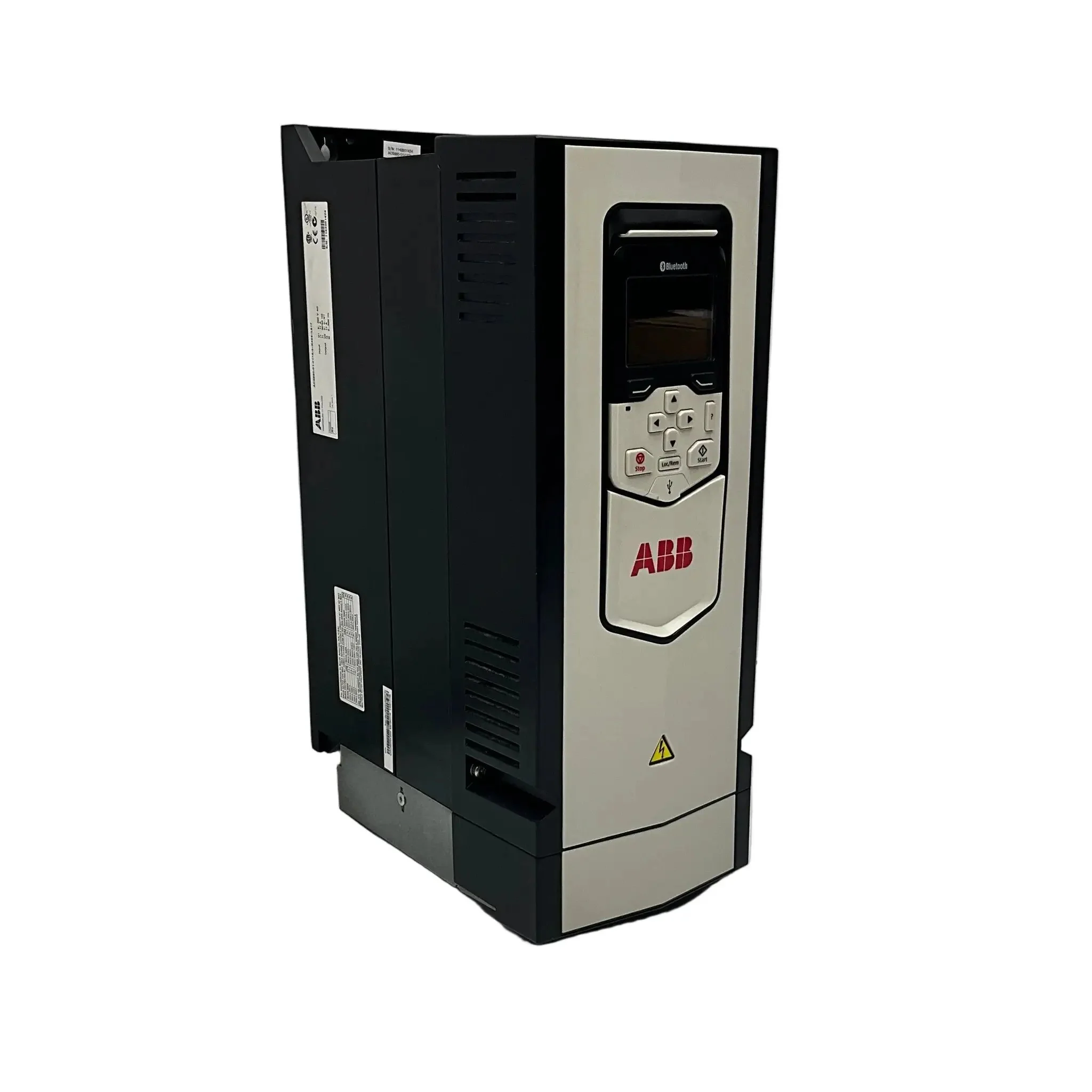

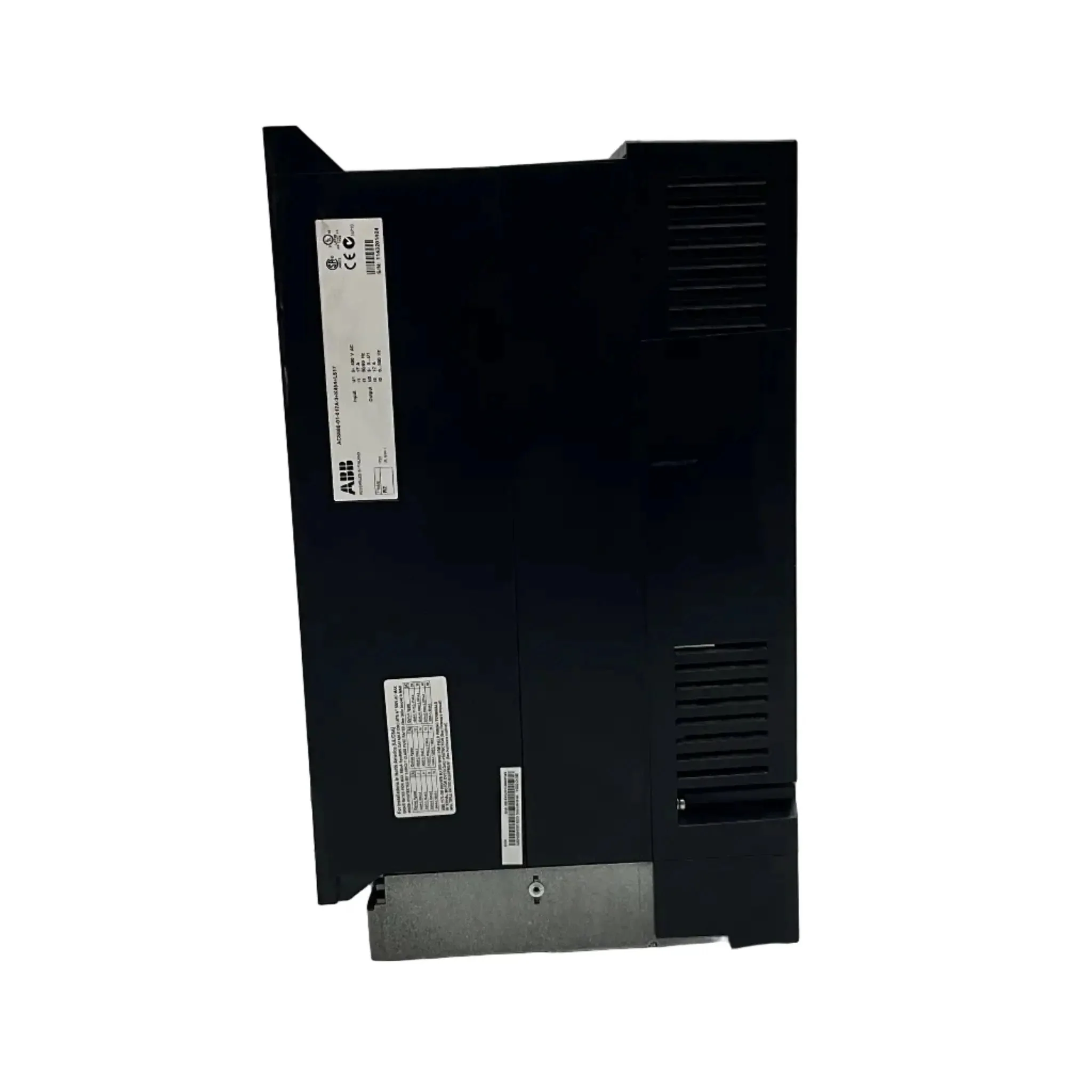

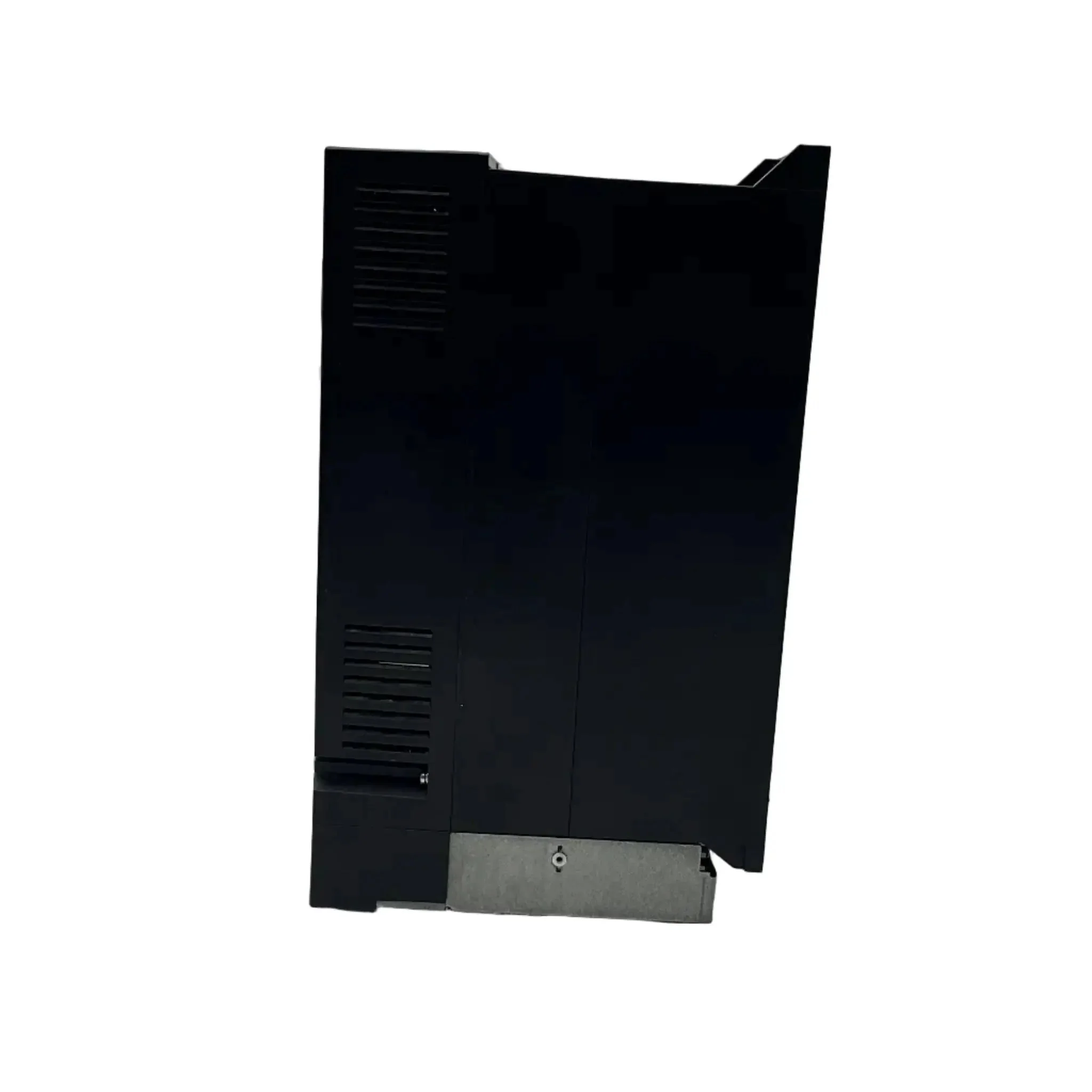

ABB ACS880-01-017A-3 AC Inverter Drive
Brand: ABB
Model: ACS880-01-017A-3
Type: Variable Speed Drive (VSD) / AC Inverter
Part Number: 3ABD00038080-D
Technical Specs:
- Rated Power: 7.5 kW (10 HP)
- Rated Voltage: 380-400 V AC, 3-phase (UN = 400 V, range 380 to 415 V)
- Rated Current: 17 A (IN)
- Frequency: 50/60 Hz
- Overload Capacity: 150% for 60 s
- Control Method: Direct Torque Control (DTC), scalar/V/f, vector control
- Starting Torque: 200% at 0 Hz (with DTC)
- Output Frequency Range: 0-599 Hz
- Protection Features: Overcurrent, overvoltage, undervoltage, overtemperature, ground fault, phase imbalance, motor stall, thermal protection
- Communication: Modbus RTU (standard), Profibus DP,
- Enclosure Rating: IP21 / UL Type 1
- Operating Temperature: 0°C to 40°C
- Frame: R2
- Humidity: 0-95% RH (non-condensing)
- Options:
- +K454: FPBA-01 PROFIBUS DP communication module
- +L517: FEN-01 encoder interface module
- Additional Features: Built-in choke for harmonic filtering, brake chopper (R1-R4 frames), Safe Torque Off (STO), adaptive programming, built-in diagnostics
Dimensions: 260 x 150 x 400 mm
Weight: 8.5 kg
Country of Origin: Finland
HS Code: 8504.40
Original: $182,679.98
-70%$182,679.98
$54,803.99
Description
Brand: ABB
Model: ACS880-01-017A-3
Type: Variable Speed Drive (VSD) / AC Inverter
Part Number: 3ABD00038080-D
Technical Specs:
- Rated Power: 7.5 kW (10 HP)
- Rated Voltage: 380-400 V AC, 3-phase (UN = 400 V, range 380 to 415 V)
- Rated Current: 17 A (IN)
- Frequency: 50/60 Hz
- Overload Capacity: 150% for 60 s
- Control Method: Direct Torque Control (DTC), scalar/V/f, vector control
- Starting Torque: 200% at 0 Hz (with DTC)
- Output Frequency Range: 0-599 Hz
- Protection Features: Overcurrent, overvoltage, undervoltage, overtemperature, ground fault, phase imbalance, motor stall, thermal protection
- Communication: Modbus RTU (standard), Profibus DP,
- Enclosure Rating: IP21 / UL Type 1
- Operating Temperature: 0°C to 40°C
- Frame: R2
- Humidity: 0-95% RH (non-condensing)
- Options:
- +K454: FPBA-01 PROFIBUS DP communication module
- +L517: FEN-01 encoder interface module
- Additional Features: Built-in choke for harmonic filtering, brake chopper (R1-R4 frames), Safe Torque Off (STO), adaptive programming, built-in diagnostics
Dimensions: 260 x 150 x 400 mm
Weight: 8.5 kg
Country of Origin: Finland
HS Code: 8504.40
