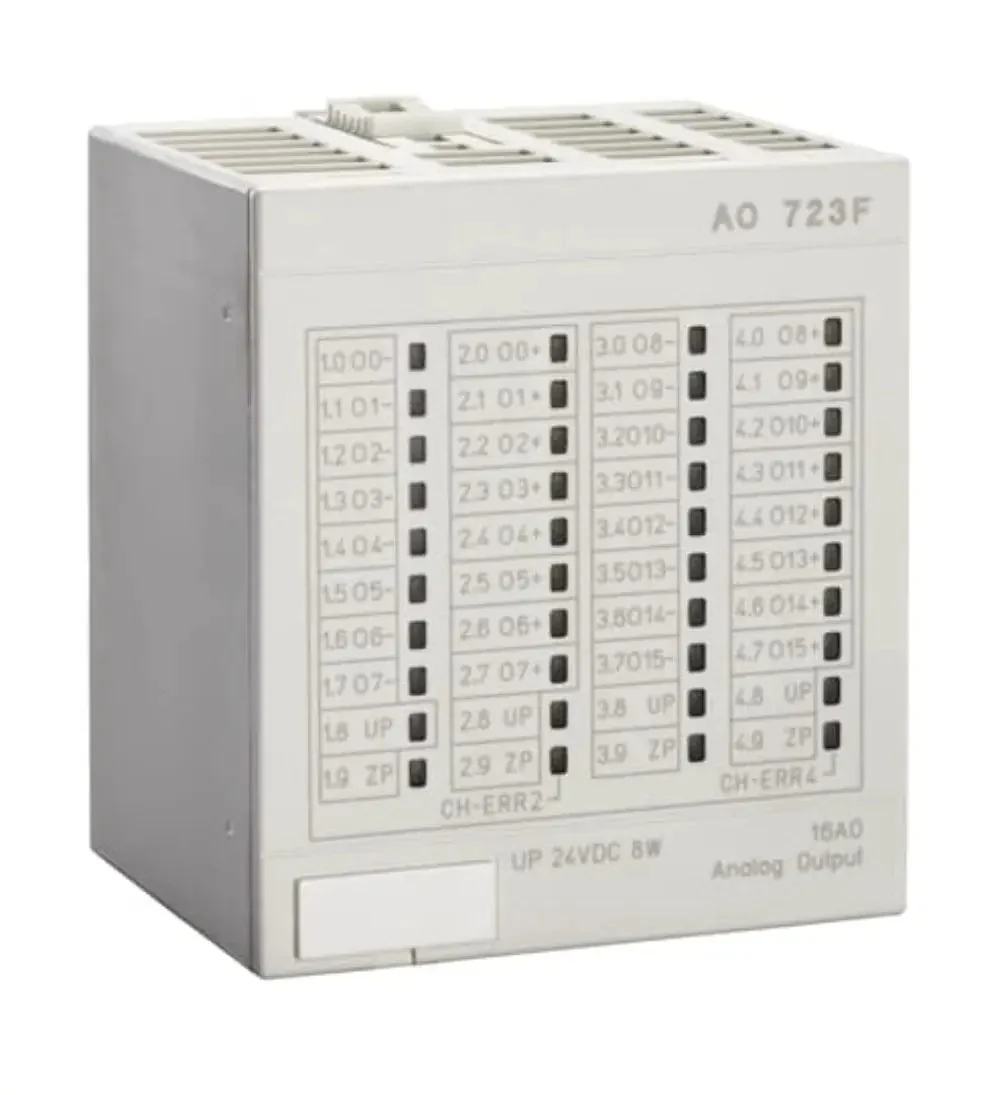

ABB AO 723F Analog Output Module

- Brand: ABB

- Model: AO 723F

- Part Number: 3BDH000384R0005

- Type: Analog Output Module - S700 I/O Series for Freelance AC 700F / AC 900F DCS

- All tech specs:
- Number of channels: 16 analog outputs, arranged in two groups
- Channel configuration: 8 channels configurable as voltage or current output (-10…+10 V; 0…20 mA or 4…20 mA), 8 channels configurable as voltage output only (-10…+10 V)
- Resolution: 12-bit + sign
- Connection: 2-wire
- Power supply: 24 V DC
- Power consumption: 6 W
- Isolation: Galvanic isolation to backplane
- Compatible Termination Units: TU715F, TU716F
- Bus communication: PROFIBUS DP-V0 slave (as remote I/O)
- Operating features: High packing density, flexible configuration per channel/group, suitable for process control applications requiring analog setpoint or actuator signals
- Protection class: IP20
- Temperature range: 0 to +60 °C
- Certifications: cULus, Class I Div 2 (S700 series compliant)
- Part of ABB S700 I/O family: Compact modules for Freelance DCS, supports mixed I/O, easy DIN-rail mounting via TU

Dimensions: 85 x 70 x 75 mm (box)

Weight: 180 g

Country of origin: Germany

HS code: 853890
