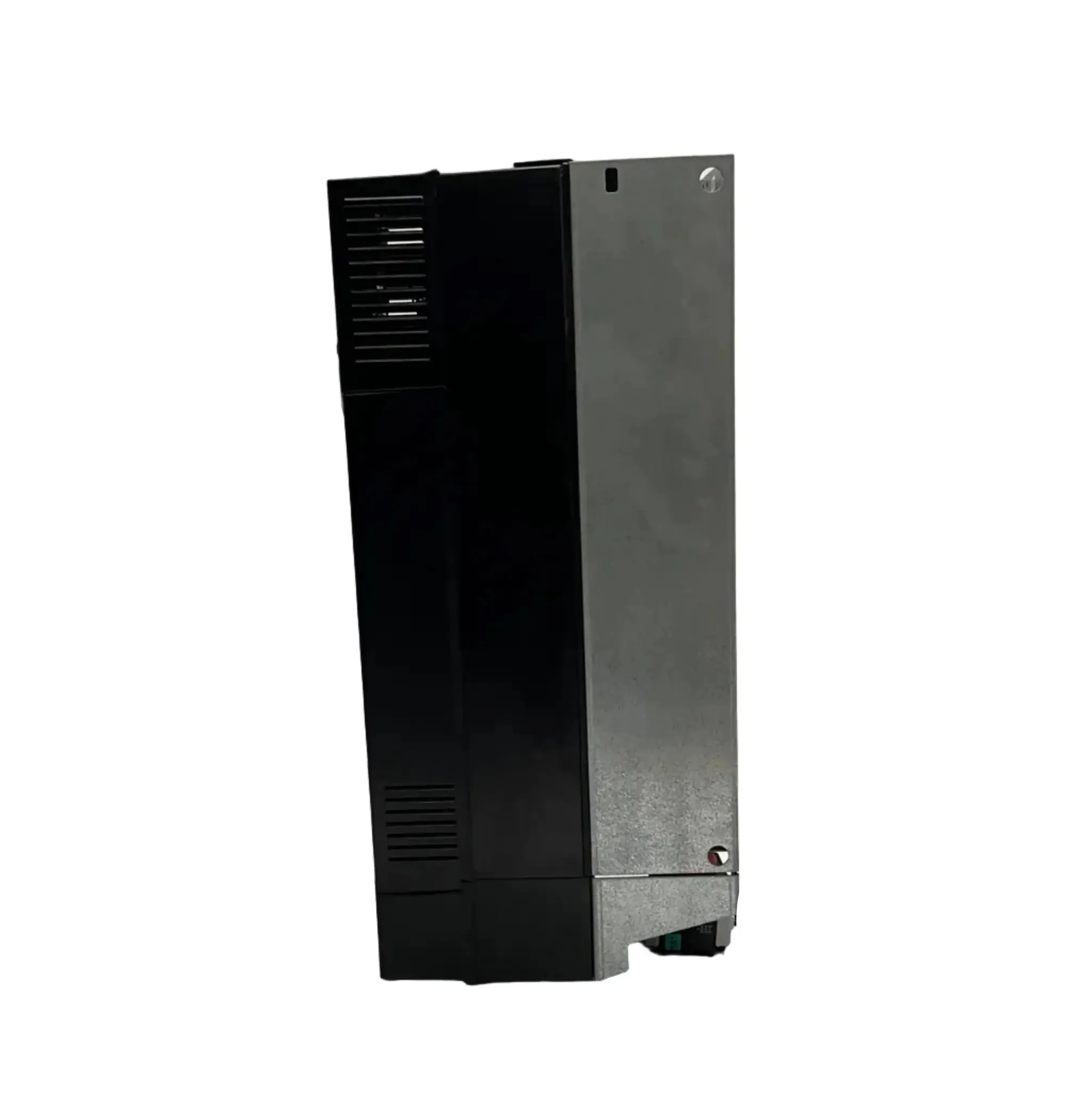

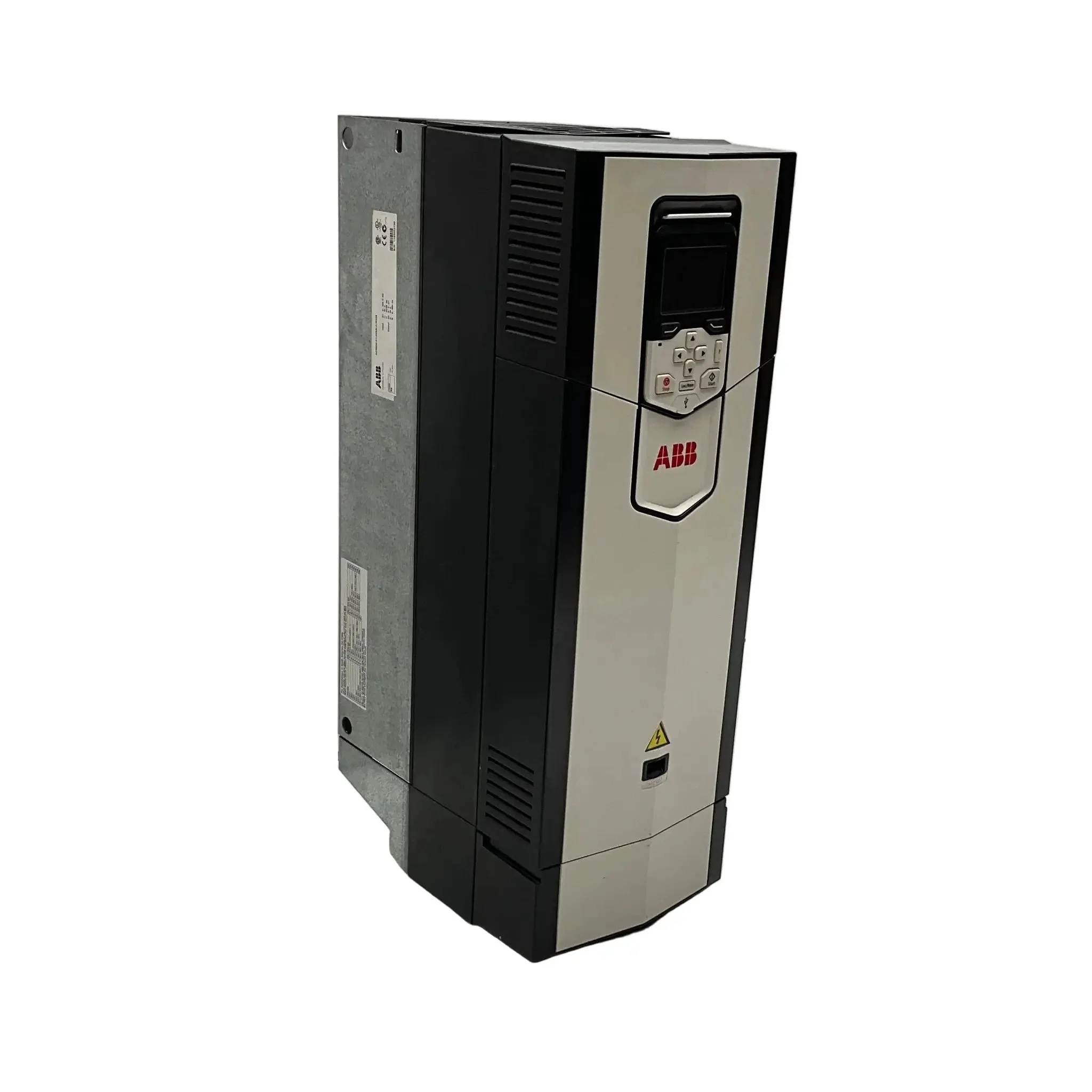

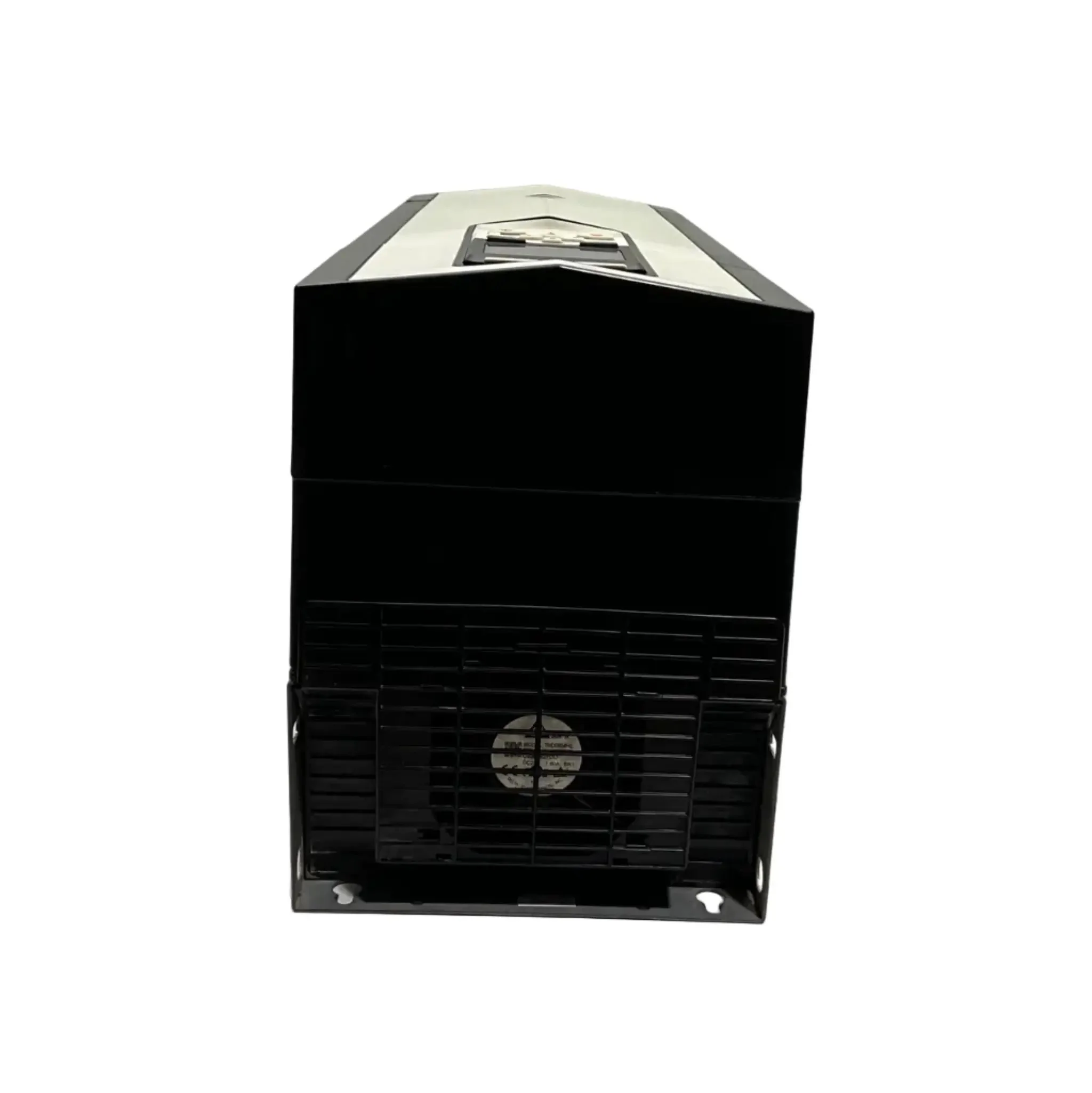

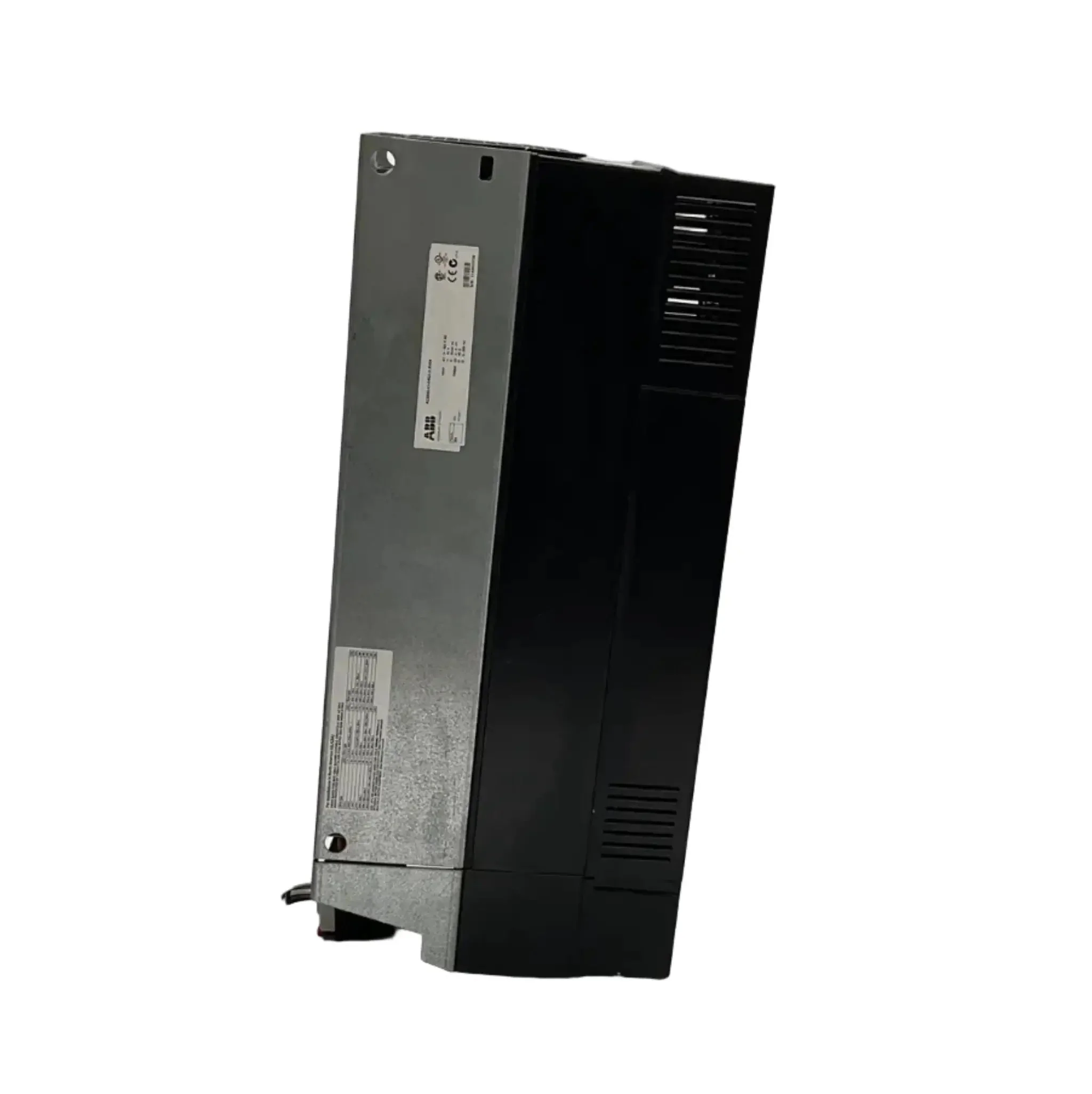

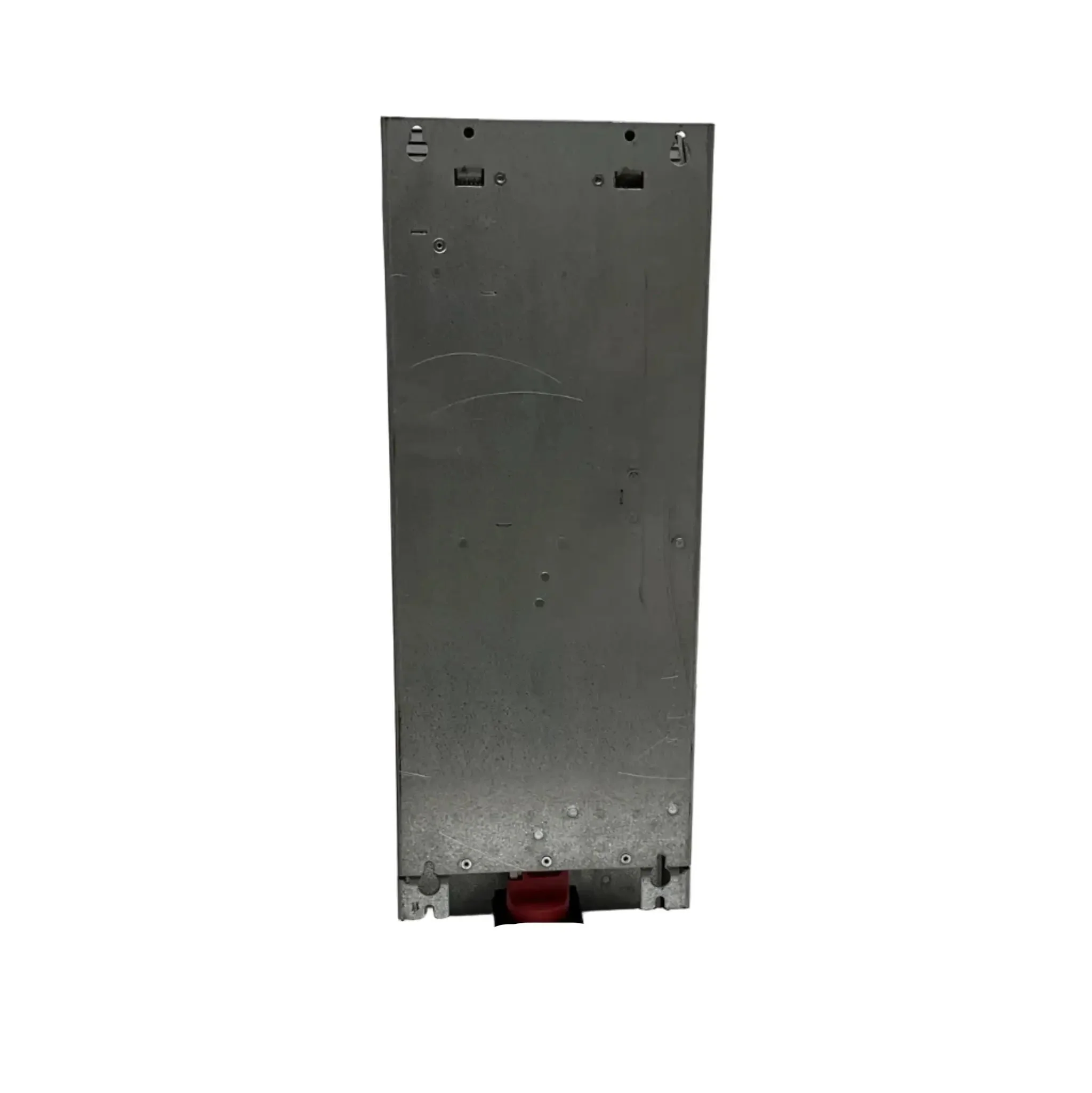

ABB ACS880-01-045A-3 AC Inverter Drive

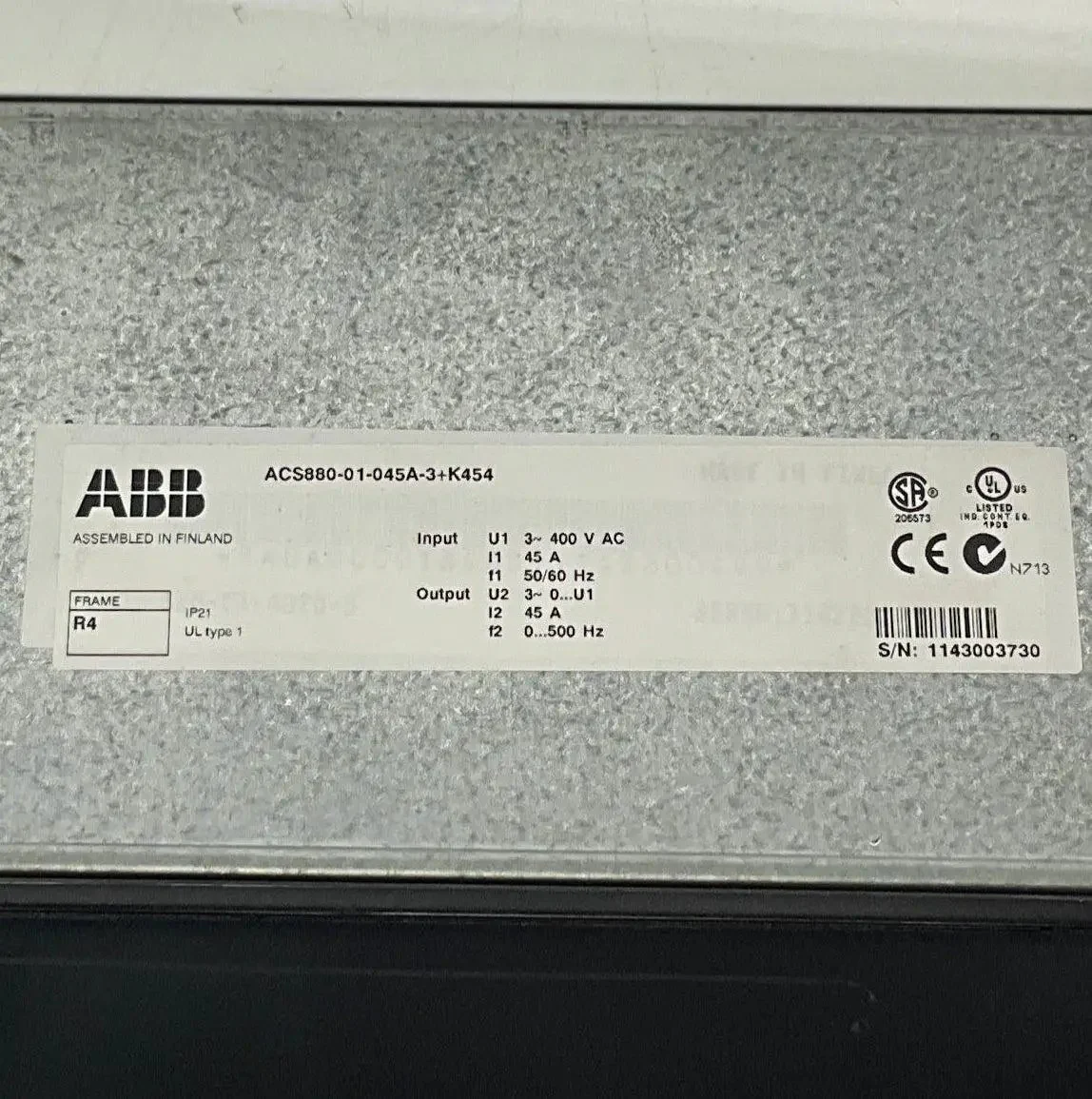

- Brand: ABB
- Model: ACS880-01-045A-3
- Type: Single Drive (AC Inverter)
- Part Number: 3ABD00032626-D

- Technical Specs:
  - Rated Power: 22 kW normal duty (30 HP)
  - Rated Voltage: 380-480 V AC, 3-phase
  - Rated Current: 45 A normal duty
  - Frequency: 50/60 Hz
  - Overload Capacity: 110% for 1 min (normal duty), 150% for 1 min (heavy duty)
  - Control Method: Direct Torque Control (DTC), scalar/V/f, vector control
  - Output Frequency Range: 0-500 Hz
  - Protection Features: Overcurrent, overvoltage, undervoltage, overtemperature, ground fault, phase loss, motor stall/lock, short circuit
  - Communication: Modbus RTU (standard);

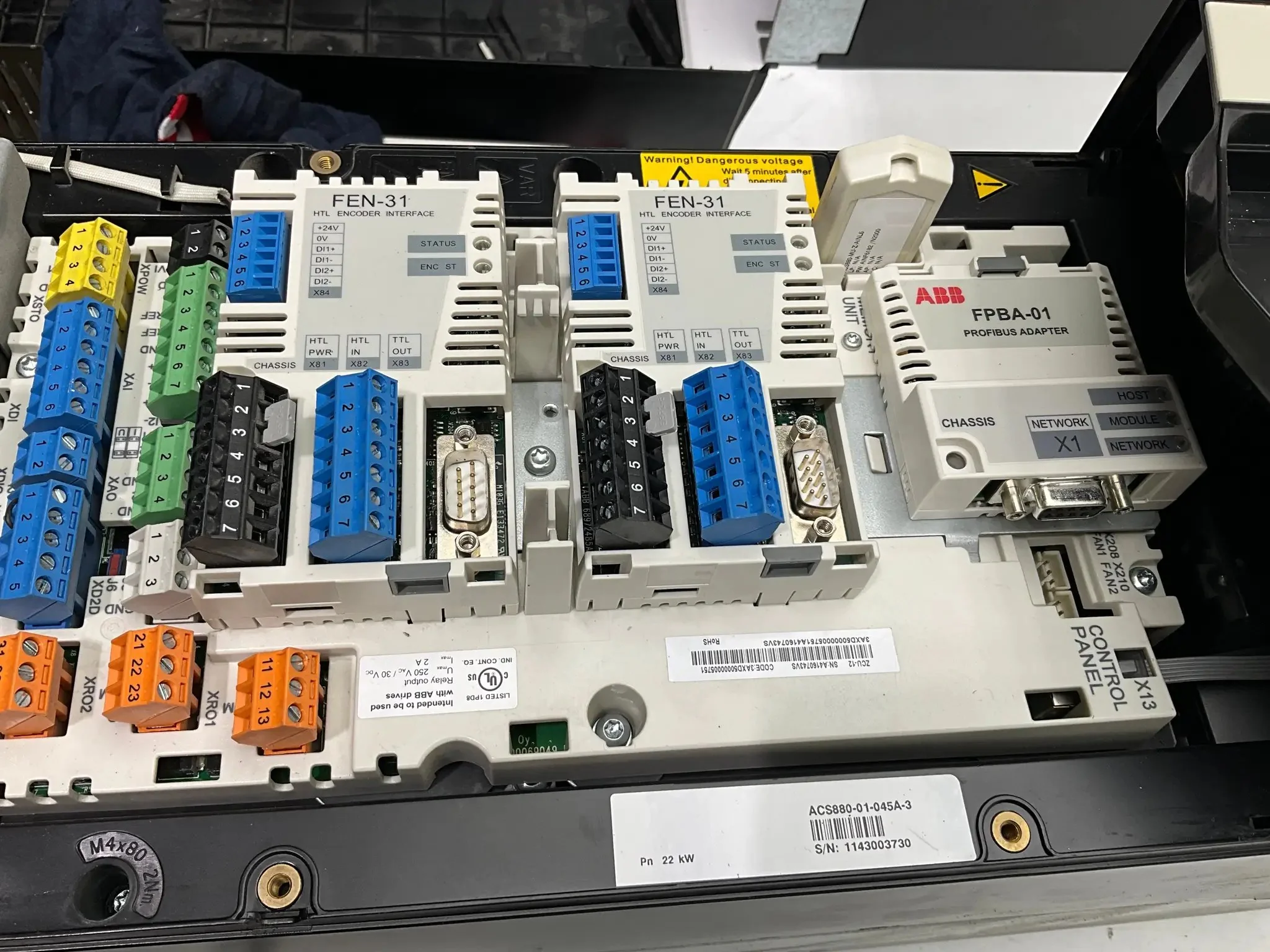

  - Additional installed components: HTL Encoder Interface FEN-31 x 2, PROFIBUS DP fieldbus adapter FPBA-01 x 1(+K454)
  - Brake Chopper: Built-in
  - Enclosure Rating: IP21 / UL Type 1
  - Operating Temperature: -15°C to +55°C (derating above 40°C)
  - Humidity: 5-95% RH (non-condensing)
  -Dimensions: 200 x 200 x 620 mm


- Weight: 19 kg

- Country of Origin: Finland

- HS Code: 8504.40
