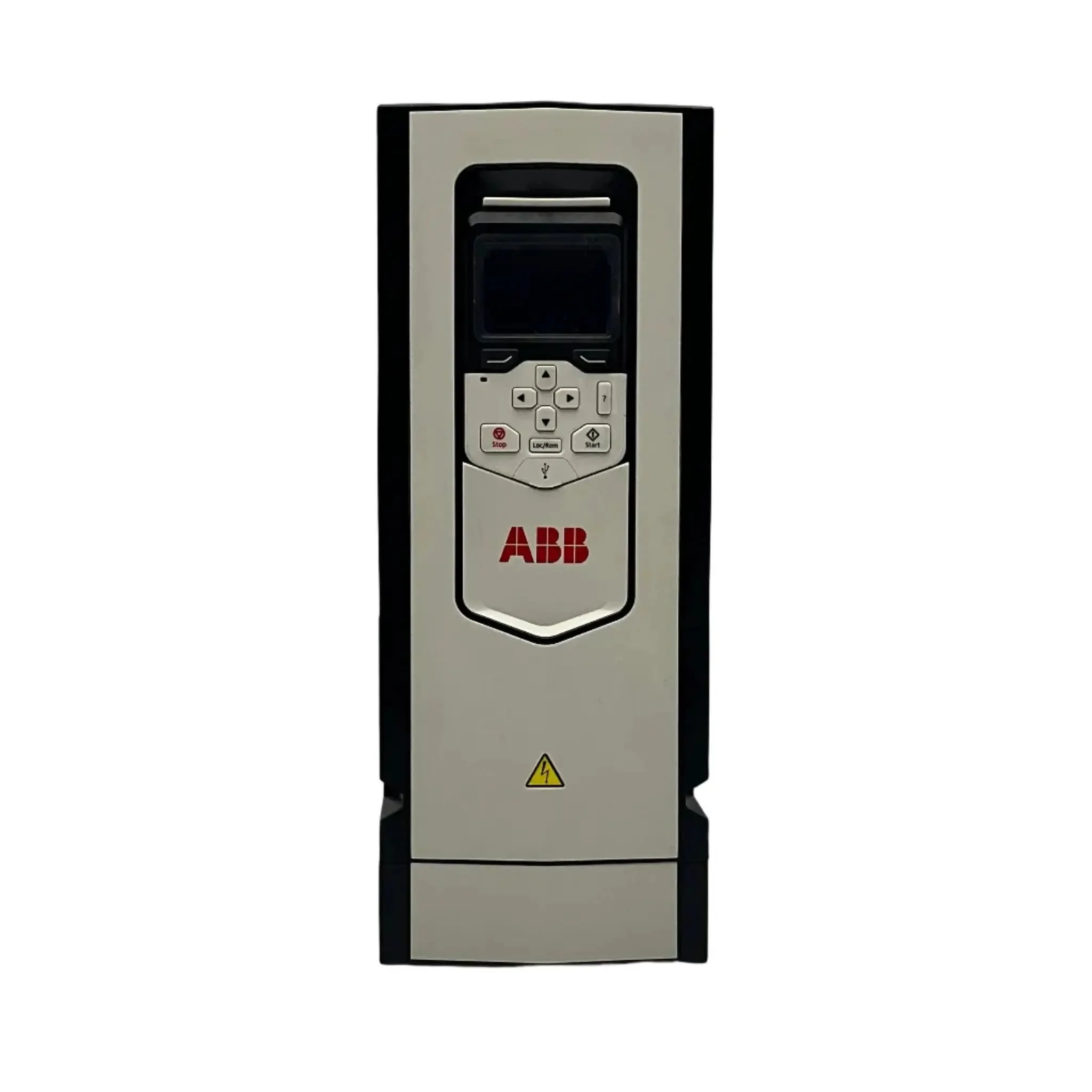

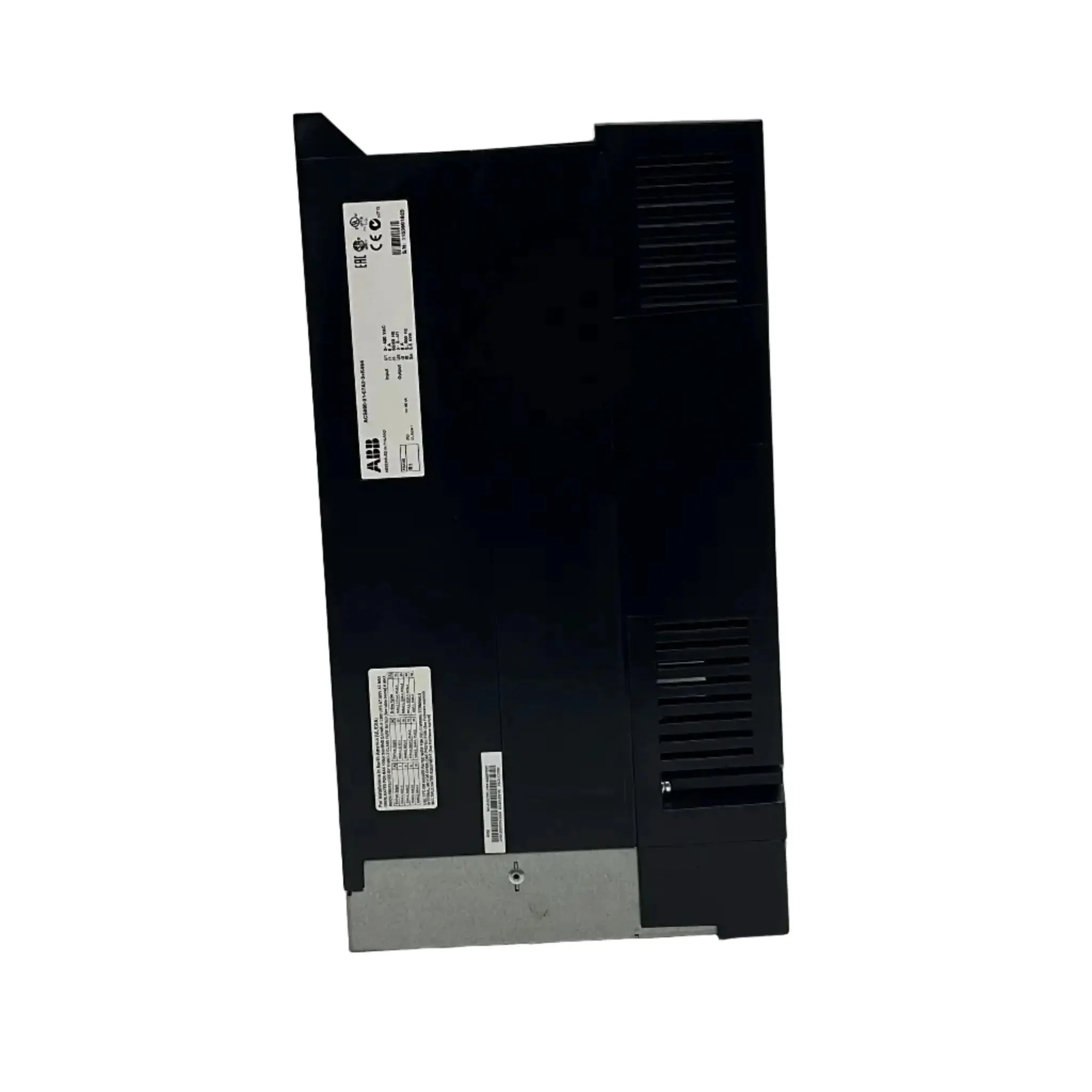

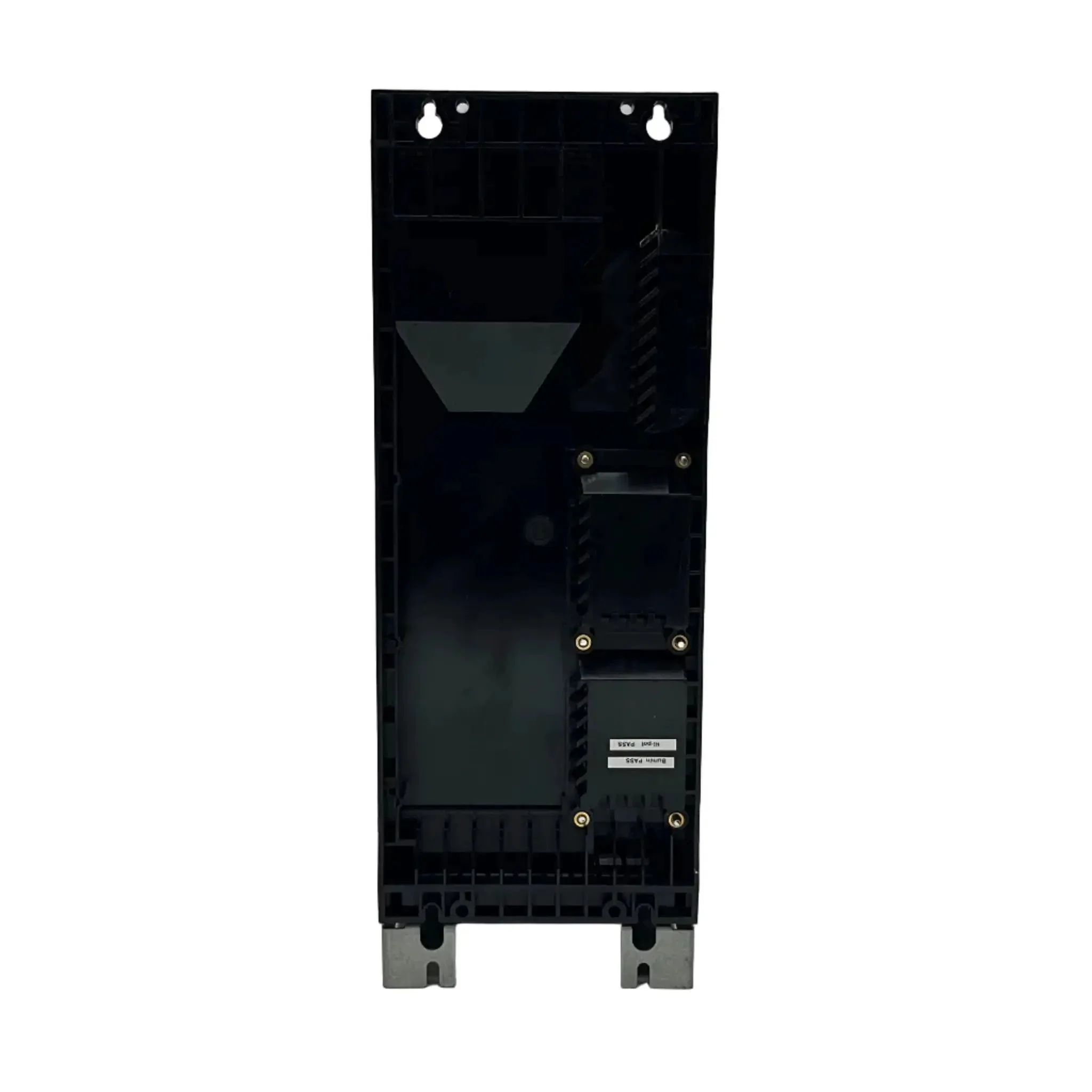

ABB ACS880-01-07A2-3 AC Inverter Drive

Brand: ABB

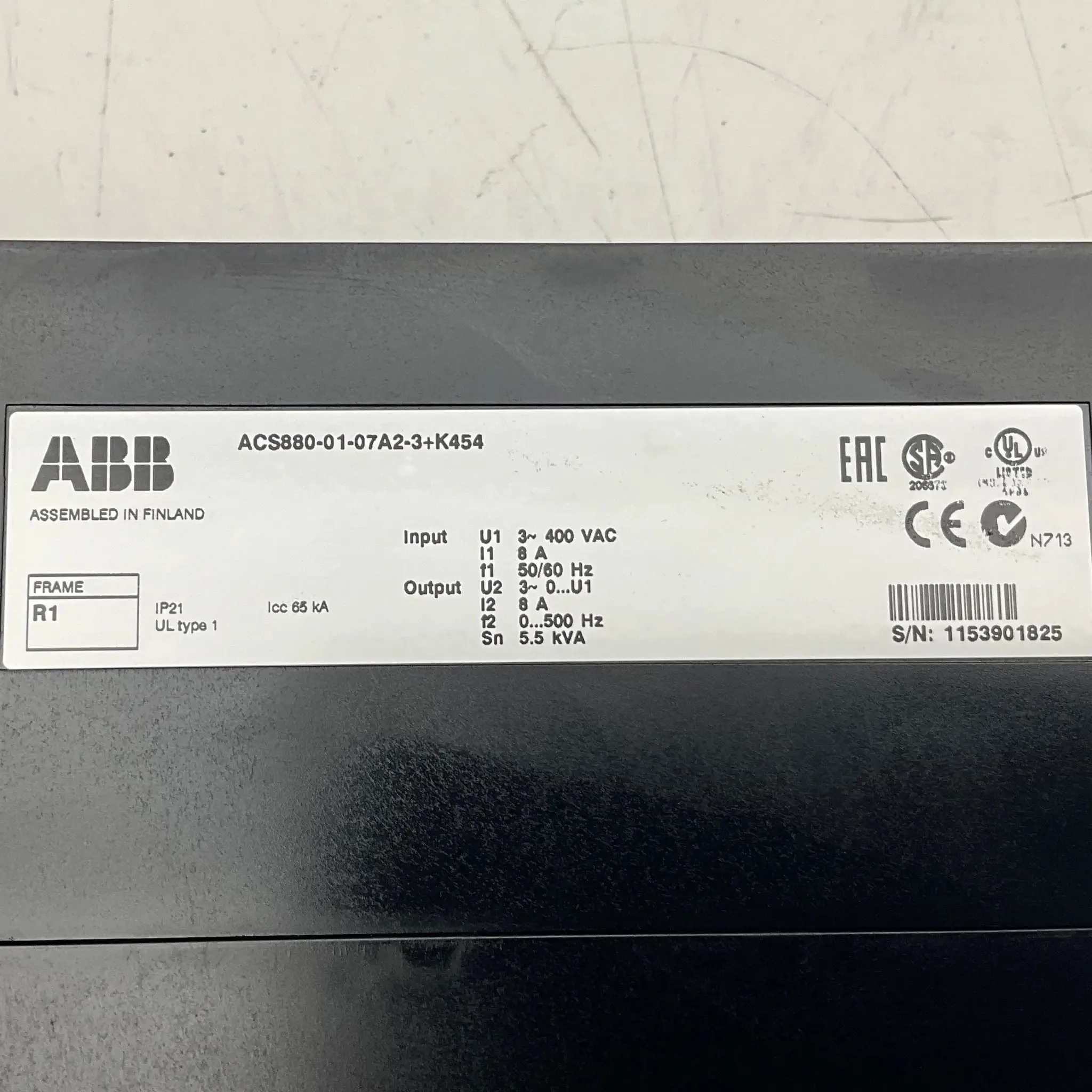

Model: ACS880-01-07A2-3 + K454
Type: Single Drive (AC Inverter)
Part Number: 3AUA0000135128

Technical Specs:
- Rated Power: 3 kW
- Rated Voltage: 380-480 V AC, 3-phase (nominal 400 V)
- Rated Current: 8 A (IN)
- Frequency: 50/60 Hz
- Overload Capacity: 150% for 60 s
- Control Method: Direct Torque Control (DTC), scalar/V/f, vector control
- Starting Torque: 200% at 0 Hz (with DTC)
- Output Frequency Range: 0-500 Hz
- Protection Features: Overcurrent, overvoltage, undervoltage, overtemperature, ground fault, phase imbalance, motor stall, thermal protection
- Communication: Modbus RTU; +K454 adds PROFIBUS DP fieldbus adapter
- Enclosure Rating: IP21 / UL Type 1
- Operating Temperature: 0°C to 40°C (derating 1% per °C above 40°C up to 50°C)
- Frame size: R1
- Humidity: 0-95% RH (non-condensing)

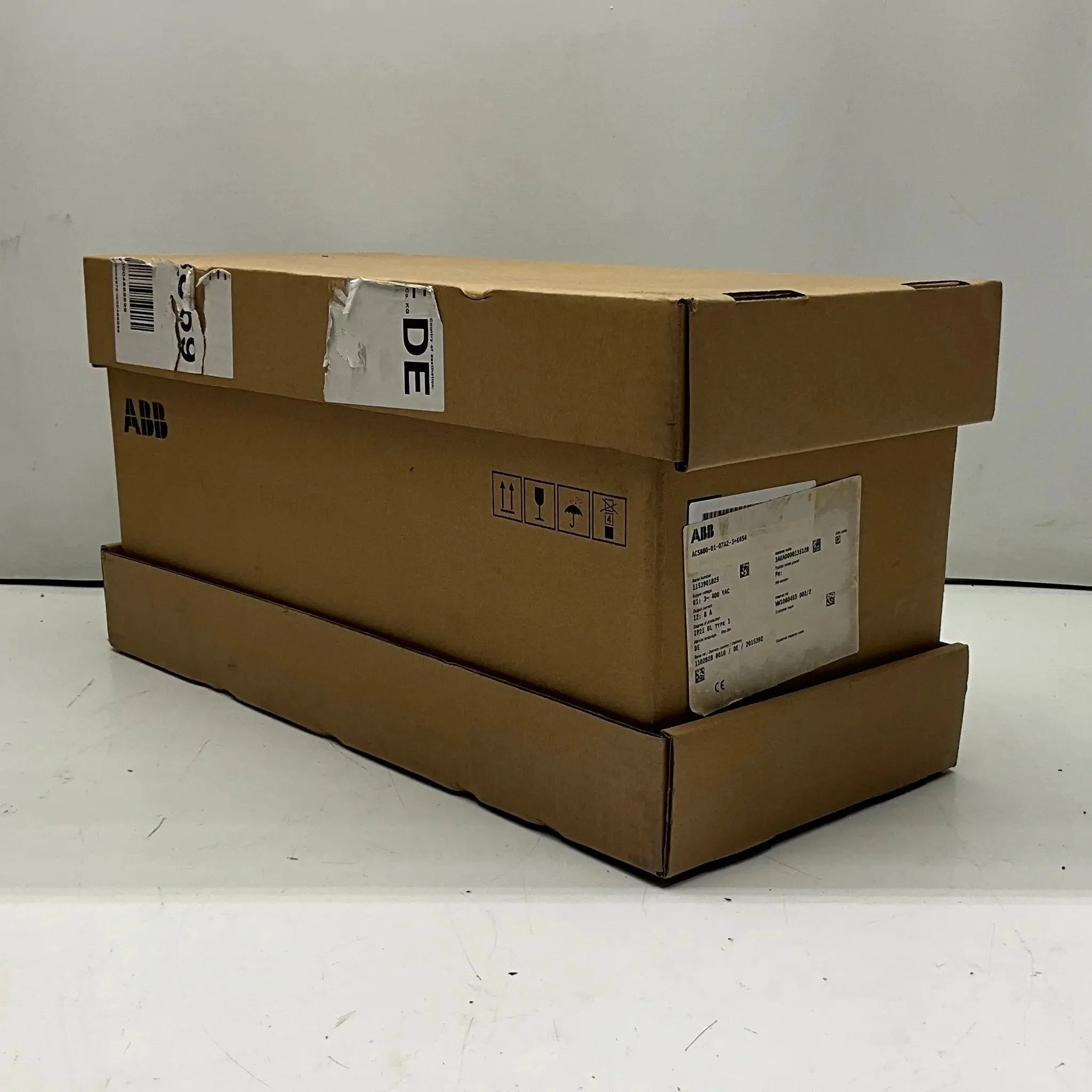

Dimensions: 580 x 250 x 300 mm (box)

Weight:  9 kg

Country of Origin: Finland

HS Code: 8504.40
