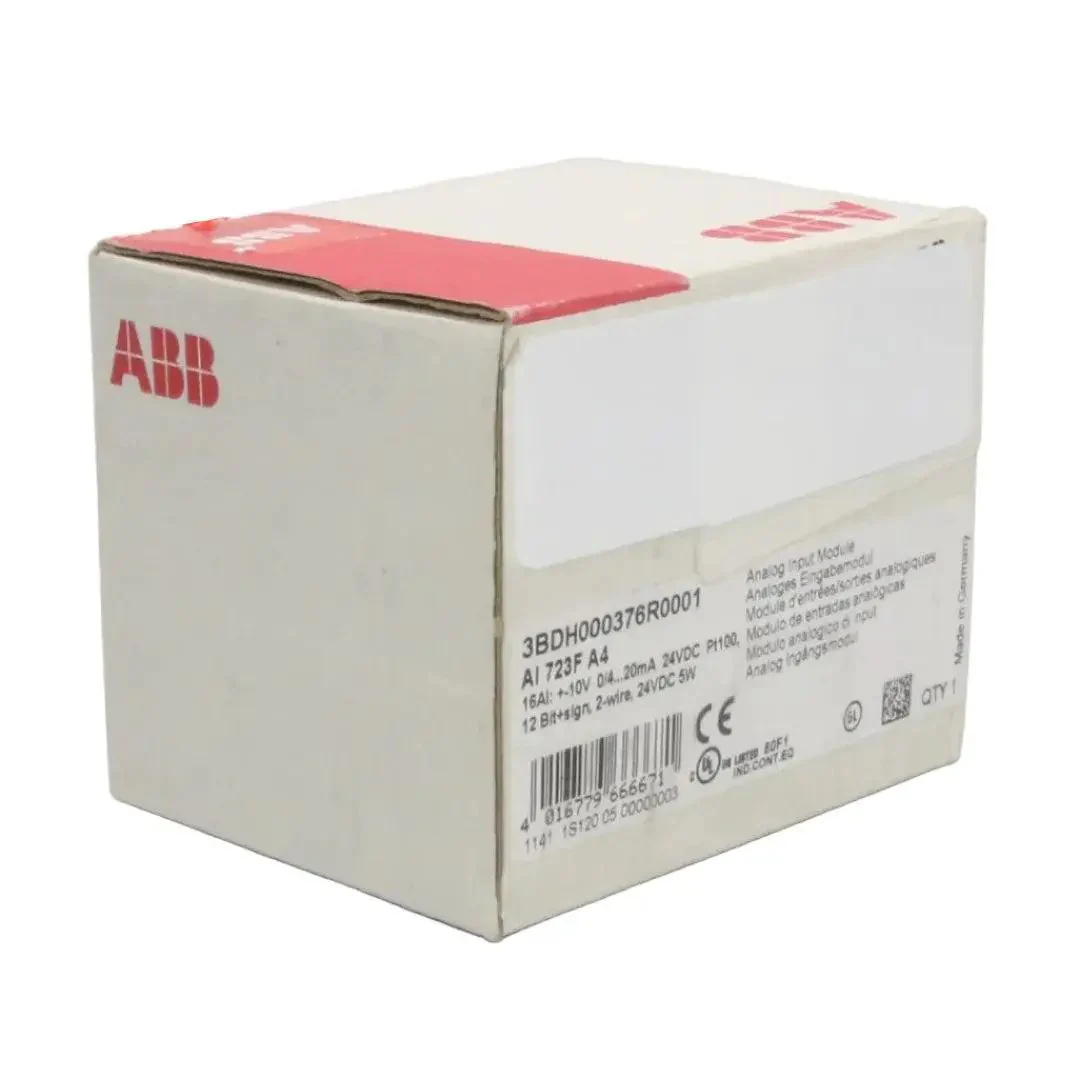

ABB AI 723F A4 Analog Input Module

- Brand: ABB

- Model: AI 723F A4

- Part Number: 3BDH000376R0001

- Type: Analog Input Module - S700 I/O Series for Freelance AC 700F / AC 900F DCS

- All tech specs:
- Number of channels: 16 analog inputs, arranged in two groups of 8
- Channel configuration: Individually configurable per channel
- Input types: Voltage (0…10 V, -10…+10 V), current (0…20 mA, 4…20 mA), temperature (RTD: Pt100, Pt1000, Ni1000 in 2-wire connection)
- Resolution: 12-bit + sign
- Connection: Via compatible Termination Units
- Power supply: 24 V DC - supplied via TU
- Isolation: Galvanic isolation to backplane
- Compatible Termination Units: TU715F, TU716F
- Bus communication: Direct I/O for AC 700F / AC 900F Freelance controllers or PROFIBUS DP-V0 slave as remote I/O
- Features: High packing density, flexible per-channel configuration for voltage/current/temperature signals, suitable for process measurement in automation systems
- Protection class: IP20
- Operating temperature: 0 to +60 °C
- Certifications: cULus, Class I Div 2 compliant (S700 family)
- Part of ABB S700 I/O family: Modular, compact I/O for Freelance DCS and PROFIBUS masters

Dimensions: 85 x 70 x 75 mm (box)

Weight: 180 g

Country of origin: Germany

HS code: 853890
