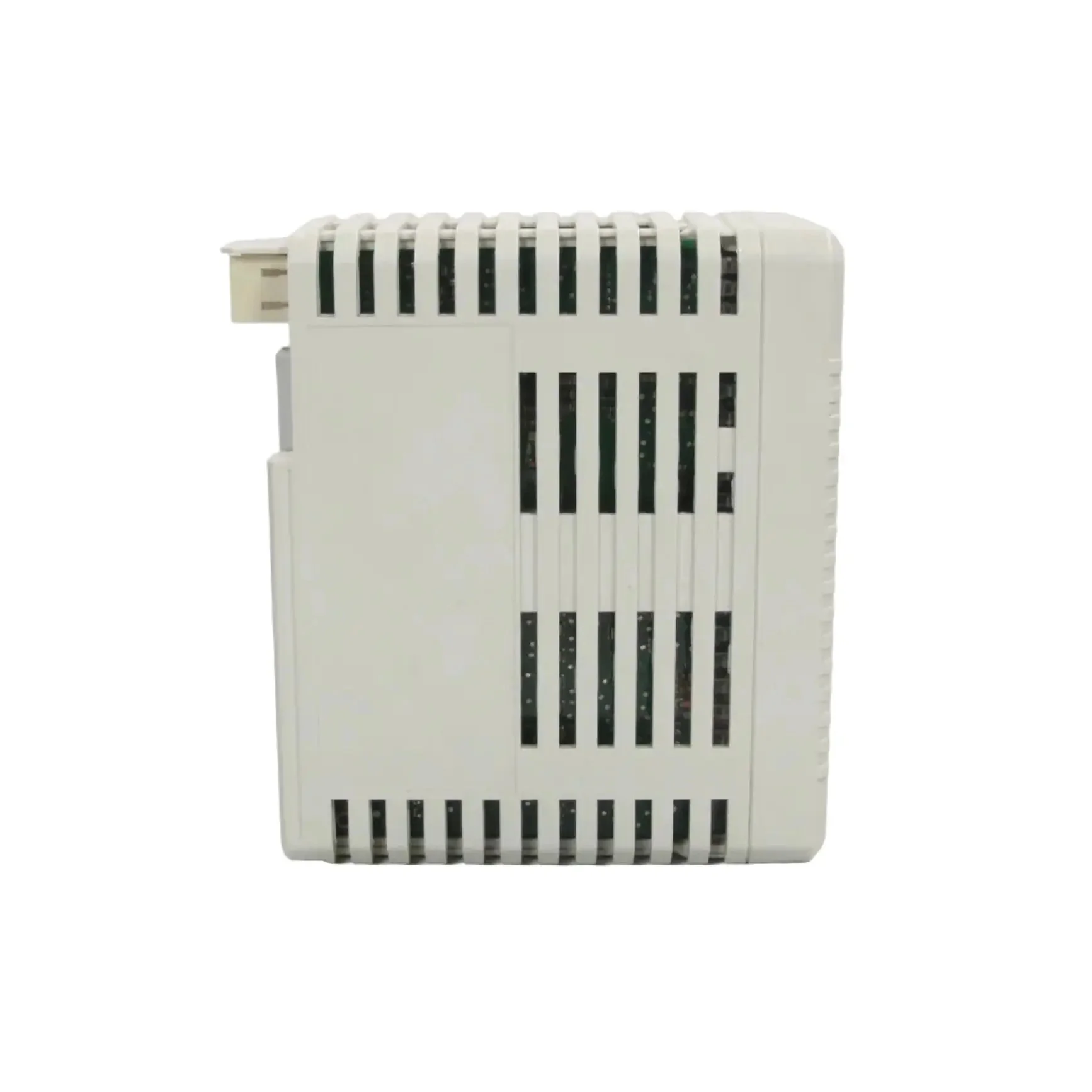

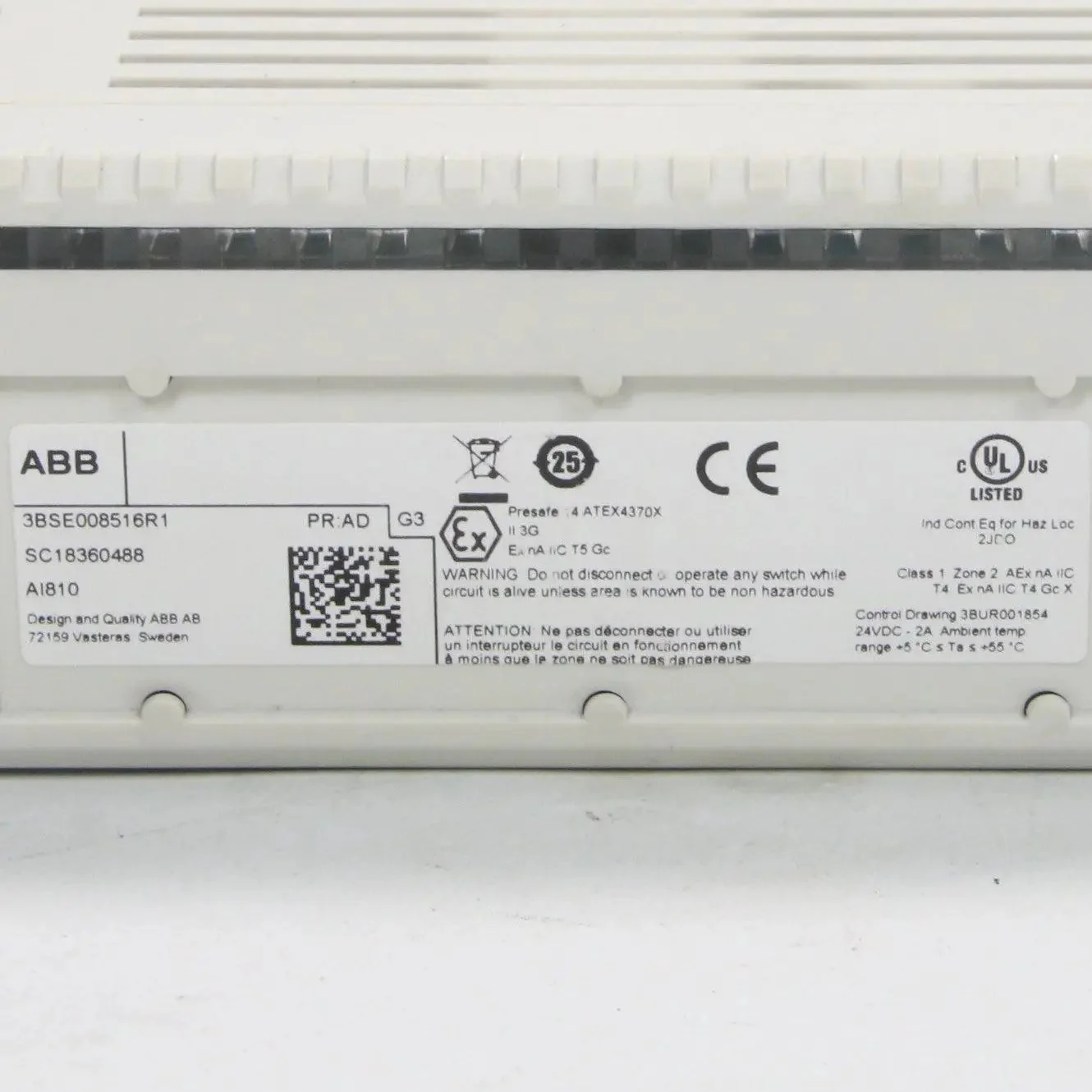

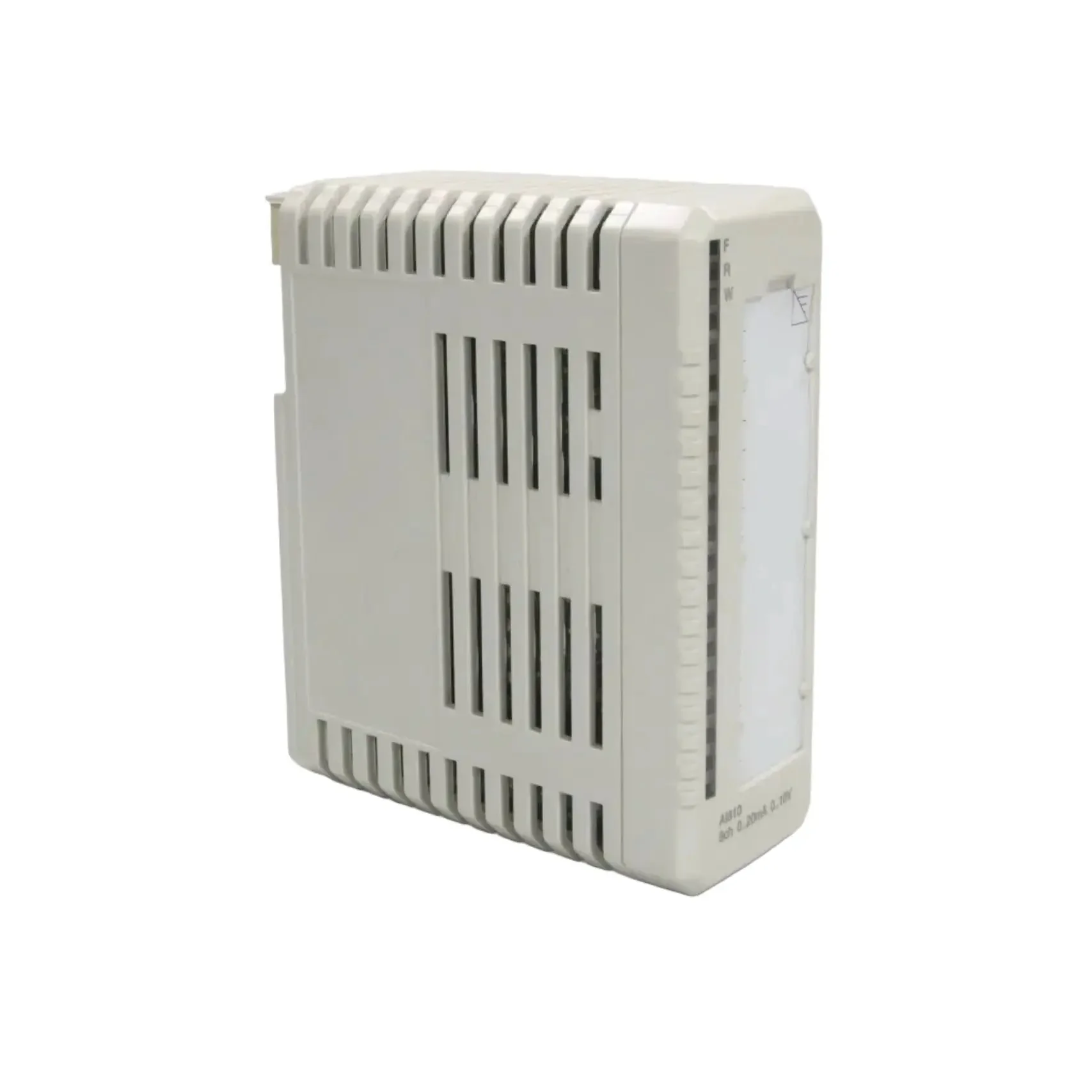

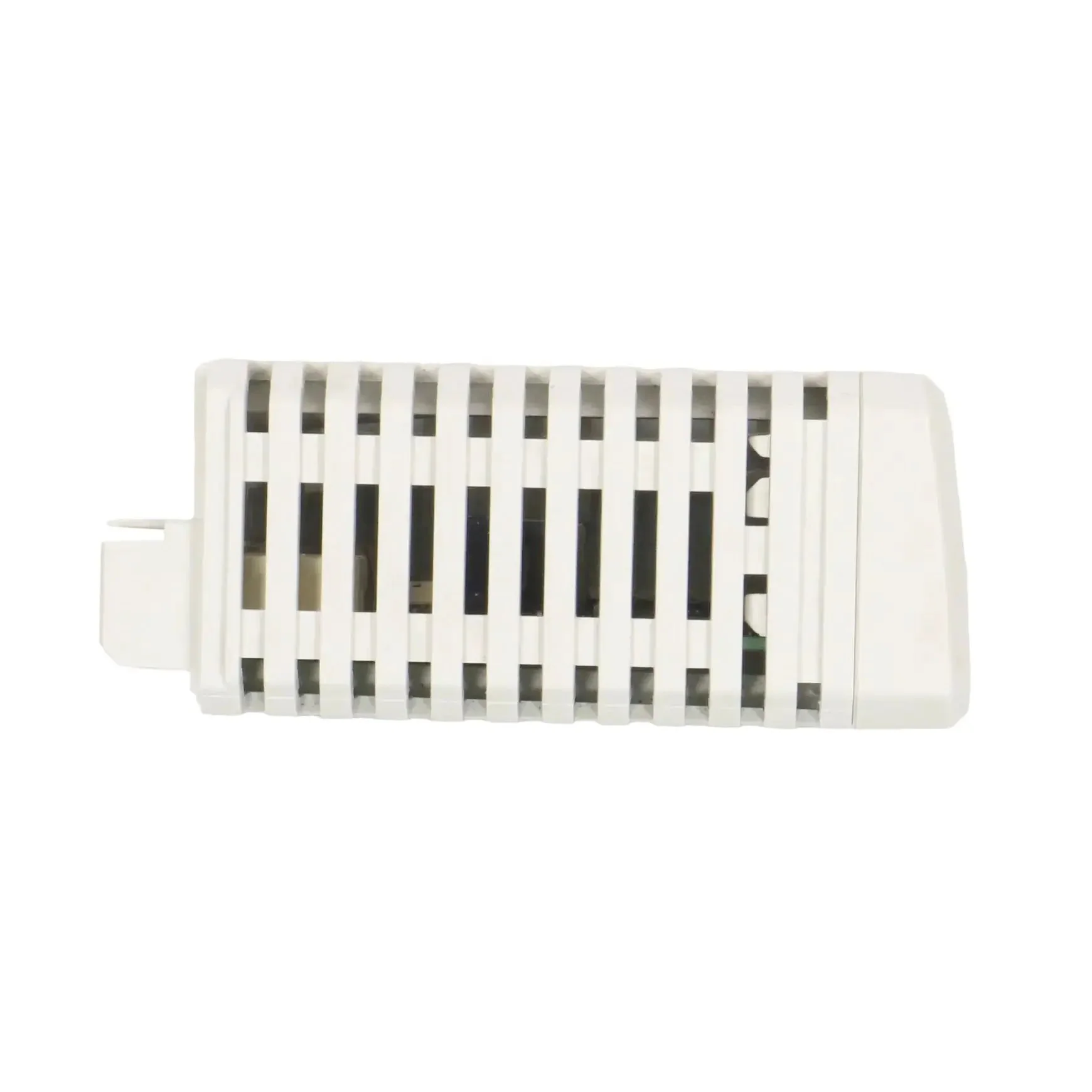

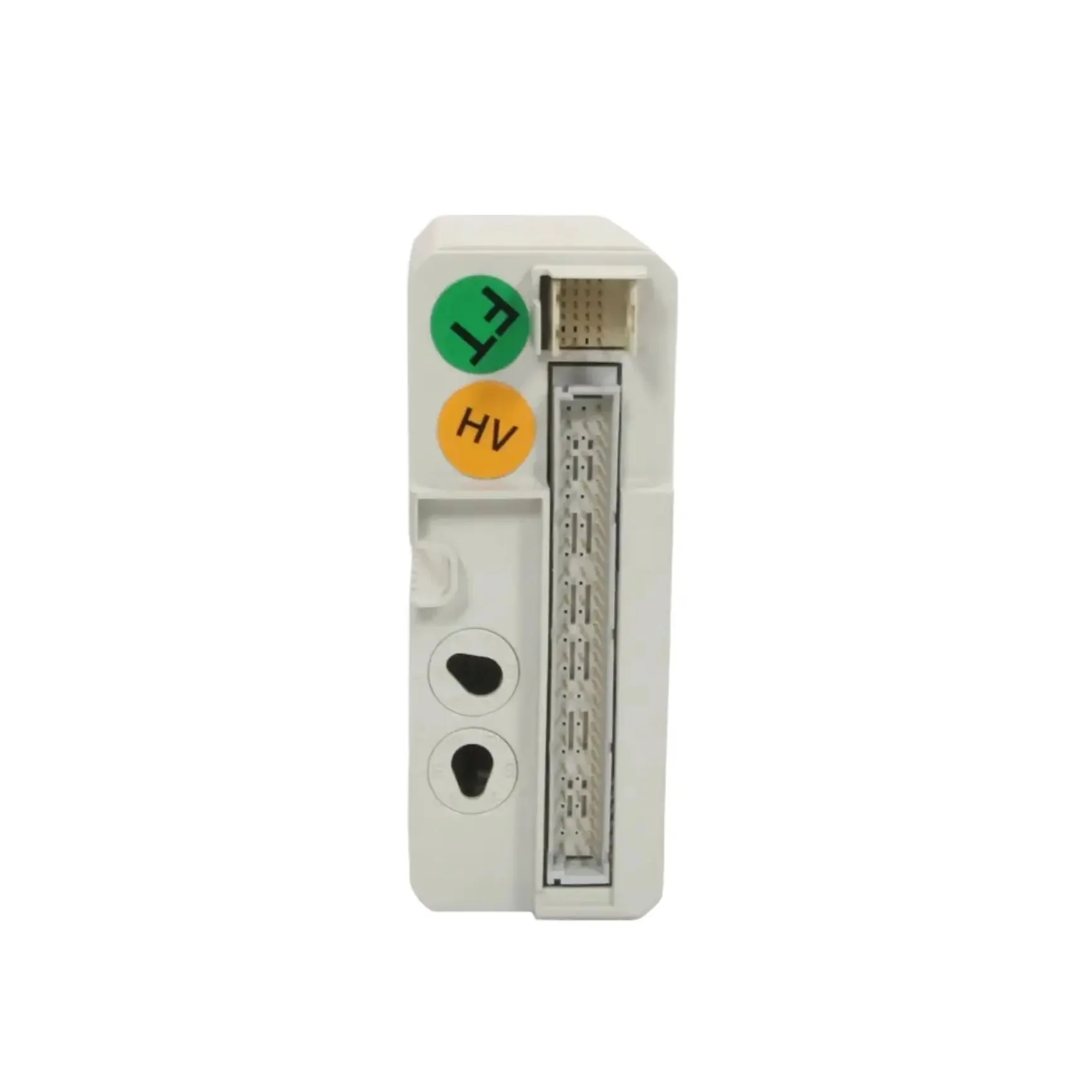

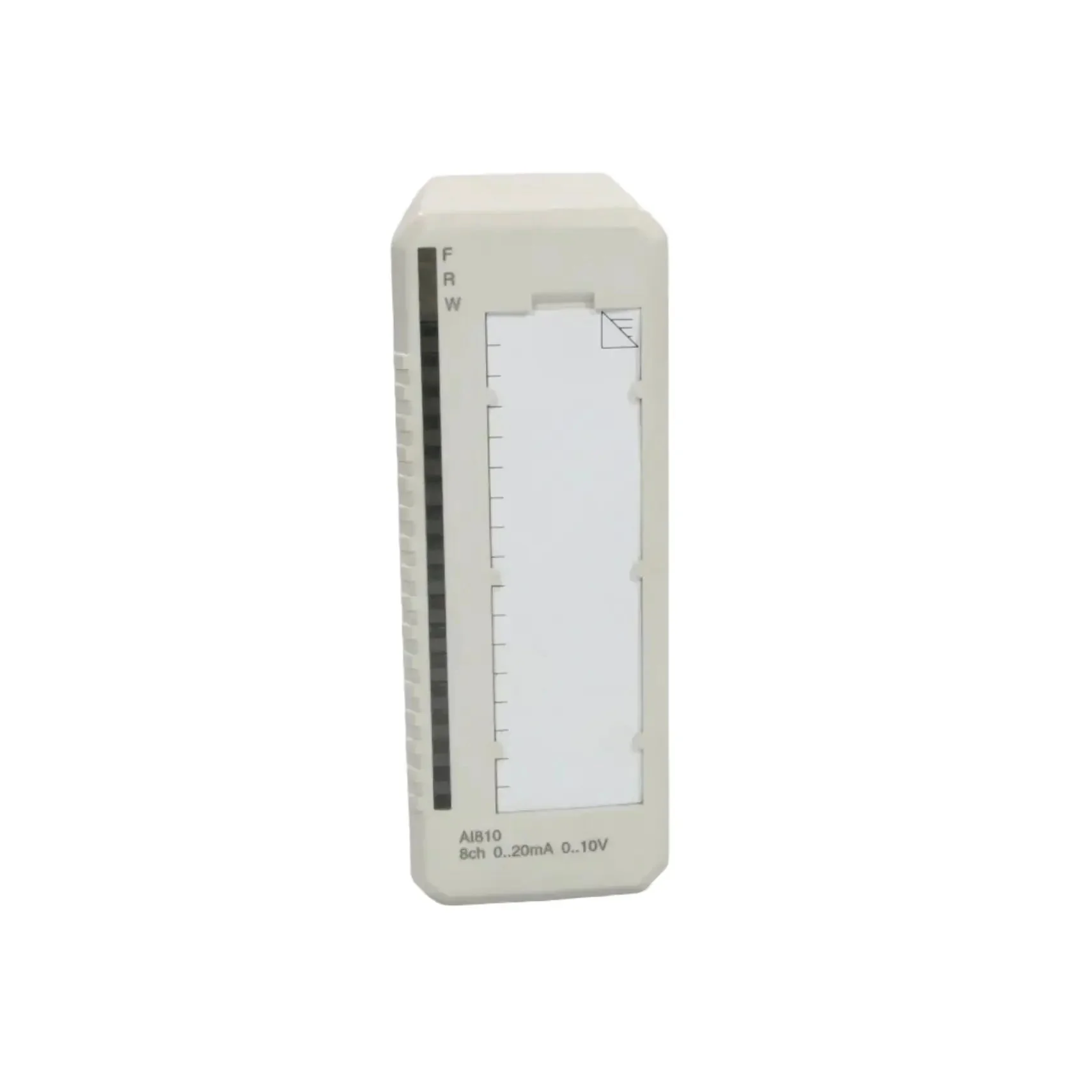

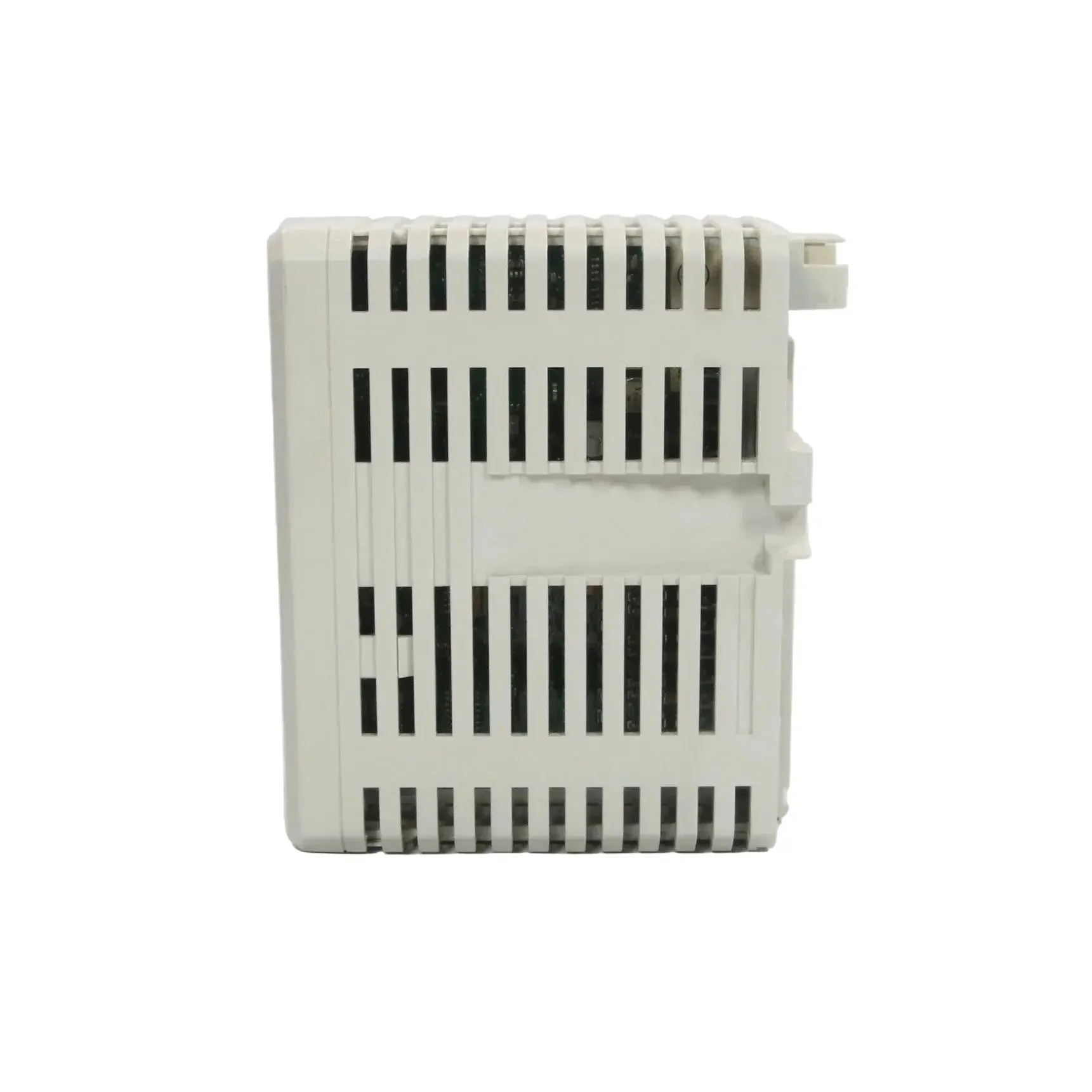

ABB AI810 AI810V2 Analog Input Module

- Brand: ABB
- Model: AI810 and AI810V2
- Type: Analog Input Module
- Part Number: 3BSE008516R1 // V2 3BSE03841R1
  - Function: 8-channel analog input module for S800 I/O system
  - Input Type: 0/4-20 mA, 0-10 V, ±10 V, ±20 mA, thermocouple, RTD
  - Number of Channels: 8
  - Resolution: 14 bits + sign
  - Accuracy: ±0.1 % of full scale
  - Update Time: 5 ms per channel
  - Isolation: Channel-to-channel and group isolation (500 V)
  - Power Supply: 24 V DC
  - Current Consumption: 100 mA
  - Fault Detection: Open circuit, short circuit, out of range
  - Diagnostics: LED indicators for module status and channel faults
  - HART Compatibility: Yes
  - Redundancy: Supports hot-swap and redundancy in S800 I/O
  - Operating Temperature: -25°C to +70°C
  - Protection Rating: IP20
  - Standards: IEC 61131-2, NAMUR NE21
  - Dimensions: 120 x 100 x 40 mm
- Weight: 170 g
- Country of origin: Sweden
- HS code: 853890
