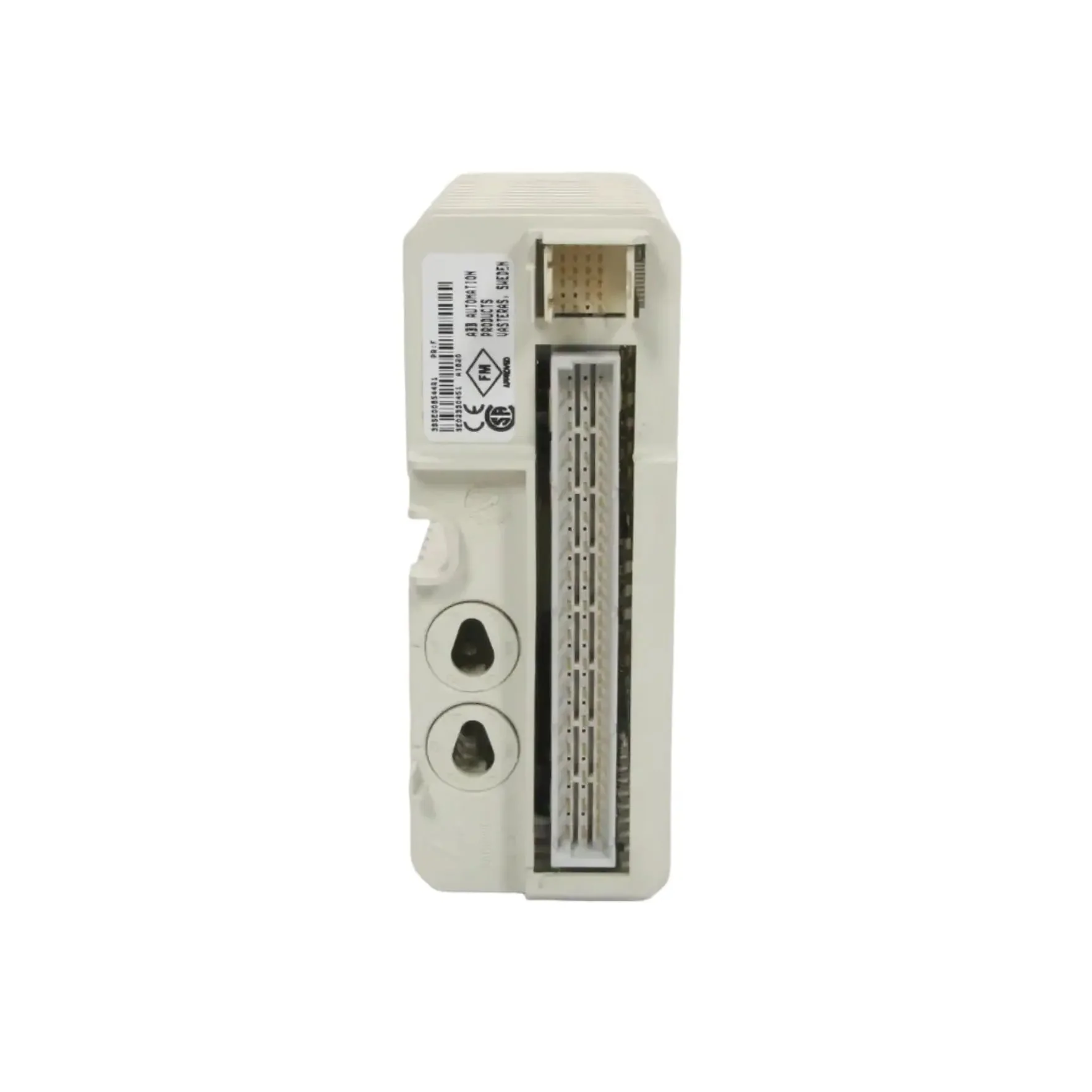

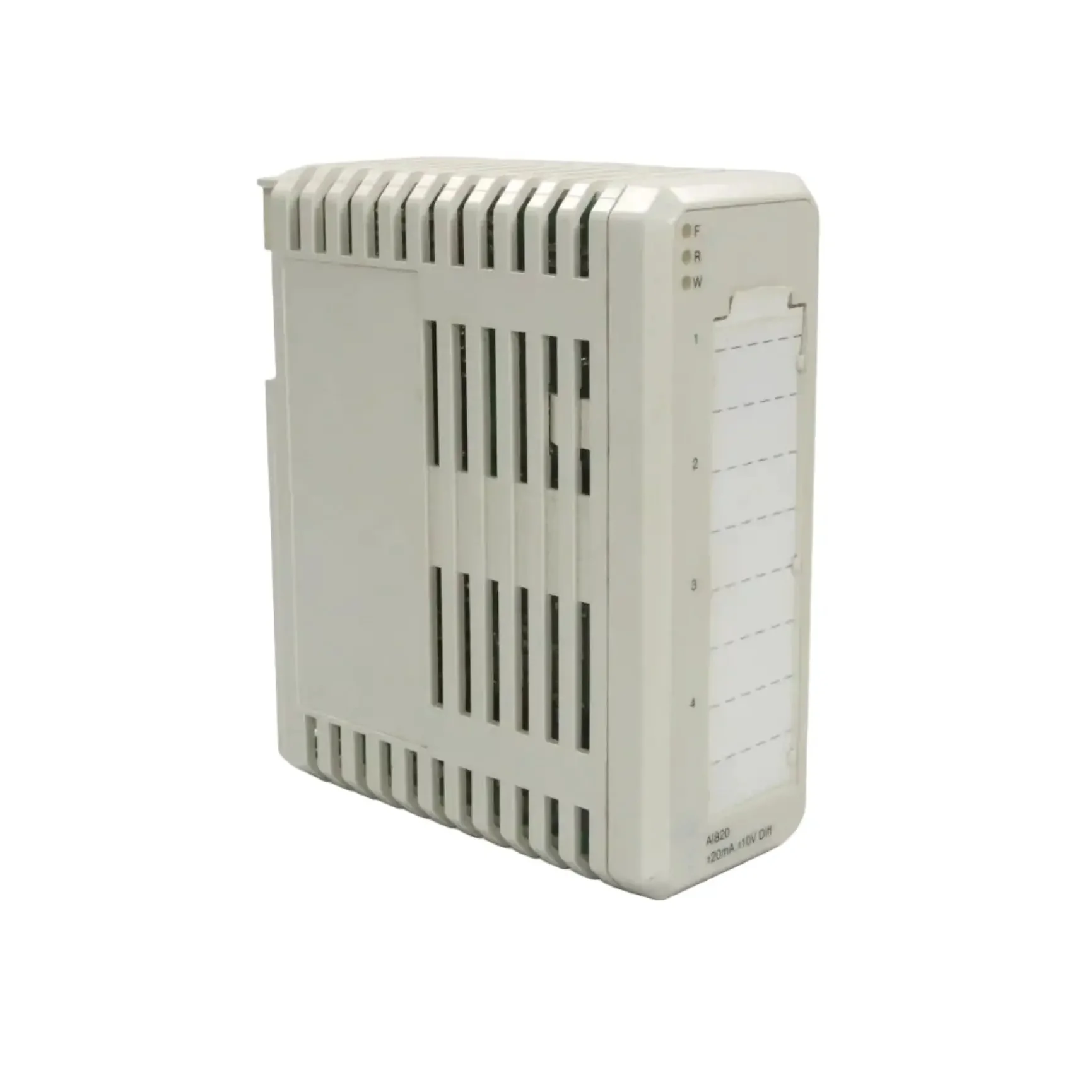

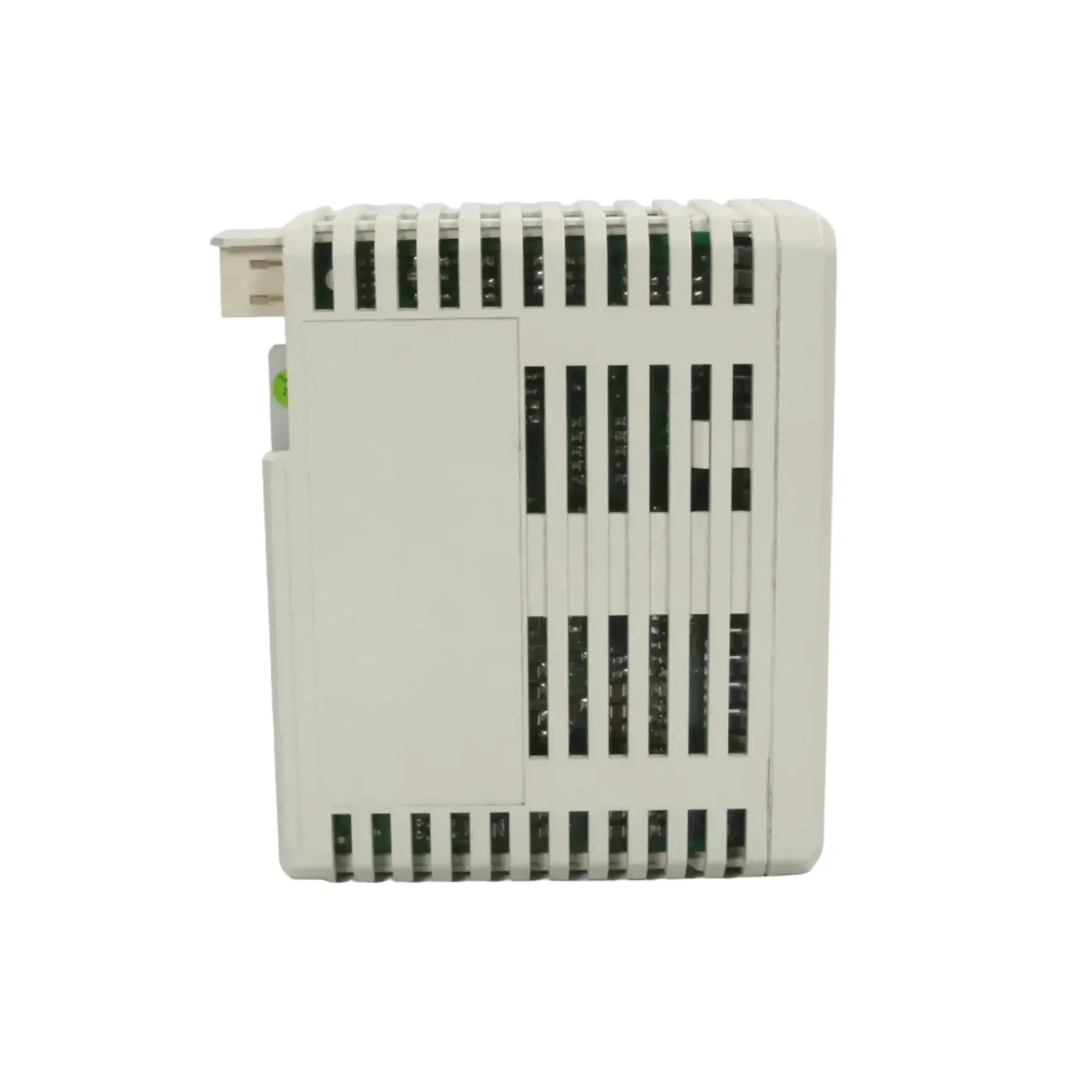

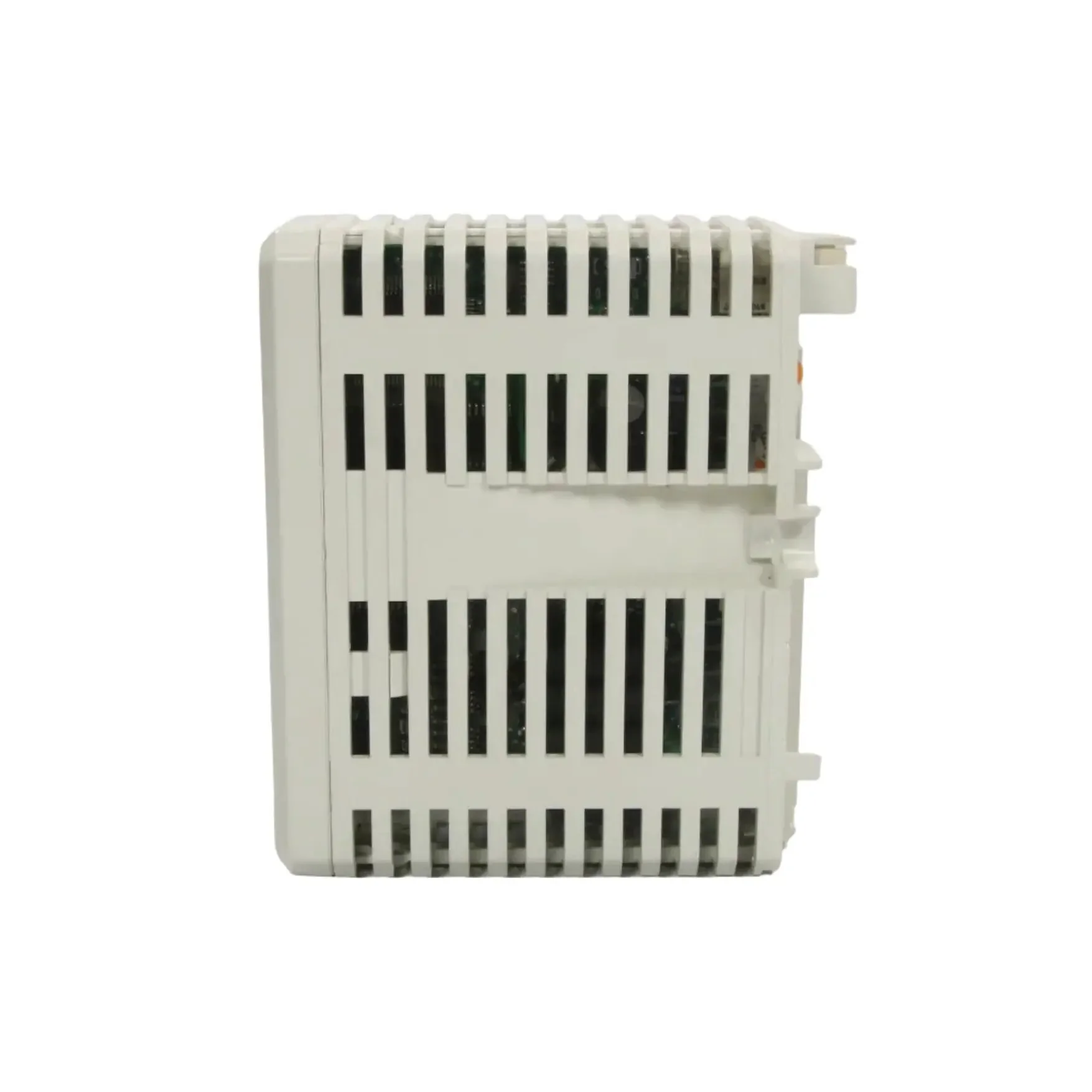

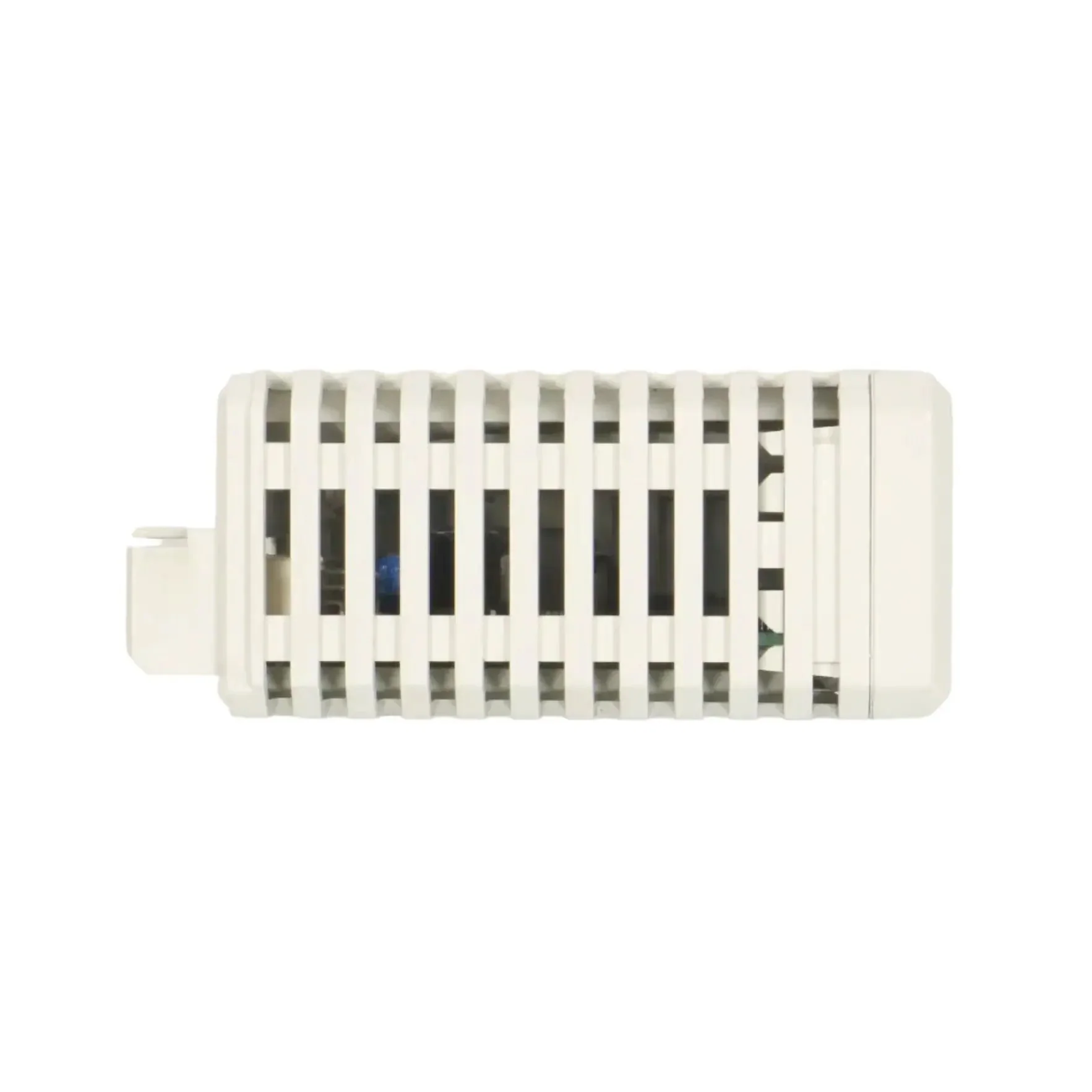

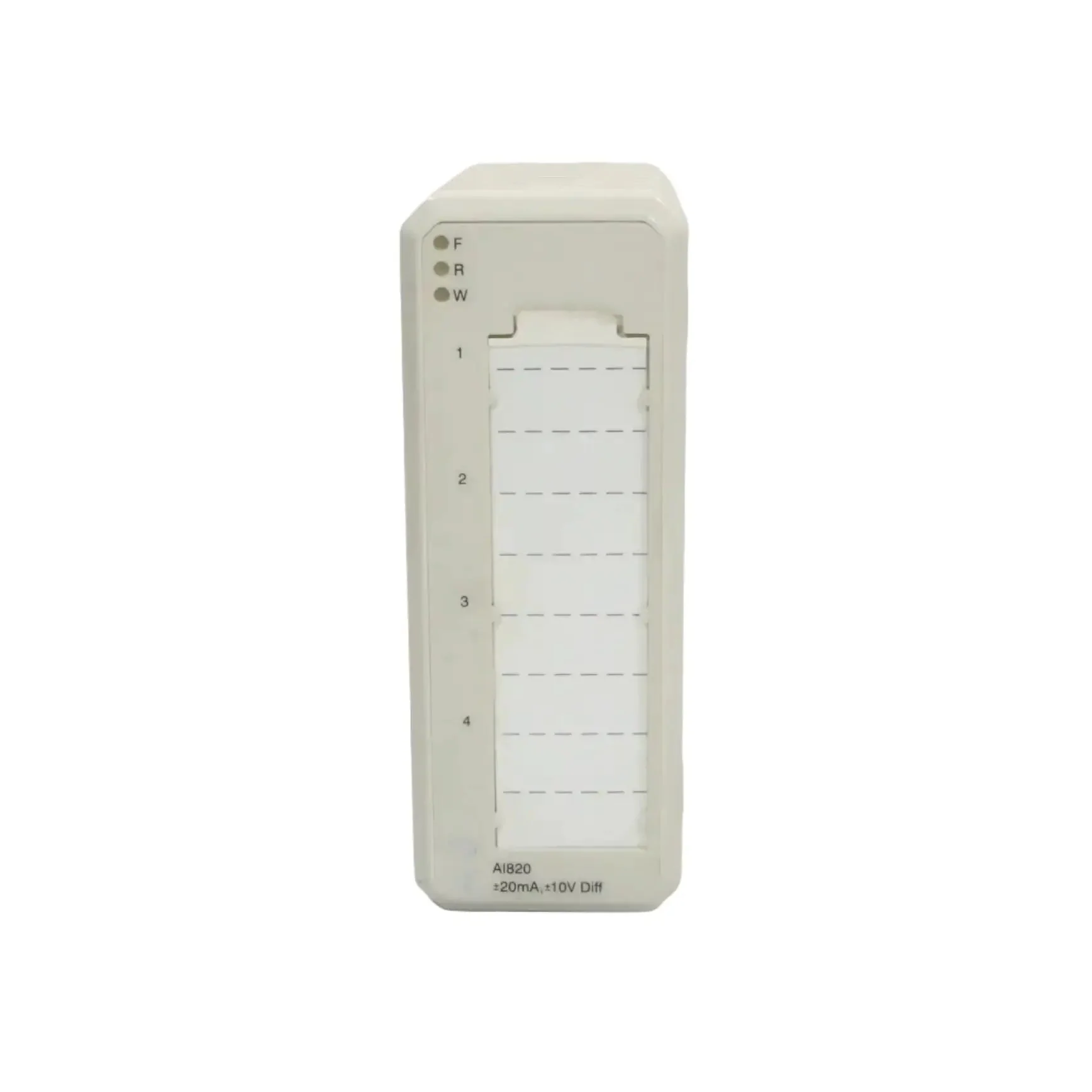

ABB AI 820 Analog Input Module

- Brand: ABB

- Model: AI 820

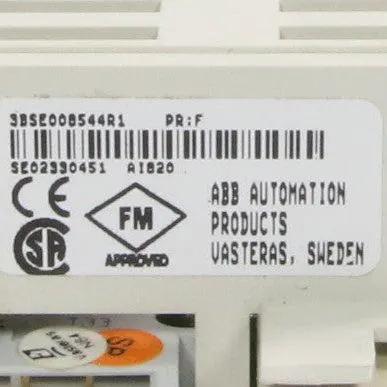

- Part Number: 3BSE008544R1

- Type: Analog Input Module

- All tech specs:
- Number of channels: 4 differential analog inputs
- Input types: Bipolar differential voltage: ±10 V, current: ±20 mA
- Resolution: 14-bit
- Input impedance: >10 MΩ (voltage), 250 Ω (current)
- Isolation: Individually galvanically isolated channels
- Common mode rejection: High (typically >90 dB at 50/60 Hz)
- Diagnostics: Over/under range detection, internal diagnostics
- Features per channel: Individual channel configuration, output state indication LED, optical isolation, filtering options
- No HART communication support
- No Sequence of Events (SOE) support
- No redundancy support
- Compatible Module Termination Units: TU810, TU812, TU814, TU830, TU833
- Part of ABB S800 I/O system for distributed process control

Dimensions: 160 x 160 x 80 mm

Weight: 300 g

Country of origin: Sweden

HS code: 853890
