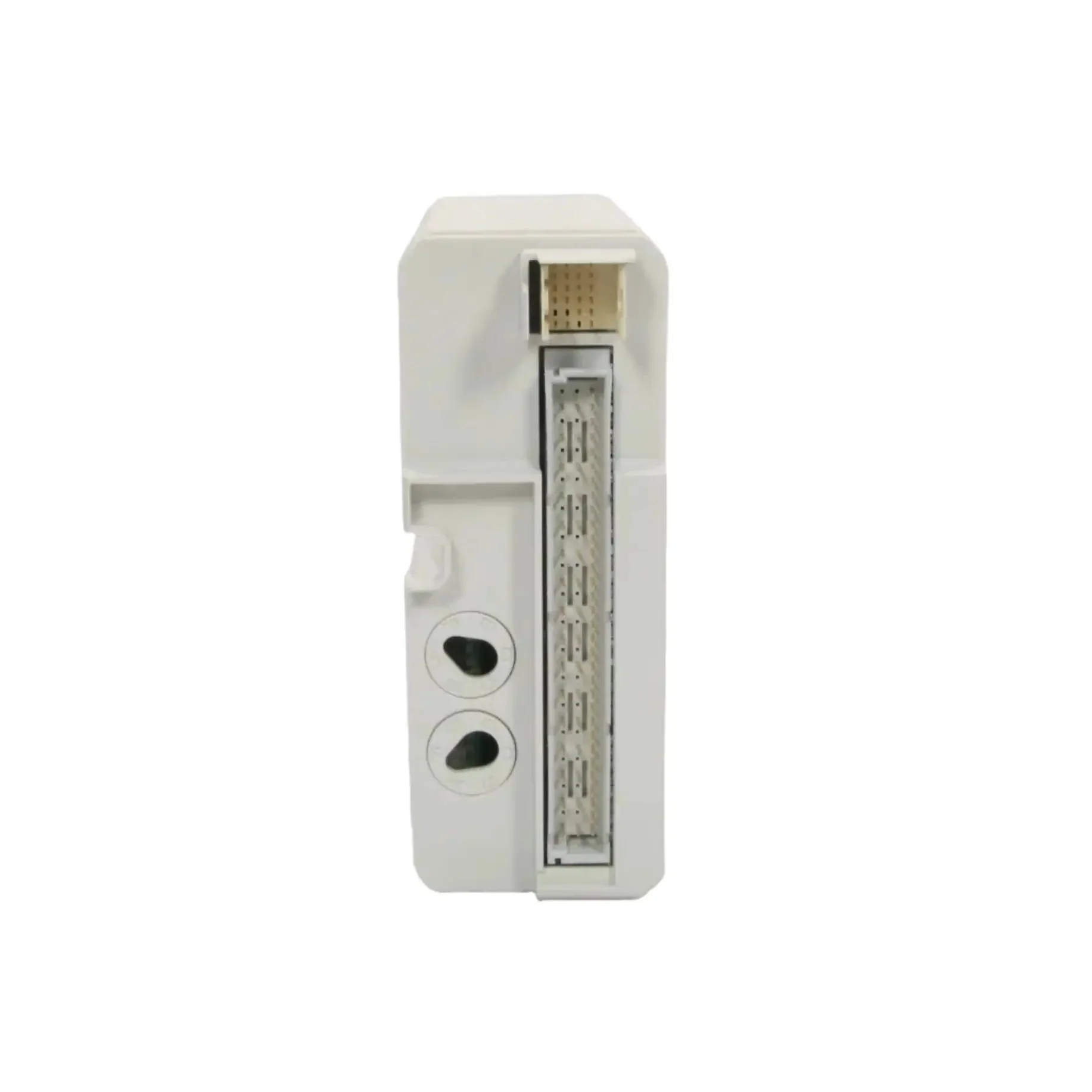

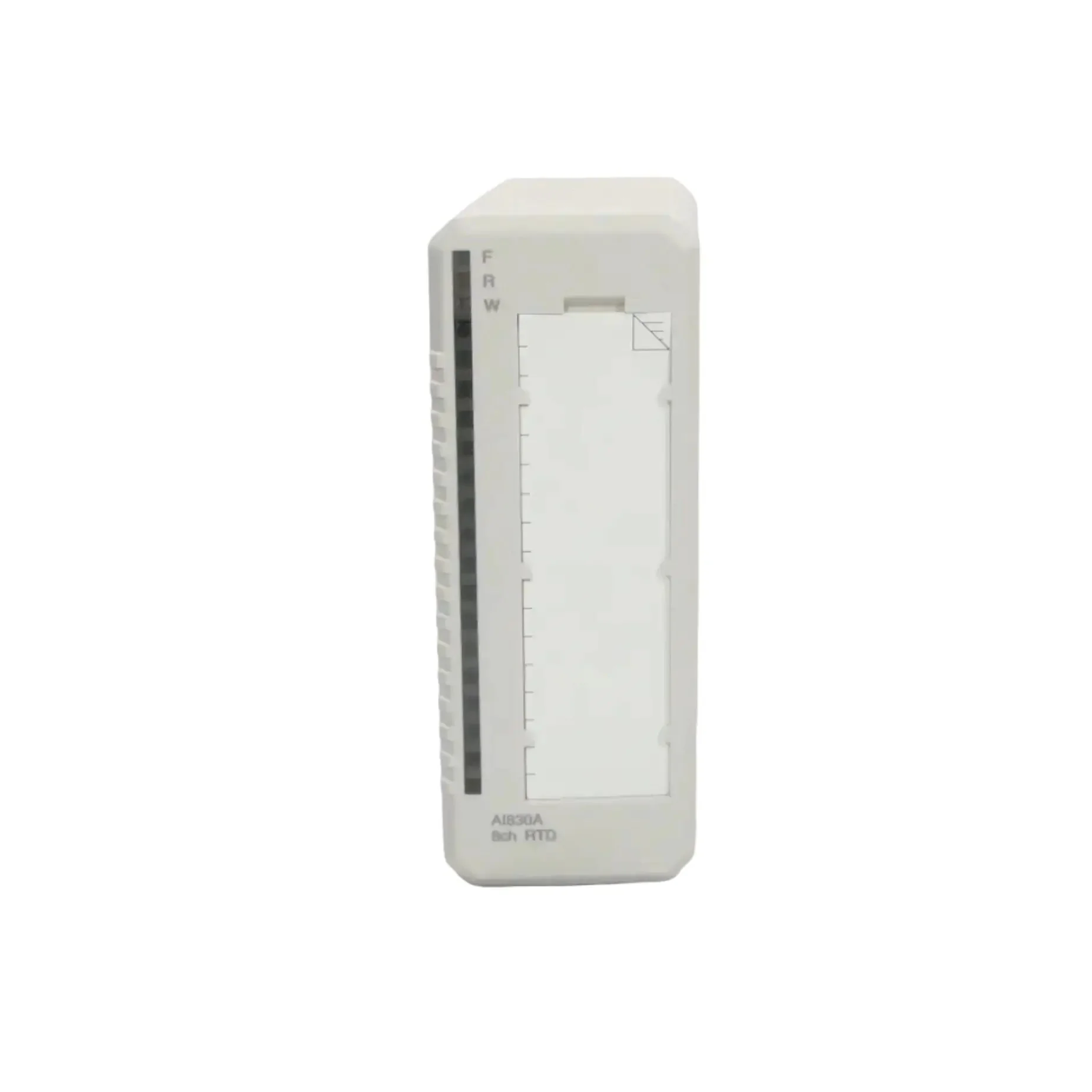

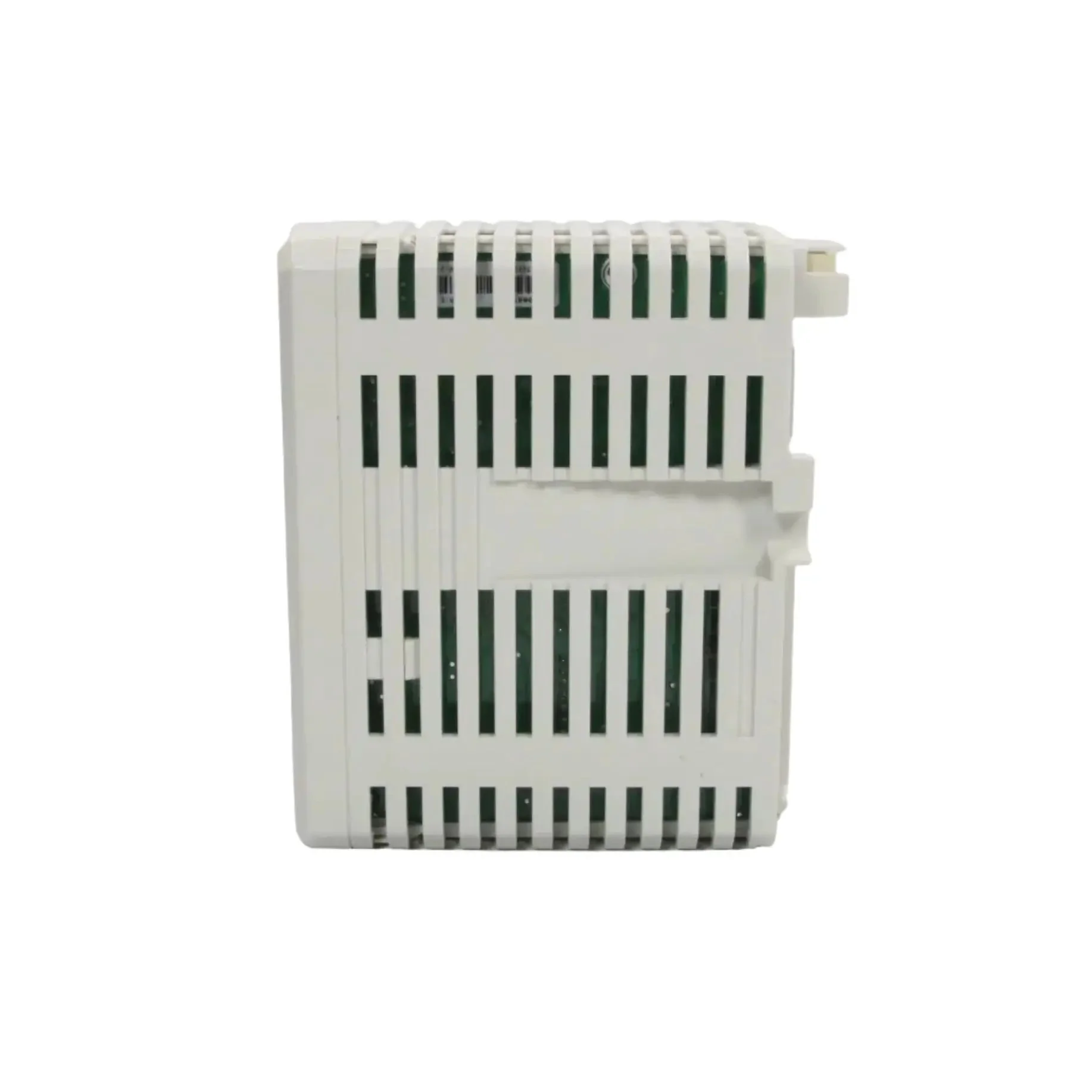

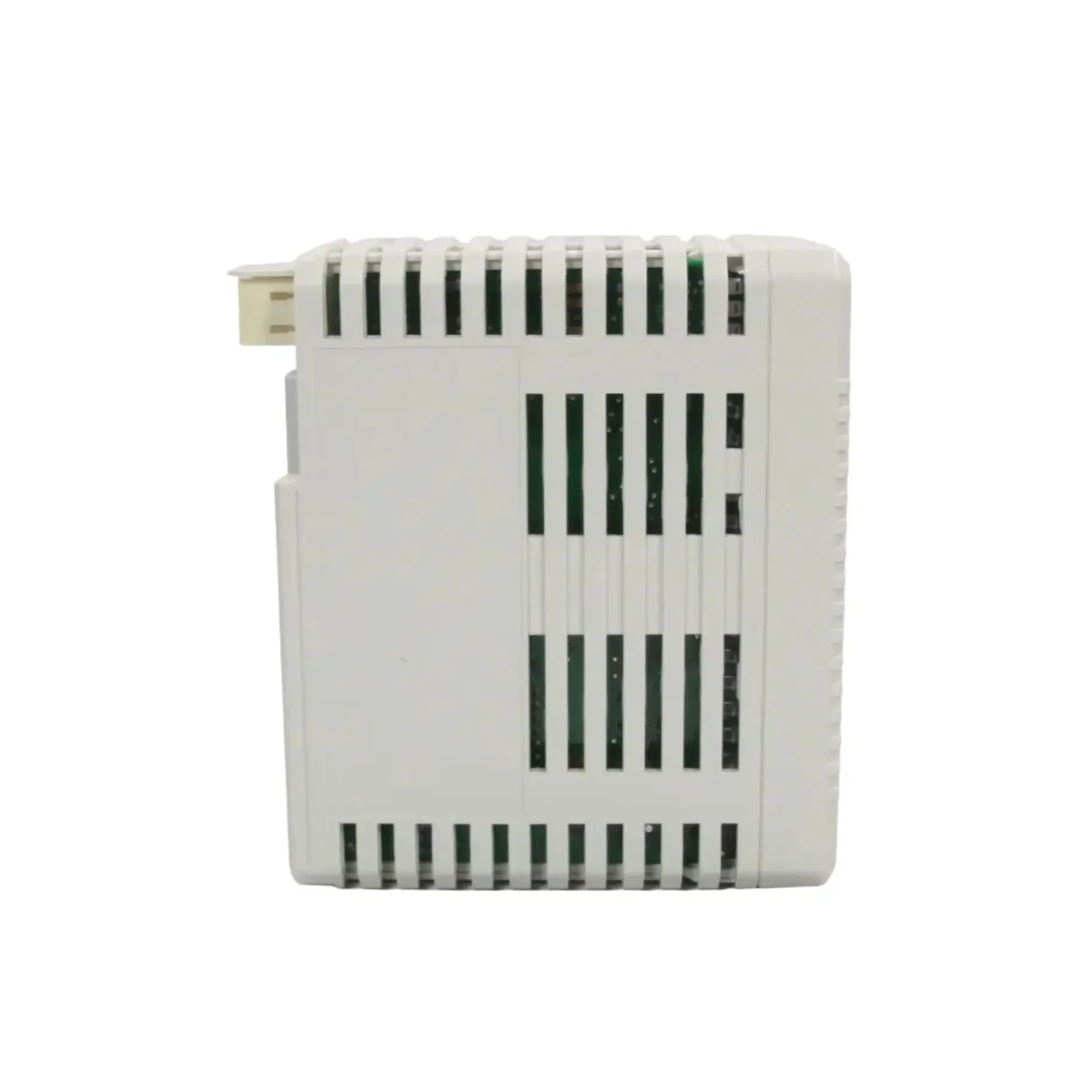

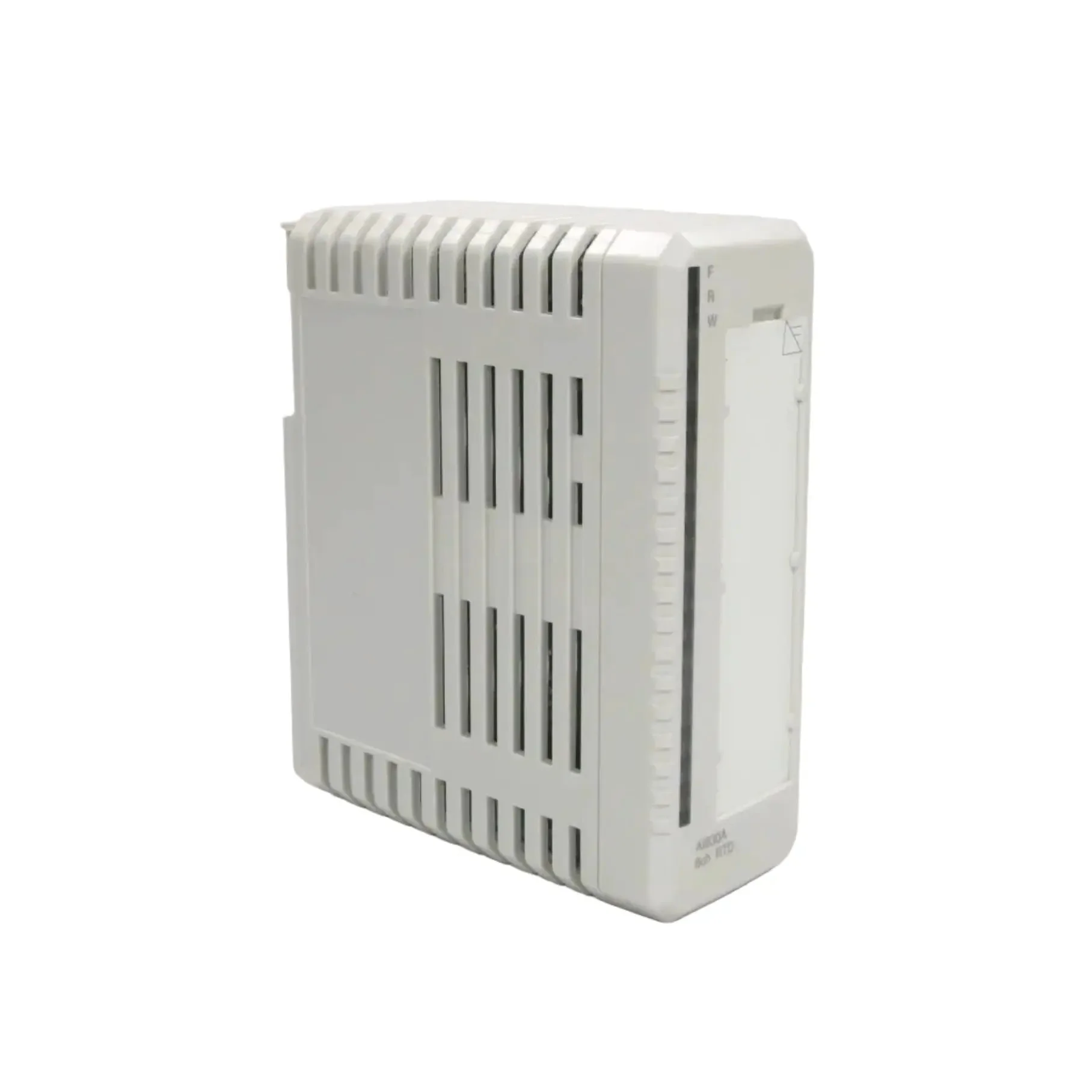

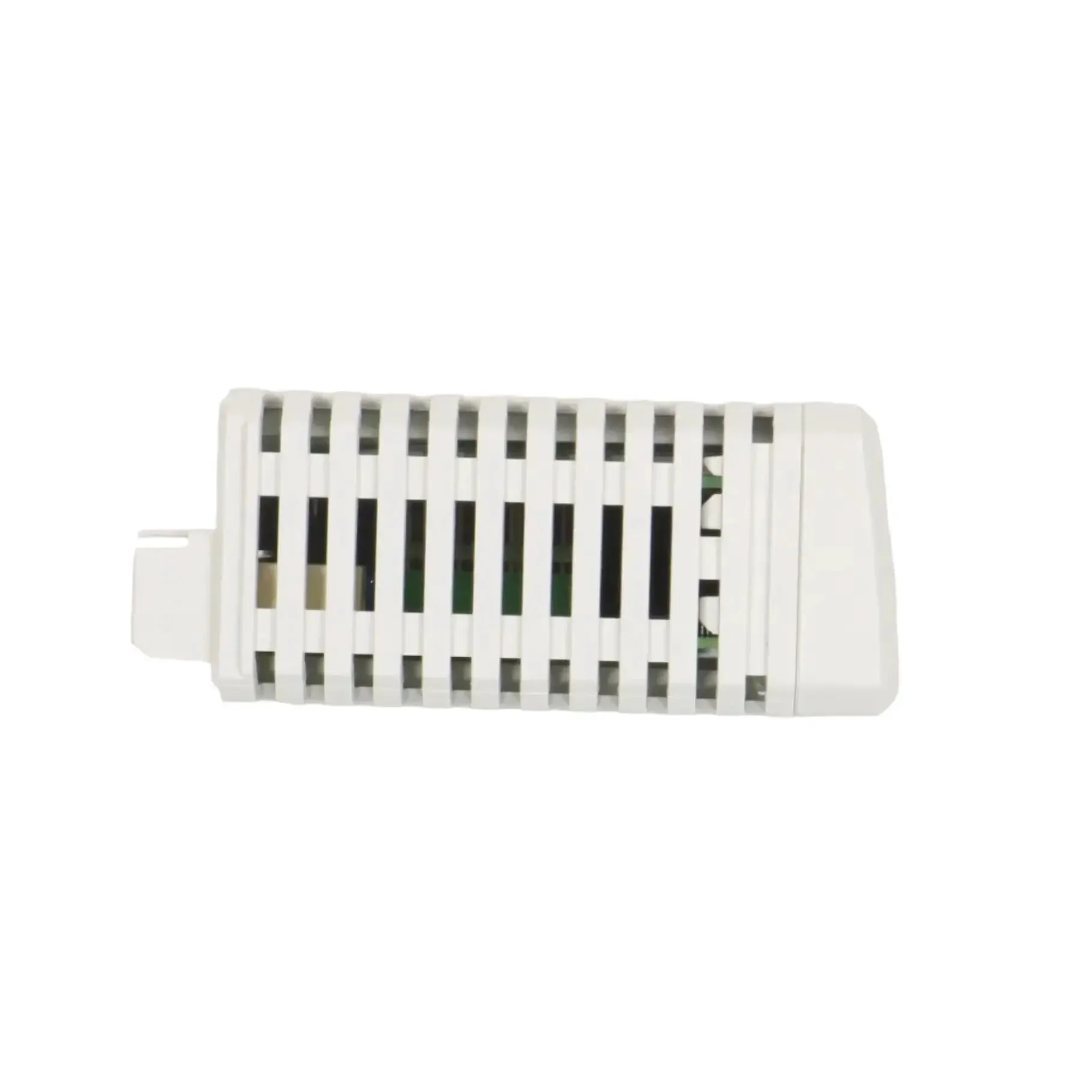

ABB AI 830A Analog Input Module

- Brand: ABB

- Model: AI 830A

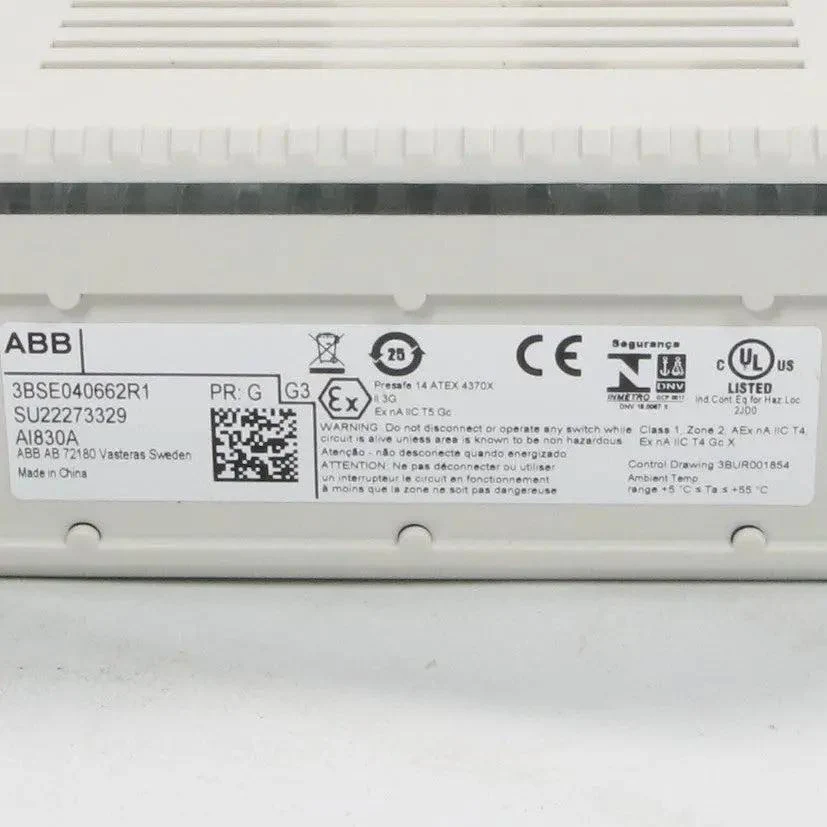

- Part Number: 3BSE040662R1

- Type: Analog Input Module (RTD, S800 I/O Series)

All tech specs:
- Number of channels: 8 analog inputs for RTD
- Input types: Pt100, Cu10, Ni100, Ni120, and linear resistance (0-2000 Ω)
- Connection: 3-wire
- Resolution: 14-bit
- Isolation: Channels isolated from ground (rated isolation 50 V)
- Diagnostics: Monitoring for open-circuit, short-circuit, input grounded sensor, reference channel, and internal supply
- Features: Temperature linearization and conversion to °C or °F, individual channel configuration, mains frequency filter (50/60 Hz notch filter)
- No HART, no SOE, no redundancy support
- Compatible Module Termination Units: TU810V1, TU812V1, TU814V1, TU830V1, TU833
- Part of ABB S800 I/O system for distributed process control

Dimensions: 160 x 160 x 80 mm(box)

Weight: 380 g

Country of origin: Sweden

HS code: 853890
