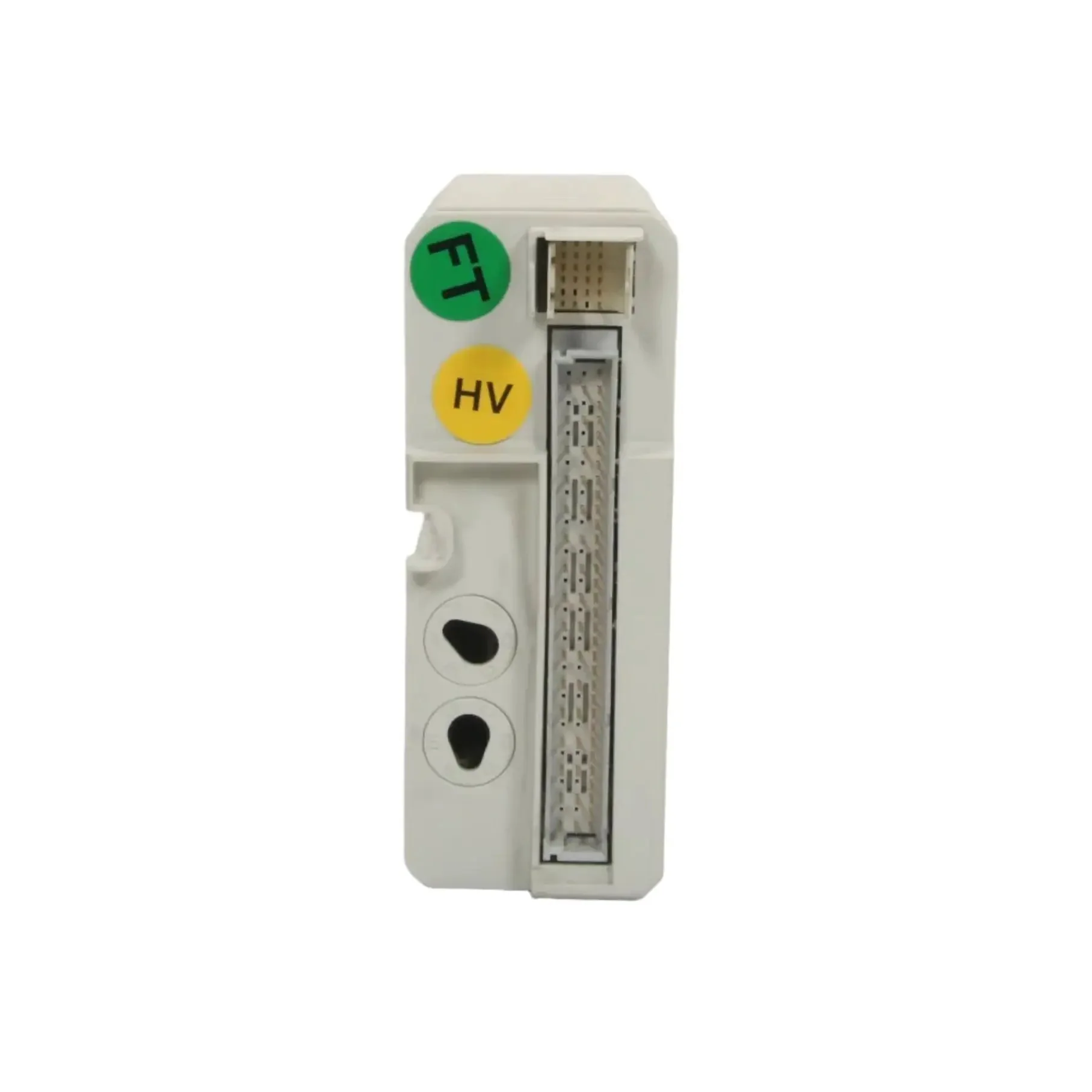

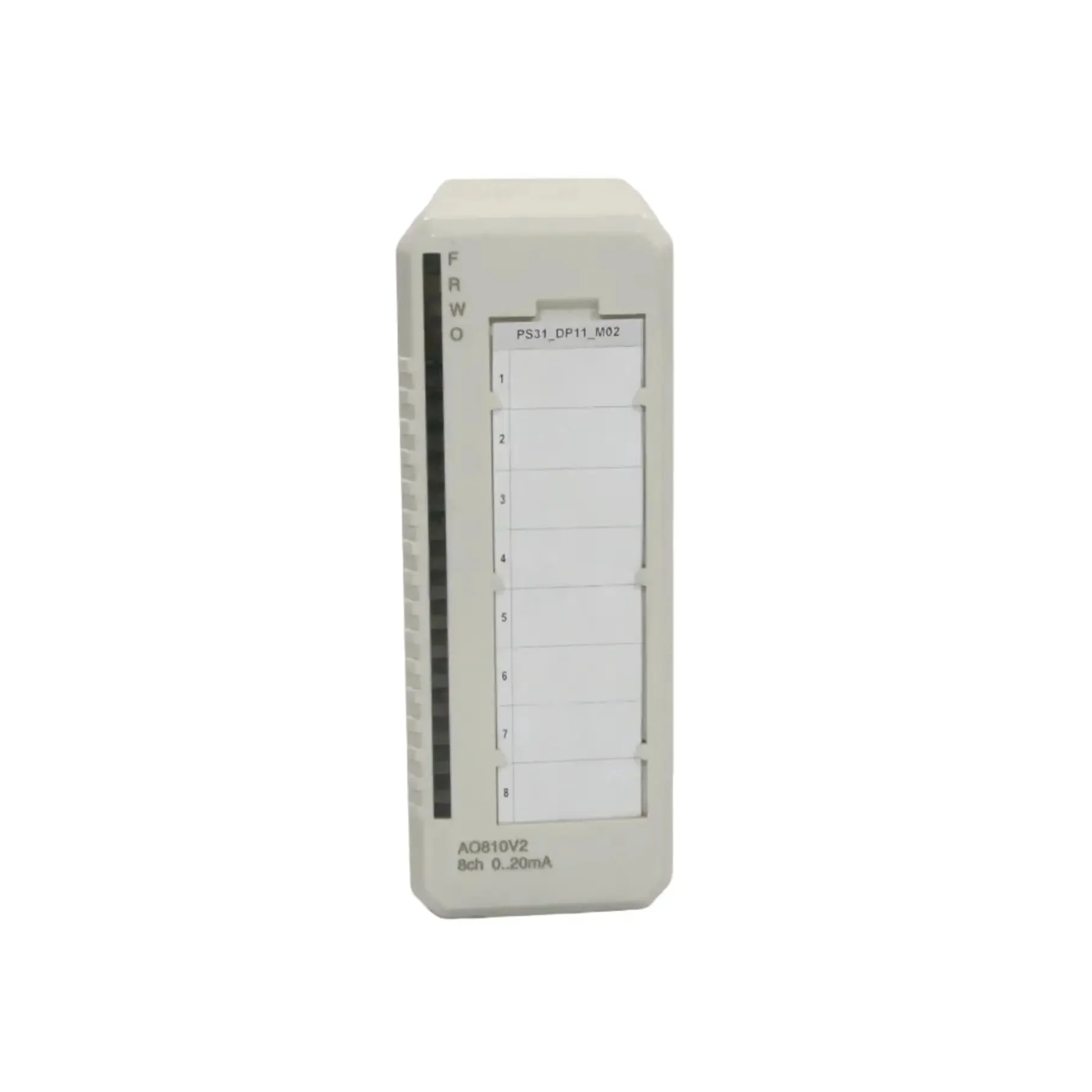

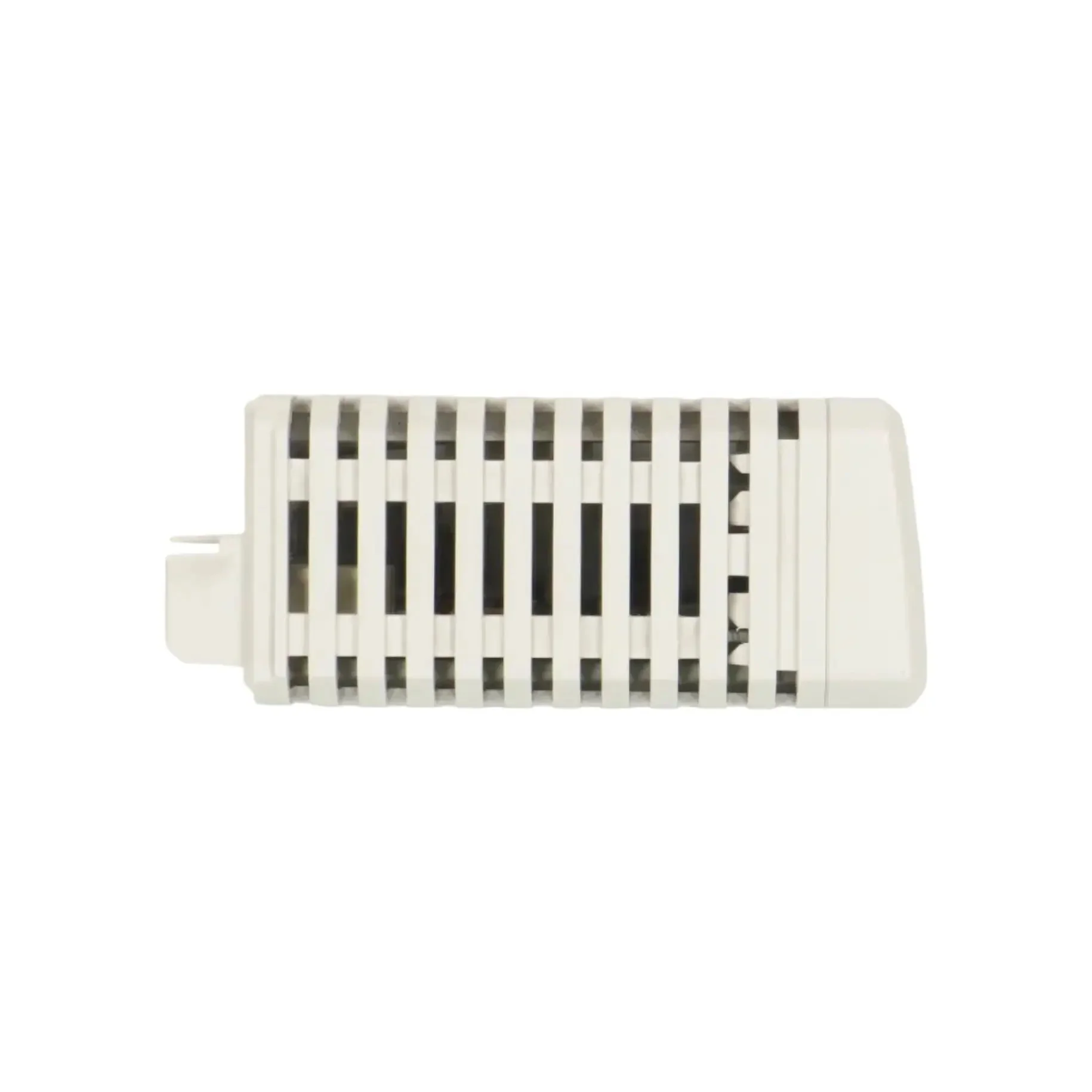

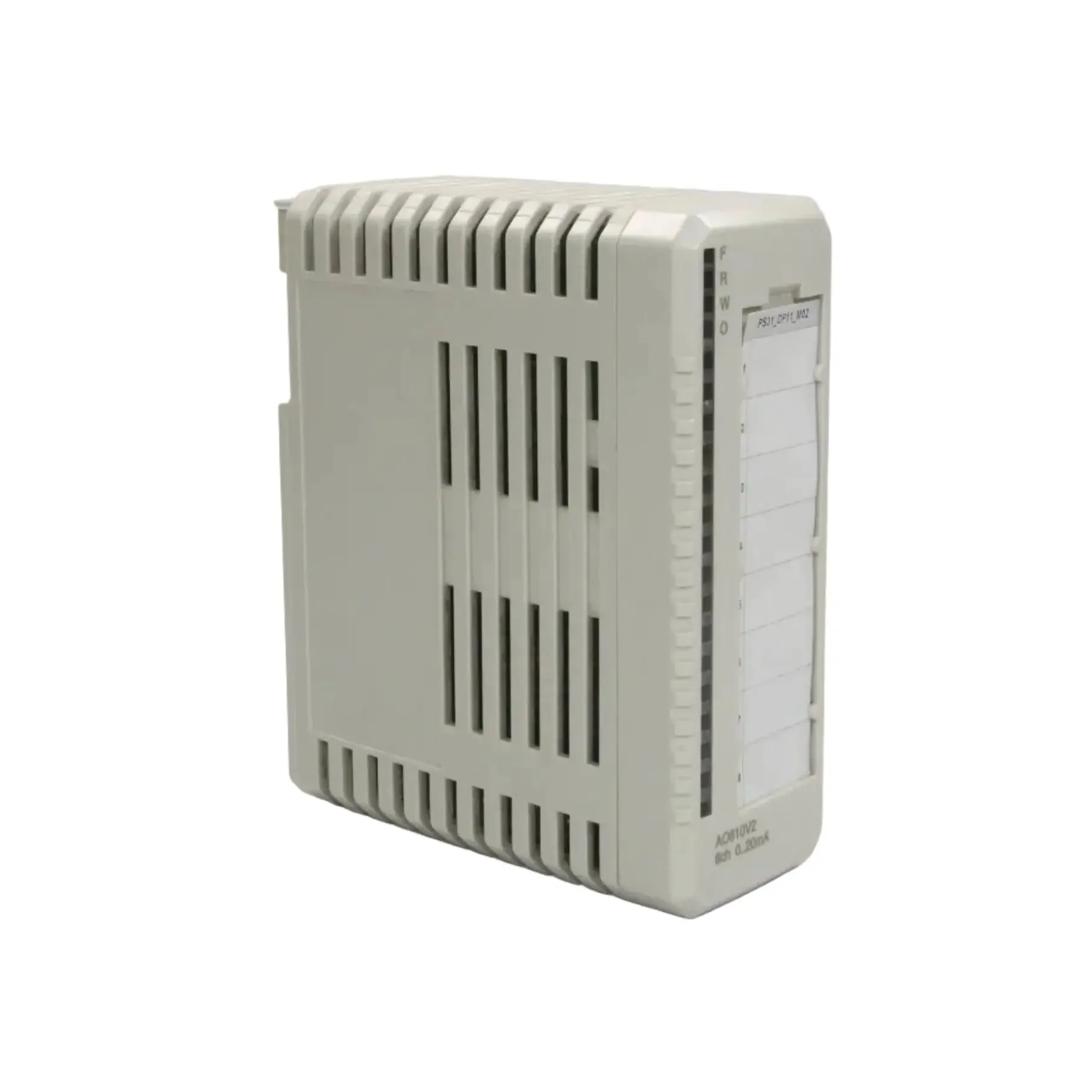

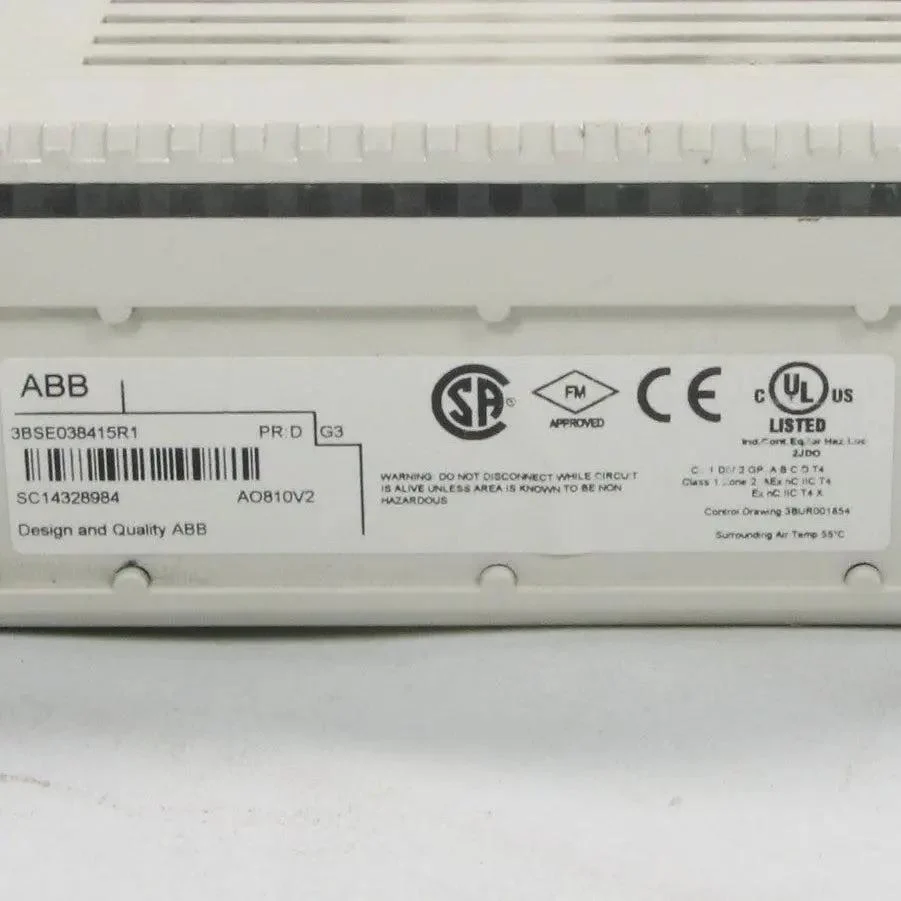

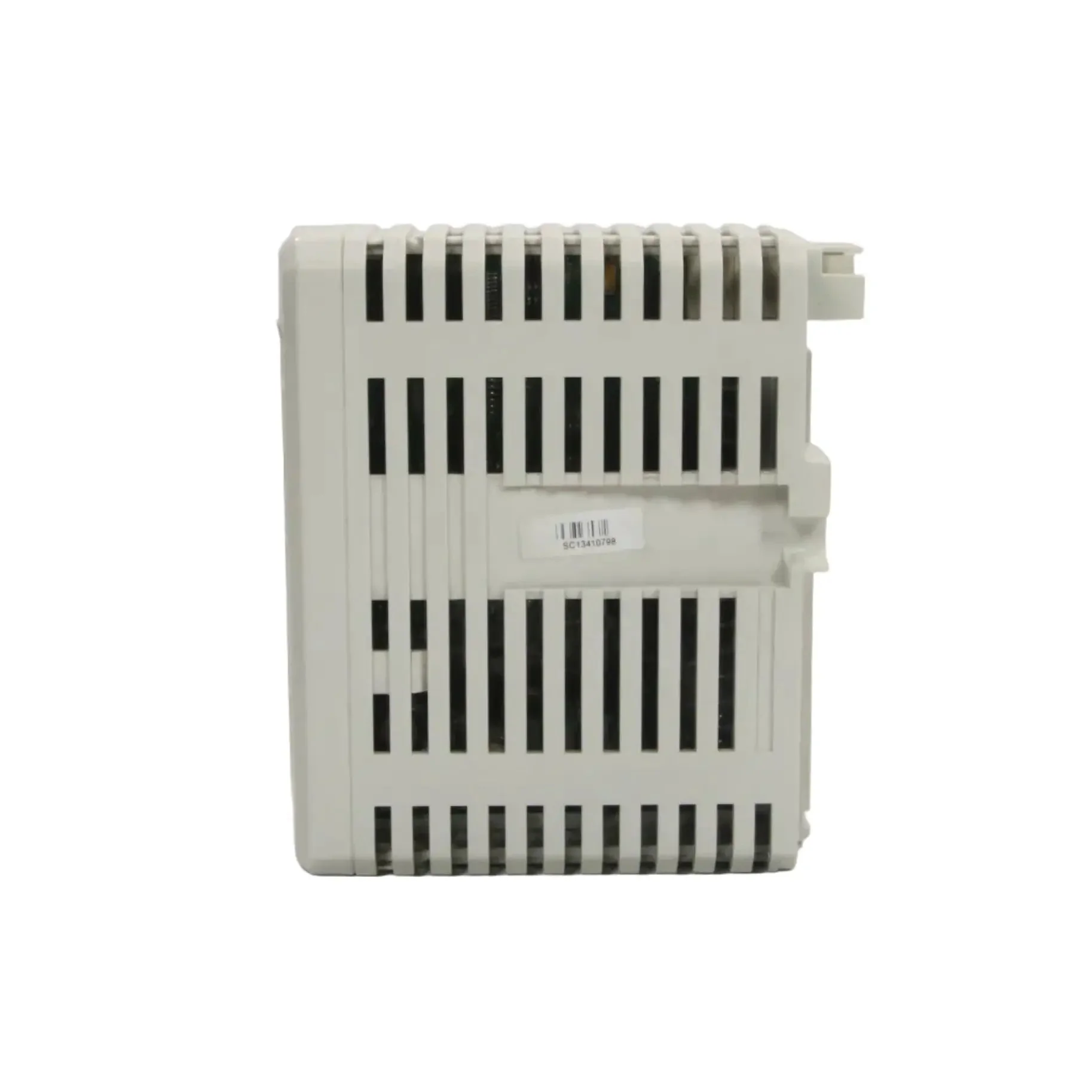

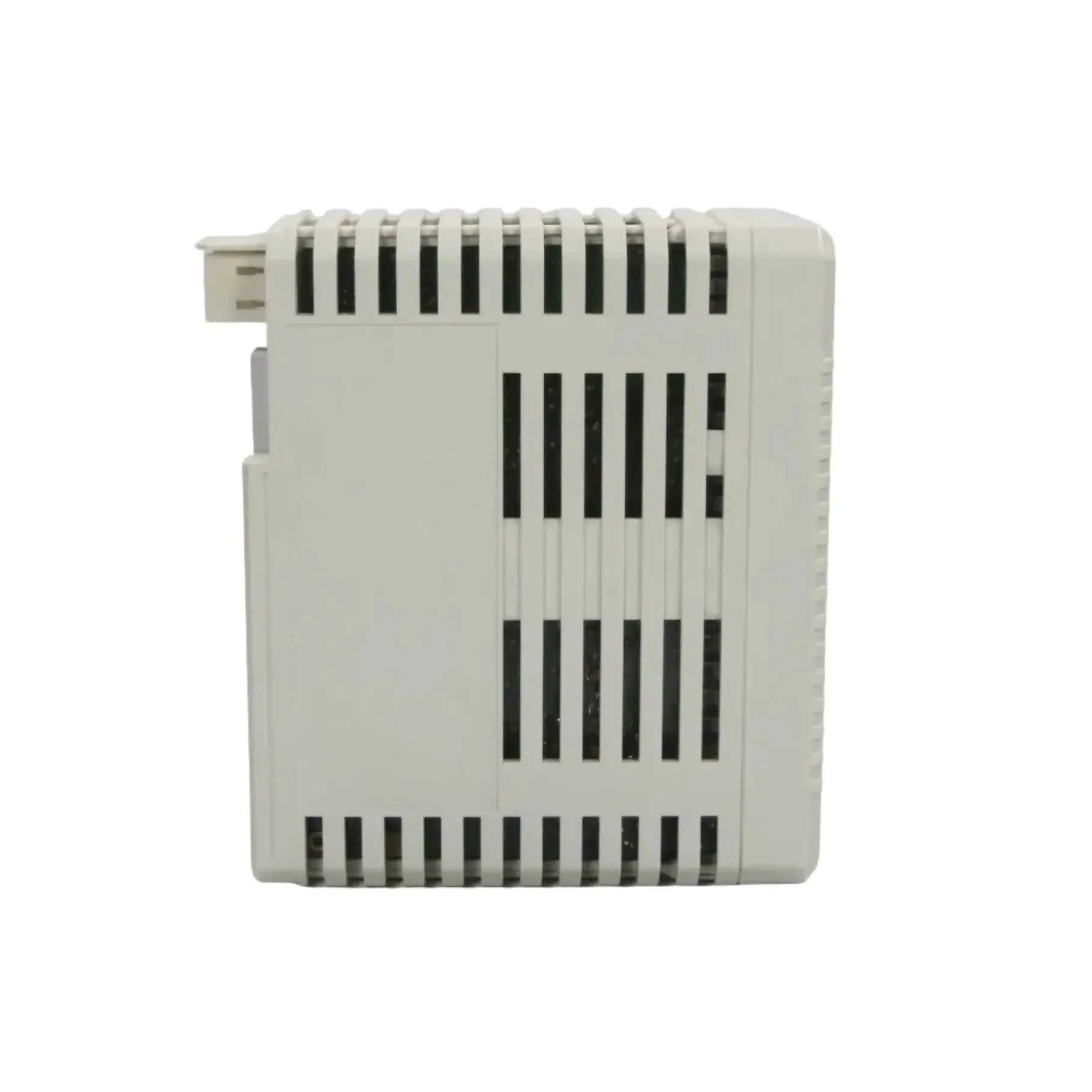

ABB AO 810V2 Analog Output Module

- Brand: ABB

- Model: AO 810V2

- Part Number: 3BSE038415R1

- Type: Analog Output Module (S800 I/O Series)

All tech specs:
- Number of channels: 8 unipolar analog outputs
- Output signal: 0(4)...20 mA
- Resolution: 14-bit
- Maximum load resistance: 500 Ω (for 4-20 mA) / 850 Ω (for 0-20 mA)
- Isolation: Groupwise isolated (rated isolation 50 V)
- Diagnostics: Cyclic self-diagnostics, open-circuit detection, read-back of serial data for verification
- Features per channel: Output state indication LED, optical isolation
- No HART communication support
- No Sequence of Events (SOE) support
- No redundancy support
- No High Integrity or Intrinsic Safety
- Compatible Module Termination Units: TU810, TU812, TU814, TU830, TU833
- Part of ABB S800 I/O system for distributed process control

- Dimensions: 110 x 45 x 120 mm

- Weight: 200 g

- Country of origin: Sweden

- HS code: 853890
