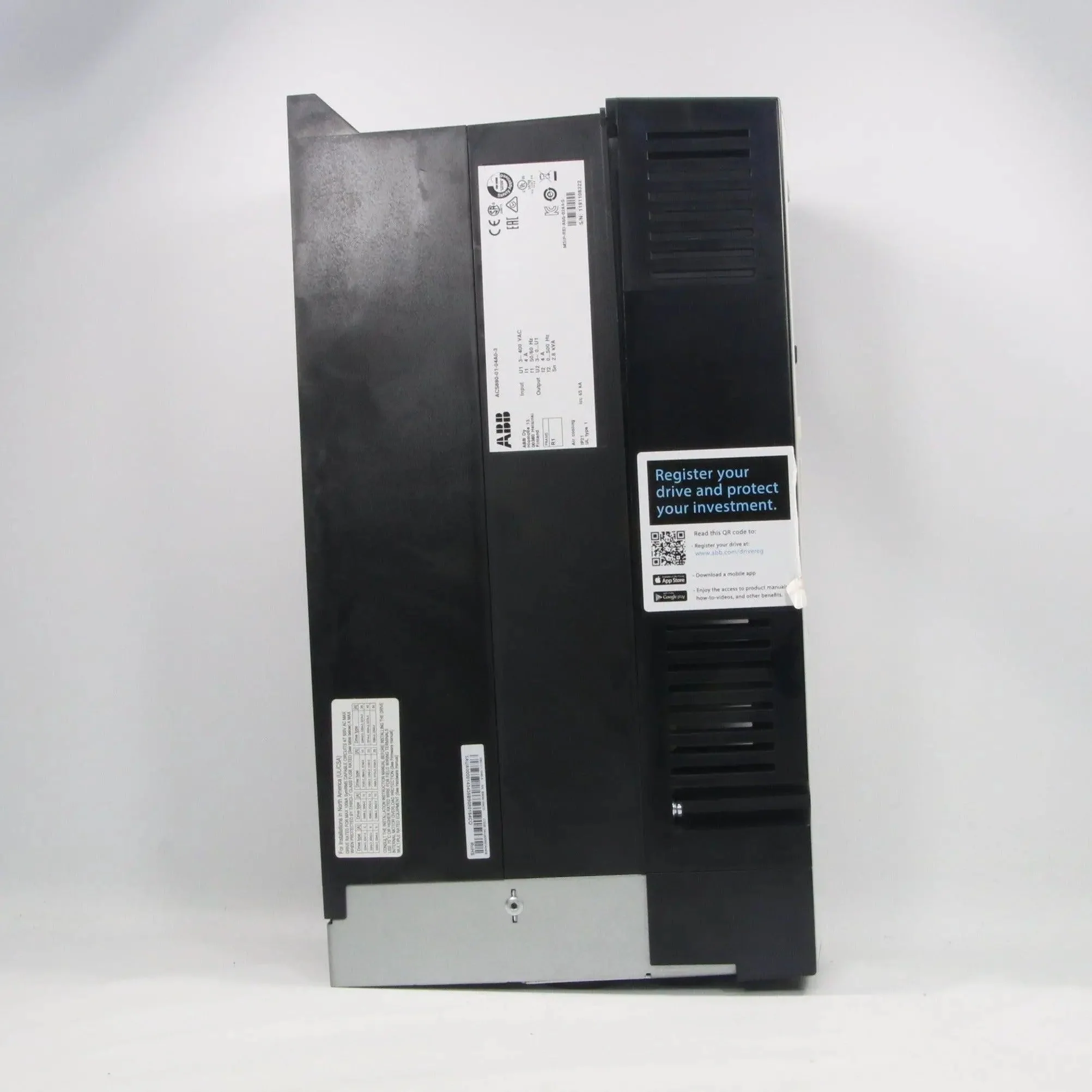

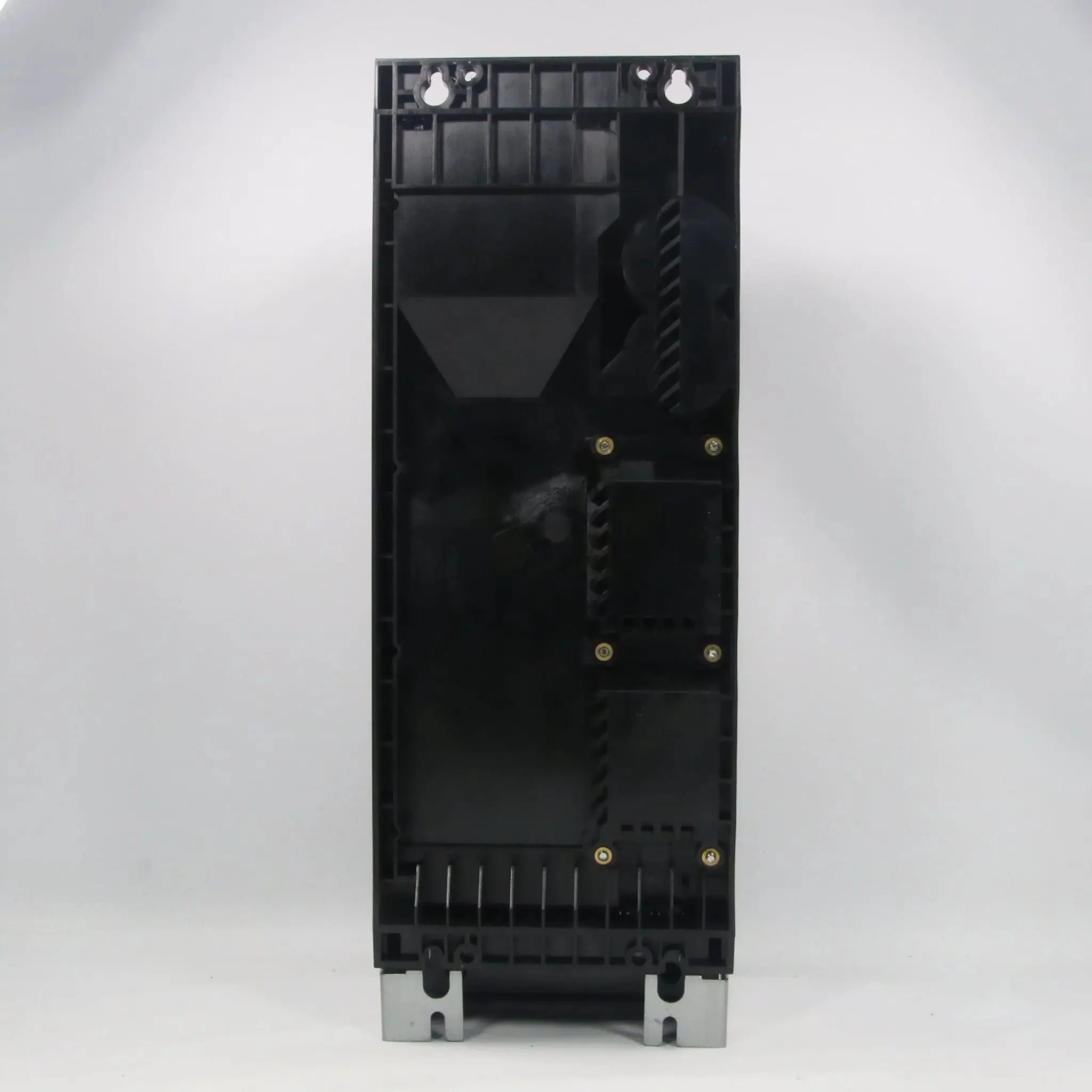

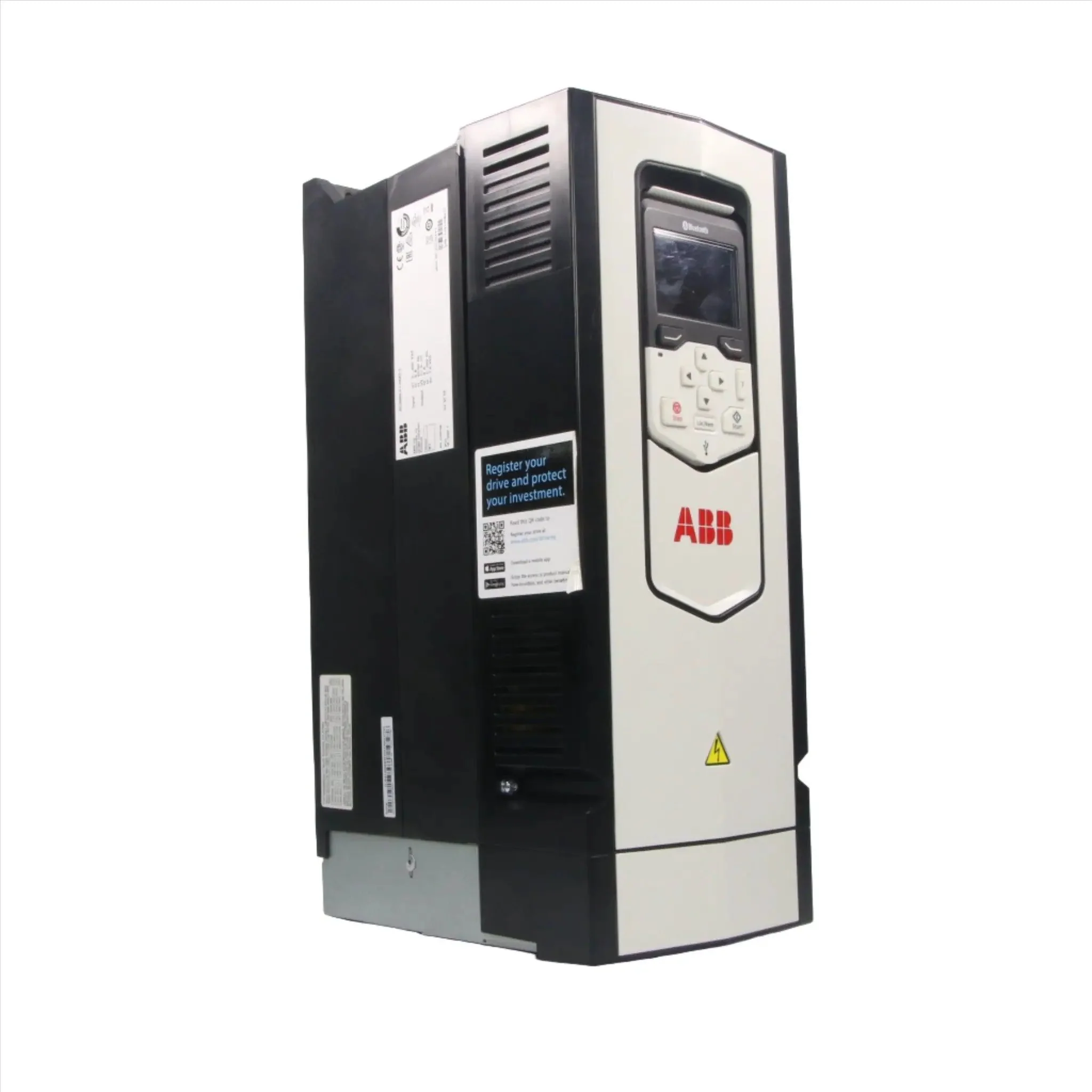

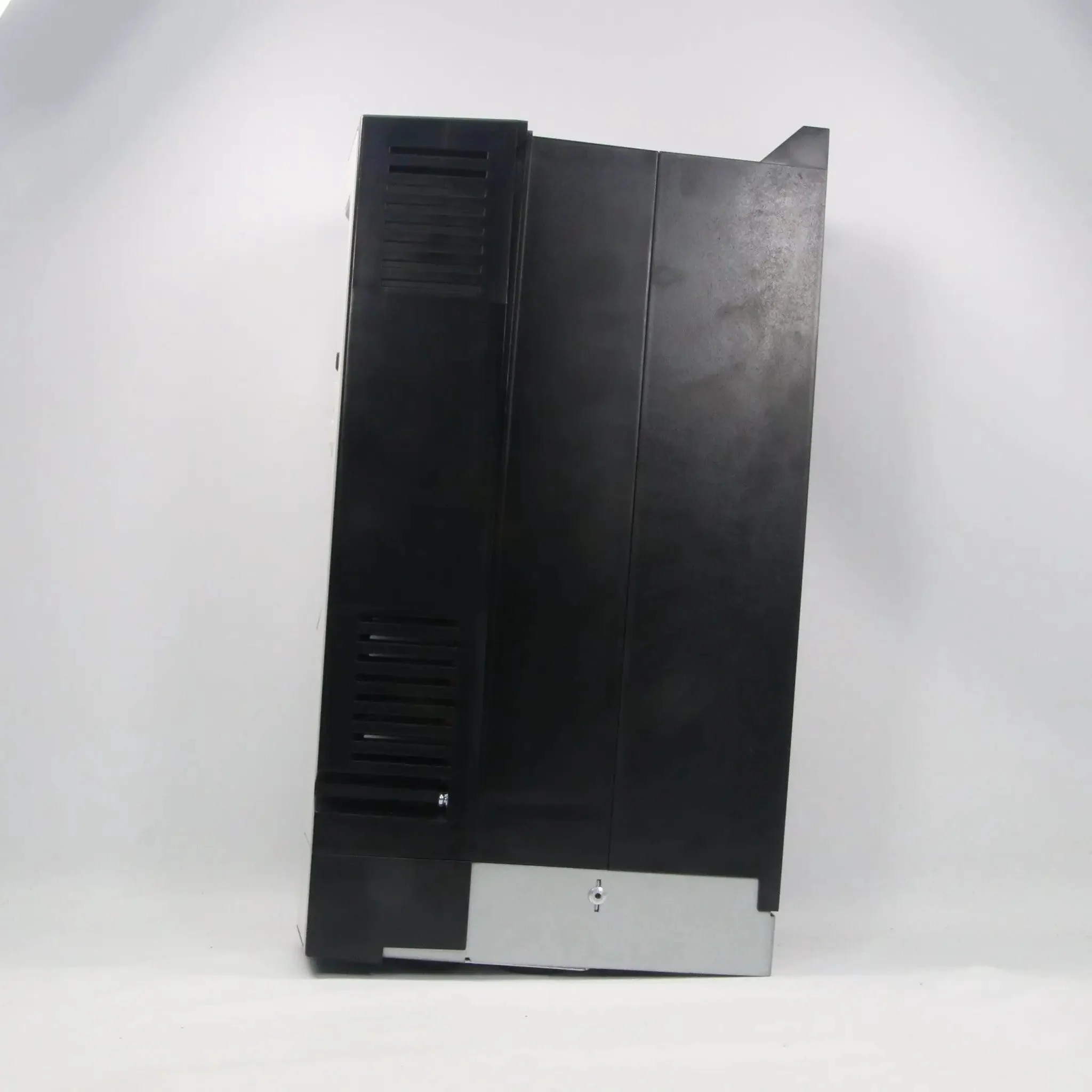

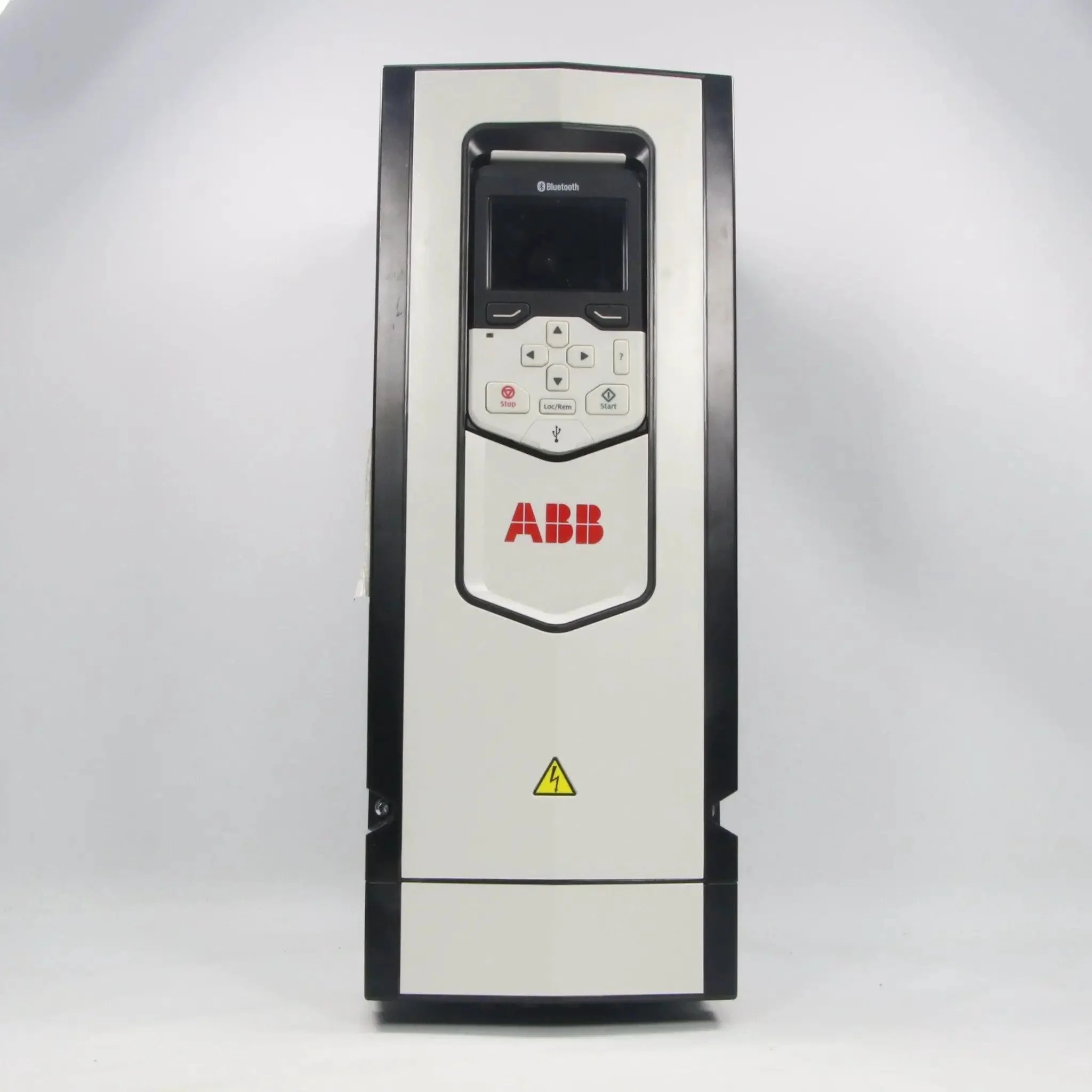

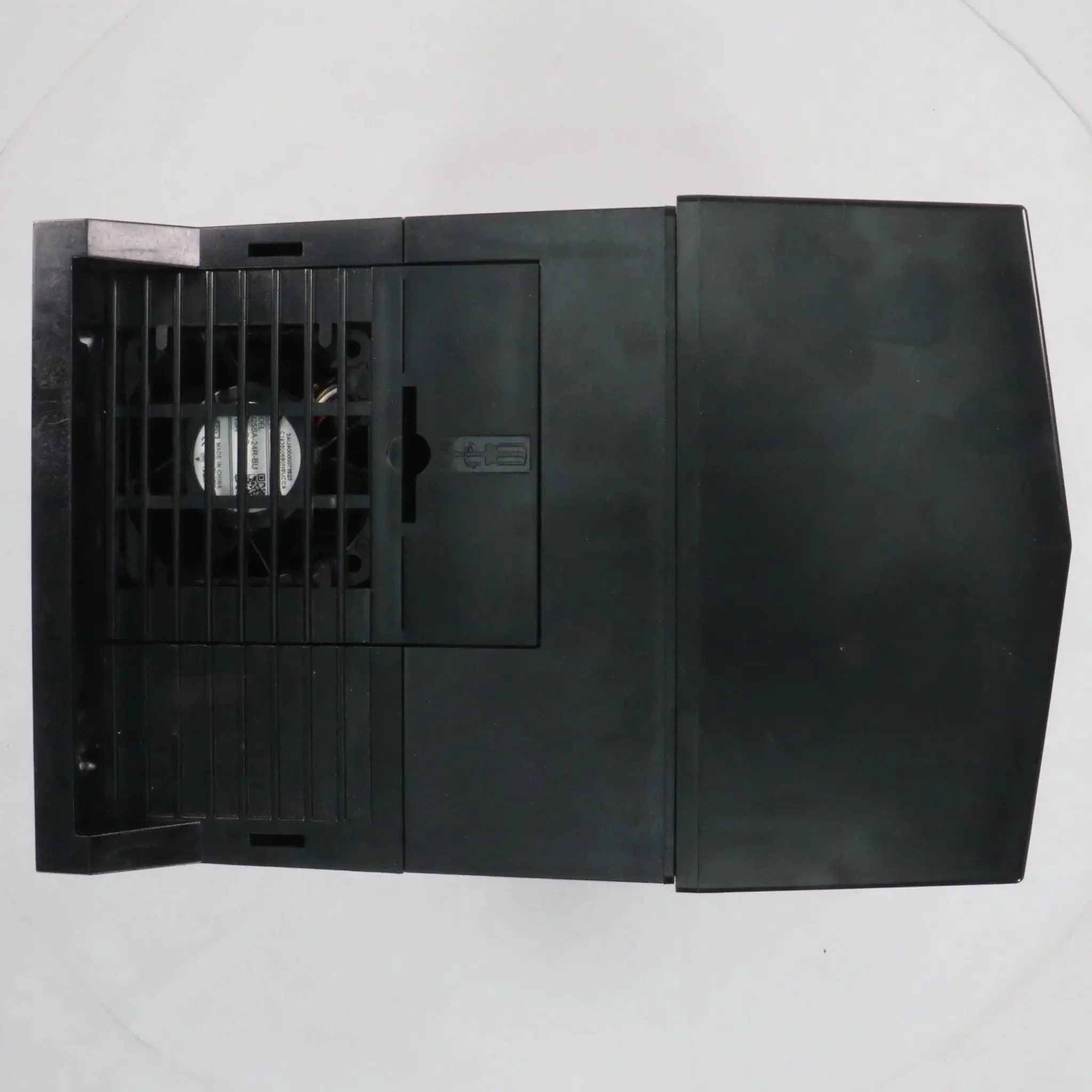

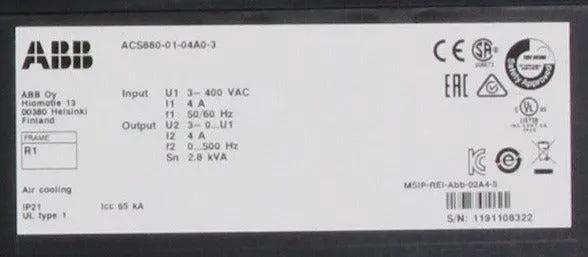

ABB ACS 880-01-04A0-3 Inverter Drive
Brand: ABB
Model: ACS880-01-04A0-3
Type: Single Drive (AC Inverter)
Part Number: ACS880-01-04A0-3
Technical Specs:
Rated Power: 1.5 kW (2 HP) normal duty
Rated Voltage: 380-480 V AC, 3-phase
Rated Current: 4.0 A normal duty
Frequency: 50/60 Hz
Overload Capacity: 110% for 1 min
Control Method: Direct Torque Control (DTC) – sensorless vector, scalar, open-loop
Output Frequency Range: 0-500 Hz
Protection Features: Overcurrent, overvoltage, undervoltage, overtemperature, ground fault, phase loss, motor stall/lock, short circuit
Communication: Modbus RTU, optional fieldbus adapter - Profibus
EMC Filter: Integrated C2
Frame: R1
Enclosure Rating: IP21 (UL Type 1)
Operating Temperature: -15°C to +55°C (derating above 40°C)
Humidity: 5-95% RH (non-condensing)
Dimensions: 220 x 160 x 420 mm
Weight: 7.5 kg
Country of Origin: Finland
HS Code: 8504.40
Original: $633.54
-70%$633.54
$190.06
Description
Brand: ABB
Model: ACS880-01-04A0-3
Type: Single Drive (AC Inverter)
Part Number: ACS880-01-04A0-3
Technical Specs:
Rated Power: 1.5 kW (2 HP) normal duty
Rated Voltage: 380-480 V AC, 3-phase
Rated Current: 4.0 A normal duty
Frequency: 50/60 Hz
Overload Capacity: 110% for 1 min
Control Method: Direct Torque Control (DTC) – sensorless vector, scalar, open-loop
Output Frequency Range: 0-500 Hz
Protection Features: Overcurrent, overvoltage, undervoltage, overtemperature, ground fault, phase loss, motor stall/lock, short circuit
Communication: Modbus RTU, optional fieldbus adapter - Profibus
EMC Filter: Integrated C2
Frame: R1
Enclosure Rating: IP21 (UL Type 1)
Operating Temperature: -15°C to +55°C (derating above 40°C)
Humidity: 5-95% RH (non-condensing)
Dimensions: 220 x 160 x 420 mm
Weight: 7.5 kg
Country of Origin: Finland
HS Code: 8504.40
