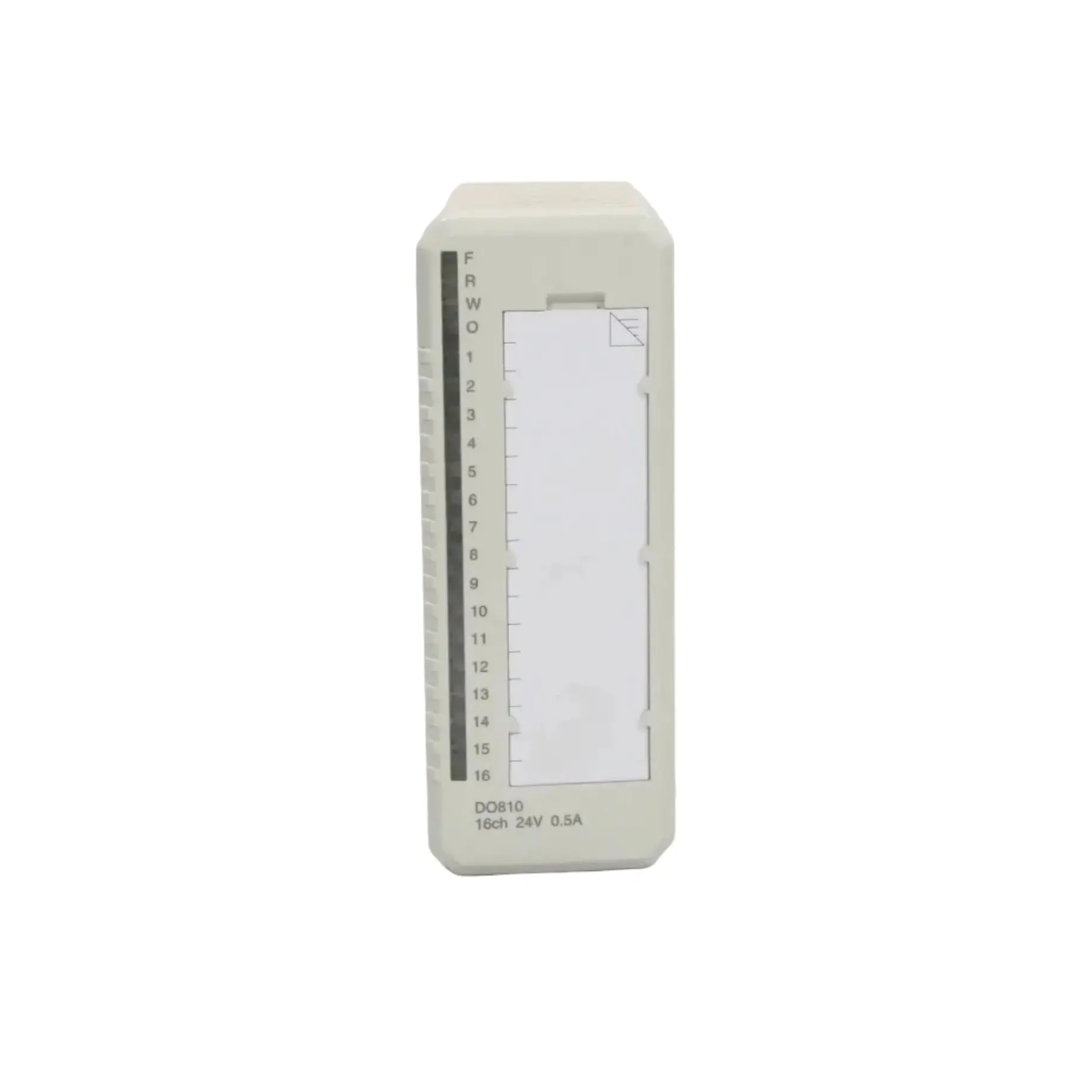

ABB DO 810 Digital Output Module

- Brand: ABB

- Model: DO 810

- Part Number: 3BSE008510R1

- Type: Digital Output Module (S800 I/O Series)

All tech specs:
- Number of channels: 16 digital outputs
- Output type: Current sourcing, transistor outputs with current limiting
- Nominal voltage: 24 V d.c. (range 12-32 V d.c.)
- Maximum output current: 0.5 A per channel
- Isolation: Groupwise isolated (two groups of 8 channels each, rated isolation 50 V)
- Short-circuit proof outputs
- Features per channel: Output state indication LED, optical isolation, overload and short-circuit protection
- No HART, no SOE, no redundancy support in basic configuration
- Compatible Module Termination Units: TU810, TU812, TU814, TU830, TU833, etc.
- Part of ABB S800 I/O system for distributed process control

- Dimensions: 100 x 45 x 110 mm

- Weight: 180 g

- Country of origin: Sweden

- HS code: 853890
