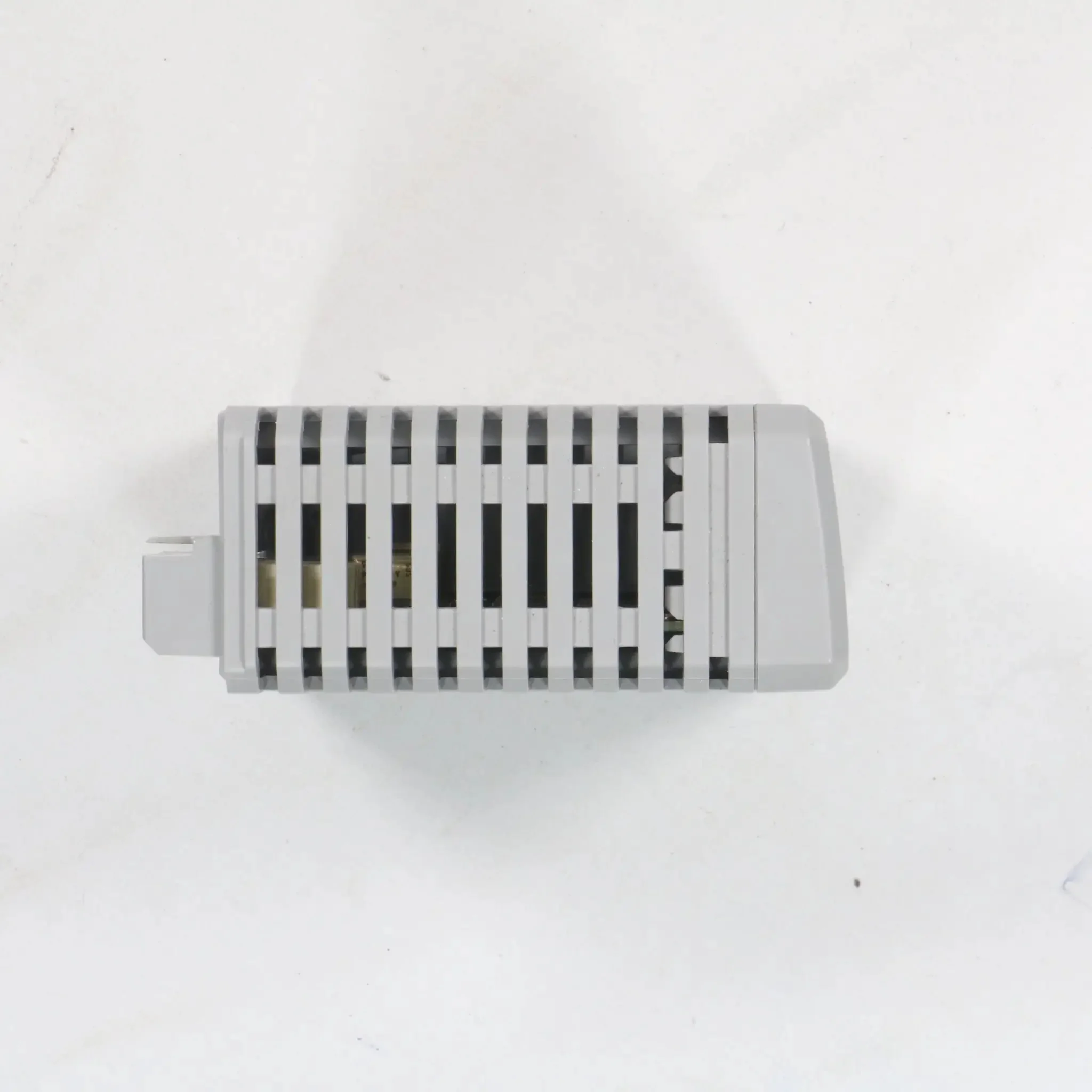

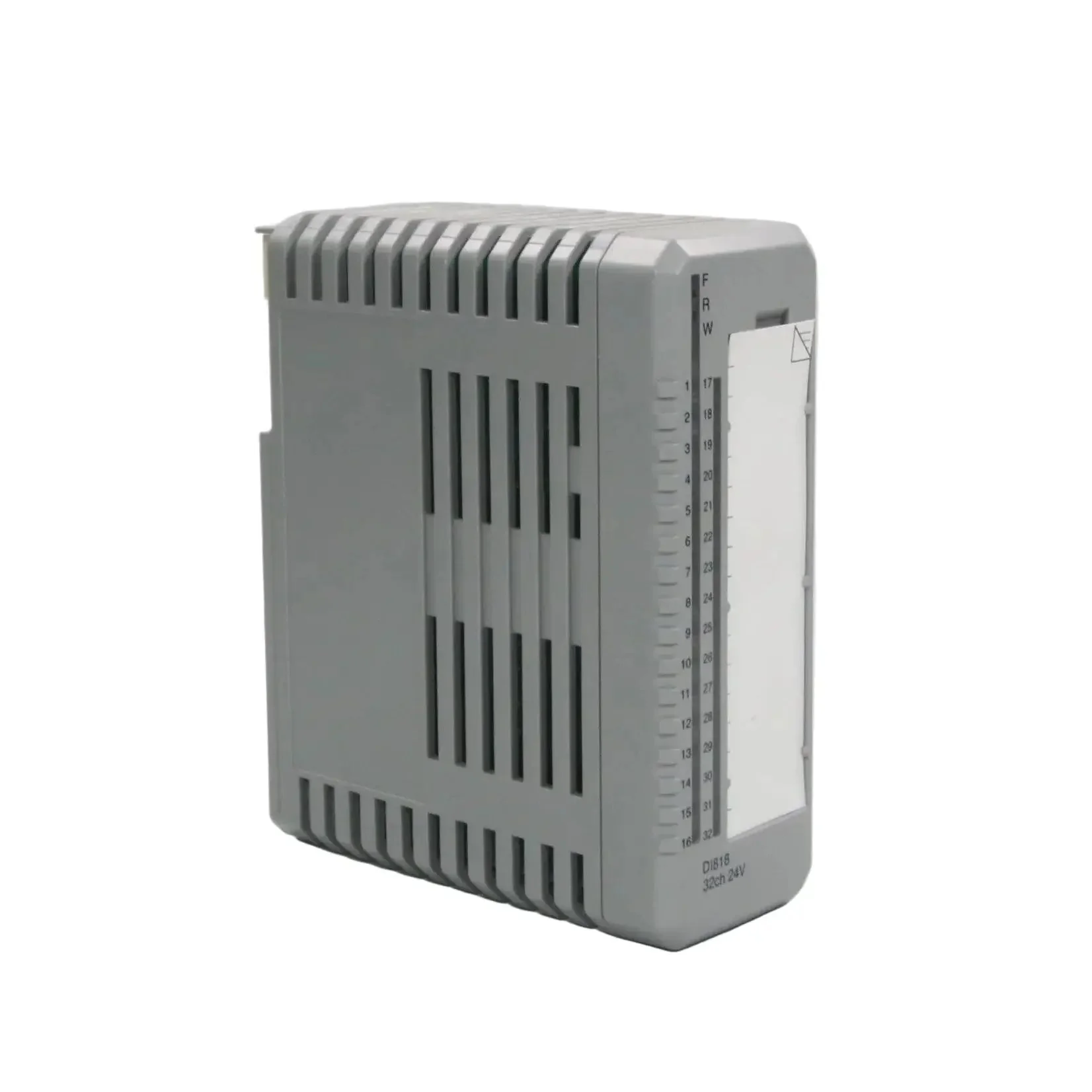

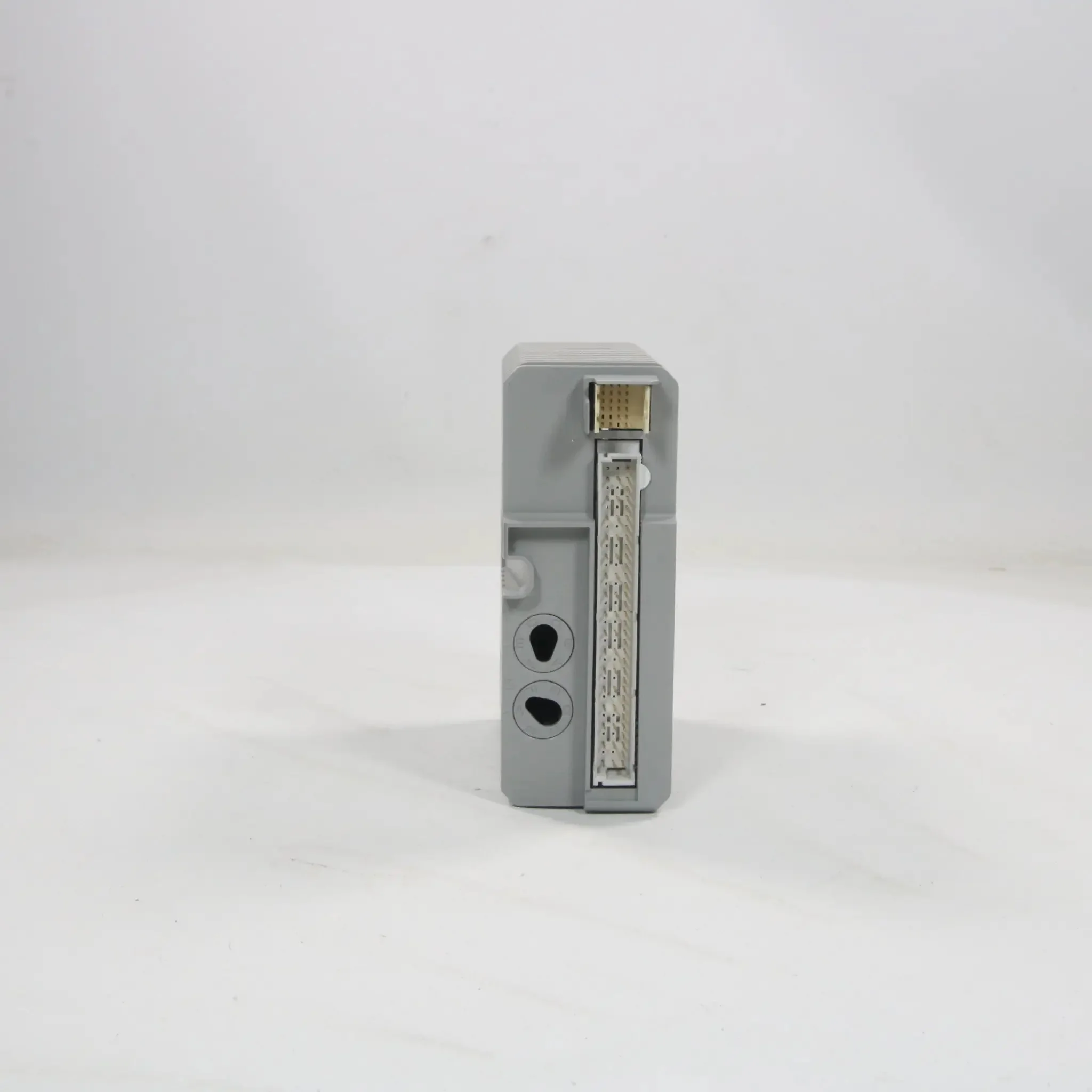

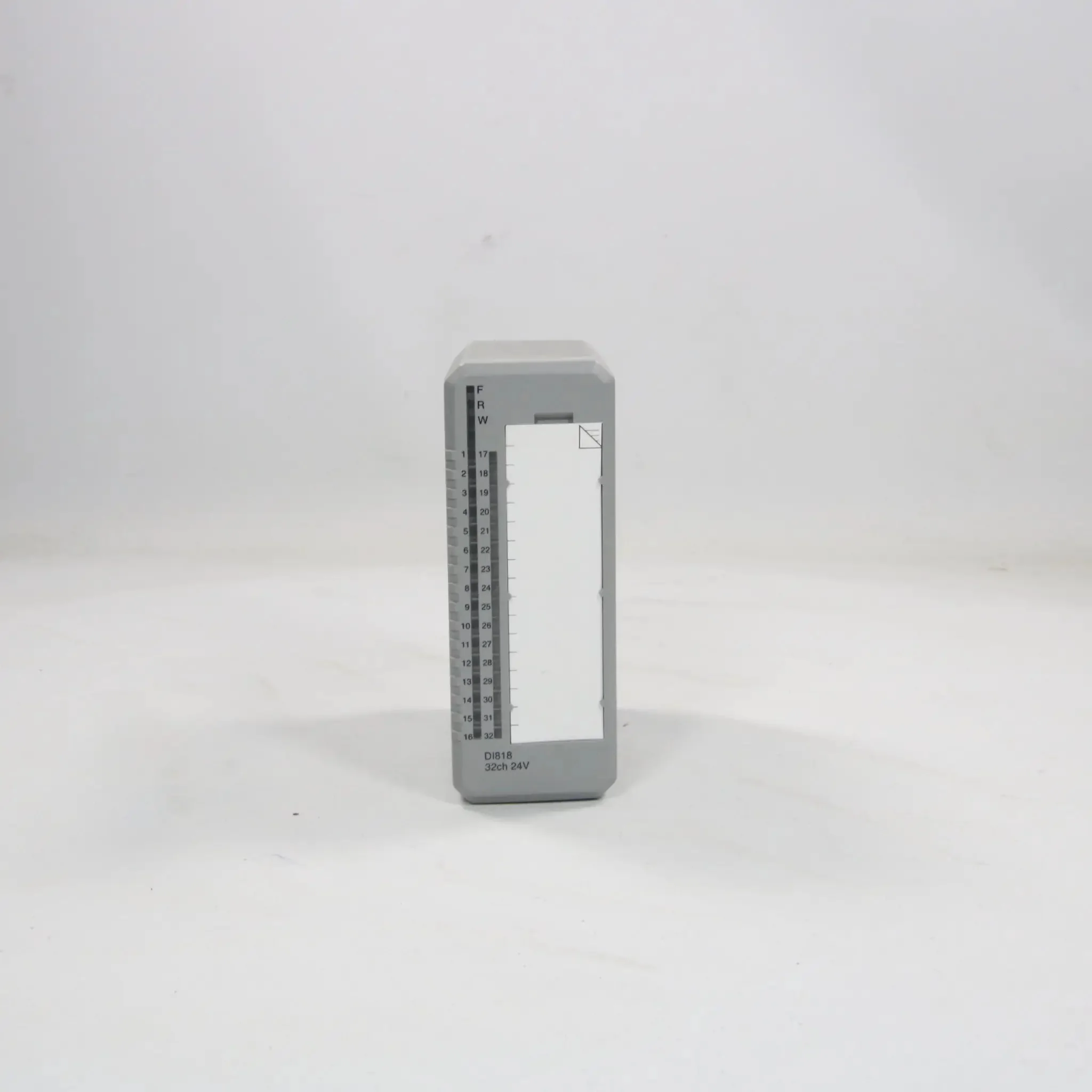

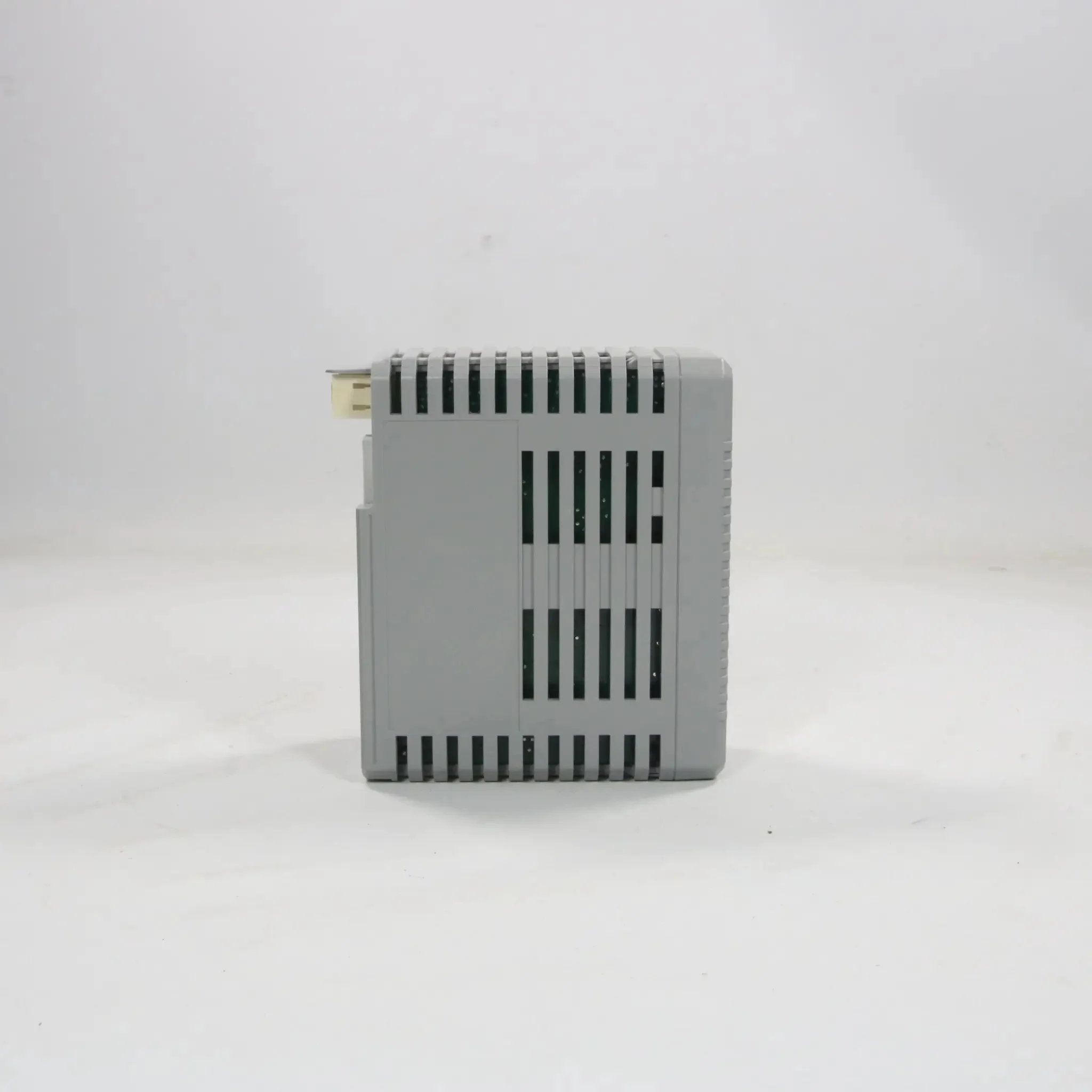

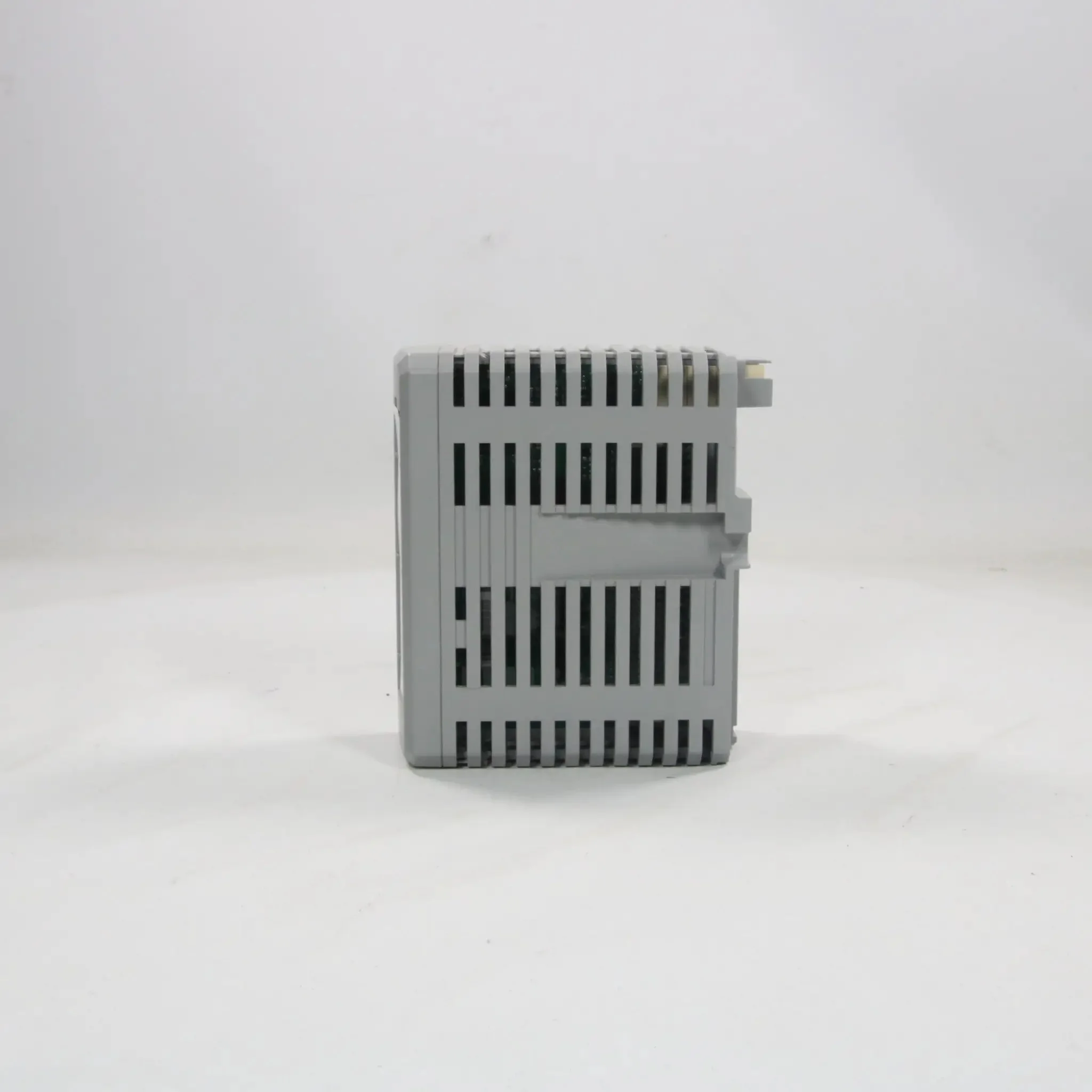

ABB DI818 Digital input module

Brand: ABB

Model: DI818

Part Number: 3BSE069052R1

Type
Digital Input Module (S800 I/O Series)

All tech specs
- Number of channels: 32 digital inputs
- Input type: Current sinking
- Nominal input voltage: 24 V d.c.
- Input voltage range: 18 to 30 V d.c.
- Input current: 4.3 mA at 24 V
- Isolation: Divided into two individually isolated groups of 16 channels each (rated isolation 50 V)
- Voltage supervision: One supervision input per group (generates error signal if voltage disappears, readable via ModuleBus)
- Features per channel: Current limiting components, EMC protection, input state indication LED, optical isolation barrier
- Compatible Module Termination Units: TU818, TU819, TU830
- Part of ABB S800 I/O system for distributed process control

Dimension
- Width: 45 mm
- Height: 119 mm
- Depth/Length: 102 mm

Weight
0.2 kg

Country of origin
Sweden

HS code
85389099
