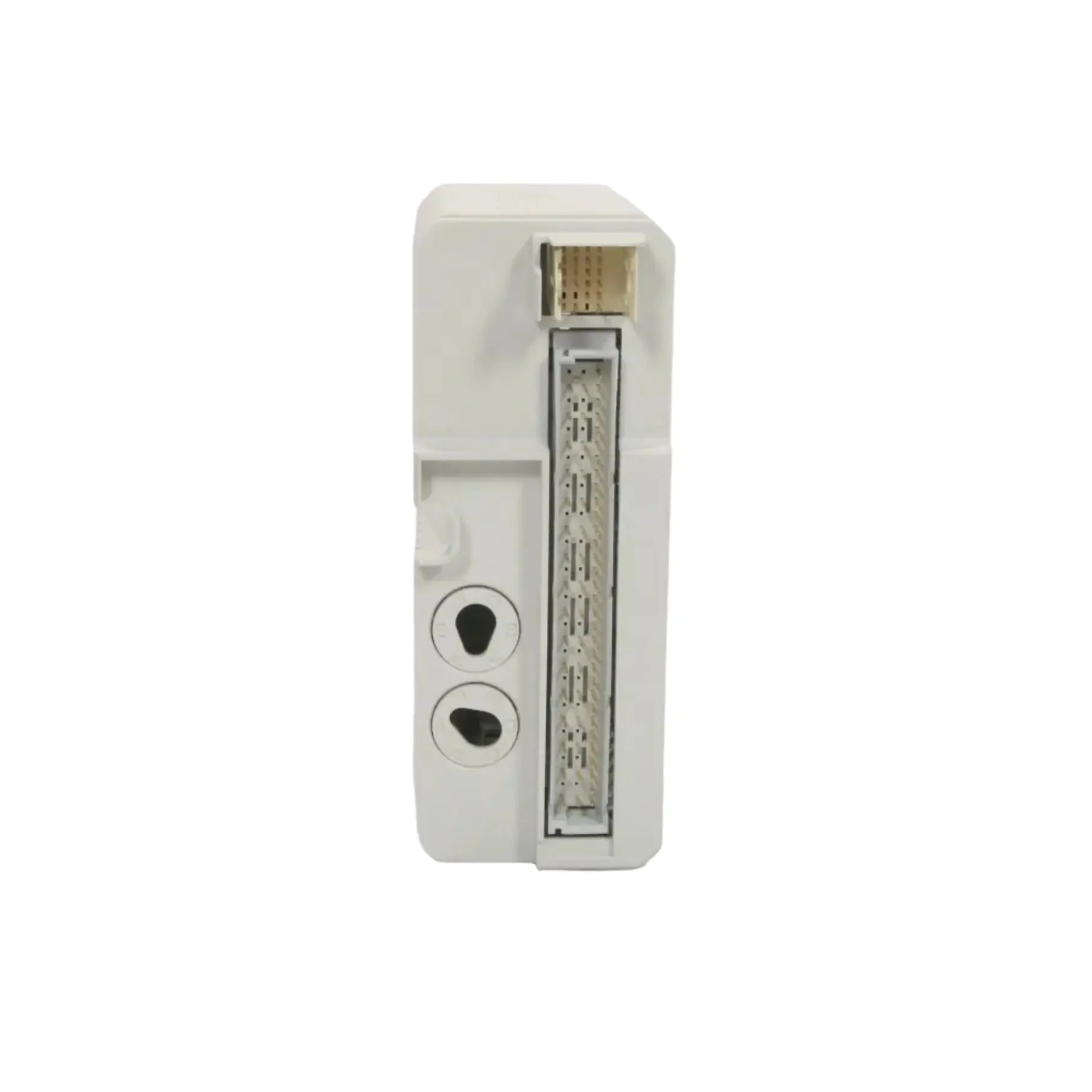

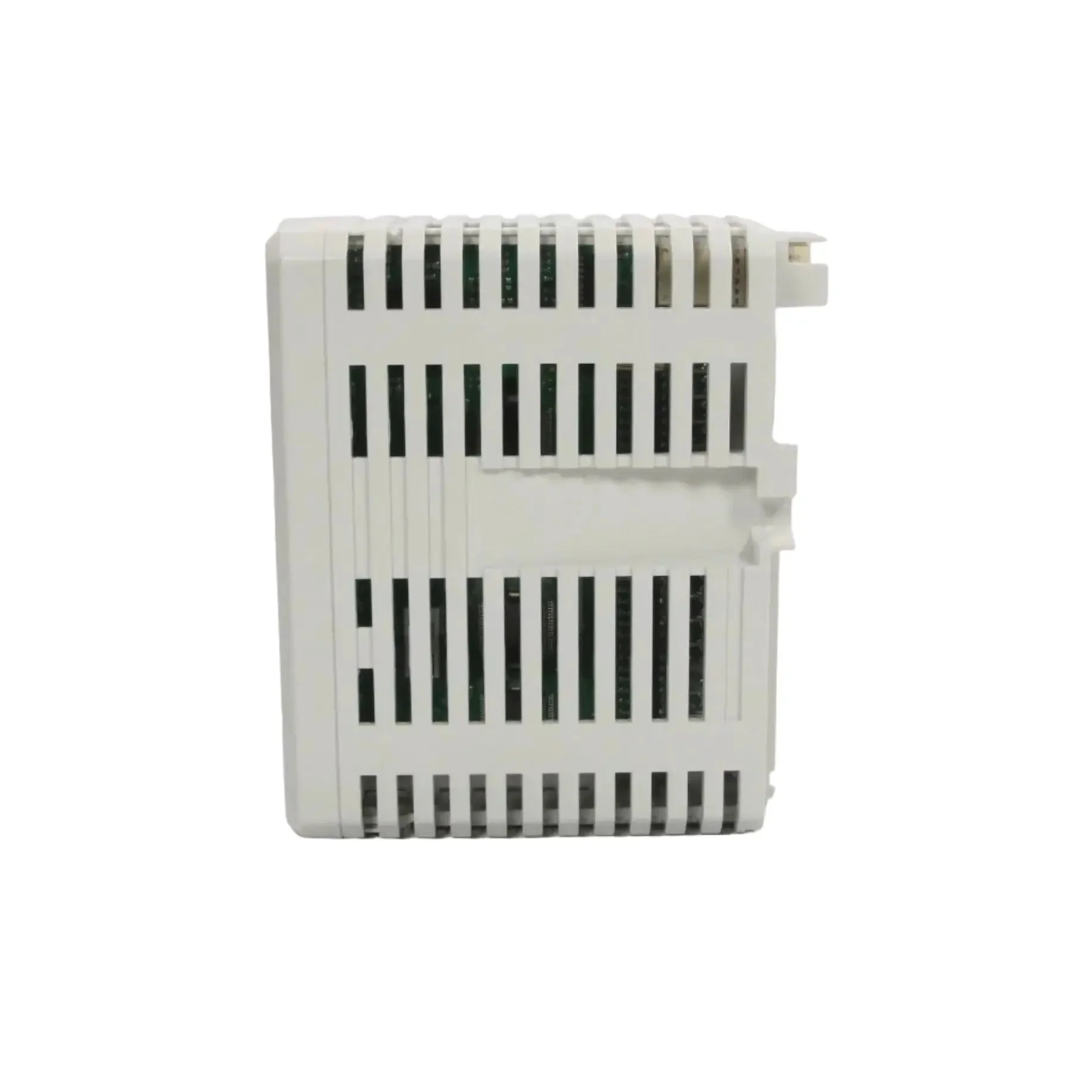

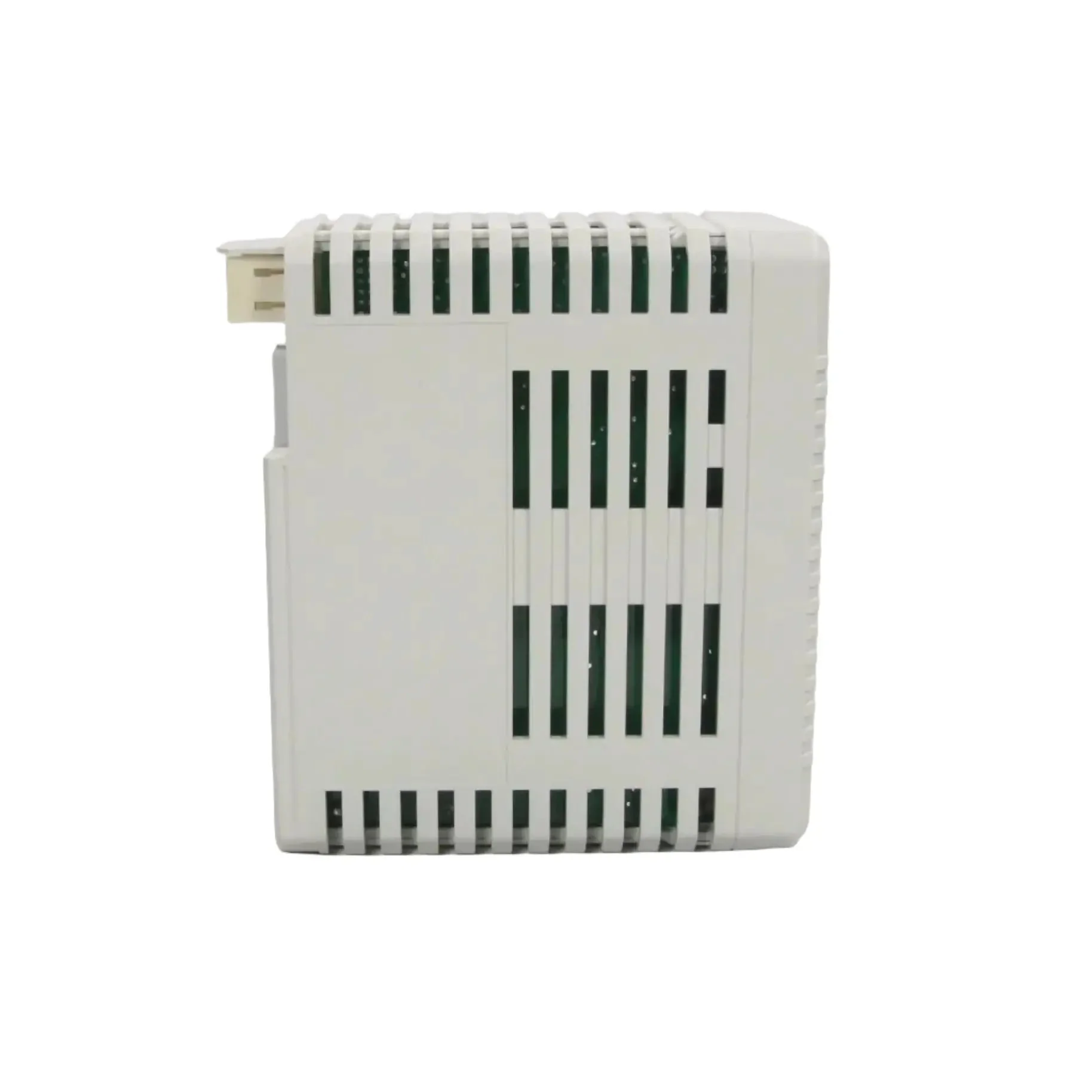

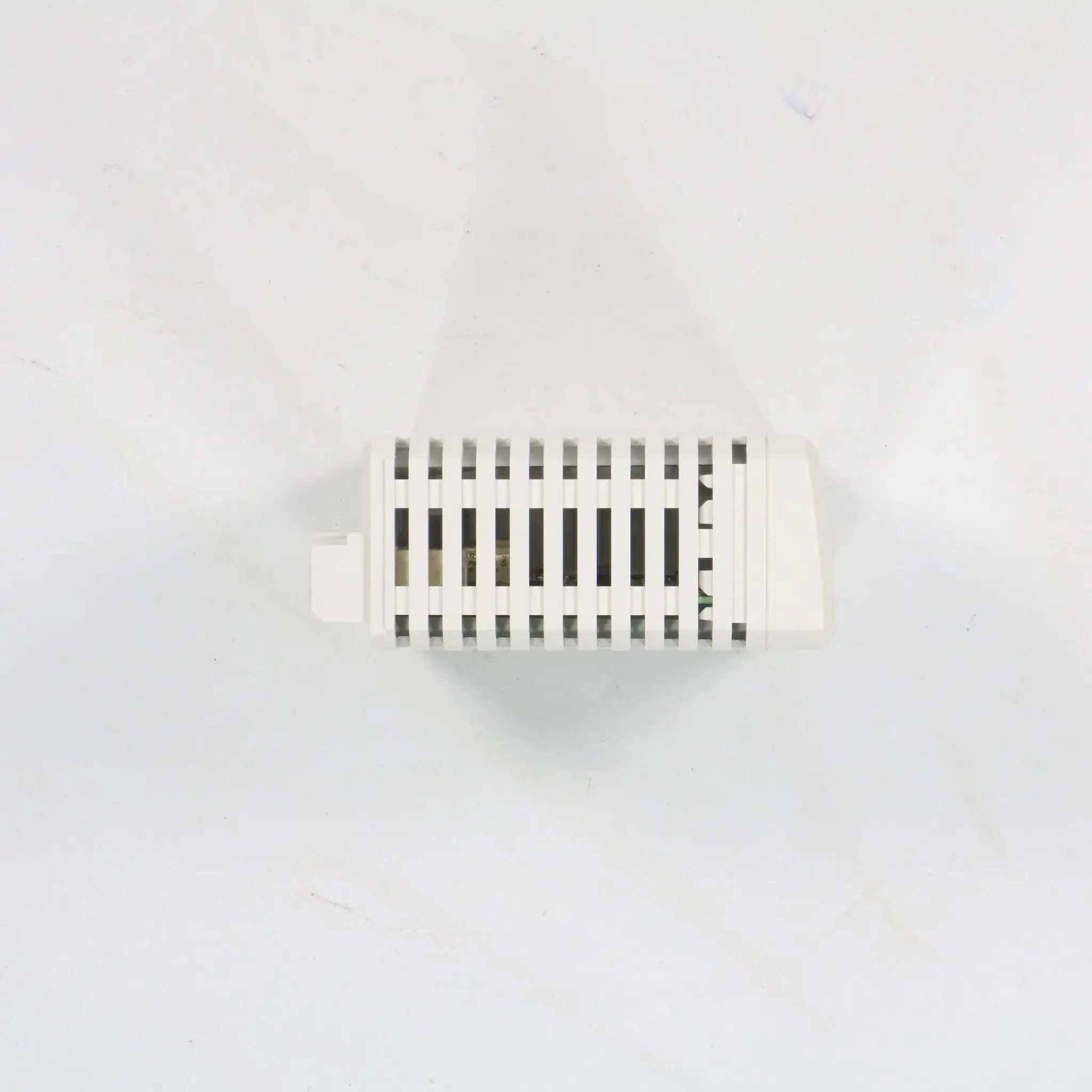

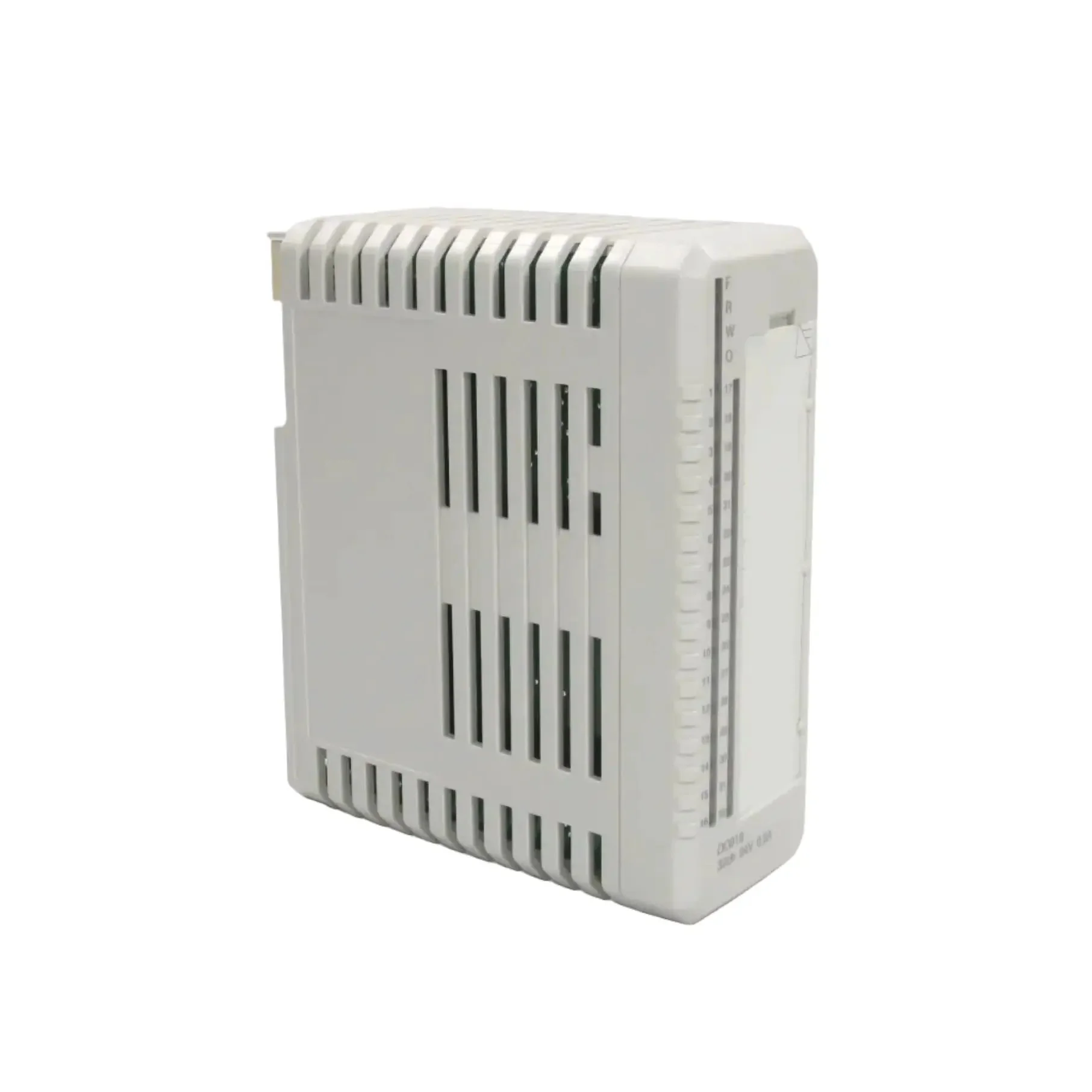

ABB DO 818 Digital Output Module

- Brand: ABB

- Model: DO 818

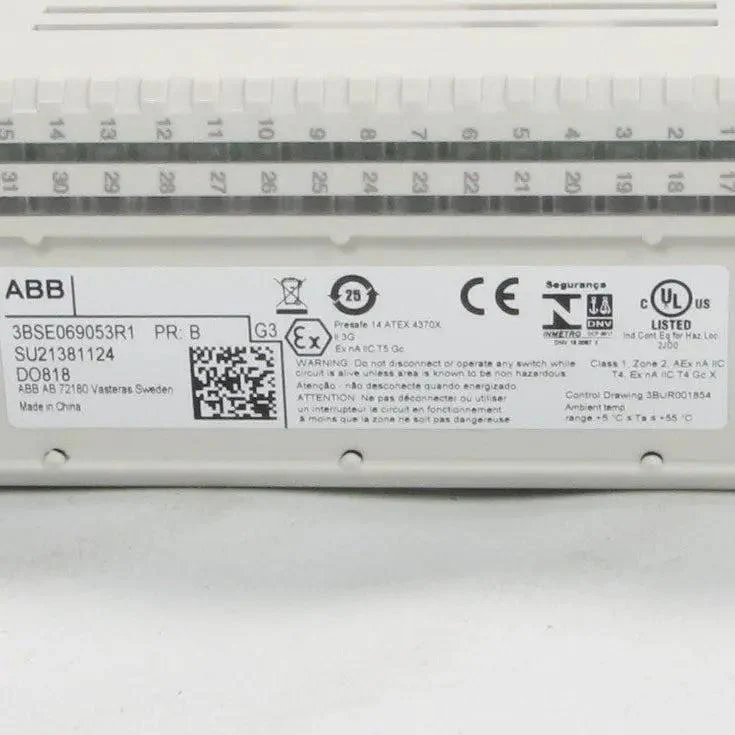

- Part Number: 3BSE069053R1

- Type: Digital Output Module (S800 I/O Series)

All tech specs:
- Number of channels: 32 digital outputs
- Output type: Current sourcing, transistor outputs with current limiting
- Nominal voltage: 24 V d.c.
- Output voltage range: 12 to 32 V d.c.
- Maximum continuous output current: 0.5 A per channel
- Isolation: Groupwise isolated (two groups of 16 channels each, rated isolation 50 V)
- Voltage supervision: One supervision input per group
- Short-circuit proof, over-voltage and over-temperature protected outputs

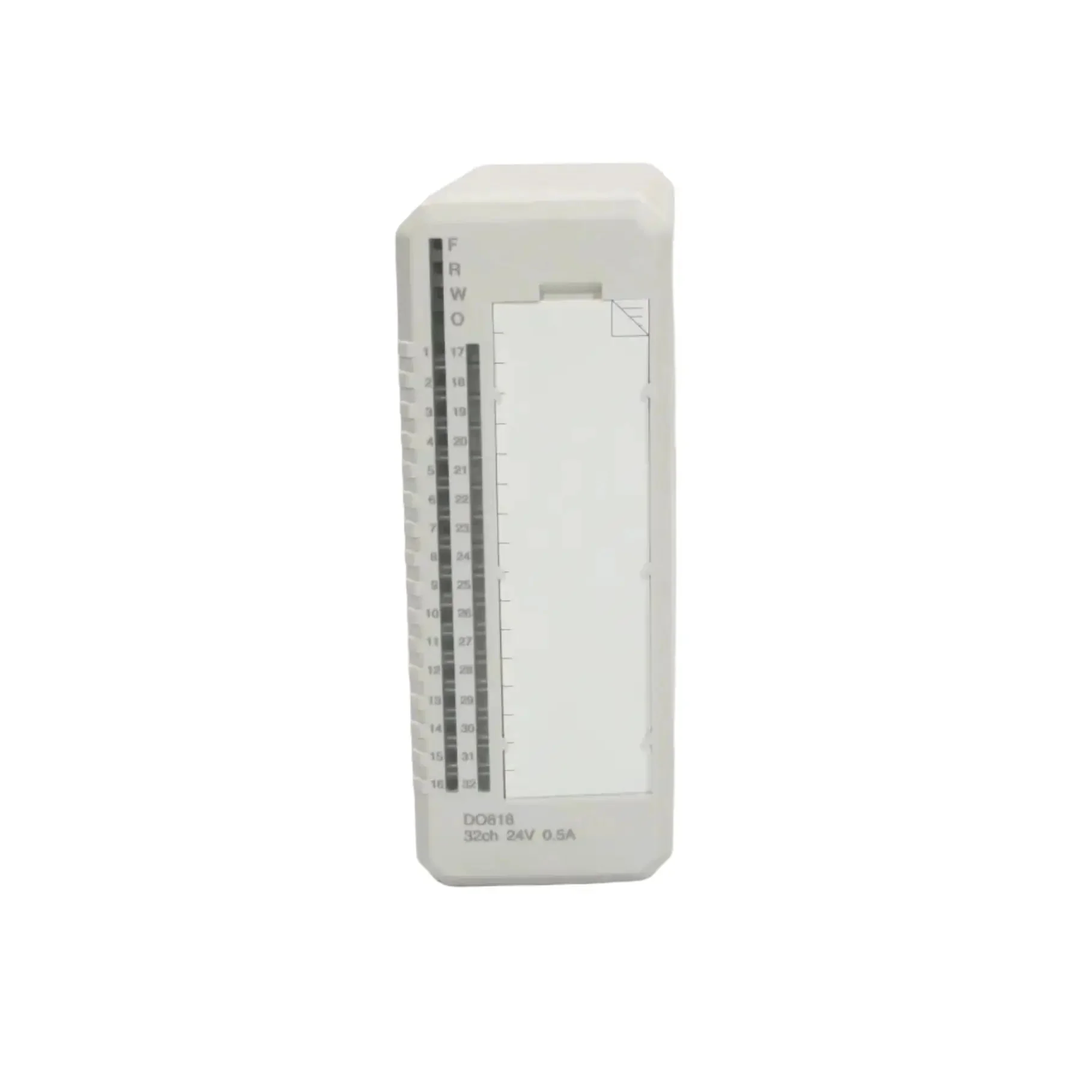

- Features per channel: Output state indication LED, optical isolation barrier, EMC protection, inductive load suppression
- No HART, no SOE, no redundancy support
- Compatible Module Termination Units: TU818, TU819, TU830
- Part of ABB S800 I/O system for distributed process control

- Dimensions: 160 x 160 x 80 mm (box)

- Weight: 280 g

- Country of origin: Sweden

- HS code: 853890
