ABB DO 820 Digital Output Module

- Brand: ABB

- Model: DO 820

- Part Number: 3BSE008514R1

- Type: Digital Output Module (S800 I/O Series)

- All tech specs:
- Number of channels: 8 digital outputs
- Output type: Electromechanical relay outputs
- Nominal voltage: 24 - 230V AC/DC 3A
- Power rating: 42W
- Isolation: Individually galvanic isolated channels
- Features per channel: Output state indication LED, optical isolation barrier
- No HART communication support
- No Sequence of Events (SOE) support
- No redundancy support in basic configuration
- No High Integrity or Intrinsic Safety
- Compatible Module Termination Units: TU831V1, TU841V1, TU848
- Part of ABB S800 I/O system for distributed process control
- Suitable for AC/DC loads, higher voltage/current applications compared to transistor outputs

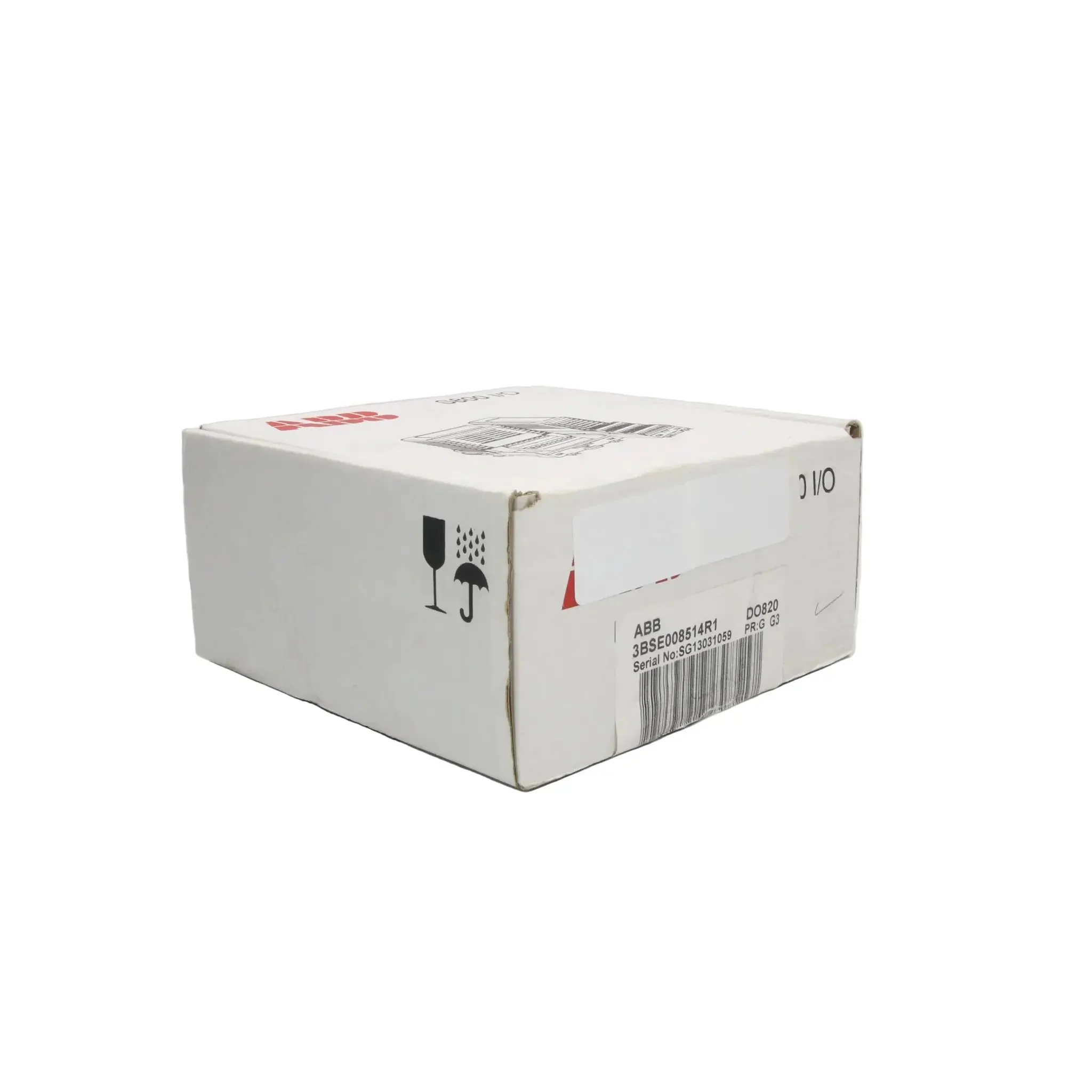

Dimensions: 160 x 160 x 80 mm (box)

Weight: 350 g

Country of origin: Sweden

HS code: 853890
