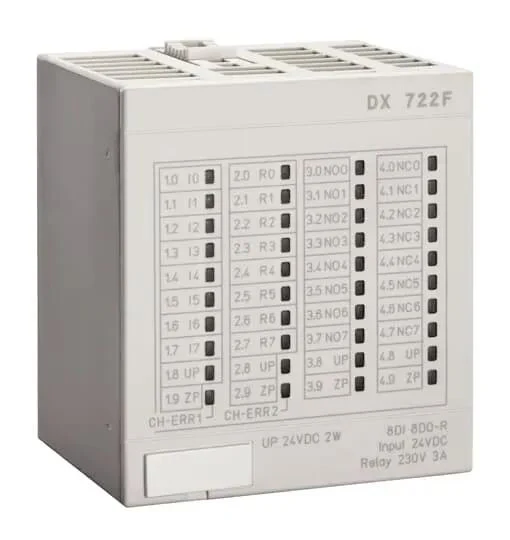

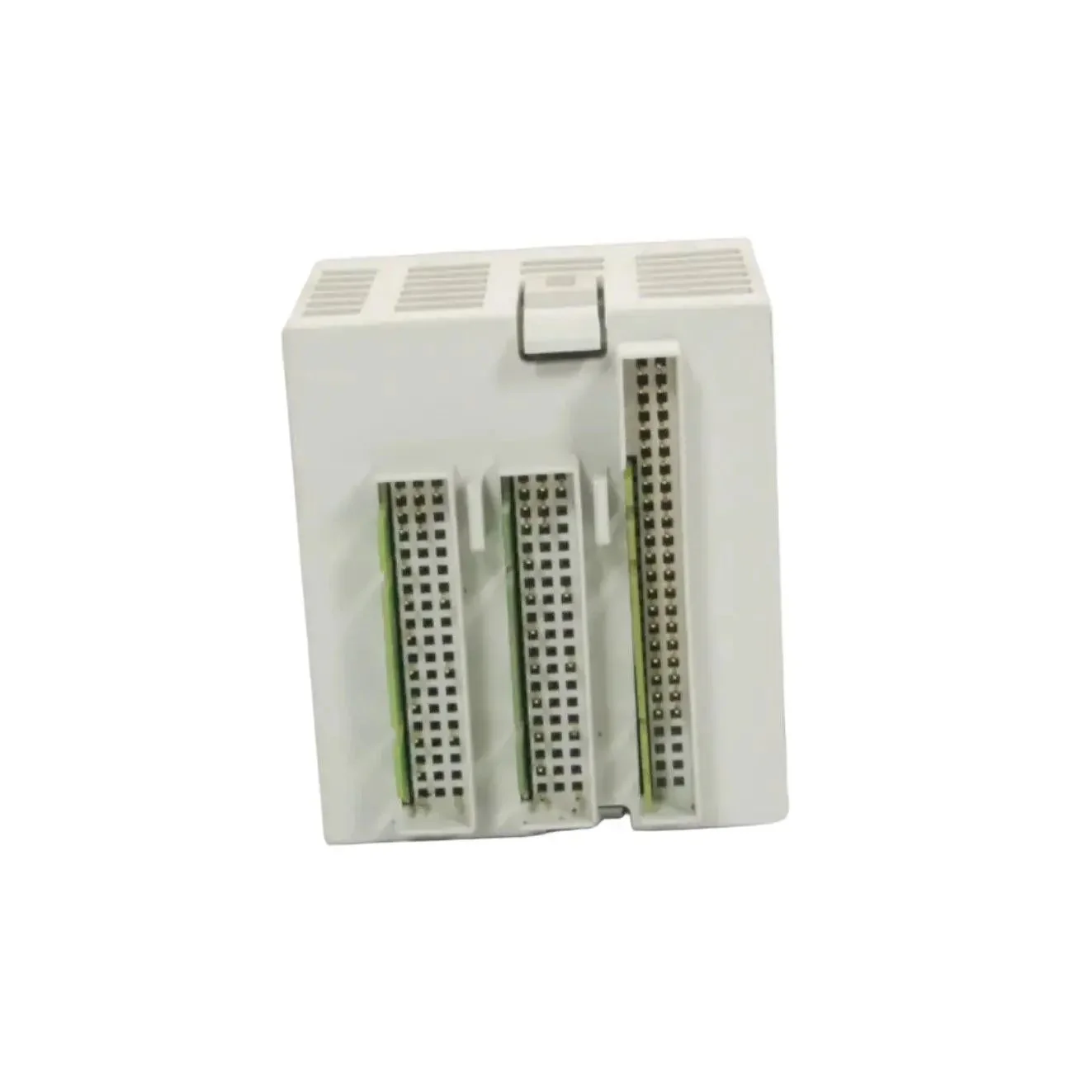

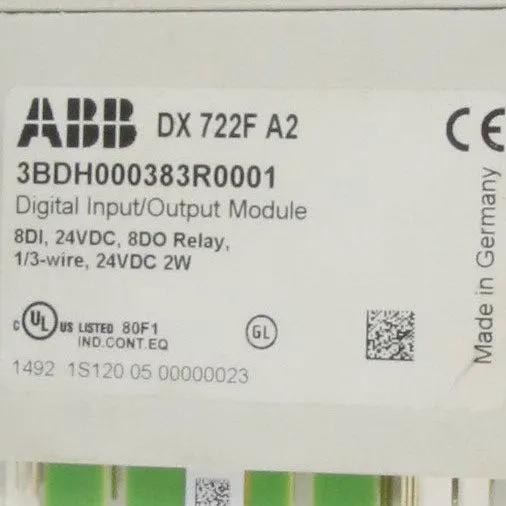

ABB DX 722F A2 Digital Input/Output Module
- Brand: ABB
- Model: DX 722F A2
- Part Number: 3BDH000383R0001
- Type: Digital Input/Output Module (S700 I/O Series for Freelance AC 700F / AC 900F DCS
- All tech specs
- Total channels: 16 channels
- Digital inputs: 8 channels, 24 V DC
- Digital outputs: 8 channels, transistor outputs 24 V DC / 0.5 A (current sourcing)
- Input voltage range (logic "0"): -30 V to +5 V
- Input voltage range (logic "1"): +13 V to +30 V
- Input current: Typically 6 mA at 24 V DC
- Output type: Transistor, short-circuit proof, overload protected
- Maximum output current: 0.5 A per channel (continuous), 1 A short-term
- Connection: 1-wire to 3-wire (via compatible Termination Units)
- Power supply: 24 V DC - supplied via TU
- Power consumption: 2W
- Isolation: Galvanic isolation of inputs and outputs to backplane
- Compatible Termination Units: TU715F, TU716F
- Bus communication: Direct I/O for AC 700F / AC 900F Freelance controllers or PROFIBUS DP-V0 slave as remote I/O
- Features: High packing density, mixed DI/DO in compact module, suitable for binary process signals in automation systems
- Protection class: IP20
- Operating temperature: 0 to +60 °C
- Certifications: cULus, Class I Div 2 compliant
- Part of ABB S700 I/O family: Modular, flexible I/O for Freelance DCS and PROFIBUS masters
Dimensions: 85 x 70 x 75 mm
Weight: 190 g
Country of origin: Germany
HS code: 853890
