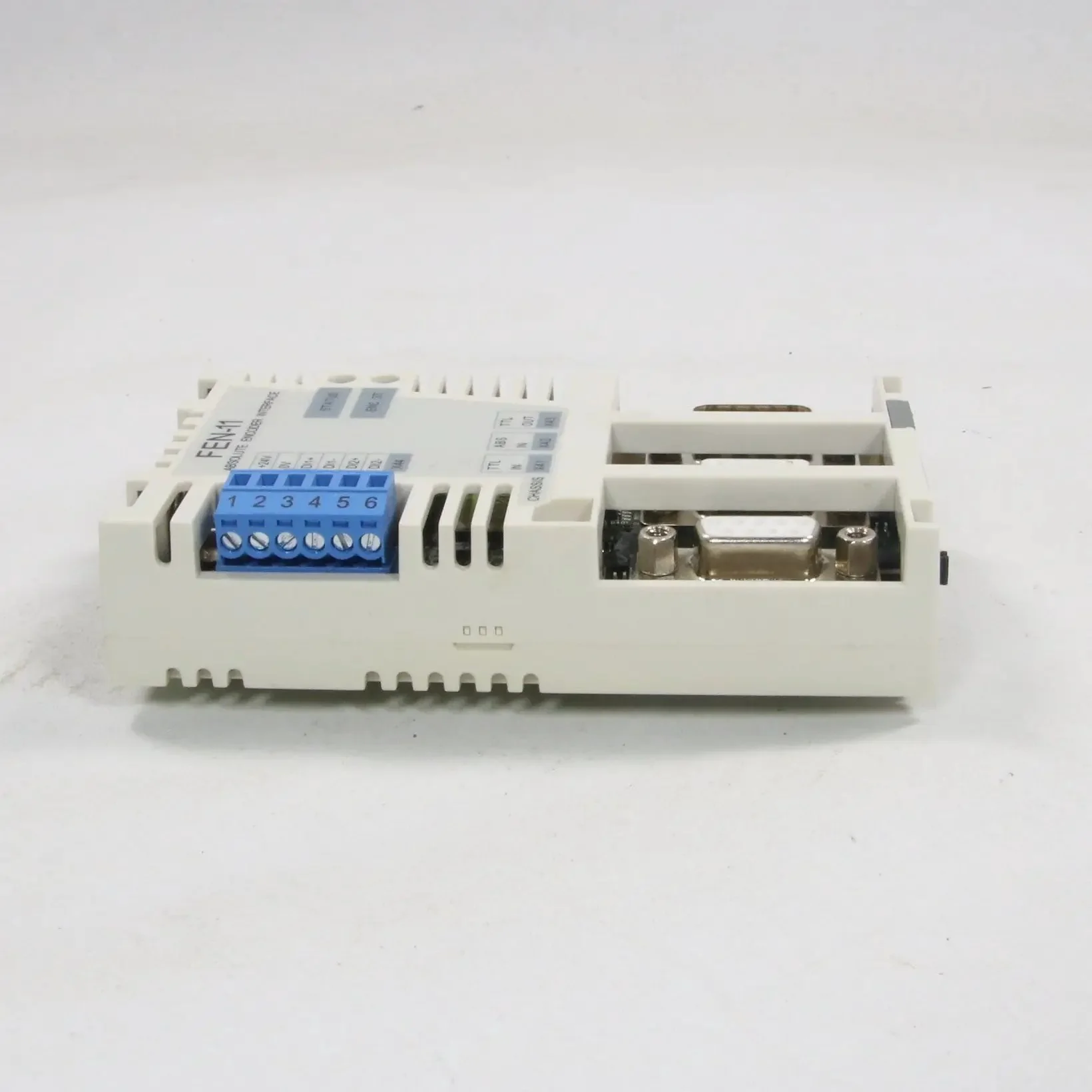

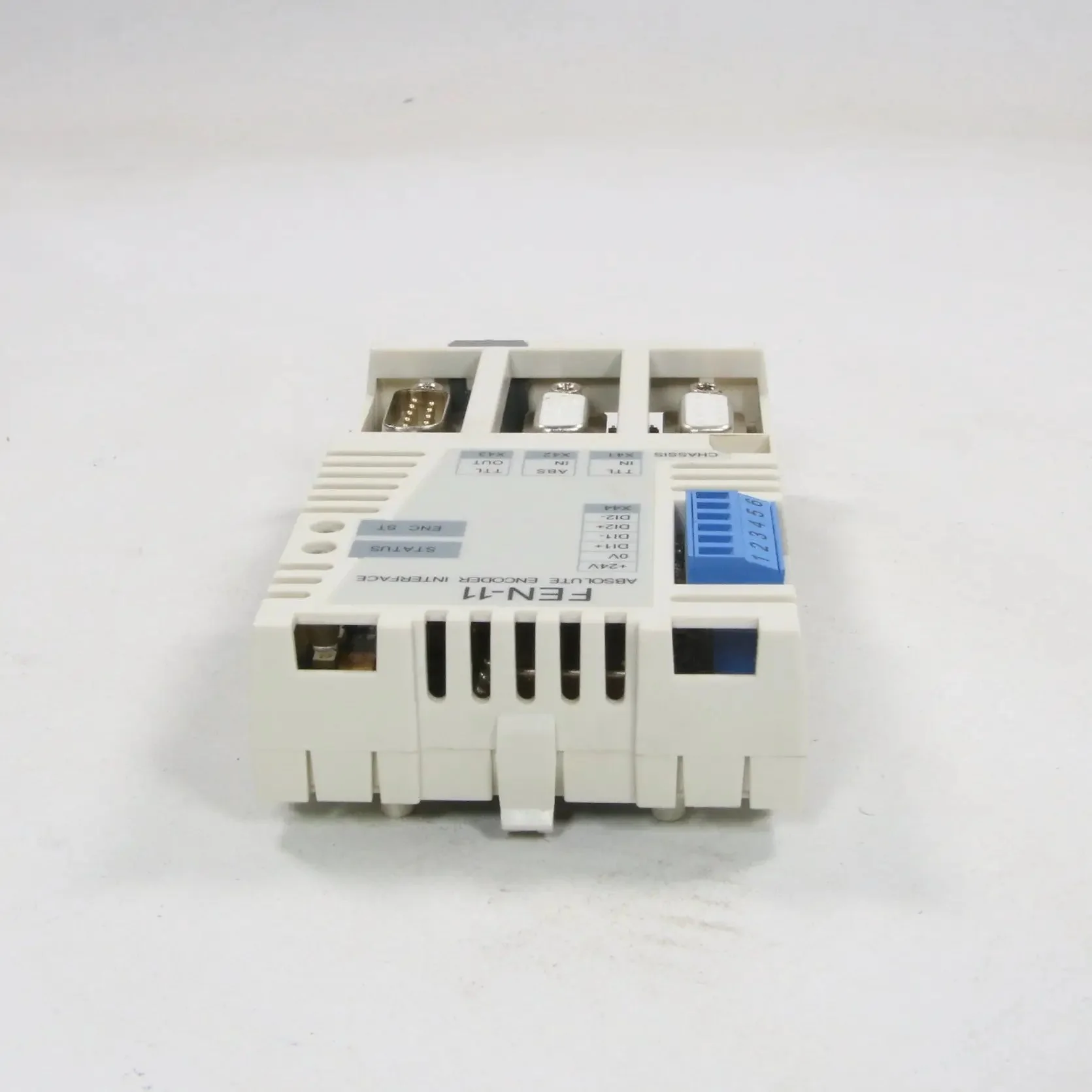

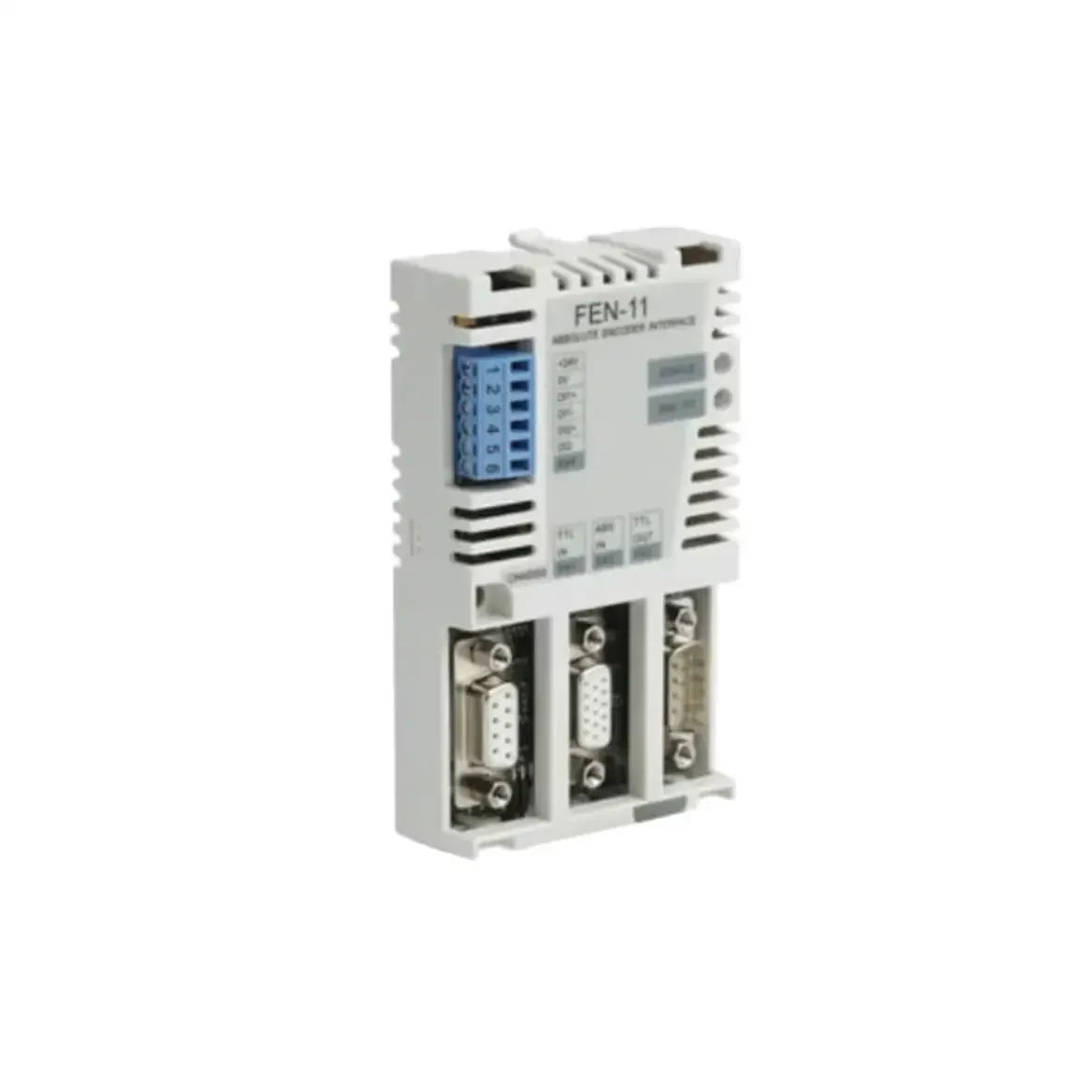

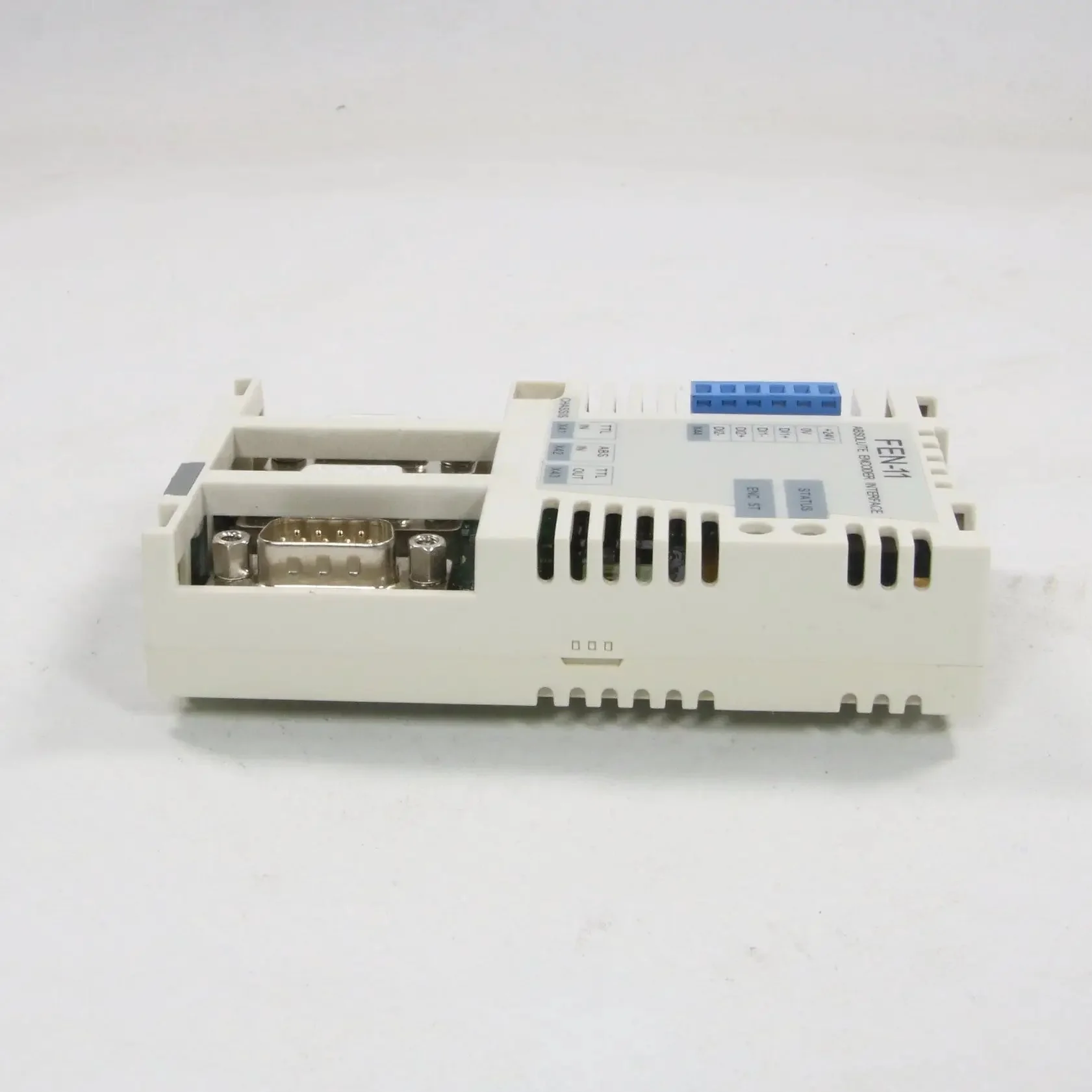

ABB FEN-11 Absolute Encoder Interface Module

- Brand: ABB

- Model: FEN-11

- Type: Absolute Encoder Interface Module

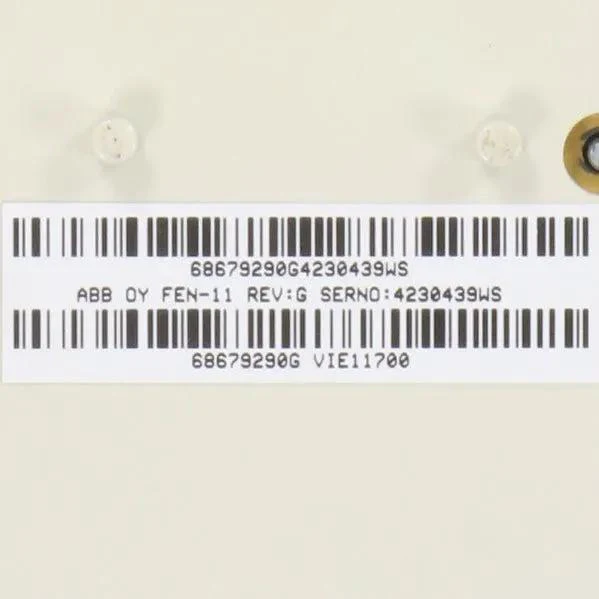

- Part number: 3ABD68805830

Technical specifications:

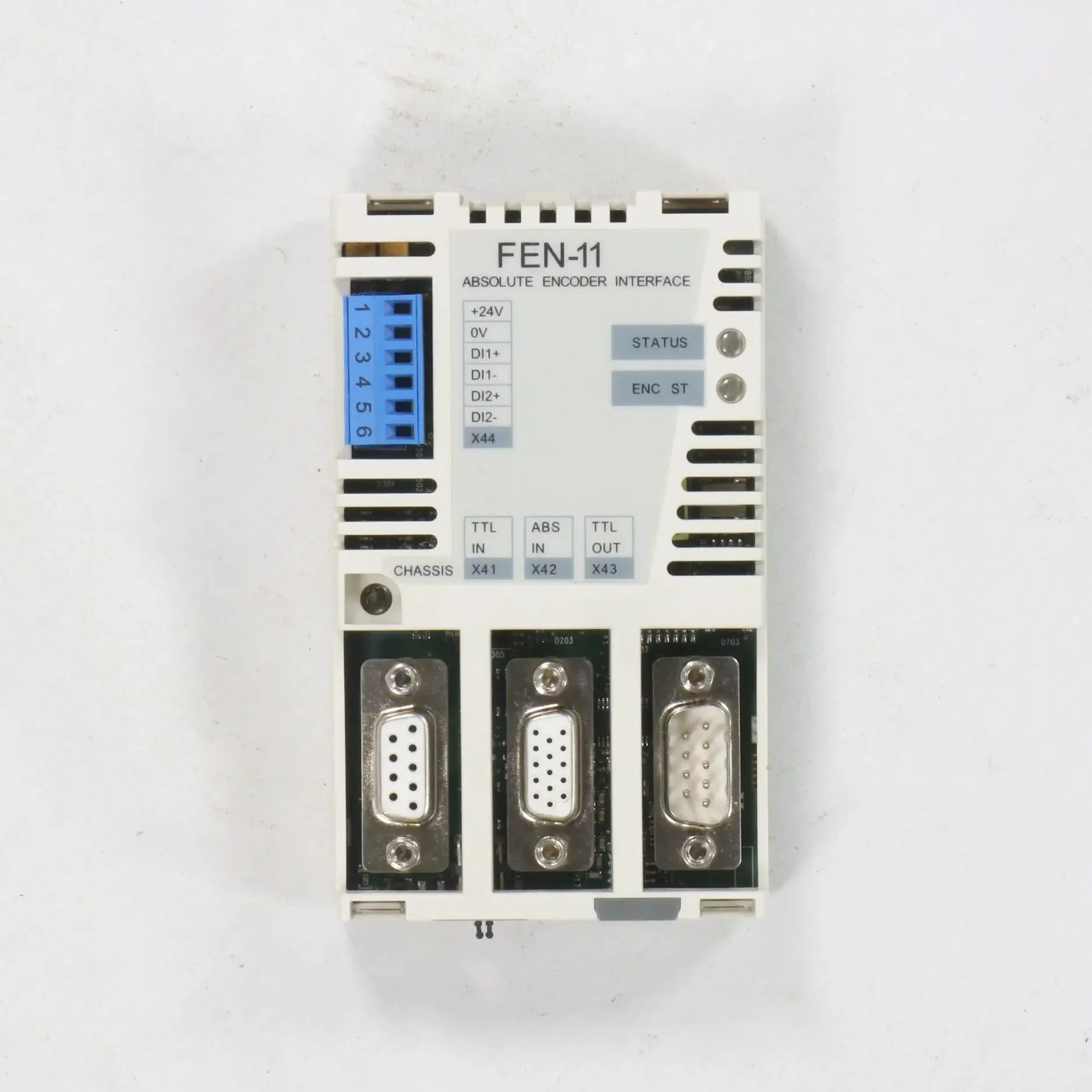

- Encoder inputs: 1 × absolute encoder interface; 1 × TTL pulse encoder input
- Encoder output: 1 × TTL encoder emulation output

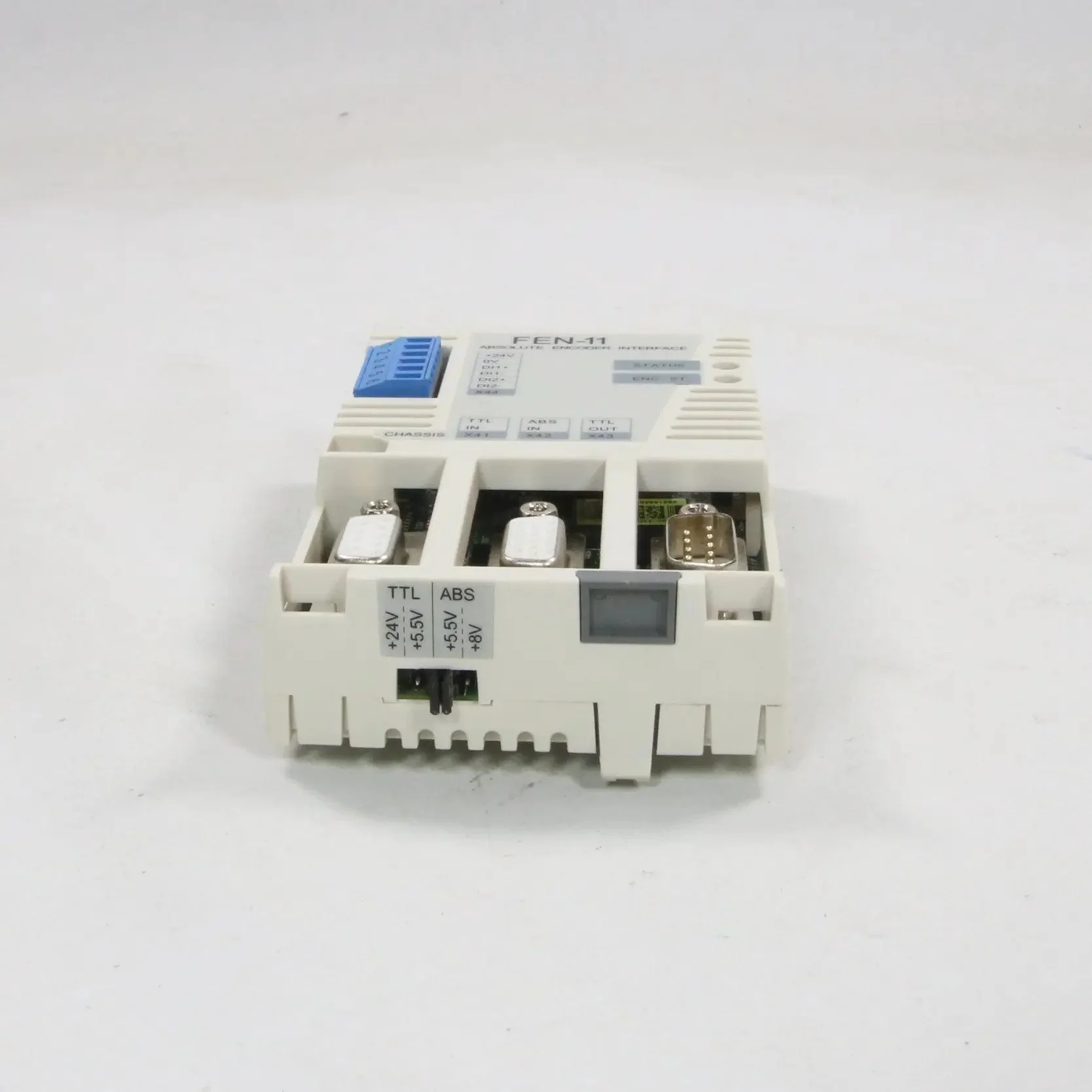

- Additional support: PTC/KTY temperature sensor input (for motor thermal protection)  - Supply voltages: Encoder supply selectable
- Max. frequency: Up to 500 kHz
- Resolution/accuracy: High precision for closed-loop applications
- Connection to drive: 34-pin parallel bus connector
- Compatible drives: ACS850, ACS880 series AC drives; often option code +L518
- Additional features: Enables precise closed-loop speed/position/torque control; LED indicators for status/diagnostics; configurable via drive parameters; fault tracing via status LEDs; high reliability for industrial feedback
- Operating temperature: up to +40 – 50°C
- Protection: IP20
- Mounting: Plug-in
- Standards: Compliant with relevant encoder protocols (EnDat, SSI, Hiperface, etc.); IEC/EN for drive accessories; CE

Weight: 180 g

Dimensions: 170 x 110 x 50 mm (box)

Country of origin: China

HS code: 8504.90
