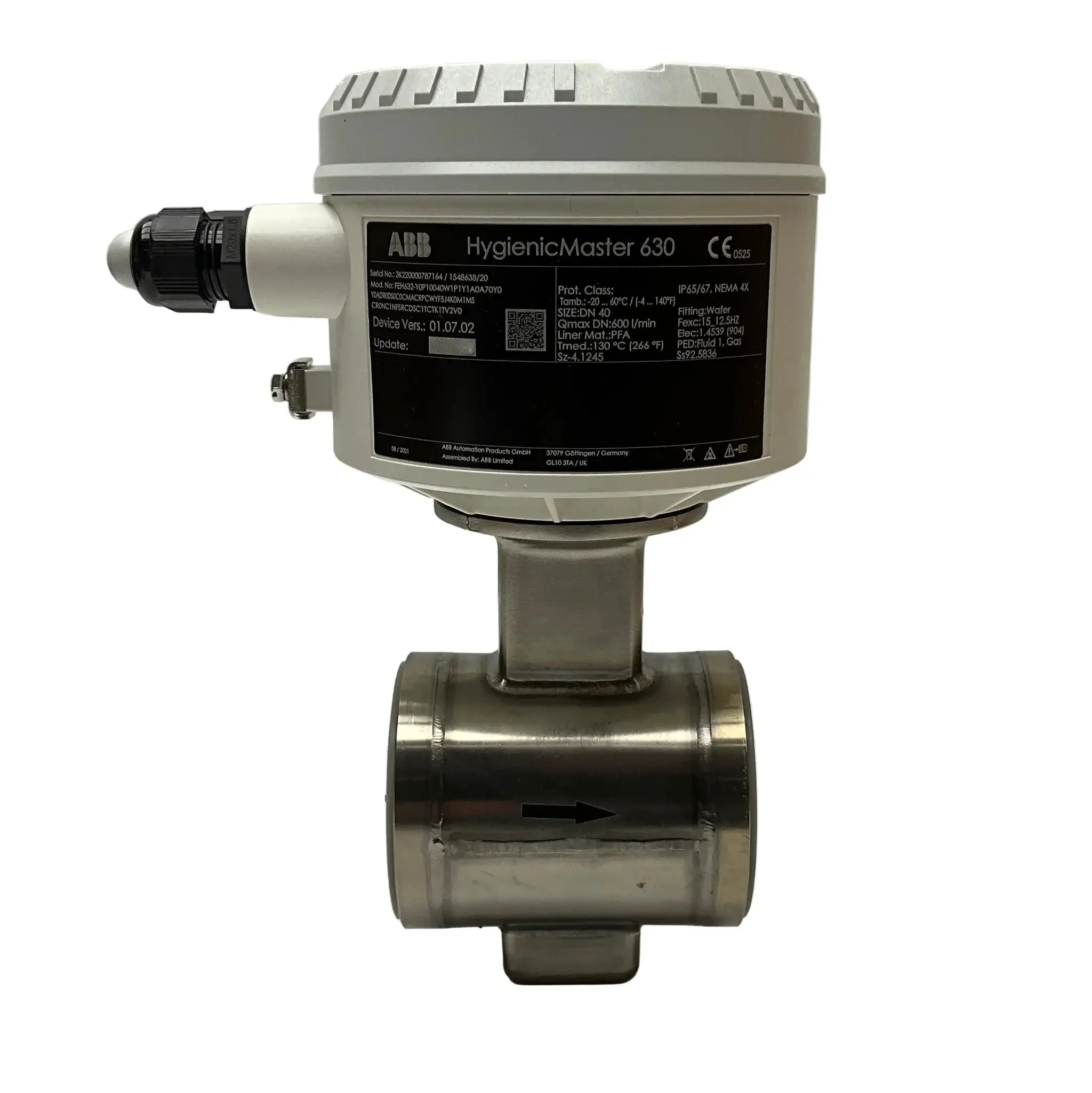

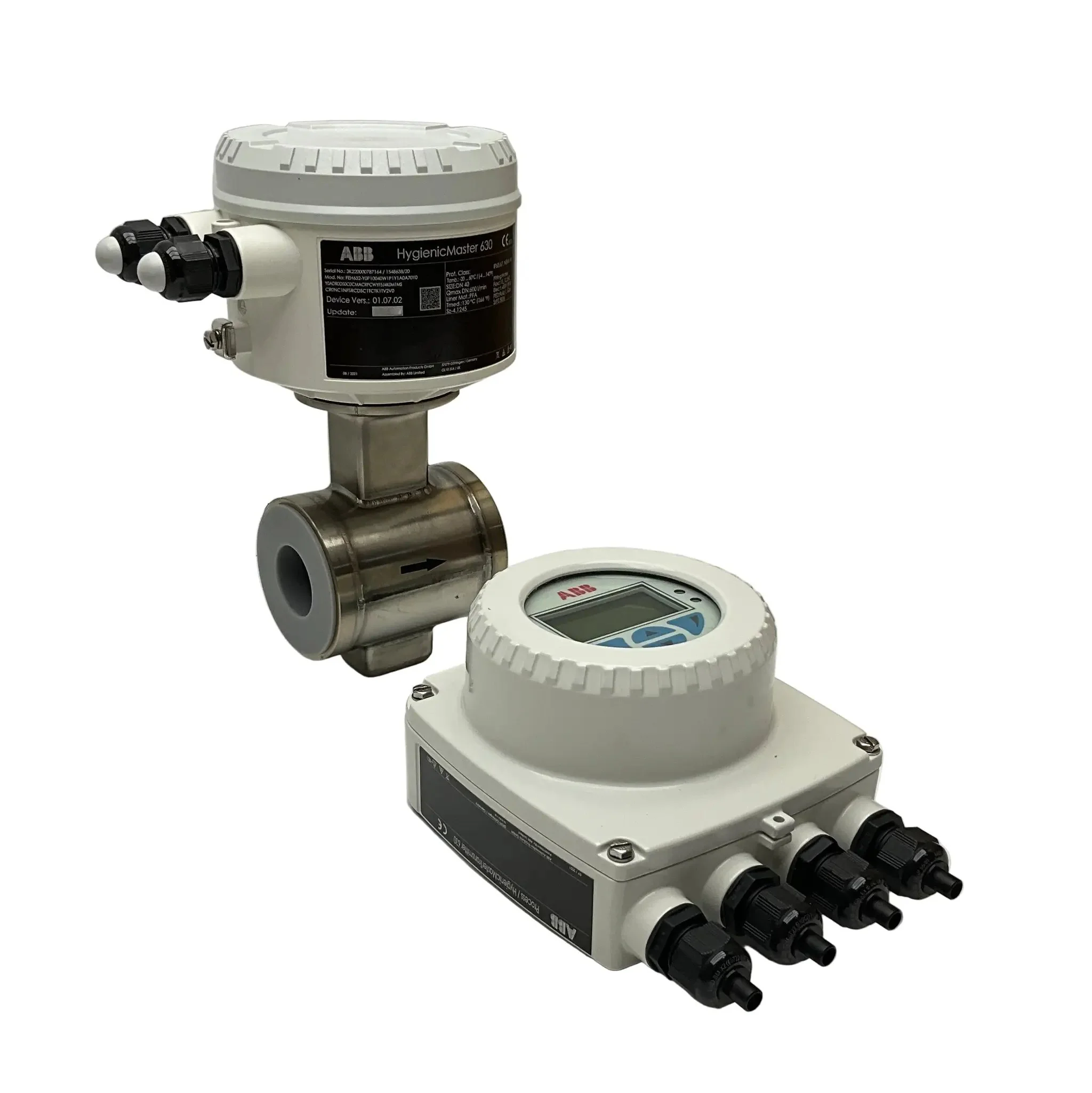

ABB HygienicMaster 630 Electromagnetic Flowmeter & Transmitter Set

Brand: ABB
Model: HygienicMaster 630
Type: Electromagnetic Flowmeter & Transmitter Set
Part Numbers: FEH632-Y0P10040W1P1Y1A0A70Y0 / FET632-Y0F170A2G0DR0DSOM1TCTK1

Technical Specs:
- Measuring Principle: Electromagnetic
- Measuring Range: 0 to 10 m/s velocity
- Accuracy: ±0.5% of rate (0.5 to 10 m/s), ±0.8% of rate (<0.5 m/s)
- Repeatability: ±0.05% of rate
- Process Temperature: -20°C to +150°C
- Process Pressure: PN 40
- Liner Material: PFA
- Electrode Material: 316L stainless steel
- Body Material: Stainless steel
- Process Connection: DN40
- Transmitter: FET632 (remote mount, standard electronics)
- Output Signal: 4-20 mA HART (standard)
- Supply Voltage: 100-240 V AC, 50/60 Hz (transmitter)
- Power Consumption: 18 VA max
- Enclosure Rating: IP66/IP67 (NEMA 4X)
- Additional Features:
- Certifications: 3A sanitary standard, FDA compliant, EHEDG certified, ATEX (II 1/2 G EEx d ia IIC T6), FM, CSA, PED (Category III, Module H)

Dimensions: 430 x 430 x 330 mm

Weight: 8 kg

Country of Origin: Germany

HS Code: 9026.10
