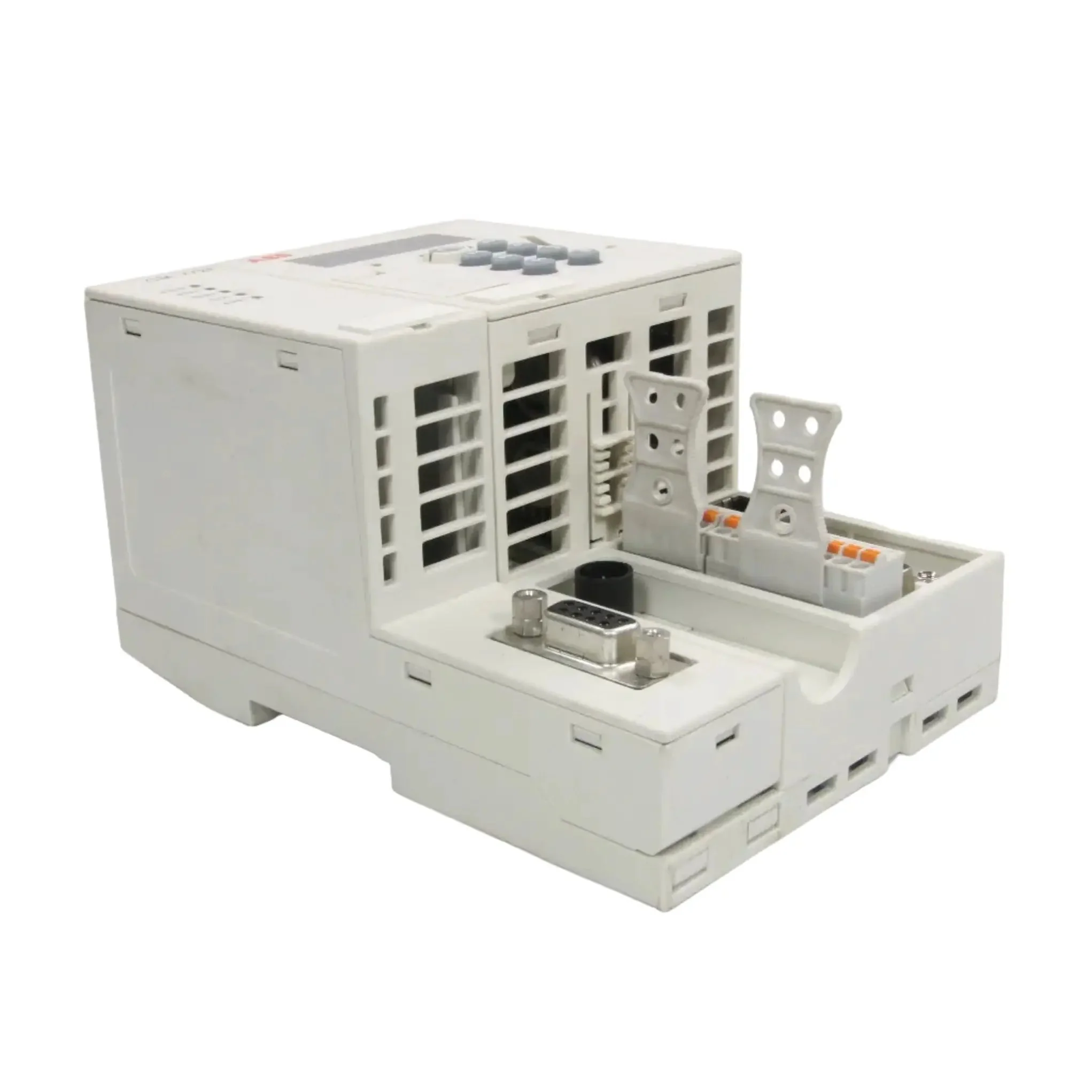

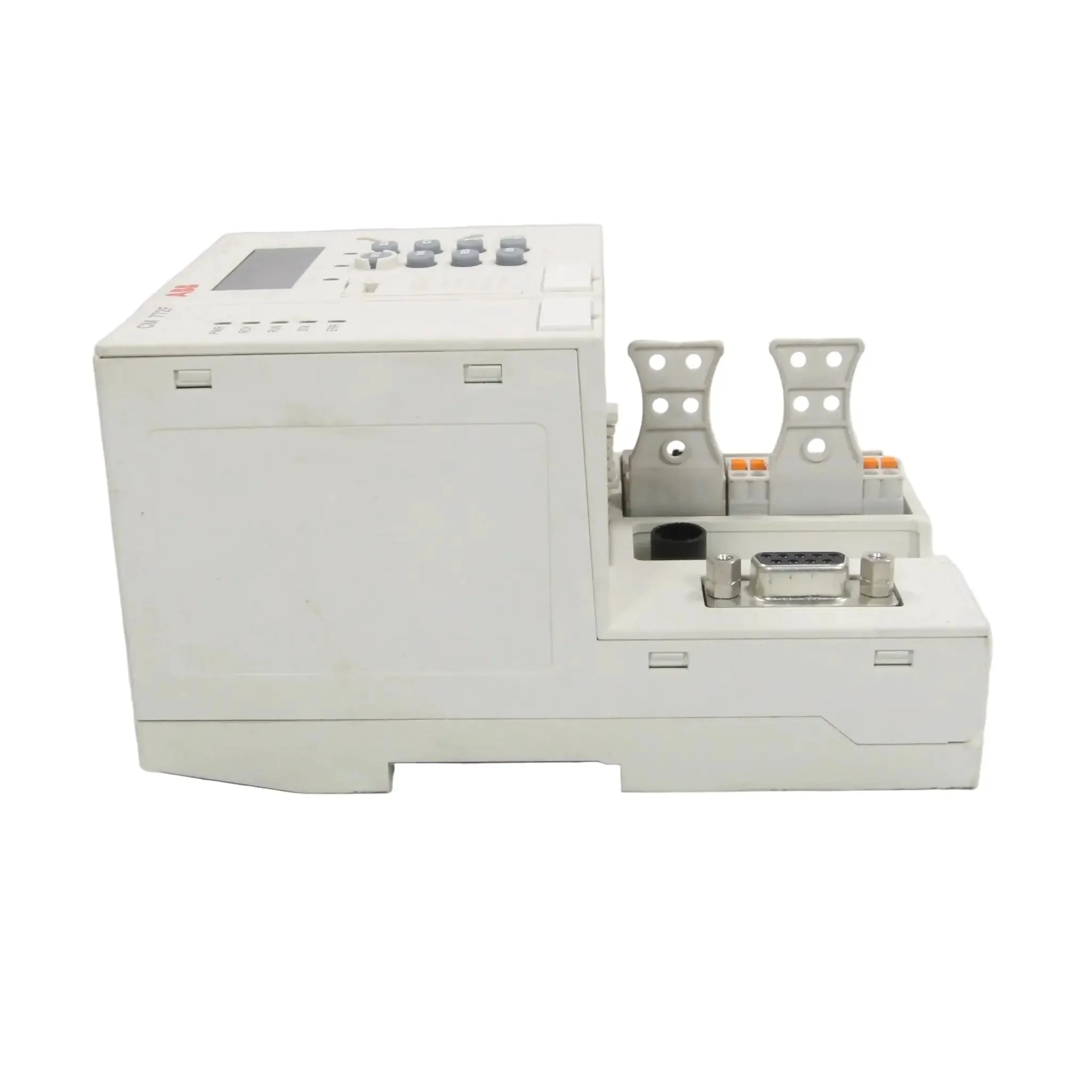

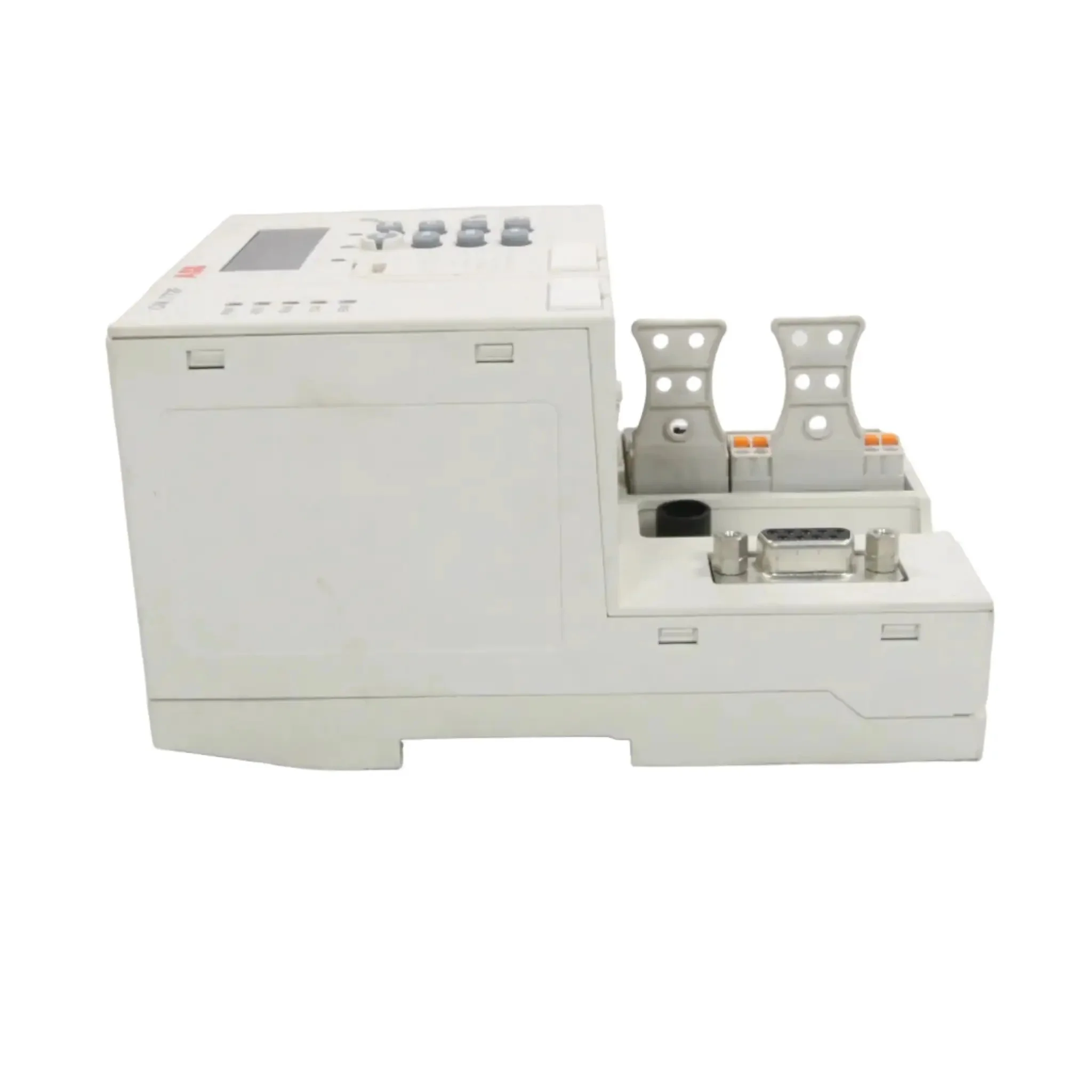

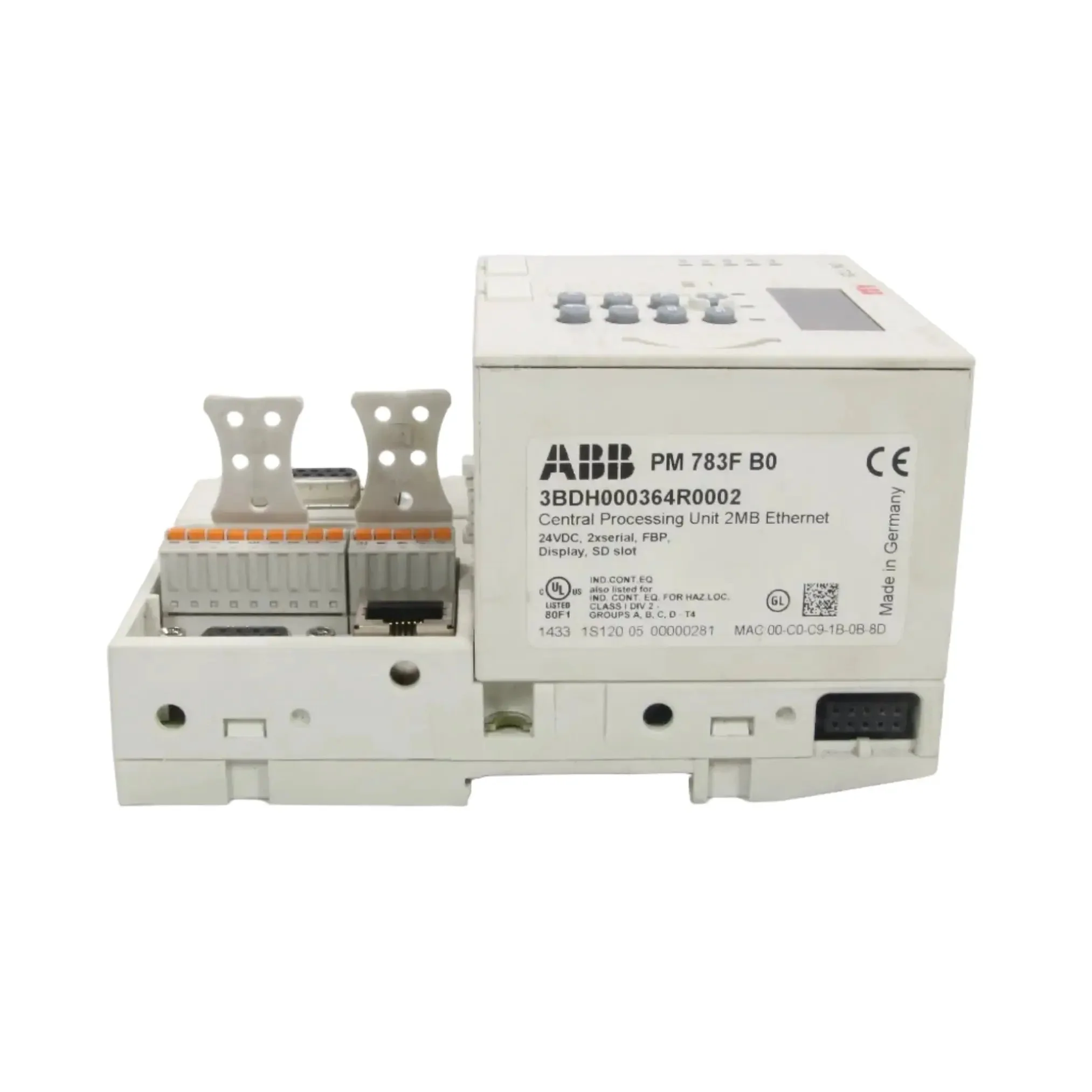

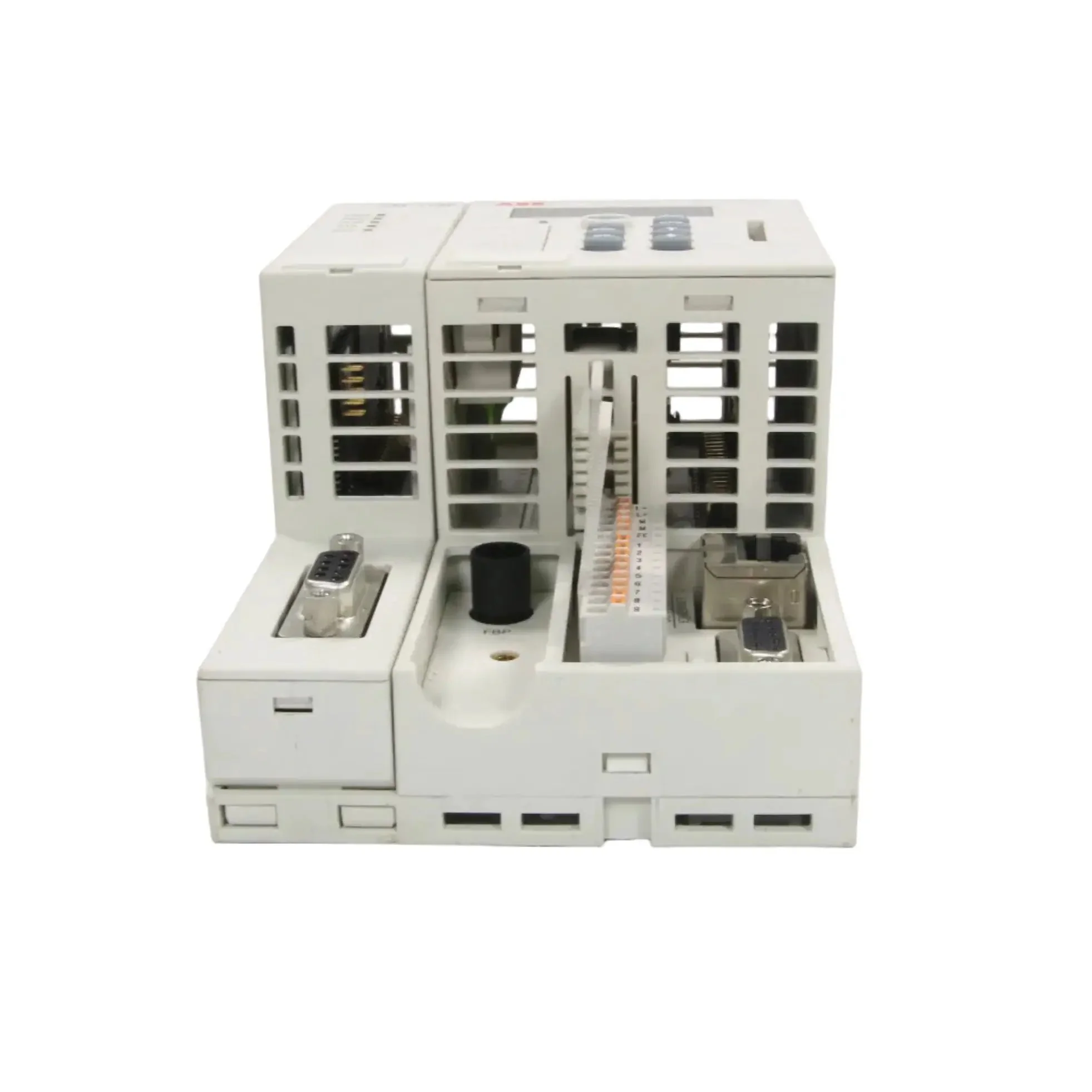

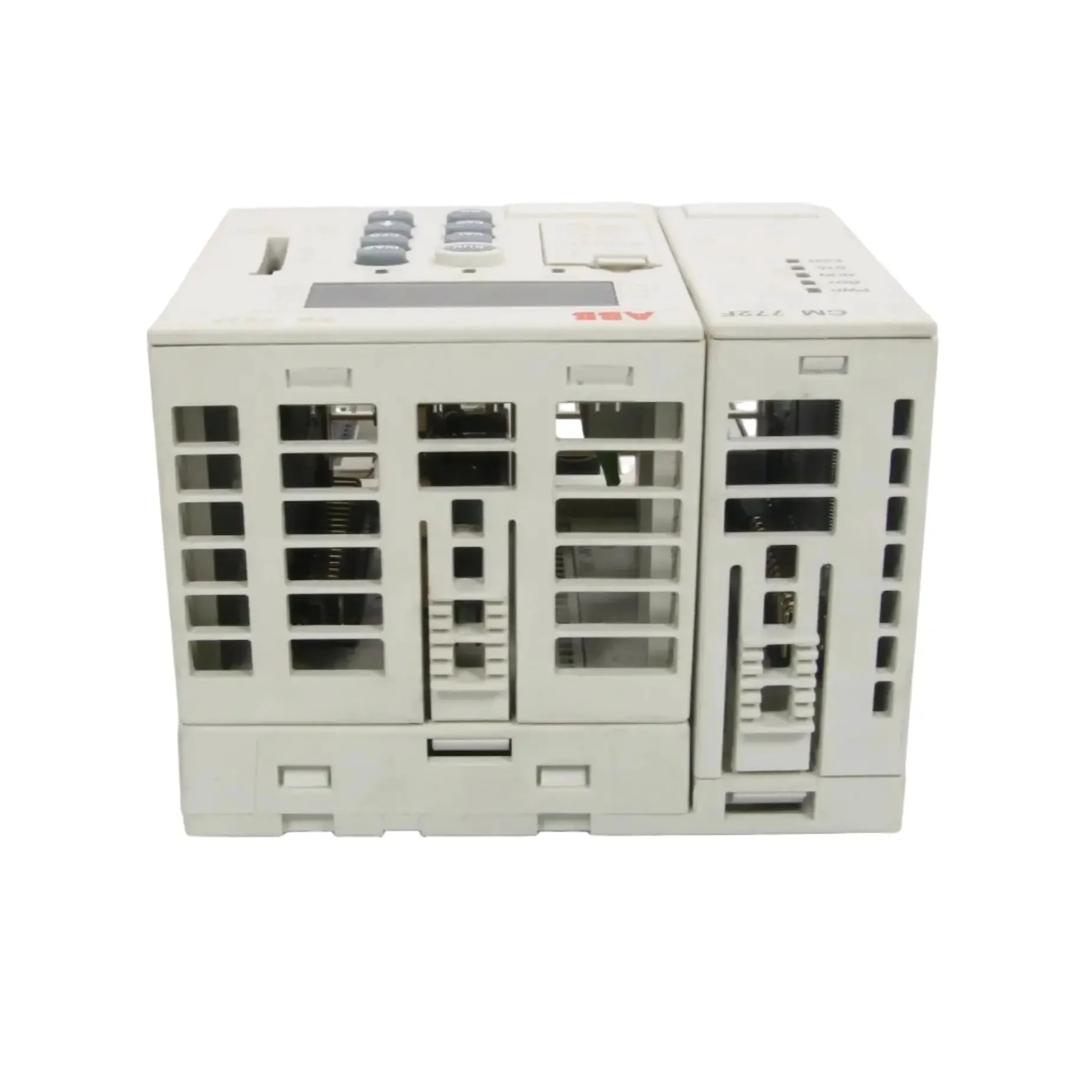

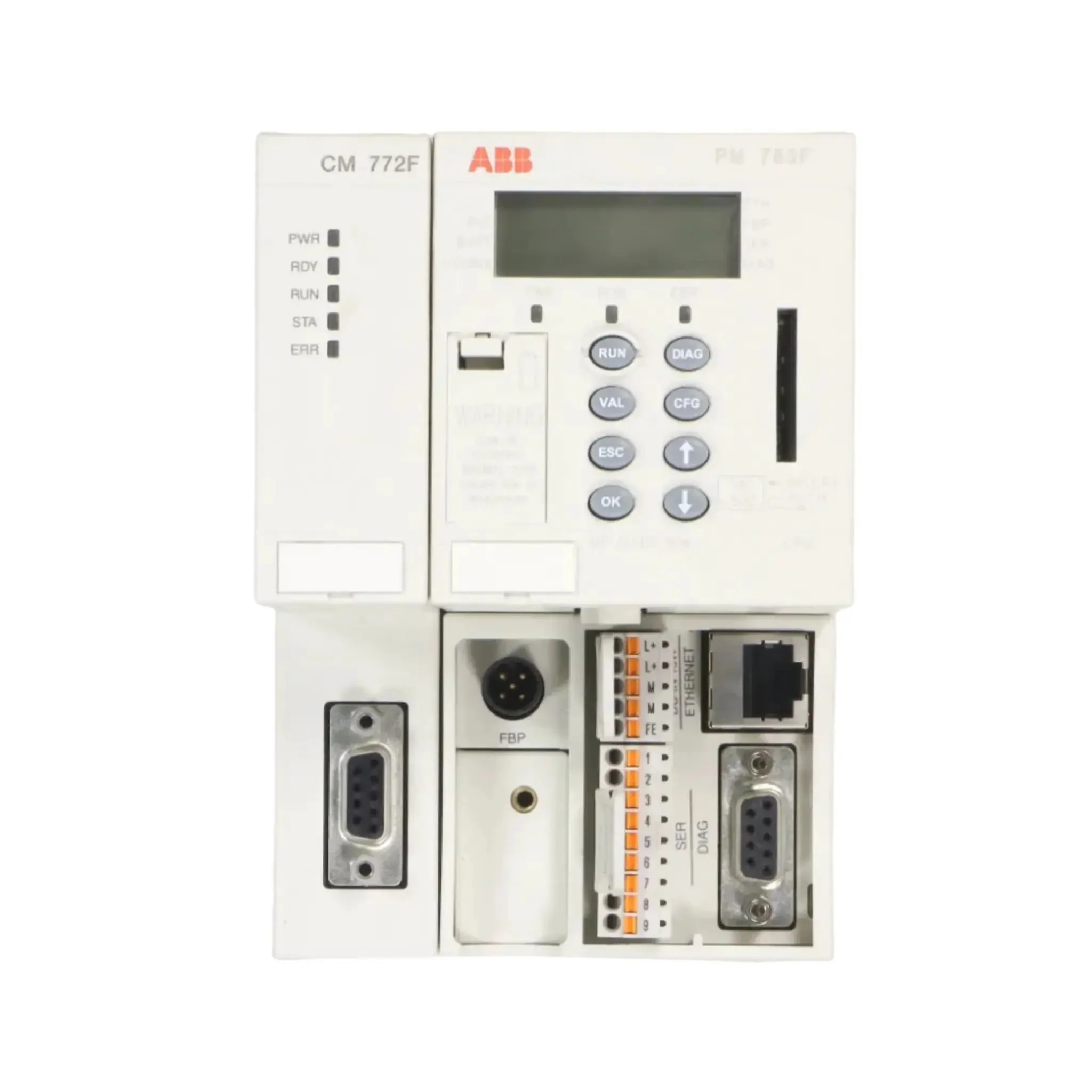

ABB PM 783F CPU Module & CM 772F Master Communication Module

- Brand: ABB

- Model: PM 783F

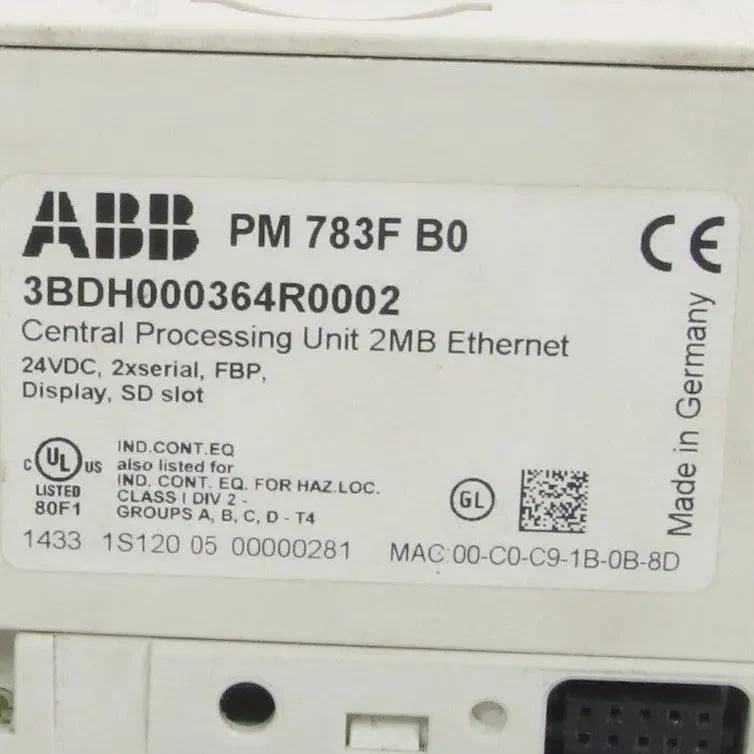

- Part Numbers: 3BDH000364R0002/3BDH000368R0001

- Type: Central Processing Unit (CPU) Module

- All tech specs:
- Processor: PowerQUICC
- Clock frequency: 96-100 MHz
- Memory: 10 MB total RAM, 2 MB battery-backed, SD Slot
- Performance: Suitable for small applications up to approximately 300 I/O signals
- Communication: 100 Mbit/s Ethernet, two serial interfaces
- Power supply: External 24 V DC
- No pre-installed operating system
- Supports up to 9 tasks with adjustable cycle times
- Compatible with Freelance software version 9.2 SP2 or higher

Model: CM772F

Type: PROFIBUS DP Master Communication Module

All tech specs:
- Protocol: PROFIBUS DP-V0/V1
- Role: Master station
- Maximum speed: 12 Mbit/s
- Connector: D-Sub 9-pole
- Supports connection to PROFIBUS DP slaves
- Rail-mounted, attaches to TB 711F C1 CPU Base
- Part of Freelance AC 700F / 800F fieldbus communication modules
- No redundancy support in basic configuration

Dimensions: 135 x 100 x 75 mm

Weight: 500 g

Country of origin: Germany

HS code: 853890
