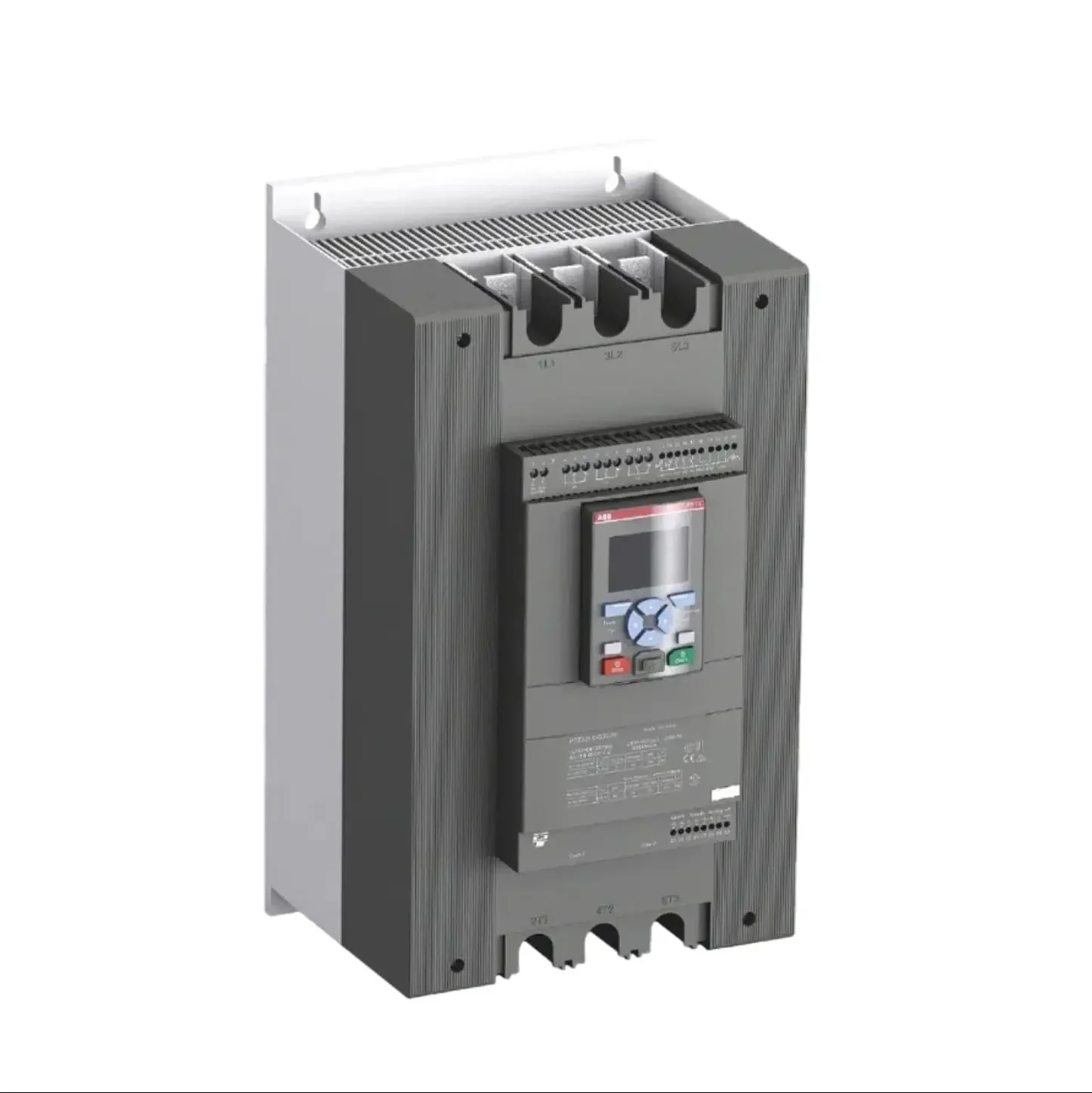

ABB PSTB370-600-70 High Performance Soft Starter - 1SAF898115R7000

- Brand: ABB
- Model: PSTB370-600-70
- Type: High Performance Soft Starter
- Part Number: 1SFA898115R7000

- Technical Specs:
- Rated Operational Voltage (Ue): Main Circuit 208-600 V AC
- Rated Operational Current (Ie): 370 A , Inside Delta Connection: 640 A
- Rated Operational Power: In-line: 220-230 V 110 kW, 380-400 V 200 kW, 500 V 257 kW; Inside-delta: 220-230 V 200 kW, 380-400 V 355 kW, 500 V 450 kW
- Short Circuit Current Rating: 65 kA at 600 V
- Overload Capacity: 115% of continuous FLA
- Standards: IEC 60947-4-2, UL 508
- Wire Size: 2/0 AWG-500 kcmil (2 per phase)
- Additional Features: Integrated electronic overload protection, adjustable motor current control, analog and communication interfaces
- Certifications: IEC 60947-4-2, UL 508

Dimensions: 260 x 470 x 280 mm

Weight: 22 kg

Country of Origin: Sweden

HS Code: 8504.40
