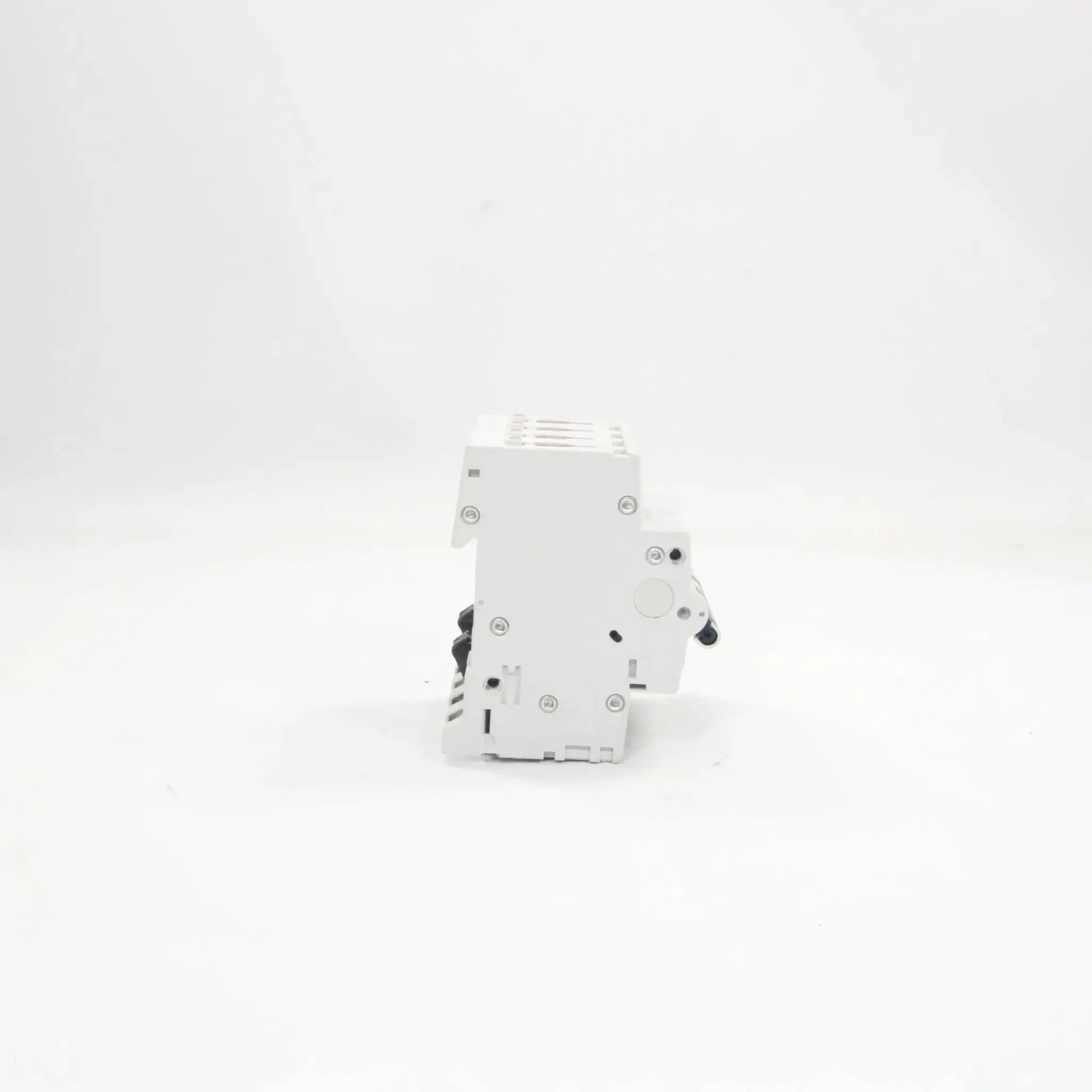

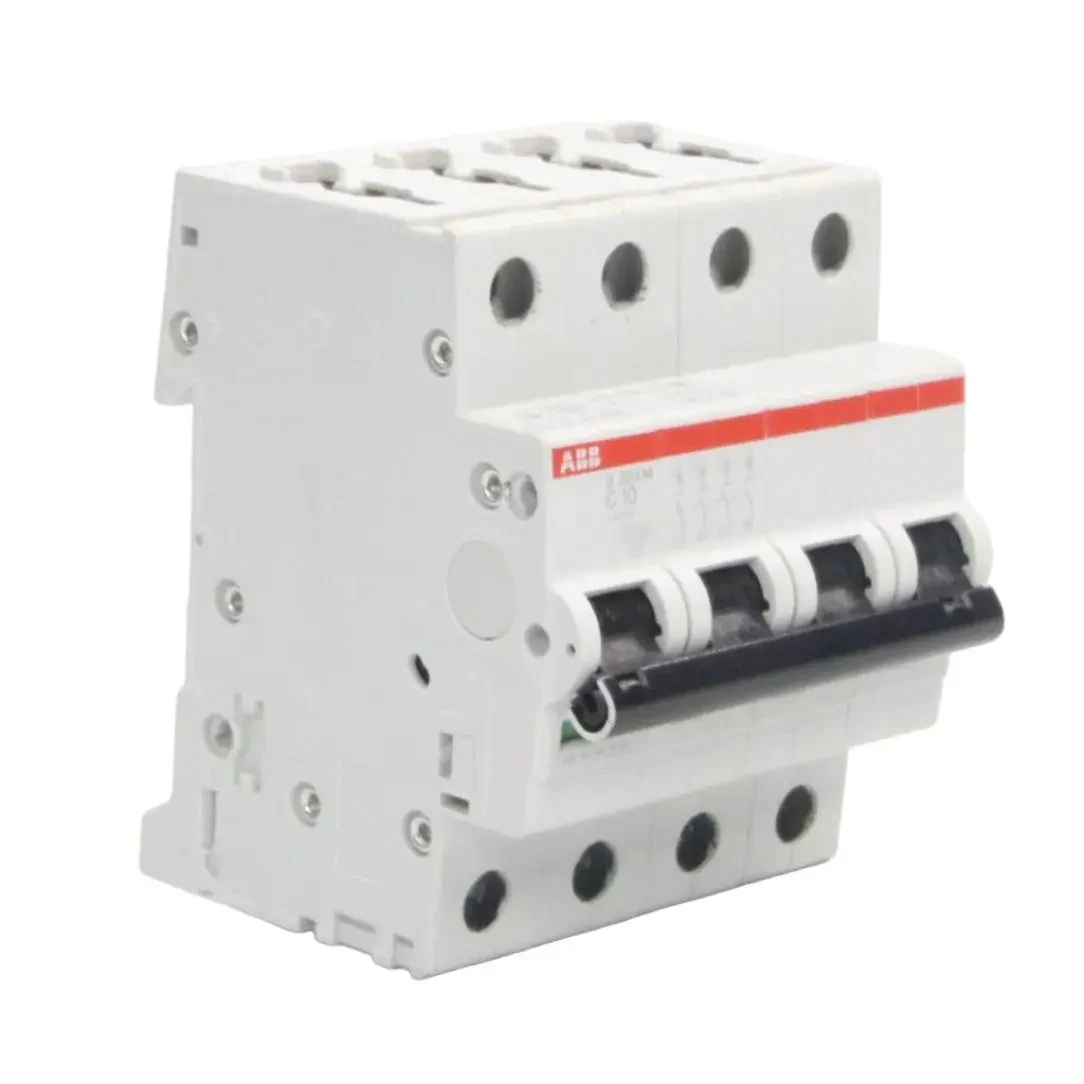

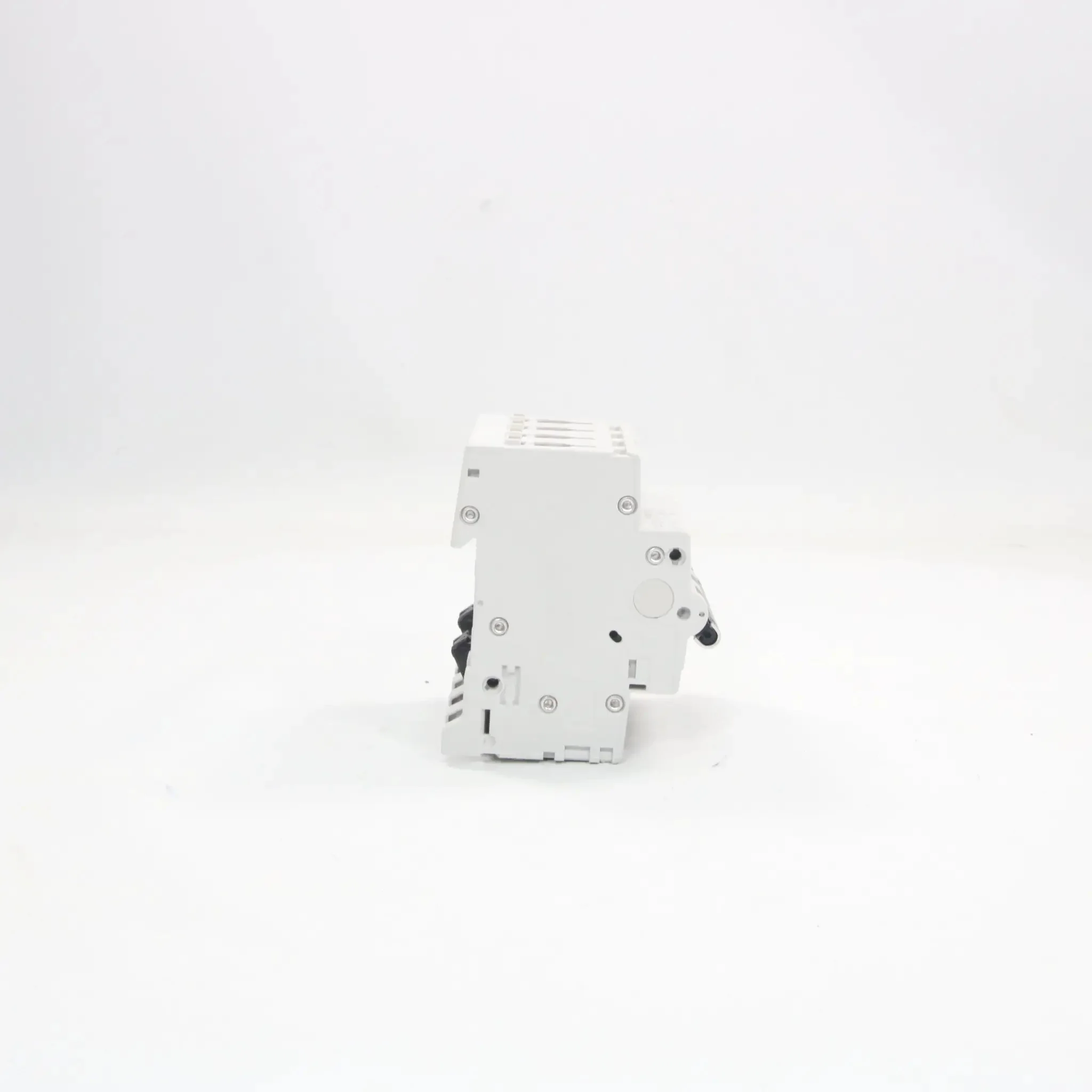

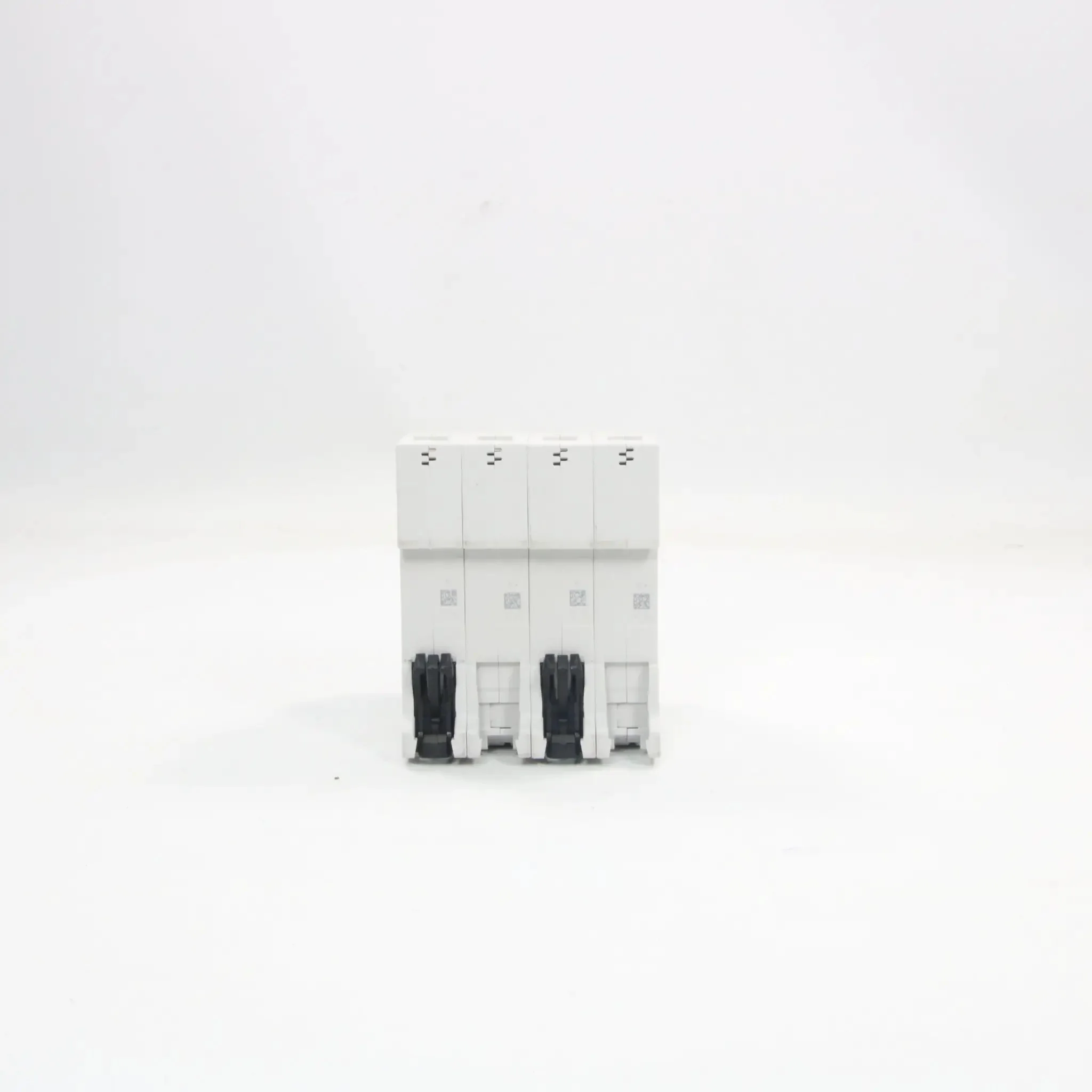

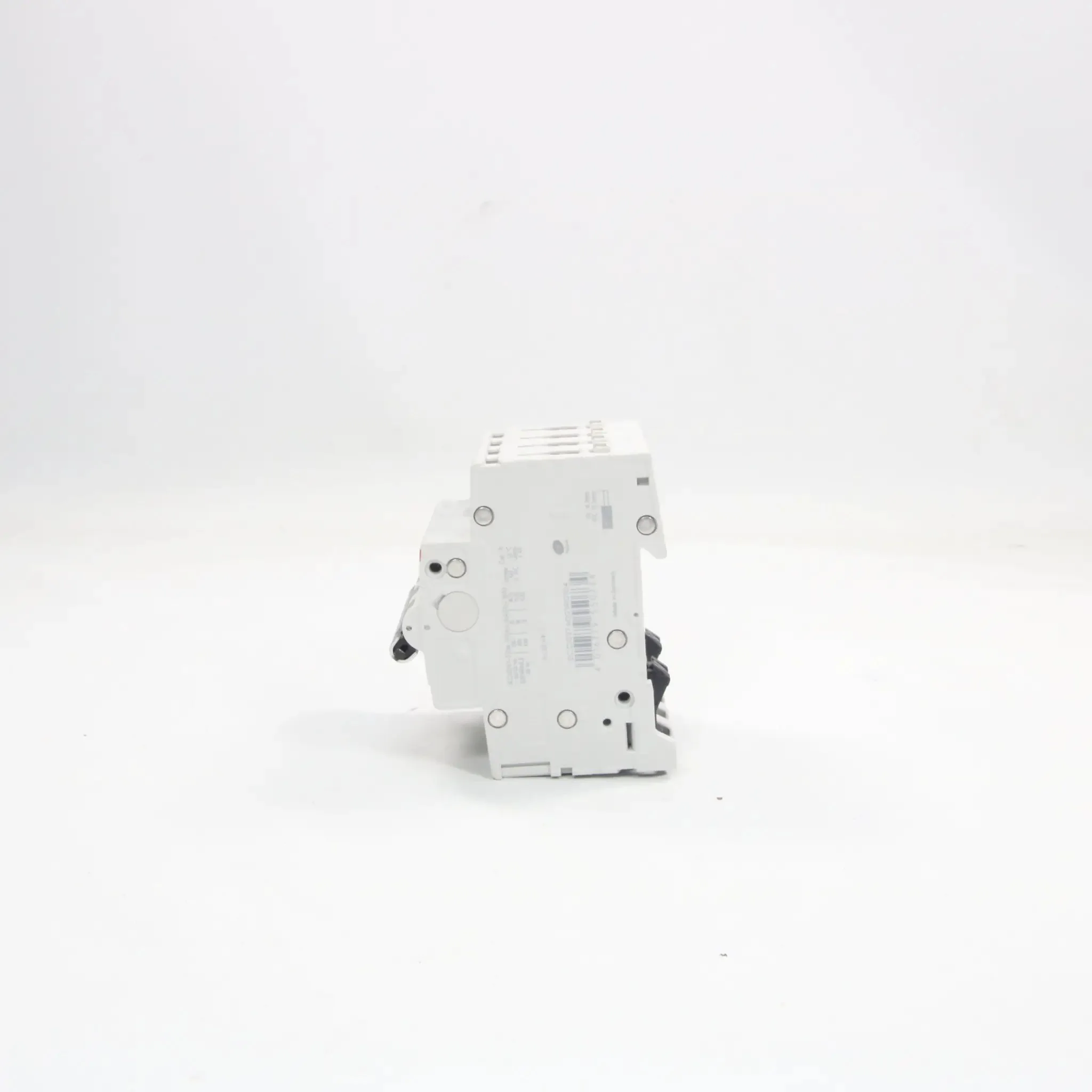

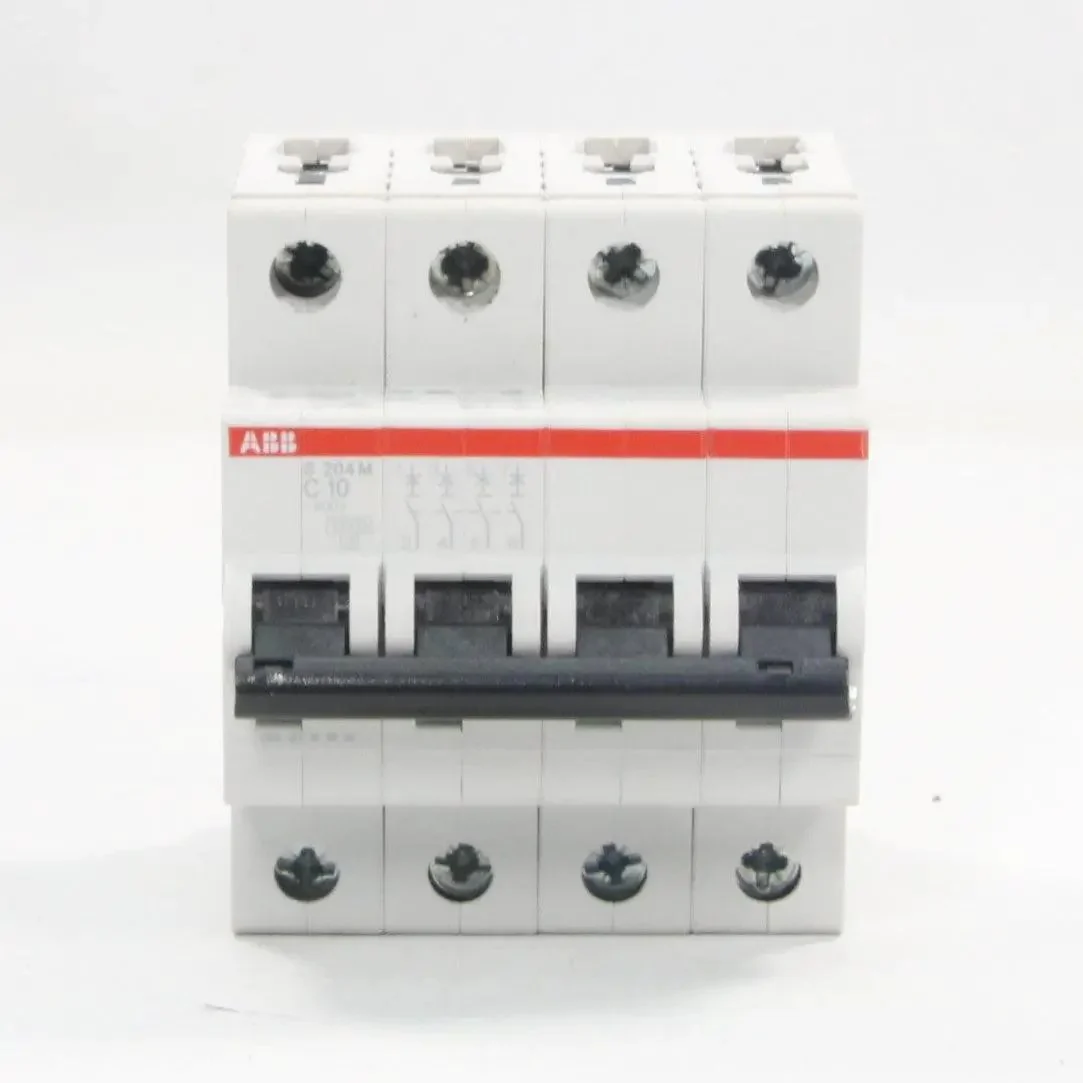

ABB S 204M C10
- Brand: ABB
- Model: S204M-C10
- Type: Miniature Circuit Breaker (MCB)
- Technical Specifications:
- Series: System pro M compact S200M
- Poles: 4P (Four Pole)
- Rated Current (In): 10 A
- Rated Voltage (Ue): 230/400 V AC, 60/110 V DC
- Breaking Capacity: 10 kA (at 230/400 V AC)
- Tripping Characteristic: Type C (5-10 times In)
- Tripping Mechanism: Thermal-magnetic (delayed thermal for overload, electromechanical for short circuit)
- Standards: IEC/EN 60898-1, IEC/EN 60947-2
- Protection: Overload and short circuit protection
- Mounting: DIN-rail
- Terminal Capacity: 0.75-25 mm² (flexible), 0.75-35 mm² (rigid)
- Width: 17.5 mm per pole (70 mm total for 4P)
- Operating Temperature: -25°C to +55°C
- Protection Class: IP20 (terminals), IP40 (with connected conductors)
- Applications: Residential, commercial, and industrial electrical installations
- Dimensions: 70 mm (width) x 88 mm (height) x 69 mm (depth)
- Weight: Approximately 0.47 kg
- Country of Origin: Germany
- HS Code: 85362010
