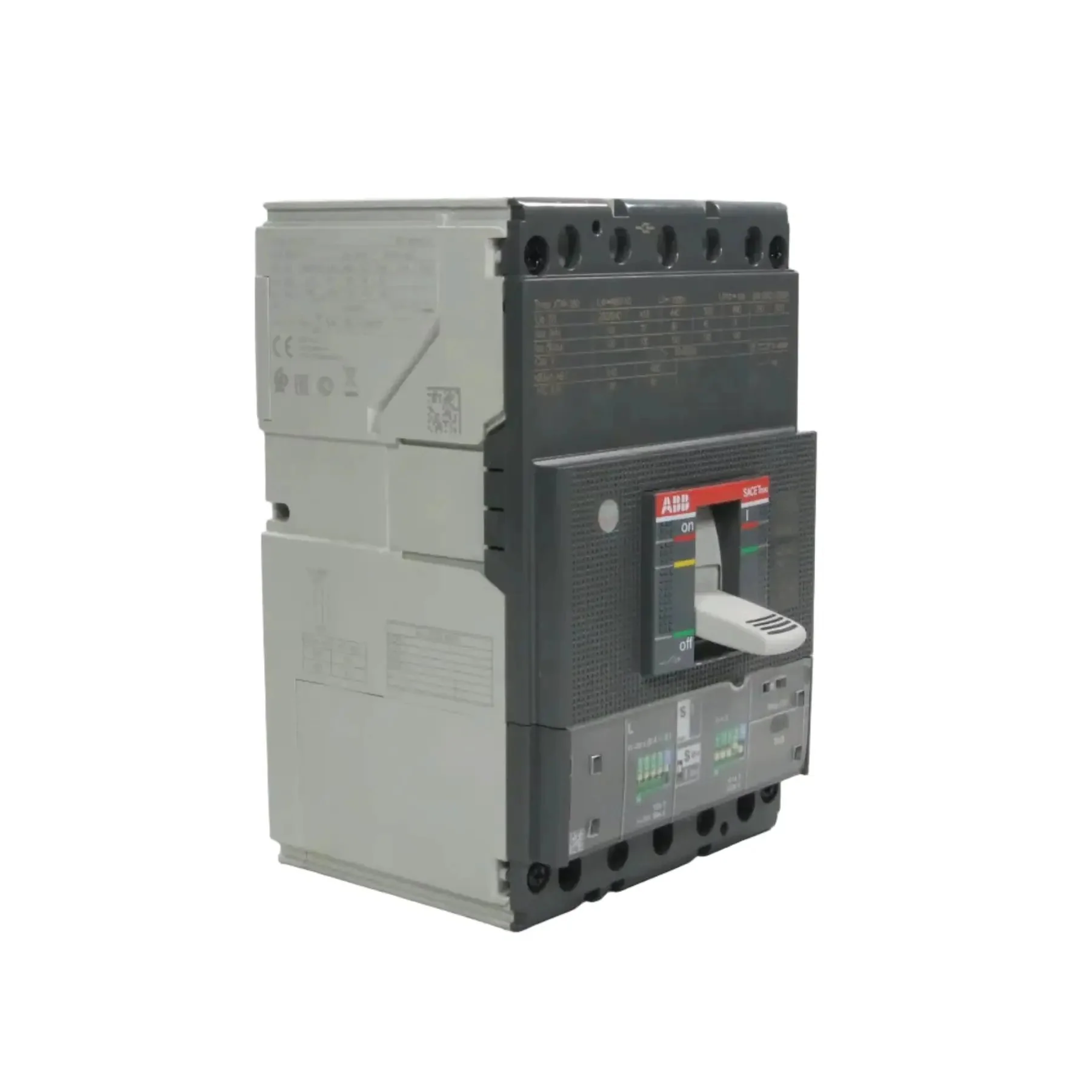

ABB SACE Tmax XT4H 250 Circuit Breaker

- Brand: ABB

- Series: SACE Tmax

- Model: XT4H 250 with Ekip Dip LS/I trip unit

- Type: Moulded Case Circuit Breaker (MCCB) / Fixed Circuit Breaker with Electronic  Trip Unit

- Part number: 1SDA068515R1

- Technical specifications:
- Poles: 3P (3 poles), 3d (3 protected poles)
- Rated current (In): 250 A
- Frame size: XT4H 250
- Breaking capacity (Icu): 70 kA at 415 V AC (IEC 60947-2); 100kA at 220/240 V AC
- Rated operational voltage (Ue): Up to 690 V AC 50/60 Hz
- Trip unit: Ekip Dip LS/I (electronic; adjustable Long-time (L) overload, adjustable Short-time (S) short-circuit with I2t, fixed Instantaneous (I) short-circuit; adjustment ranges
- Terminals: Front terminals
- Mounting: Fixed
- Frequency: 50/60 Hz
- Protection functions: Overload (L), short-circuit (S and I); electronic release for precise protection
- Additional features: High performance for demanding applications; compatible with Tmax XT accessories; mechanical/electrical durability, high operating temperature - -25°C to +70°C
- Standards: IEC 60947-2 compliant

Weight: 2.1 kg

Dimensions: 220 x 160 x 170 mm (box)

Country of origin: Italy

HS code: 8536.20
