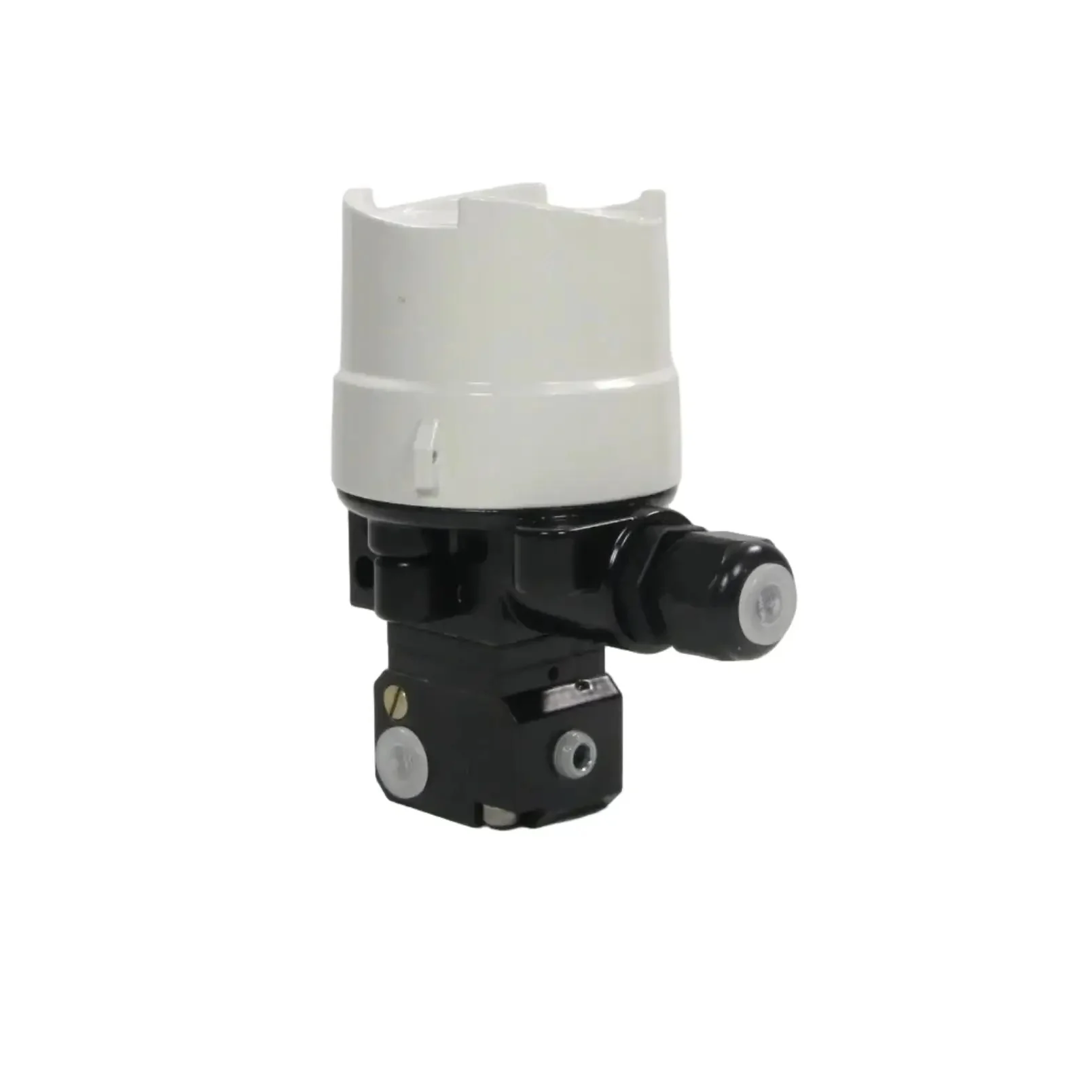

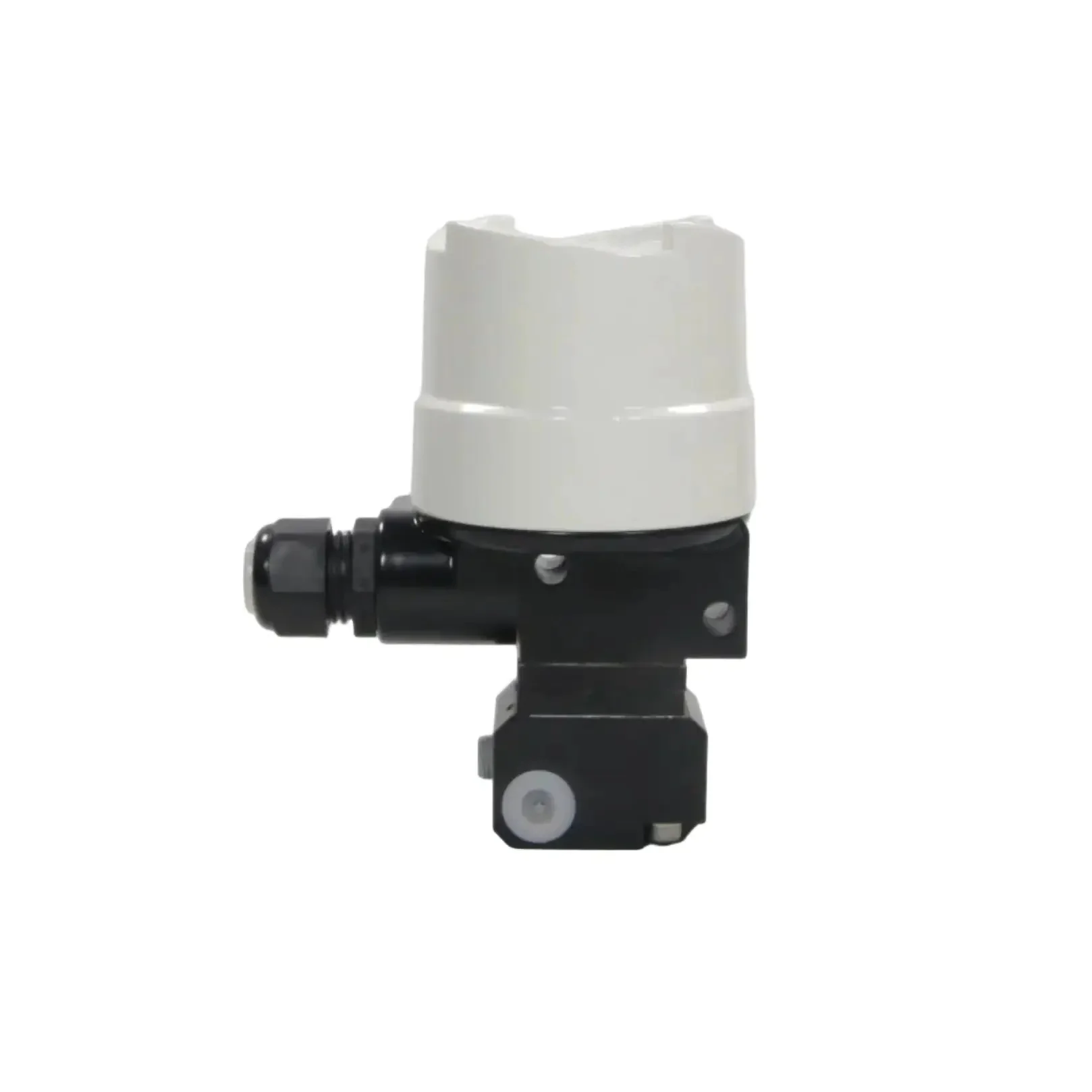

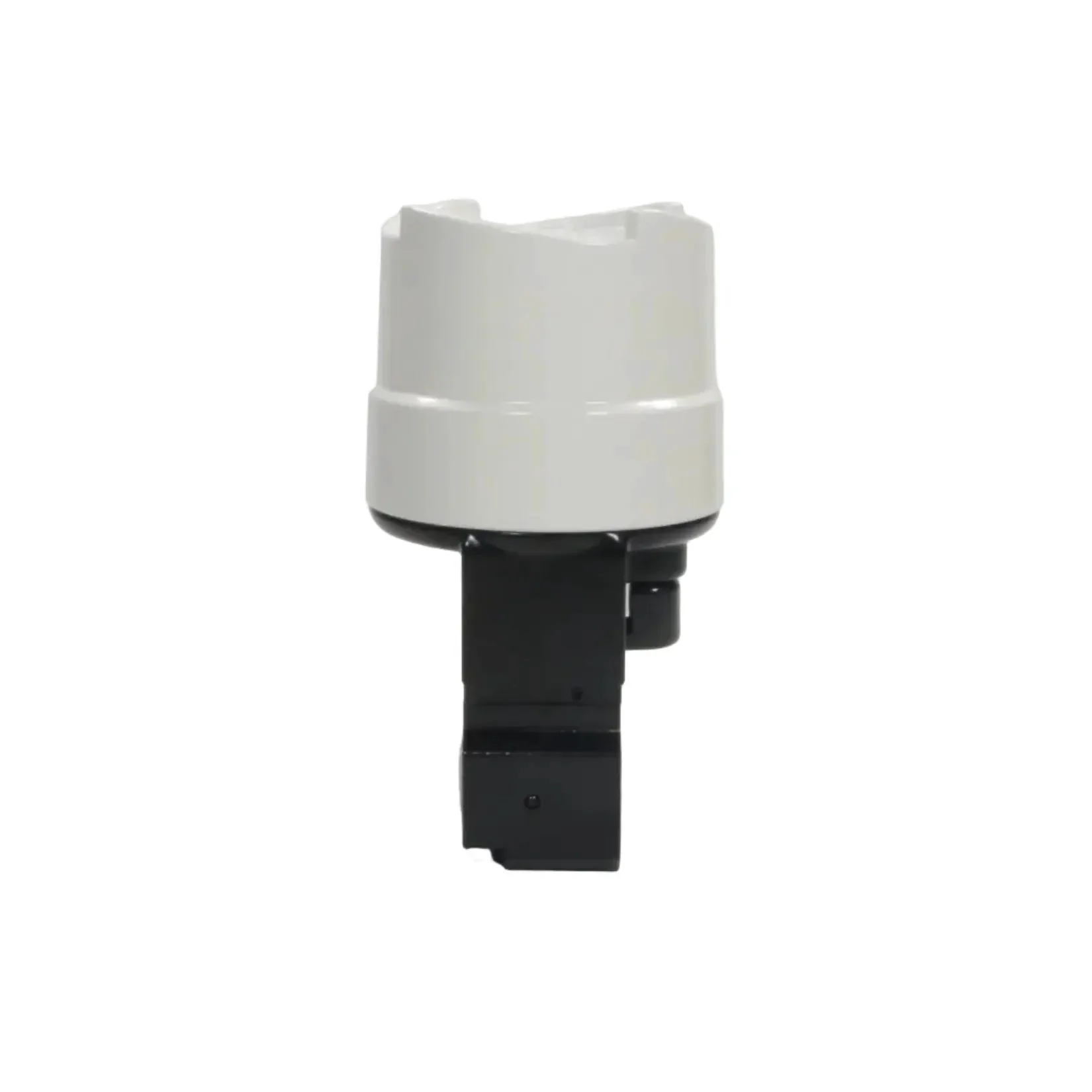

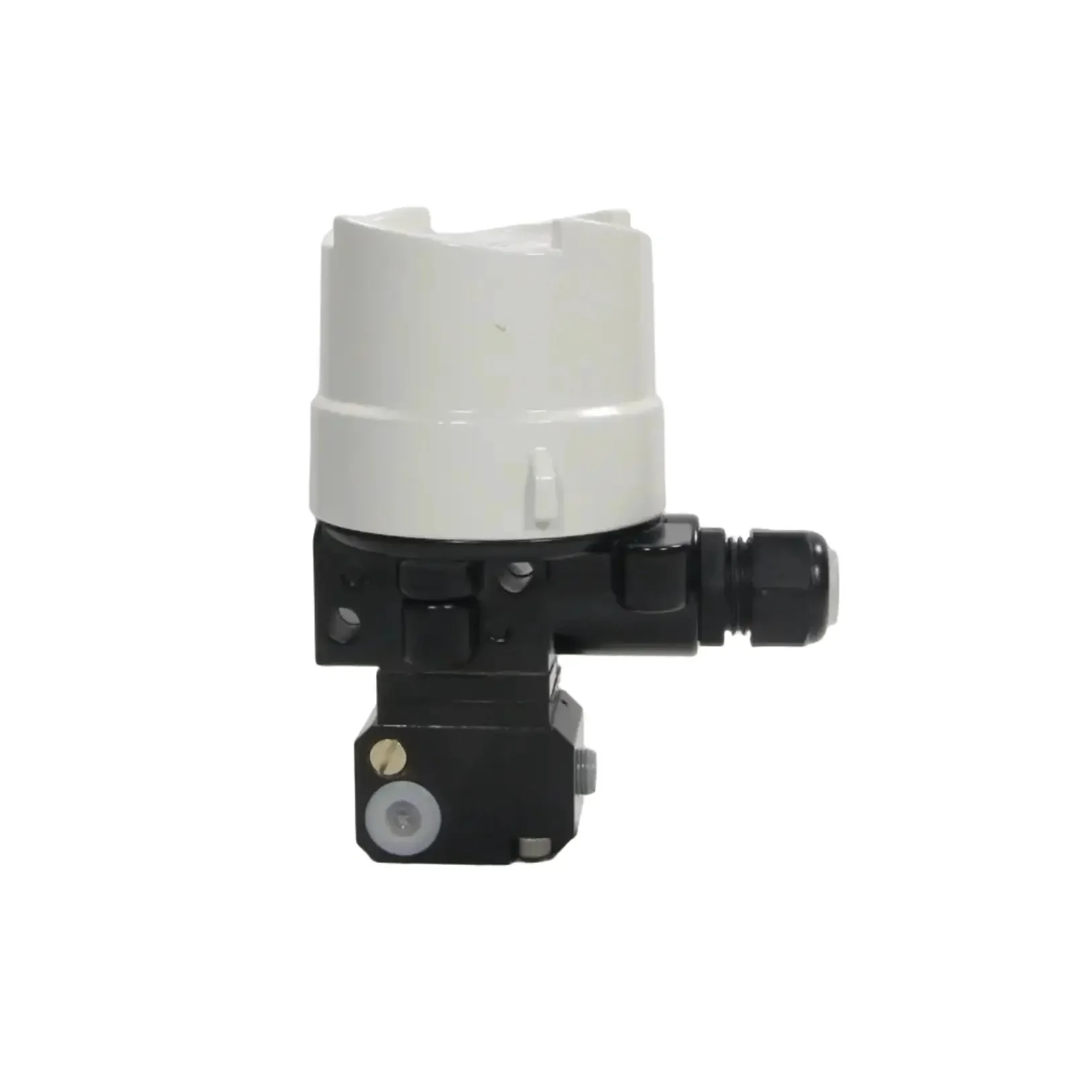

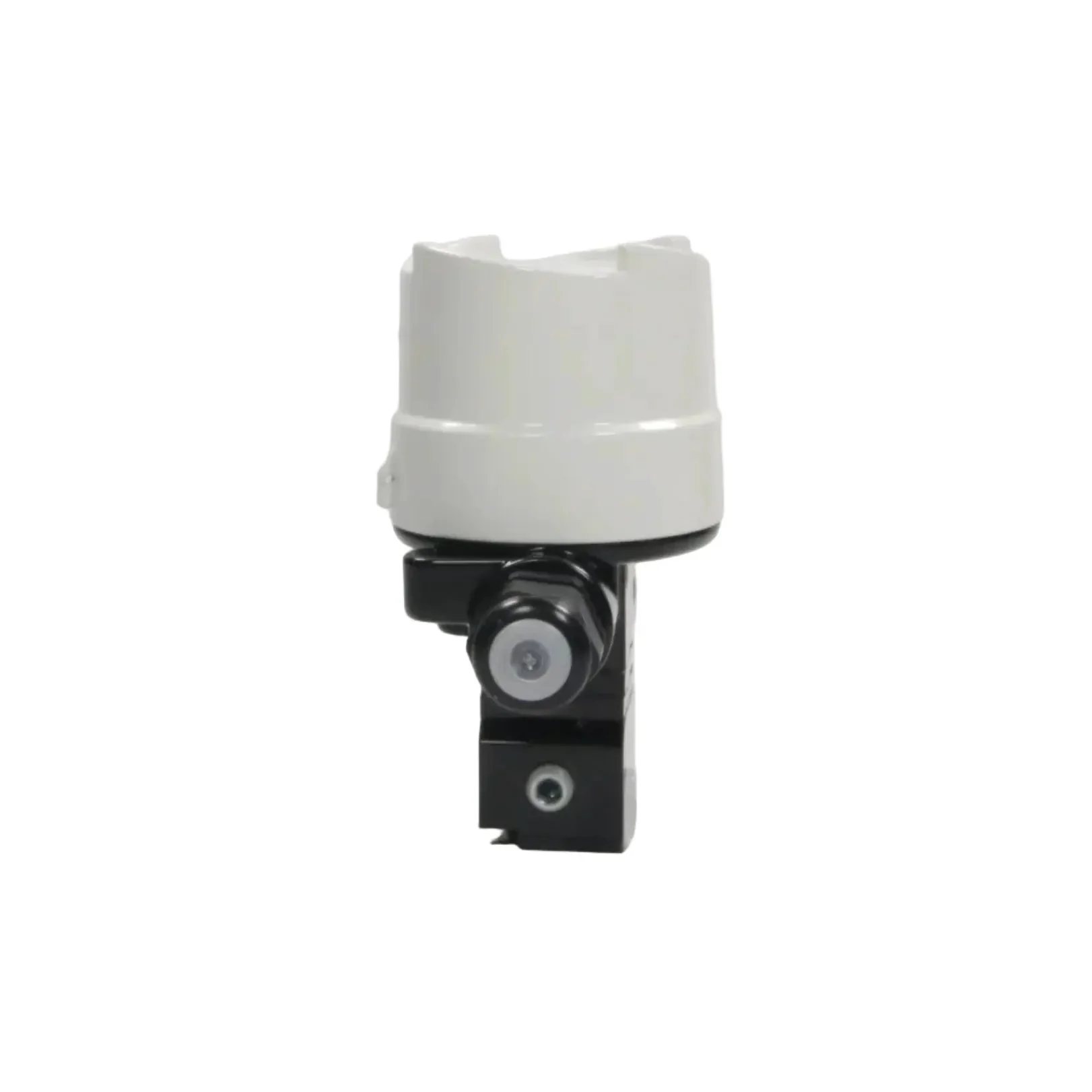

ABB TEIP11-PS Signal Converter

- Brand: ABB
- Model: TEIP11-PS
- Type: Signal Converter / I/P Converter

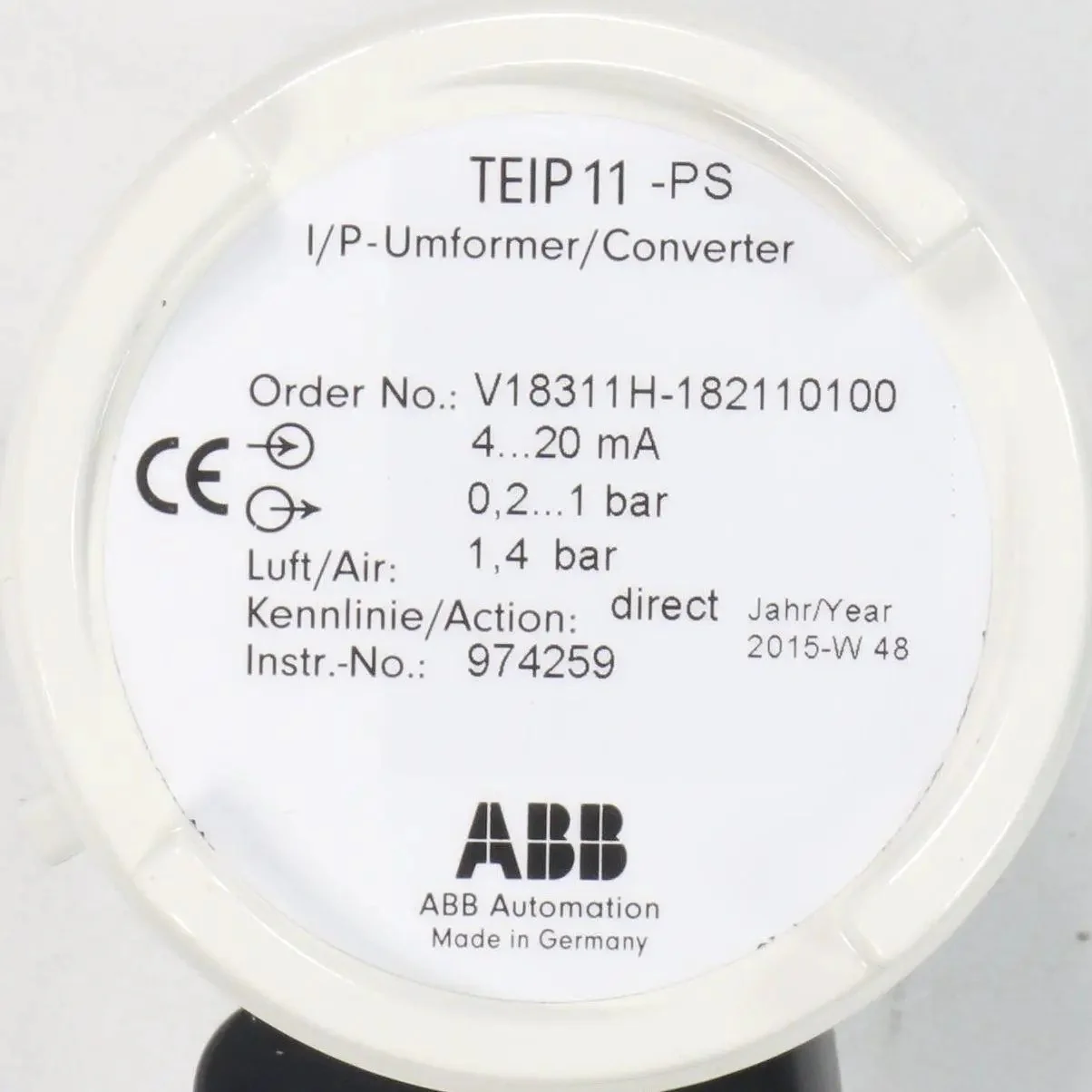

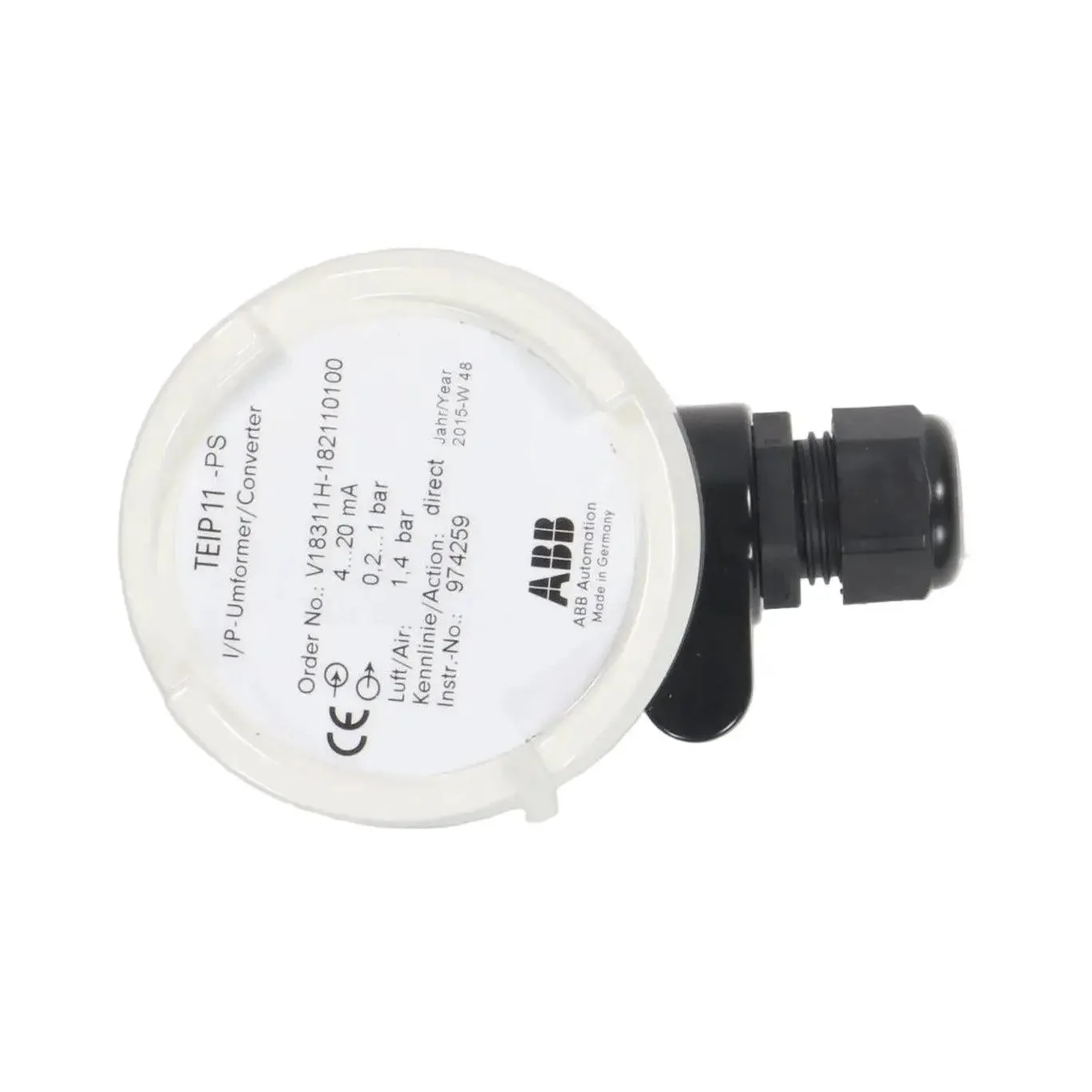

- Order number: V18311H-182110100
- all tech specs:
  - Function: Converts standard electrical input signal (4-20 mA) to proportional pneumatic output pressure
  - Input Signal: 4-20 mA
  - Output Pressure: 0.2-1.0 bar
  - Supply Air Pressure: 1.4 bar
  - Air Consumption: ≤ 0.3 Nm³/h
  - Accuracy: ±0.5 % of span
  - Linearity: ±0.25 % of span
  - Hysteresis: ≤ 0.15 % of span
  - Repeatability: ±0.15 % of span
  - Sensitivity: ≤ 0.05 % of span
  - Dead Band: ≤ 0.1 % of span
  - Response Time: ≤ 0.1 s (for 90 % step)
  - Ambient Temperature Effect: ±0.02 % of span per °C
  - Supply Pressure Effect: ≤ 0.1 % of span per bar change
  - Load Sensitivity: Negligible
  - Protection Class: IP65
  - Operating Temperature: -40°C to +85°C
  - Storage Temperature: -55°C to +85°C
  - Relative Humidity: 0-100 % (non-condensing)
  - Vibration Resistance: 2 g at 5-400 Hz
  - Shock Resistance: 30 g
  - Mounting: Pipe, wall or panel mount (with bracket)

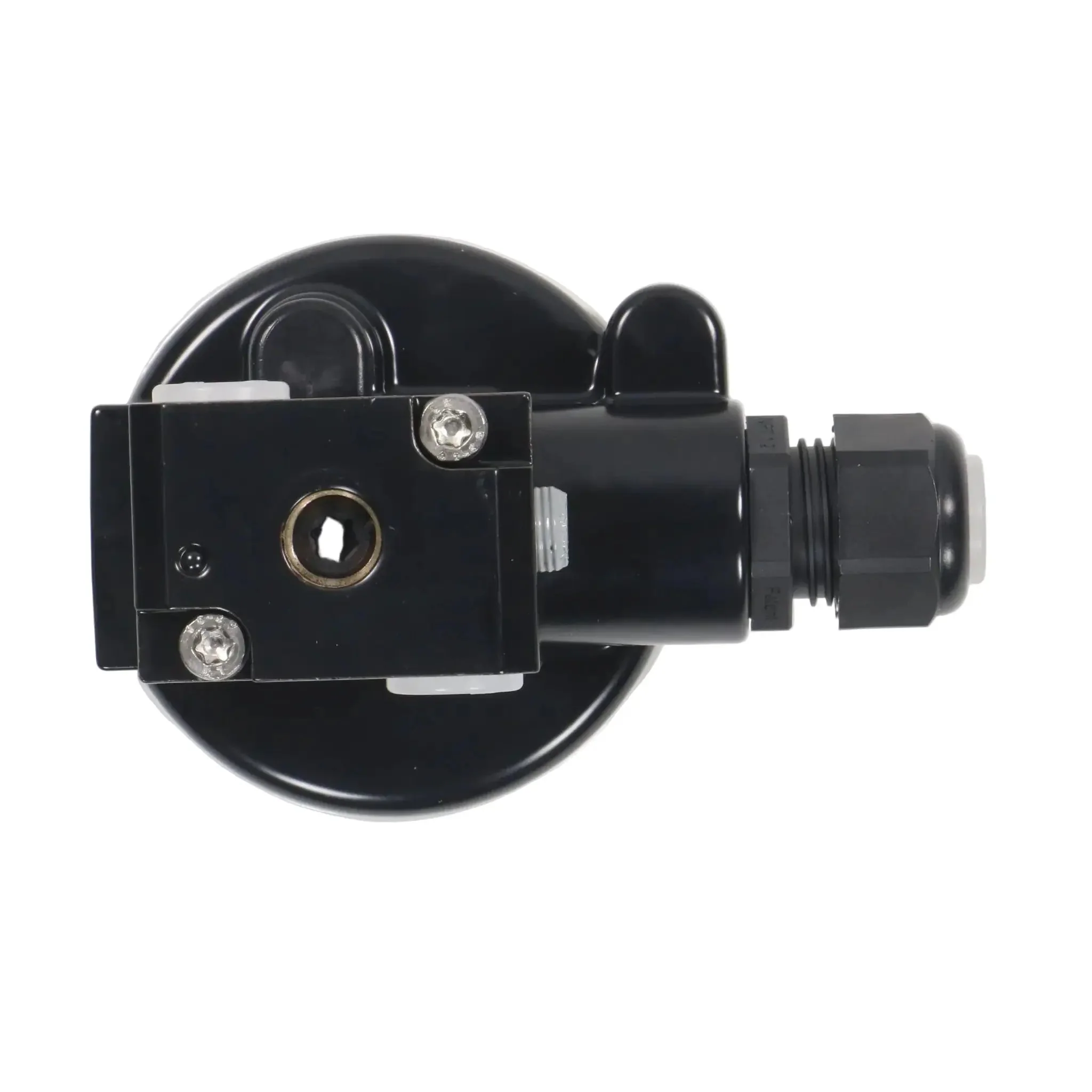

  - Pneumatic Connection: 1/4" NPT
  - Electrical Connection: M20 cable gland
  - Housing Material: Aluminium die-cast, epoxy coated
  - Certifications: FM, CSA, SIL 2 capable (IEC 61508)
- Dimensions: 110 x 70 x 150 mm
- Weight: 850 g
- Country of origin: Germany
- HS code: 903289
