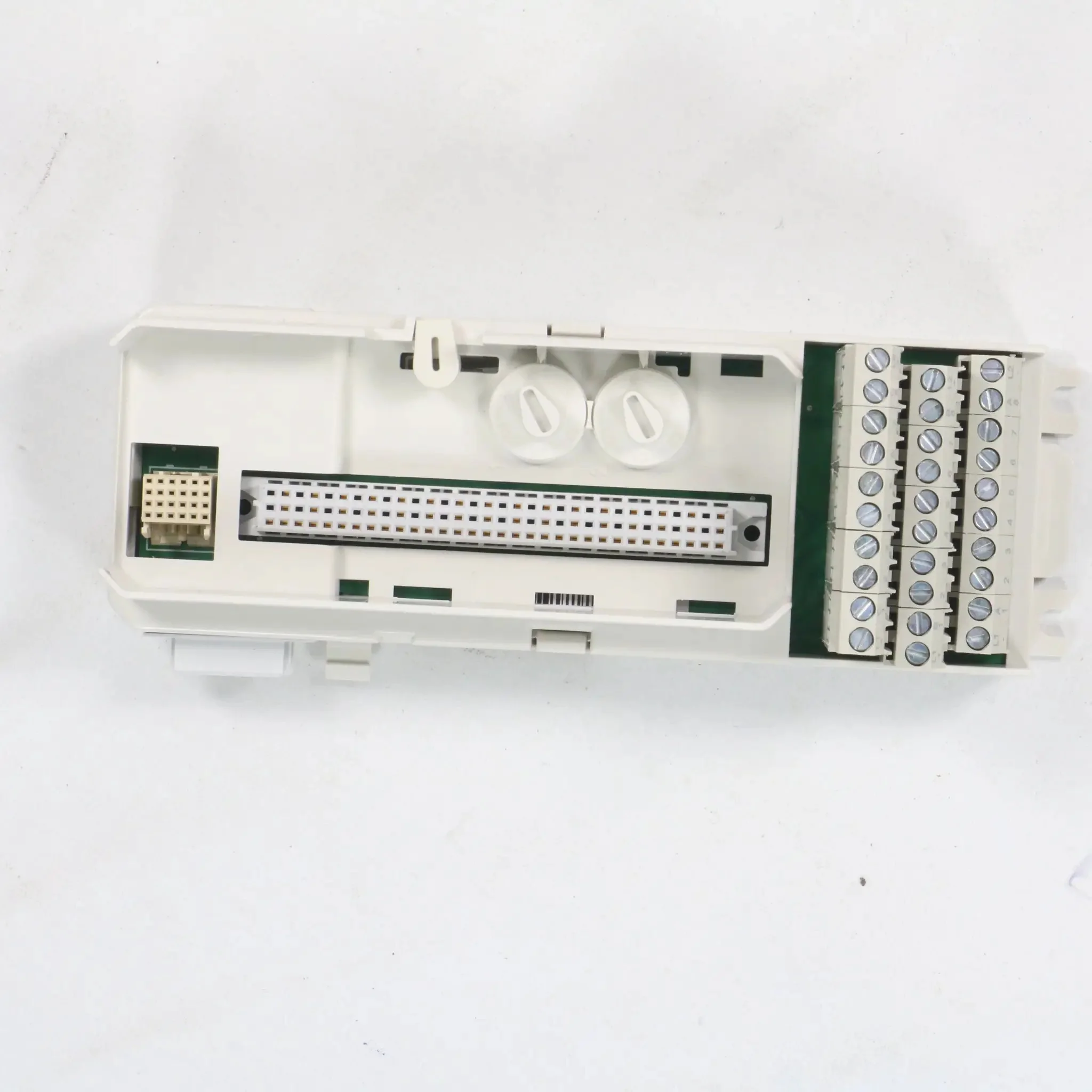

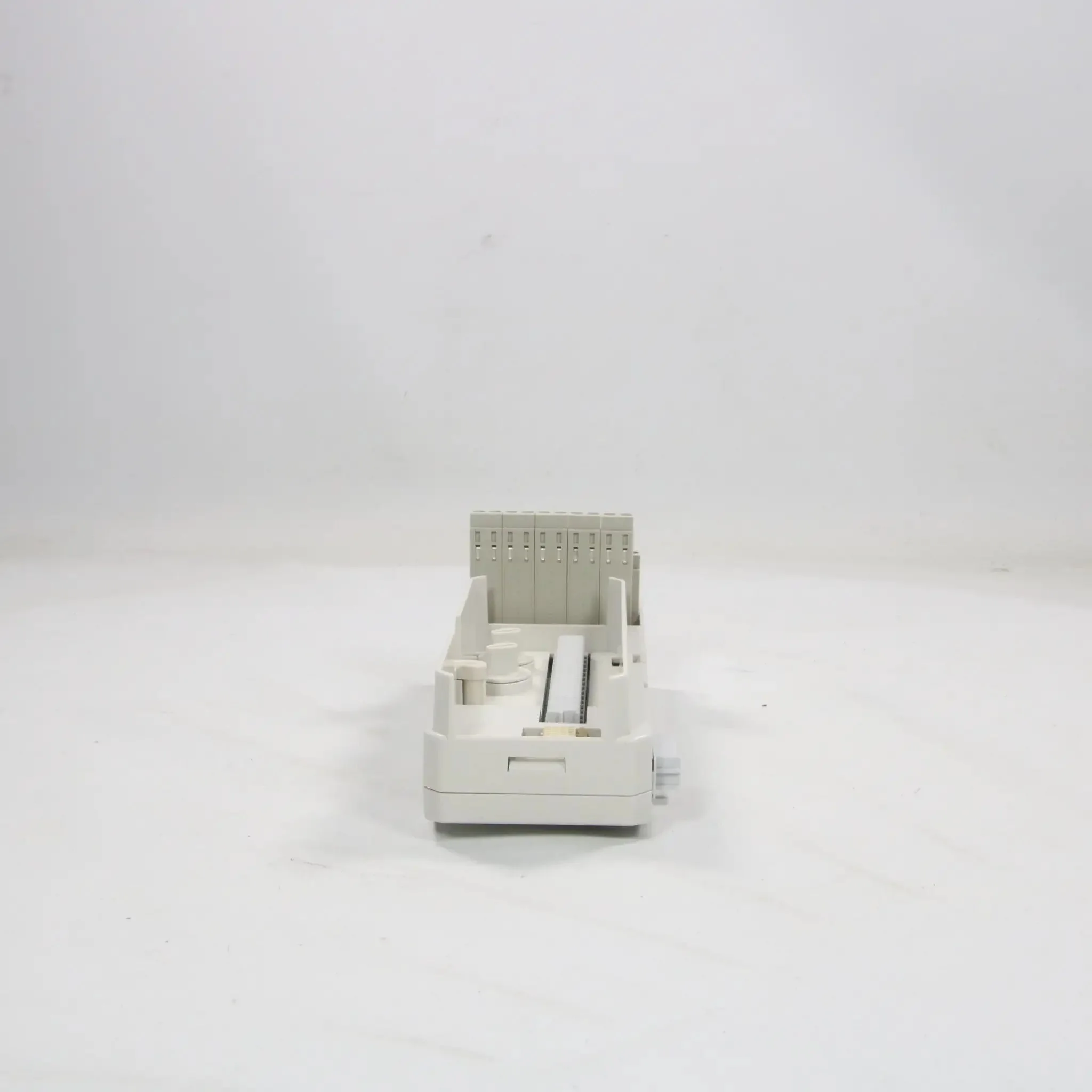

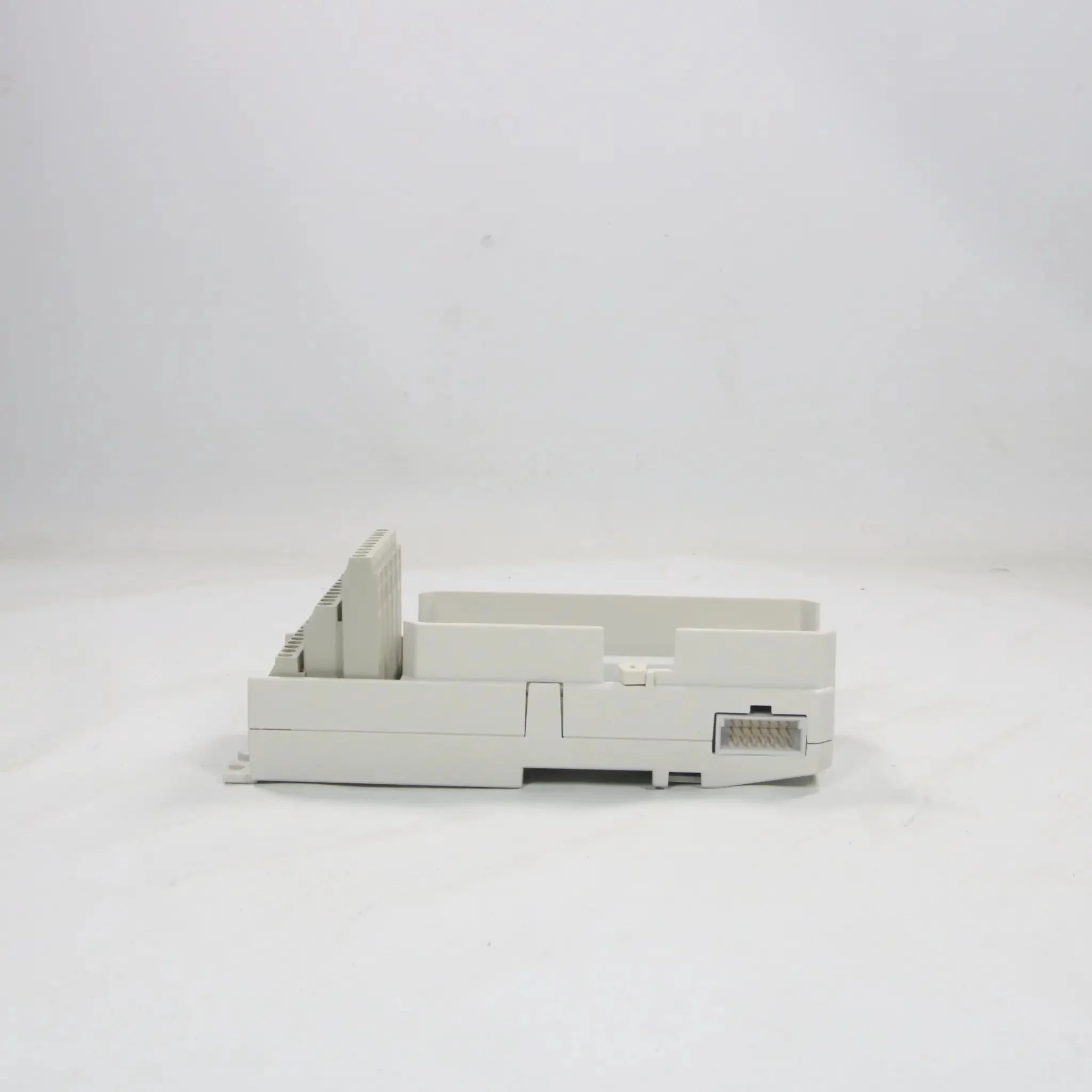

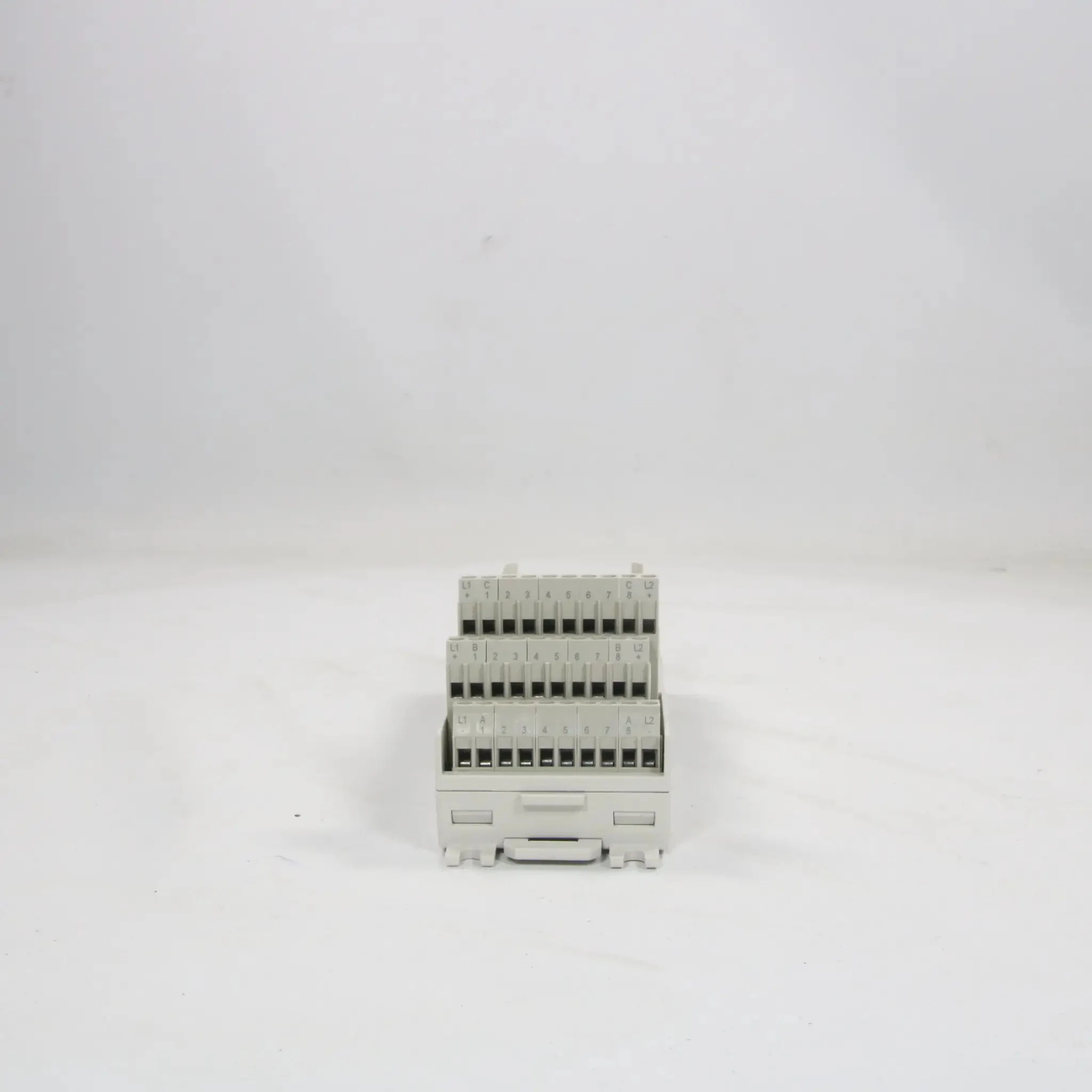

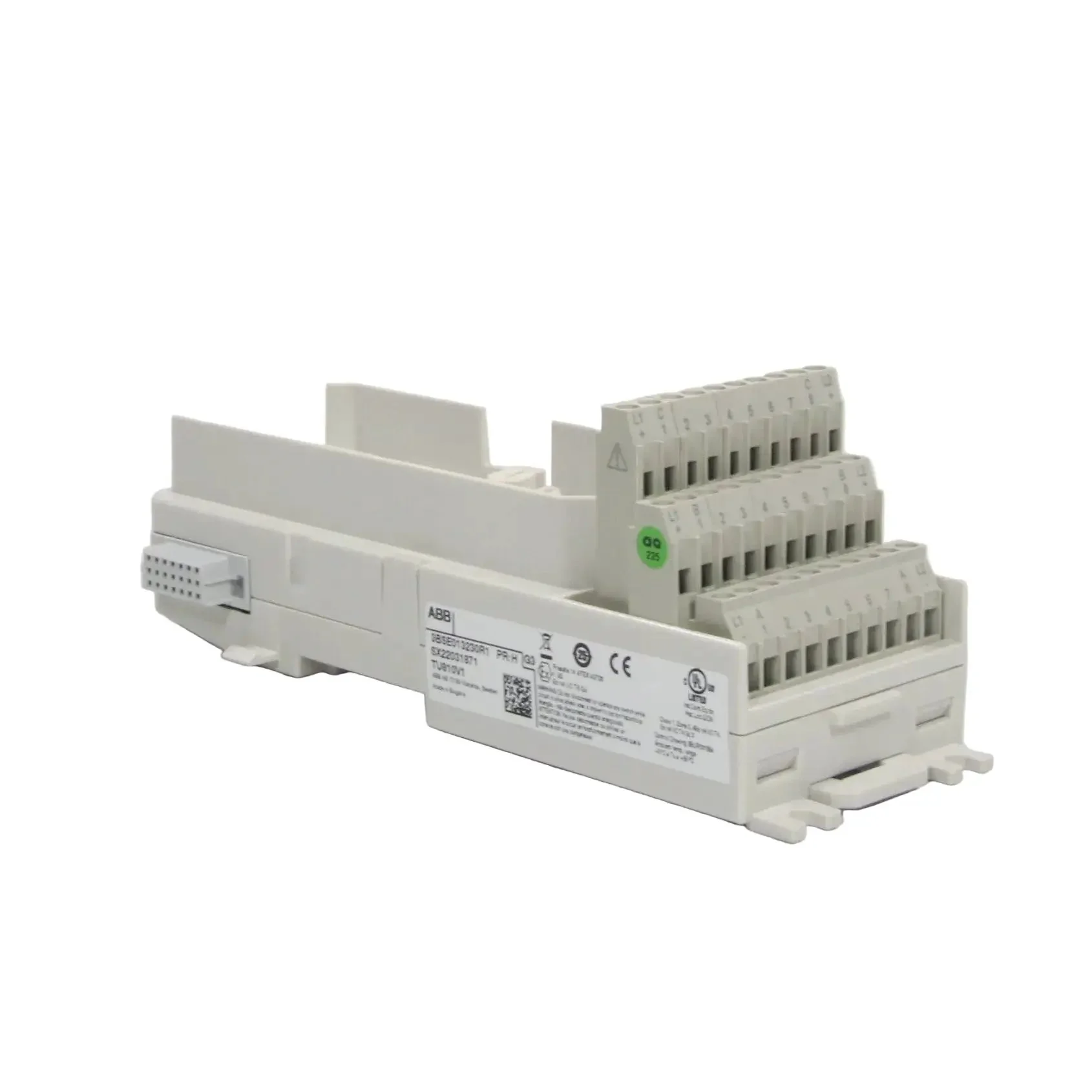

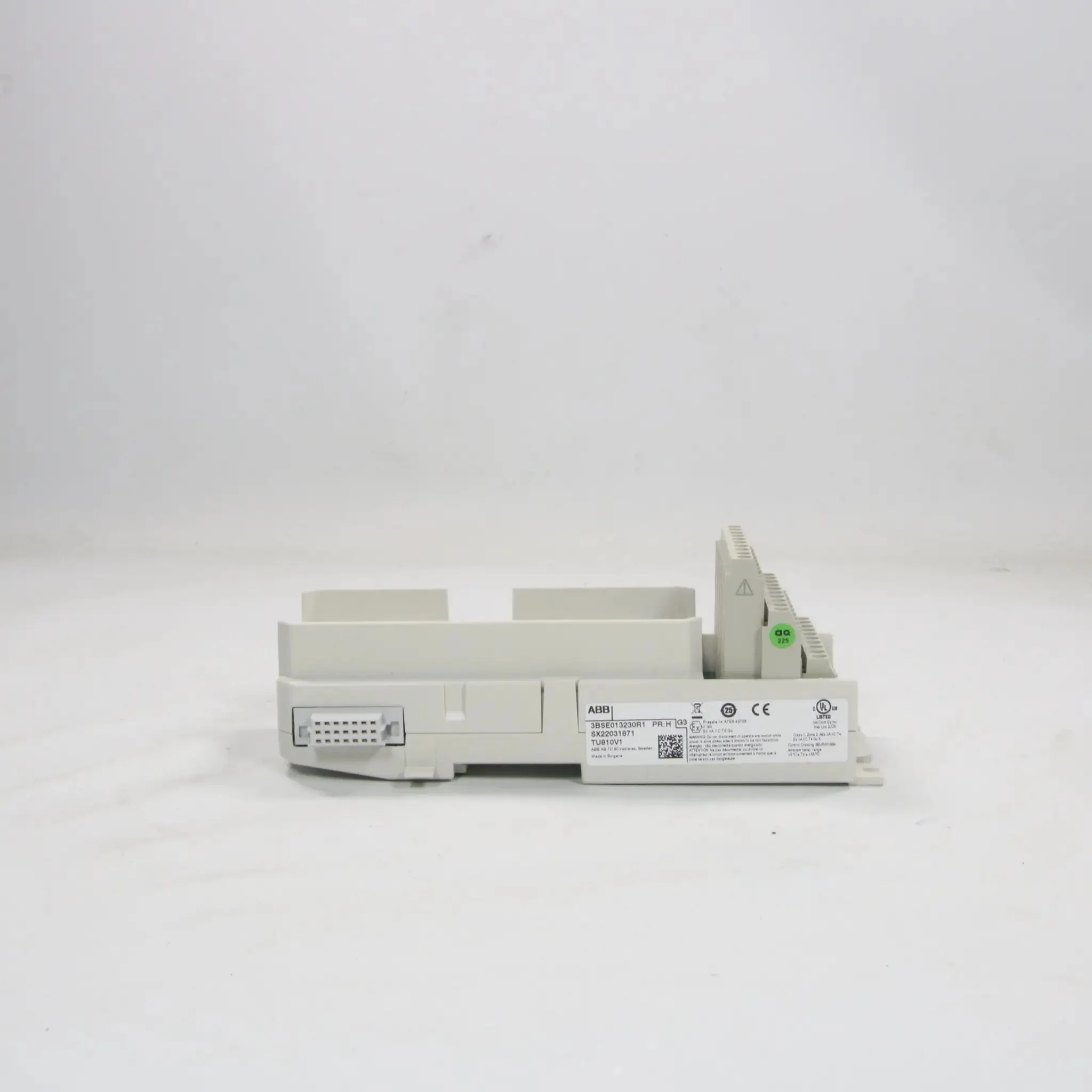

ABB TU 810V1 Compact Module Termination Unit

Brand: ABB

Model: TU 810V1

Part Number: 3BSE013230R1

Type
Compact Module Termination Unit (MTU) for S800 I/O

All tech specs
- Number of channels: 16 (2x8 signal terminals)
- Rated voltage: 50 V
- Maximum current per I/O channel: 2 A
- Maximum current process connection: 5 A
- Acceptable wire sizes: Solid 0.2-4 mm²; Stranded 0.2-2.5 mm² (24-12 AWG)
- Connection type: Screw terminals
- Passive unit for field wiring connection to S800 I/O modules
- Includes part of the ModuleBus
- Mechanical keying for preventing incorrect module insertion (36 possible configurations)
- Supports compact one-wire installation
- Compatible with various S800 I/O modules (e.g., AI810, DI810, DO810, DP820)
- Mounting: Horizontal or vertical (with temperature derating for vertical)
- Protection class: IP20

Dimension
- Width: 58.5 mm (approx.)
- Height: 170 mm (approx.)
- Depth: 64 mm (approx.)

Weight
0.2 kg

Country of origin
Sweden

HS code
853690
