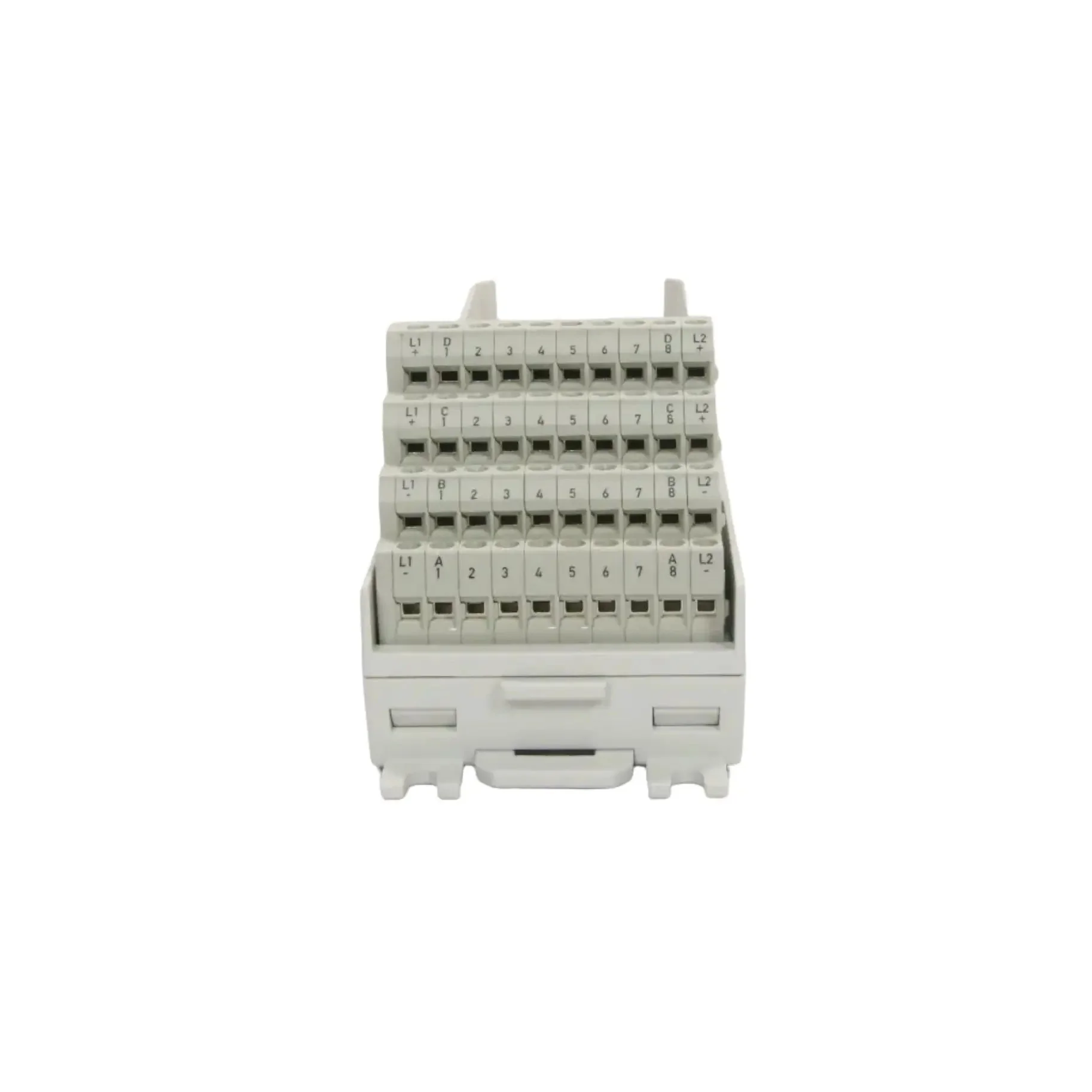

ABB TU 818 Compact Module Termination Unit

- Brand: ABB

- Model: TU 818

- Part Number: 3BSE069209R1

- Type: Compact Module Termination Unit (MTU) for S800 I/O

All tech specs:
- Number of channels: 32 I/O signal terminations
- Signal terminals: 1 x 32 signal terminals
- Connection type: Screw terminals (40-pole total)
- Rated voltage: 50 V
- Maximum current per I/O channel: 2.5 A
- Maximum current process voltage connection: 8 A
- Isolation: Two isolated groups of 16 channels each
- Passive unit for field wiring connection to S800 I/O modules
- Includes mechanical keying to prevent incorrect module insertion
- Supports DIN rail mounting (horizontal or vertical)
- Mounting temperature limits: Horizontal up to 55 °C, vertical up to 40 °C
- Compatible with S800 I/O modules such as DI818, DO818, DI810, DI880, AI810, AI815, AI835A, AI843, AI845, AI880A, and others
- Protection class: IP20
- Part of ABB S800 I/O system for distributed process control

Dimensions: 190 x 70 x 70 mm

Weight: 250 g

Country of origin: Sweden

HS code: 853690
