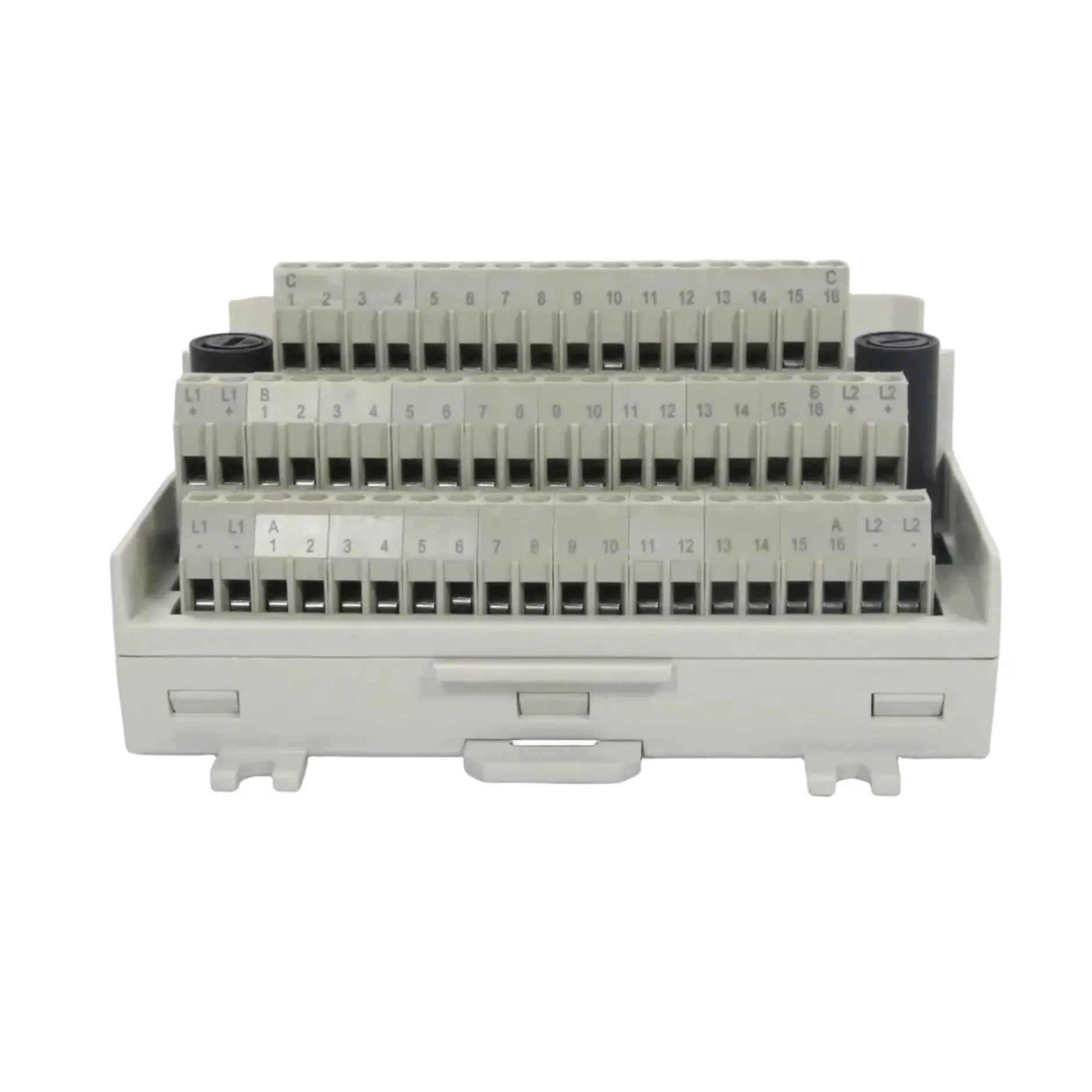

ABB TU 830V1 Extended Module Termination Unit

- Brand: ABB

- Model: TU 830V1

- Part Number: 3BSE013234R1

- Type: Extended Module Termination Unit (MTU) for S800 I/O

All tech specs
- Number of I/O channels: 16
- Signal terminals: 2 x 16 signal terminals
- Connections per channel: Two I/O connections and one ZP  connection
- Process voltage connections: Two (L+ and L-)
- Rated voltage: 50 V
- Maximum continuous current per I/O channel: 2 A
- Rated isolation: 50 V
- Connection type: Screw terminals
- Passive unit for field wiring connection to S800 I/O modules
- Distributes ModuleBus to the I/O module and to the next MTU
- Mechanical keying to prevent incorrect module insertion
- Mounting: On DIN rail
- Protection class: IP20
- Compatible with various S800 I/O modules (e.g., AI810, AO810, DI810, DO810, and others)
- Part of ABB S800 I/O system for distributed process control

Dimensions: 160 x 160 x 80 mm

Weight: 400 g

Country of origin: Sweden

HS code: 853890
