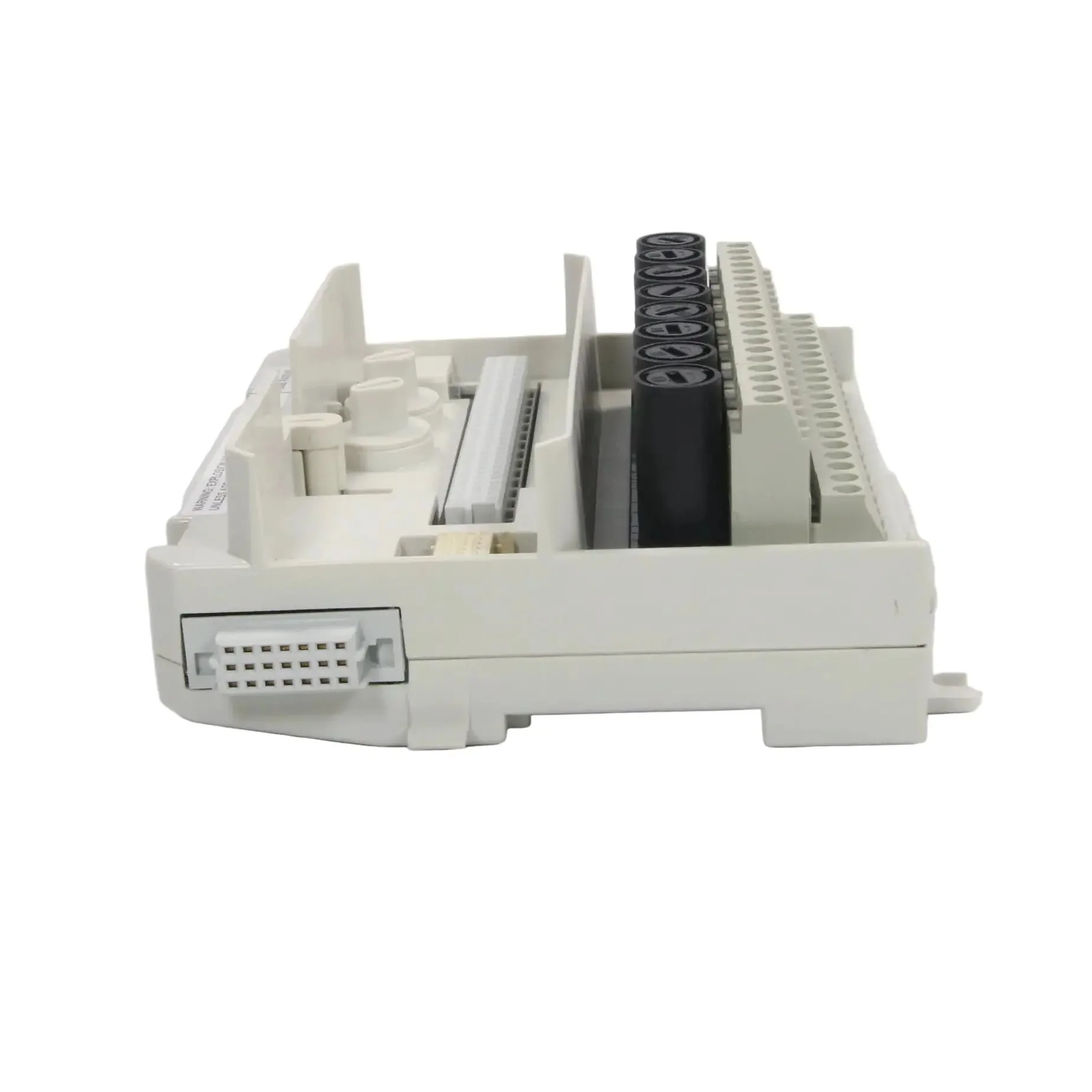

ABB TU 838 Extended Module Termination Unit

- Brand: ABB

- Model: TU 838

- Part Number: 3BSE008572R1

- Type: Extended Module Termination Unit (MTU) for S800 I/O

All tech specs
- Number of I/O channels: 16
- Rated voltage: 50 V
- Maximum rated current: 3 A per channel
- Fused transducer power: 8 fused outlets (2x4 groups)
- Signal terminals: 16
- Return terminals: 2 x 4
- Process power terminals: 2x2 L+ and 2x2 L-
- Connection type: Screw terminals
- Passive unit for field wiring connection to S800 I/O modules
- Distributes ModuleBus to the I/O module and to the next MTU
- Mechanical keying to prevent incorrect module insertion
- Mounting: Horizontal on DIN rail
- Protection class: IP20
- Compatible with various S800 I/O modules (e.g., AI810, AI815, DI810, DO814, etc.)
- Part of ABB S800 I/O system for distributed process control

Dimensions: 160 x 160 x 80 mm (box)

Weight: 380 g

Country of origin: Sweden

HS code: 853890
