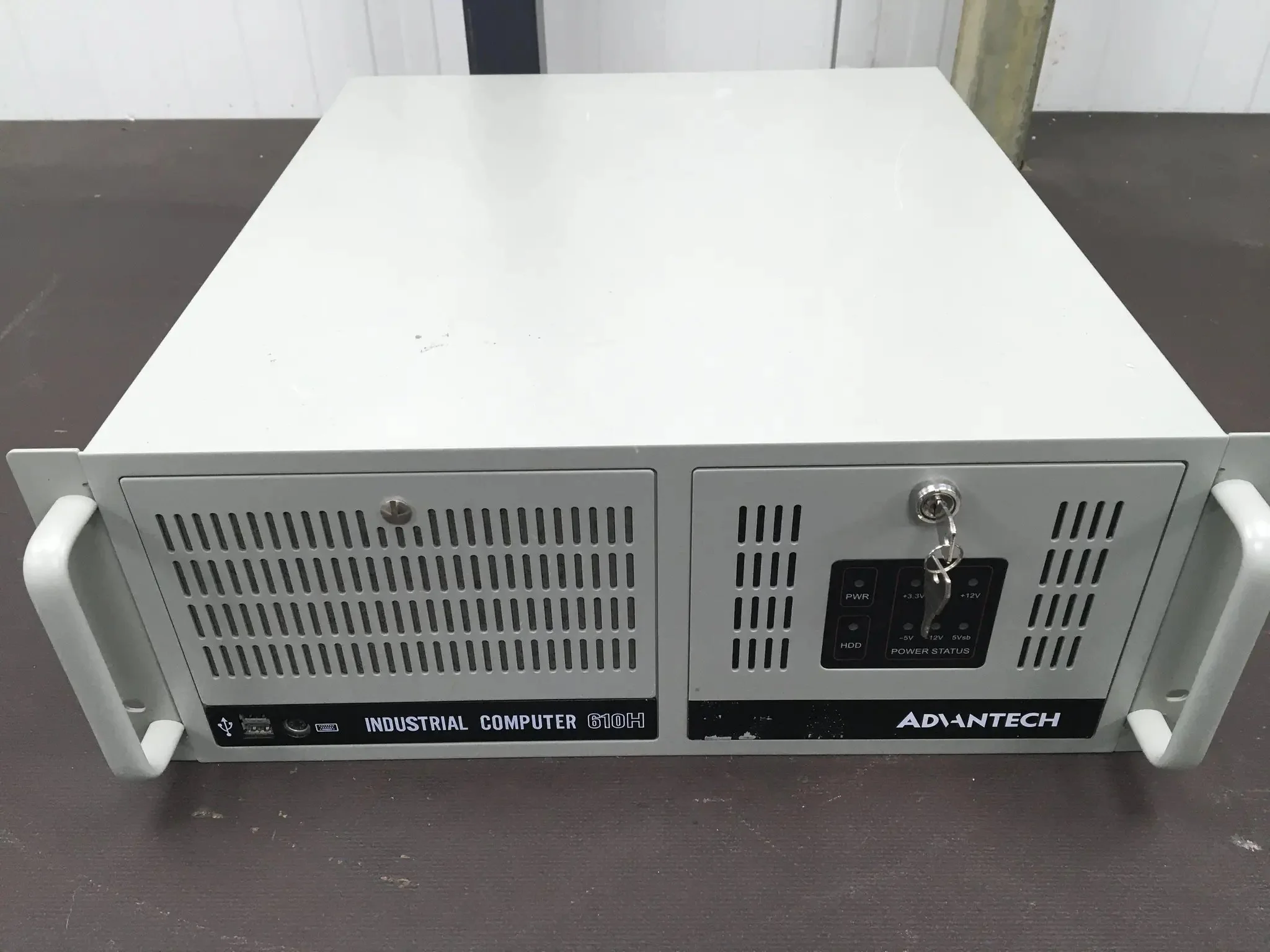

Advantech 610H

• 4U rackmount chassis supports up to 15 add-on cards
• Shock-resistant disk drive bay design holds up to three 5.25" and one 3.5" disk drives
• Front accessible USB & PS/2 interfaces for easy data transfer
• Dual front-accessible filtered cooling fans provide optimized and streamlined airflow
• Front LEDs indicate power status, and HDD activity
• Lockable front door prevents unauthorized access

Included:

• 1 PCE-5126QG2-00A1E
• Intel® LGA 1155 supporting Core™ i7/i5/i3/Pentium processors via Q67 chipset
• Dual Channel DDR3 1333 MHz up to 8 GB
• Intel® HD Graphics graphic core for enhanced graphic processing
• PCI Express: One PCIe x16 & Four PCIe x1 to backplane, PCI: Four 32-bit 33 MHz PCI Masters
• Supports 2 x COM ports, 13 x USB, and Dual GbE LAN
• 2 x SATA3 and 4 x SATA2 ports with S/W SATA Raid 0, 1, 5, 10
• 3 x usb board (total 8 usb ports)
• 1 x National Instruments PCI-6133 NI DAQ Card 8ch 14bit Simultaneous Analog Input
• 1 x Nvidia Quadro 321-0005-000 Rev. C Quadro FX PCI-e Graphic Video Card
• 1 x ADVANTECH PCE-5B13-08 REV A1 MAIN BOARD
• 1 x CD drive
• 1 HDD 500 GB
• 4 GB memory
