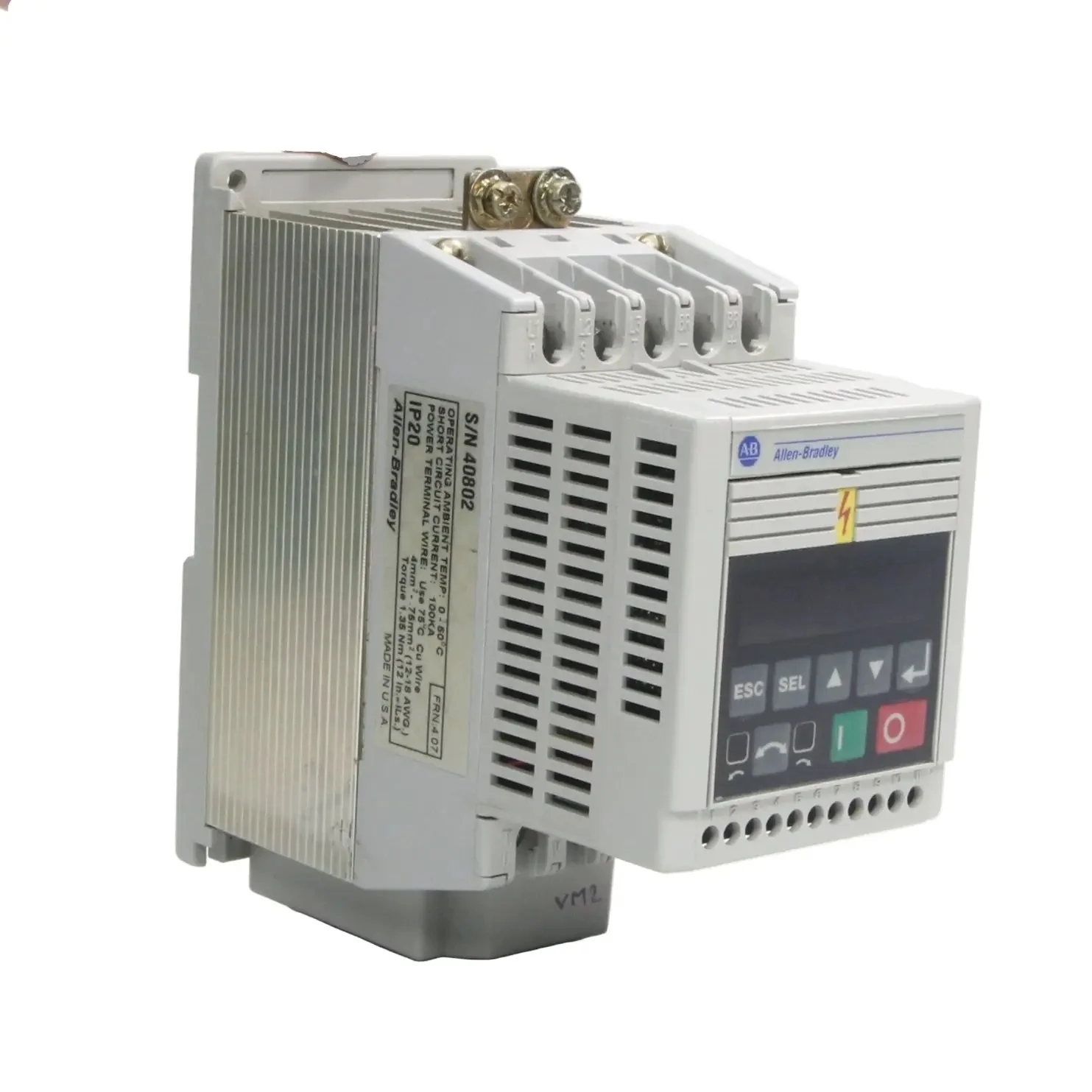

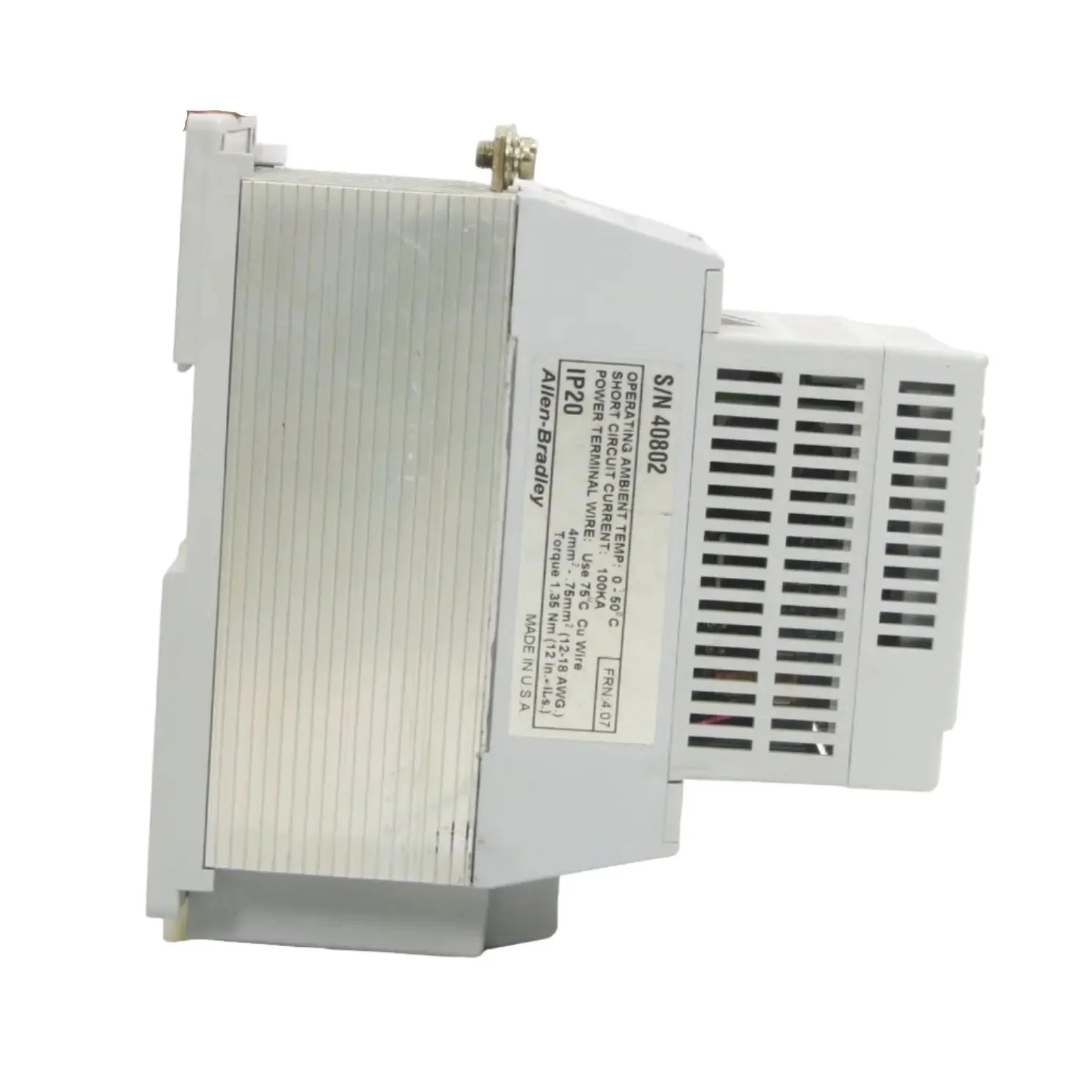

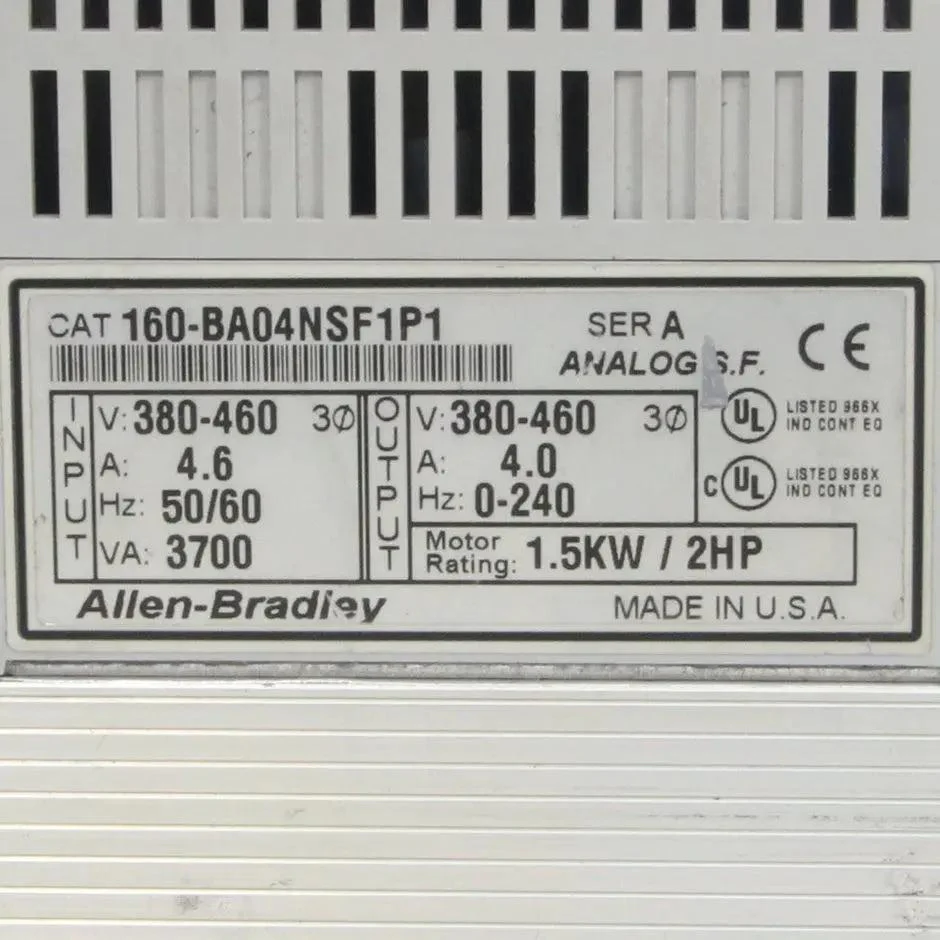

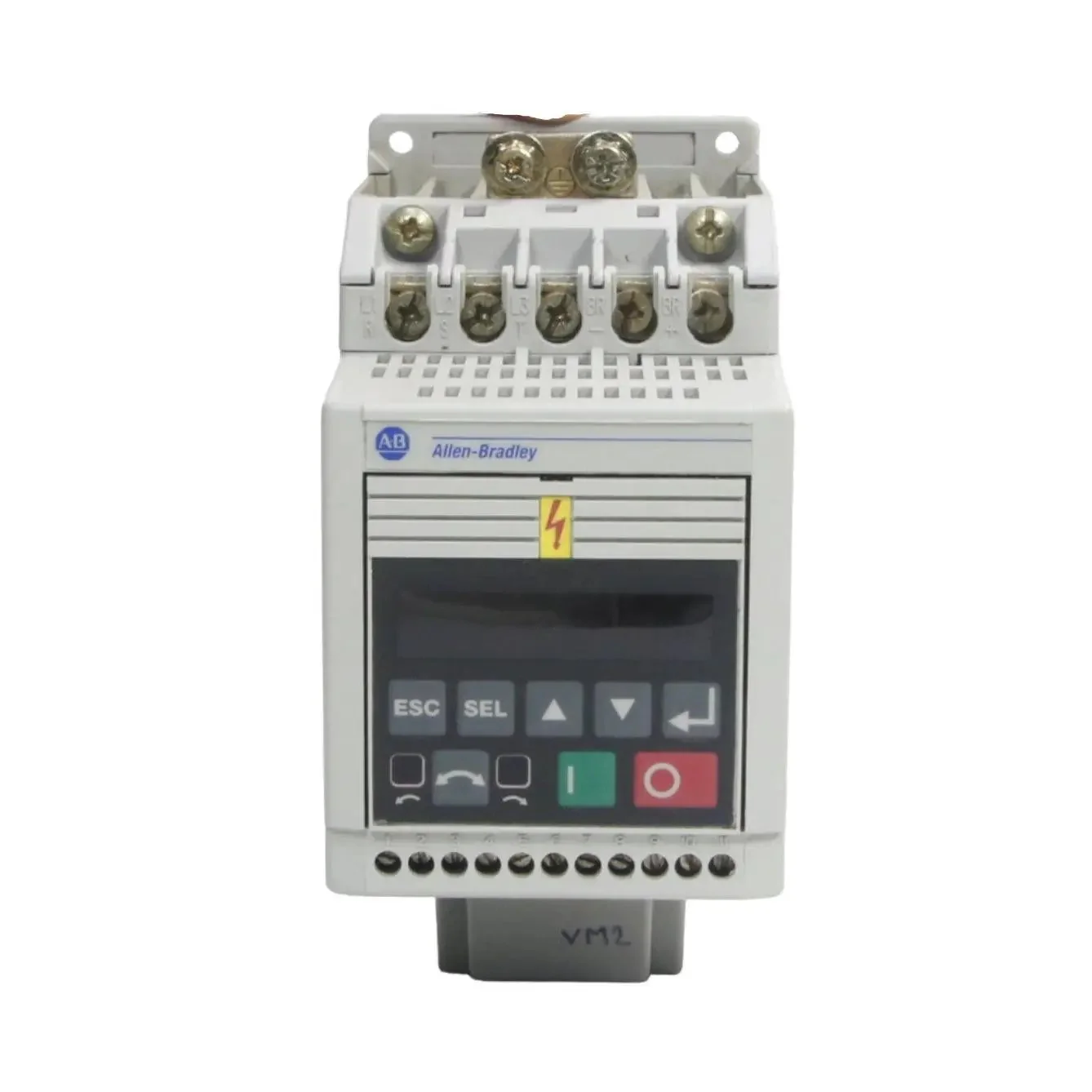

Allen-Bradley 160-BA04NSF1P1 Variable Speed Drive

- Brand: Allen-Bradley (Rockwell Automation)
- Model: 160-BA04NSF1P1
- Type: Variable Speed Drive
- Technical Specifications:
  - Series: 160 SSC (Series C)
  - Function: Compact AC drive for motor control with analog signal follower
  - Input Voltage: 3-phase 380-460 V AC, 50/60 Hz
  - Input Current: 4.6 A
  - Input Power: 4.7 kVA
  - Output Voltage: 3-phase 0 - input voltage (up to 460 V AC)
  - Output Current: 4.0 A
  - Output Power: 1.5 kW / 2 HP
  - Output Frequency: 0-240 Hz
  - Enclosure Rating: IP20 (open type)
  - Control Method: Analog signal follower, fan-cooled
  - EMC Filter: Built-in Class A1 (EN 55011)
  - Operating Temperature: 0°C to 50°C
  - Protection: Overload, short-circuit, earth fault, mains transient protection
  - Features: Modular design, side-by-side mounting, precise stop, PI controller, 100% earth fault protection
  - Standards: CE compliant, suitable for industrial environments
 - Dimensions: 160 x 140 x 70 mm
- Weight: 1kg
- Country of Origin: USA
- HS Code: 850440
