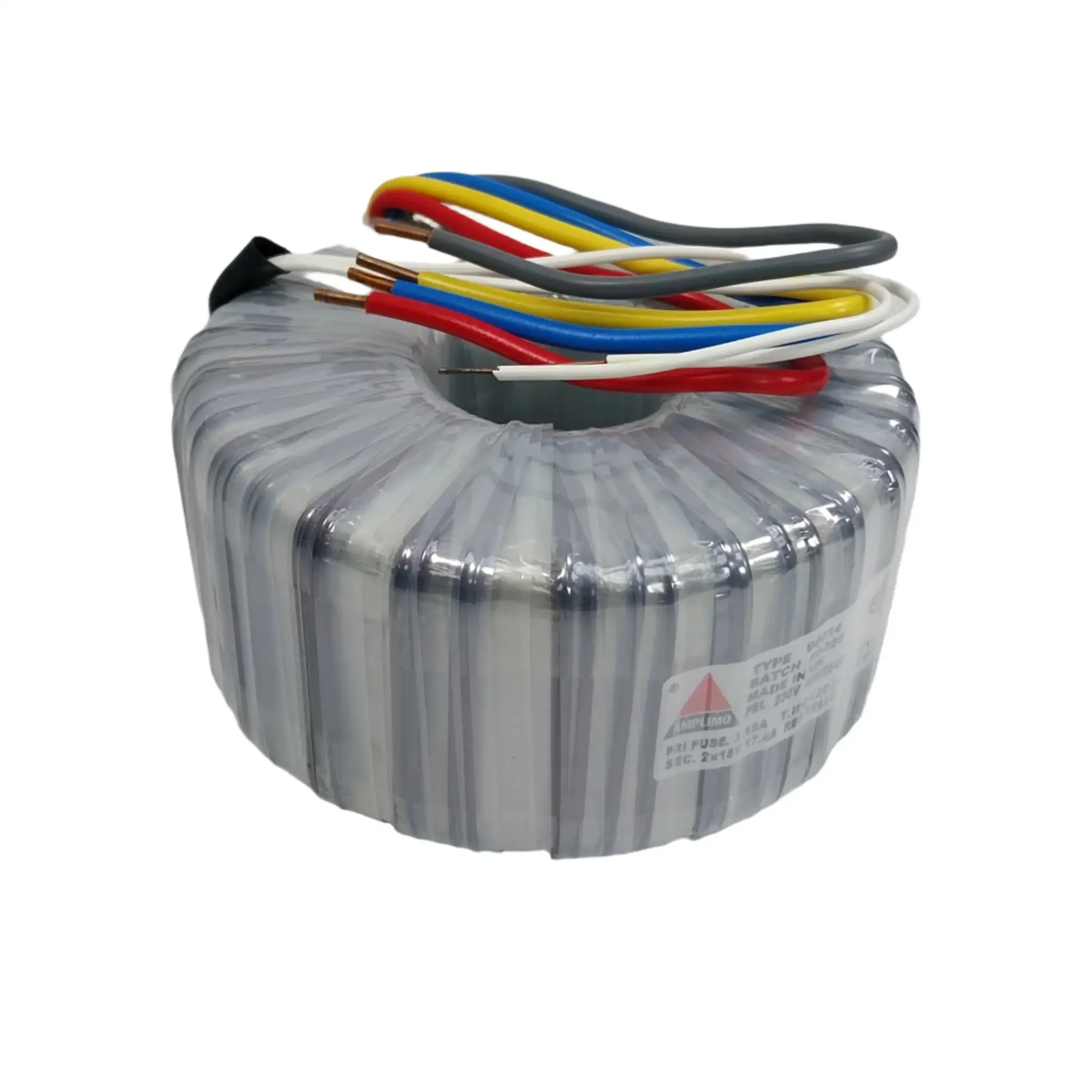

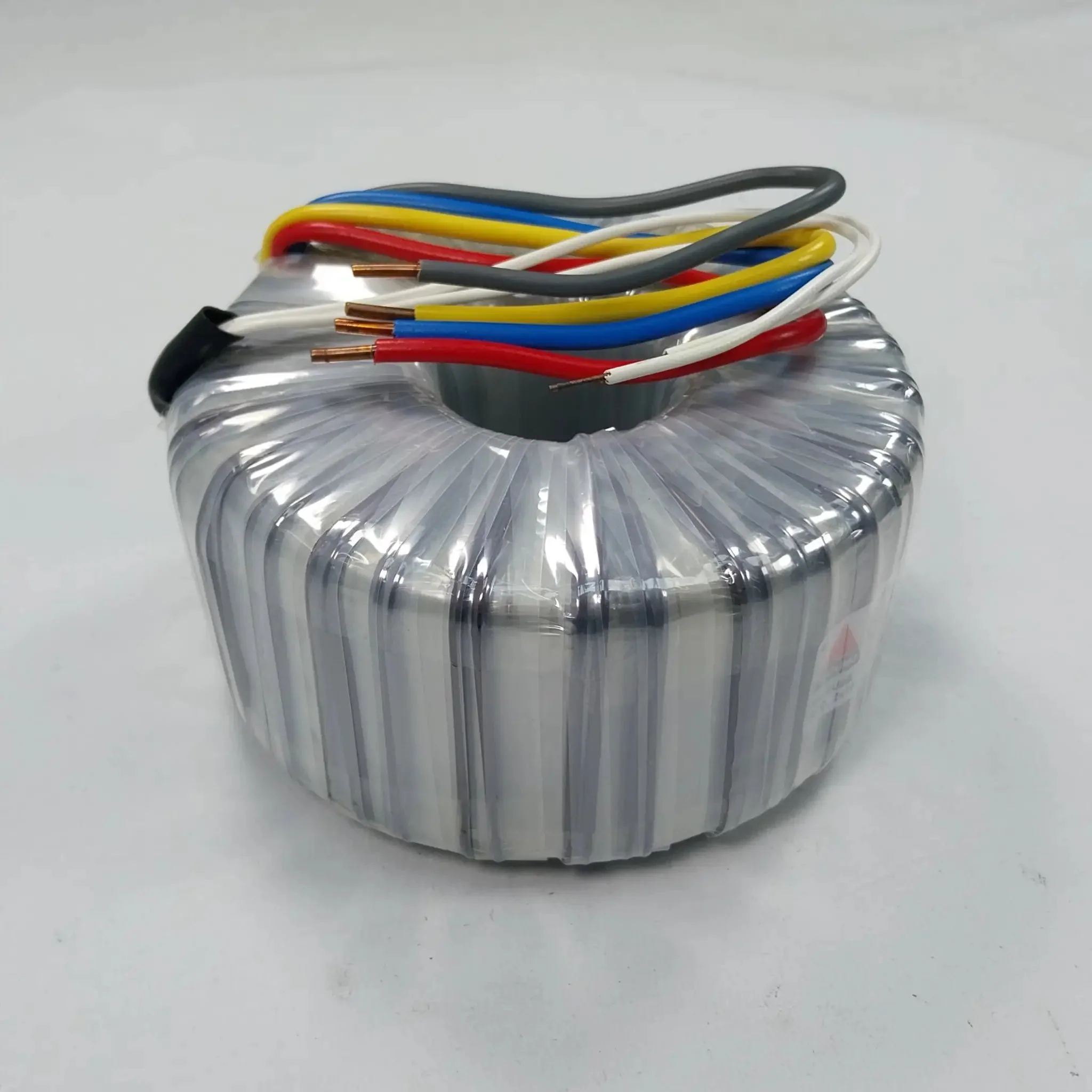

Amplimo 98014 Toroidal Transformer
Brand: Amplimo
Model: 98014
Type: Toroidal Transformer
Input Voltage: 230 V AC (50/60 Hz)
Secondary Voltage: 2×18 V AC, 17.4 A (can be wired in series to 36 V at 17.4 A or parallel to 18 V at 34.8 A)
Power Rating: 625 VA
Regulation: 4%
Diameter: 135 mm
Height: 72 mm
Weight: 5.0 kg (without mounting hardware)
Mounting Accessories Included: metal washer Ø110 mm; 2 neoprene washers Ø110 mm; bolt M8×90 mm with nut

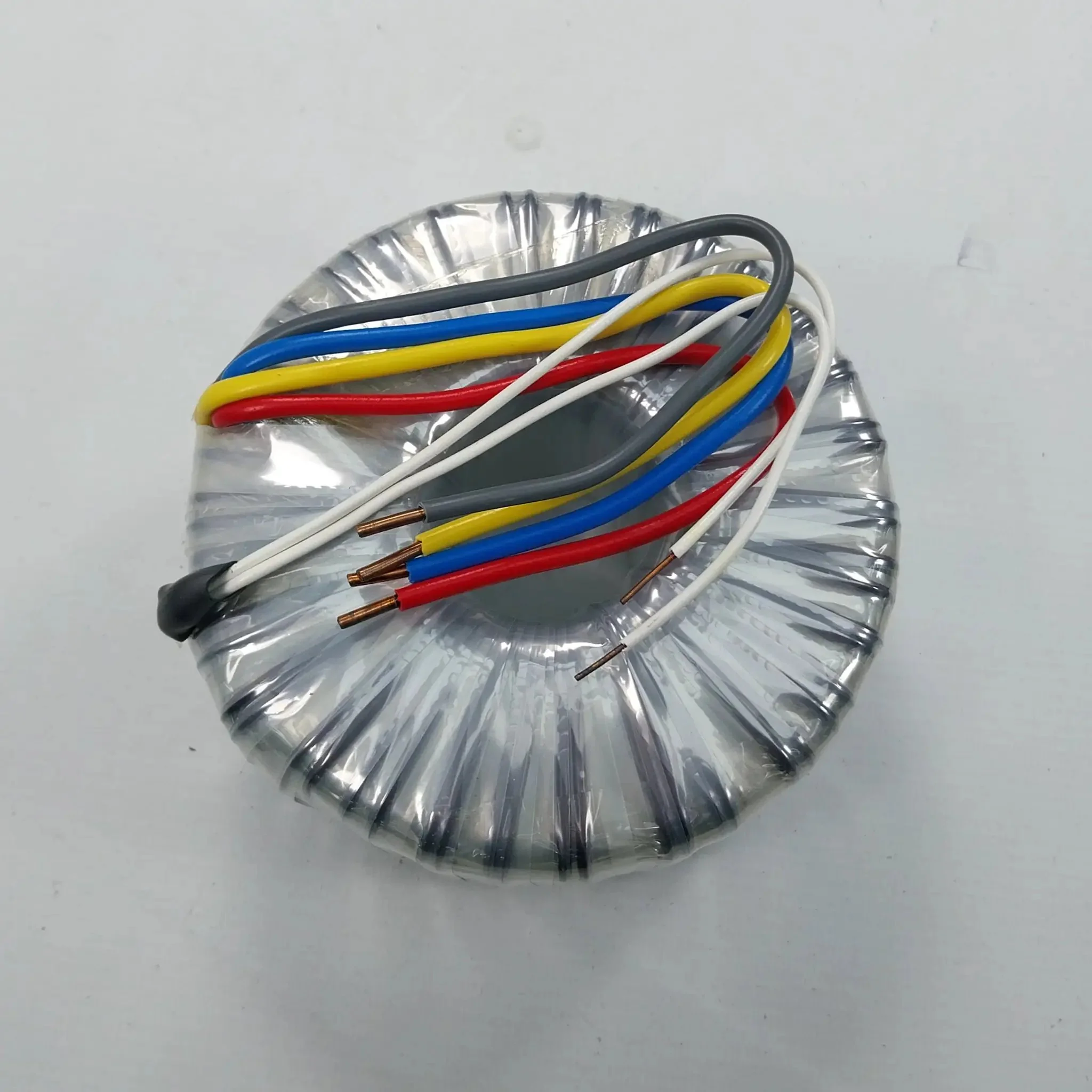

Lead Length: approx. 200 mm solid leads
Certifications: KEMA KEUR, ENEC, CE, UL/CSA (UL file E320377)
Protection/Compliance: RoHS
Fuse Recommendations: Primary: 3.15 A, 5×20 mm IEC127 time‑lag fuse in series with two NTC5 resistors; no fuse on secondary required
Country of origin: The Netherlands
Description
Brand: Amplimo
Model: 98014
Type: Toroidal Transformer
Input Voltage: 230 V AC (50/60 Hz)
Secondary Voltage: 2×18 V AC, 17.4 A (can be wired in series to 36 V at 17.4 A or parallel to 18 V at 34.8 A)
Power Rating: 625 VA
Regulation: 4%
Diameter: 135 mm
Height: 72 mm
Weight: 5.0 kg (without mounting hardware)
Mounting Accessories Included: metal washer Ø110 mm; 2 neoprene washers Ø110 mm; bolt M8×90 mm with nut
Lead Length: approx. 200 mm solid leads
Certifications: KEMA KEUR, ENEC, CE, UL/CSA (UL file E320377)
Protection/Compliance: RoHS
Fuse Recommendations: Primary: 3.15 A, 5×20 mm IEC127 time‑lag fuse in series with two NTC5 resistors; no fuse on secondary required
Country of origin: The Netherlands
