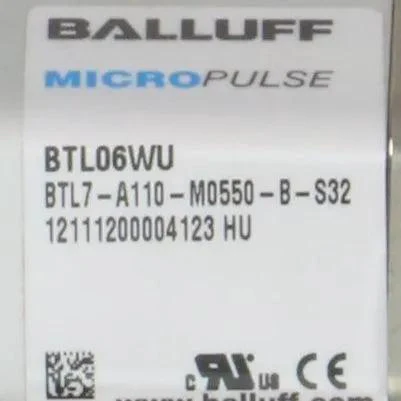

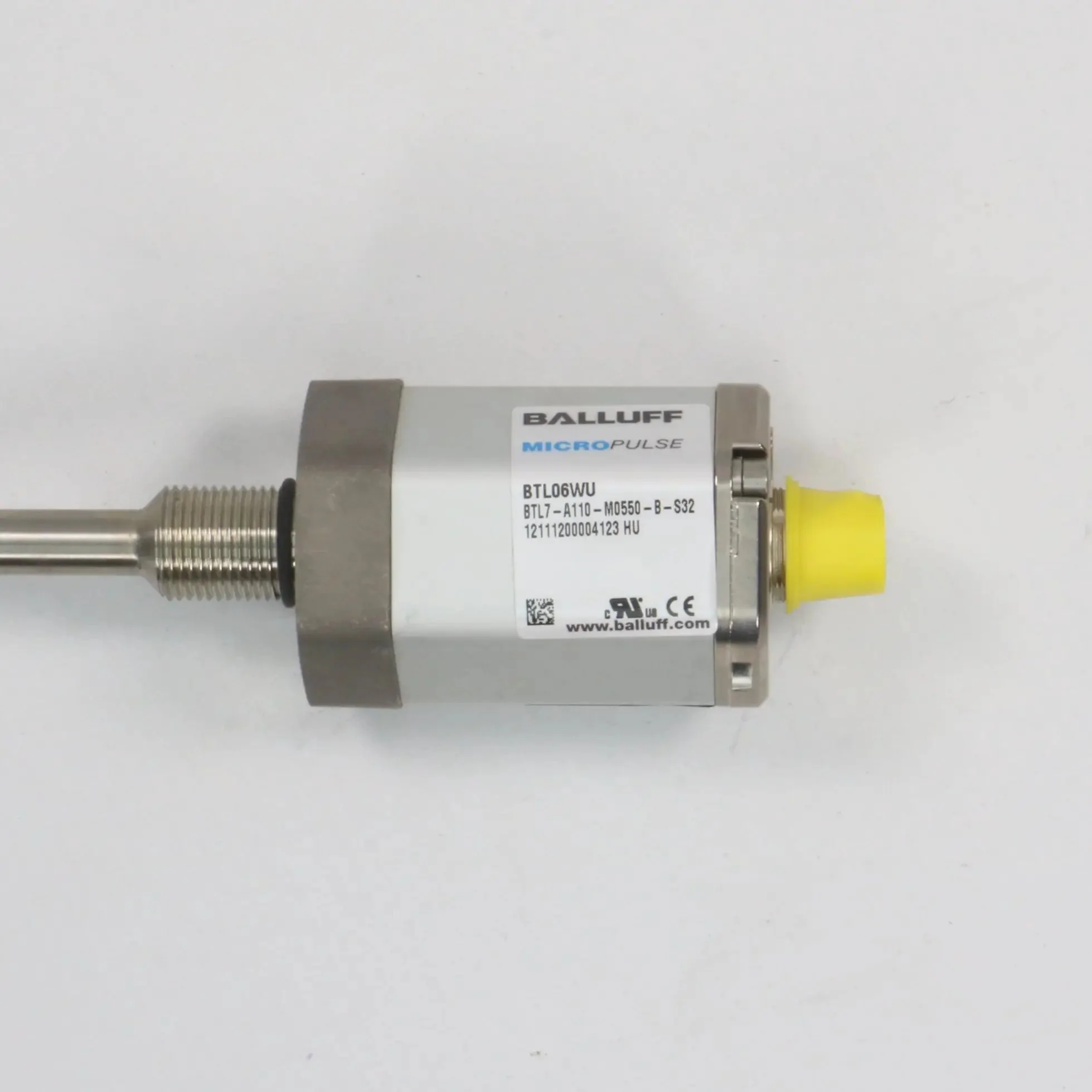

Balluff BTL06WU Magnetostrictive Linear Position Sensor
- Balluff
- Micropulse
- BTL06WU
- Magnetostrictive Linear Position Sensor
- P/N: BTL7-A110-M0550-B-S32
- S/N: 12111200004123
- Style: Rod series
- Mounting part: Threaded flange M18 x 1.5
- Housing material: Aluminium, Anodized
- Magnets, number max.: 1
- Connection: Connector, M16x0.75, 8-pin
- Analog output: Analog, voltage 0…10 V Analog, voltage 10…0 V
- Measuring range: 550 mm
- Sampling frequency max.: 2000 Hz
- Non-linearity max.: ±0.01 % FS
- Repeat accuracy: ± 10 µm
- Operating voltage Ub: 20...28 VDC
- Ambient temperature: -40...85 °C
- IP rating: IP67
$858.16
Balluff BTL06WU Magnetostrictive Linear Position Sensor—
$858.16
Description
- Balluff
- Micropulse
- BTL06WU
- Magnetostrictive Linear Position Sensor
- P/N: BTL7-A110-M0550-B-S32
- S/N: 12111200004123
- Style: Rod series
- Mounting part: Threaded flange M18 x 1.5
- Housing material: Aluminium, Anodized
- Magnets, number max.: 1
- Connection: Connector, M16x0.75, 8-pin
- Analog output: Analog, voltage 0…10 V Analog, voltage 10…0 V
- Measuring range: 550 mm
- Sampling frequency max.: 2000 Hz
- Non-linearity max.: ±0.01 % FS
- Repeat accuracy: ± 10 µm
- Operating voltage Ub: 20...28 VDC
- Ambient temperature: -40...85 °C
- IP rating: IP67
