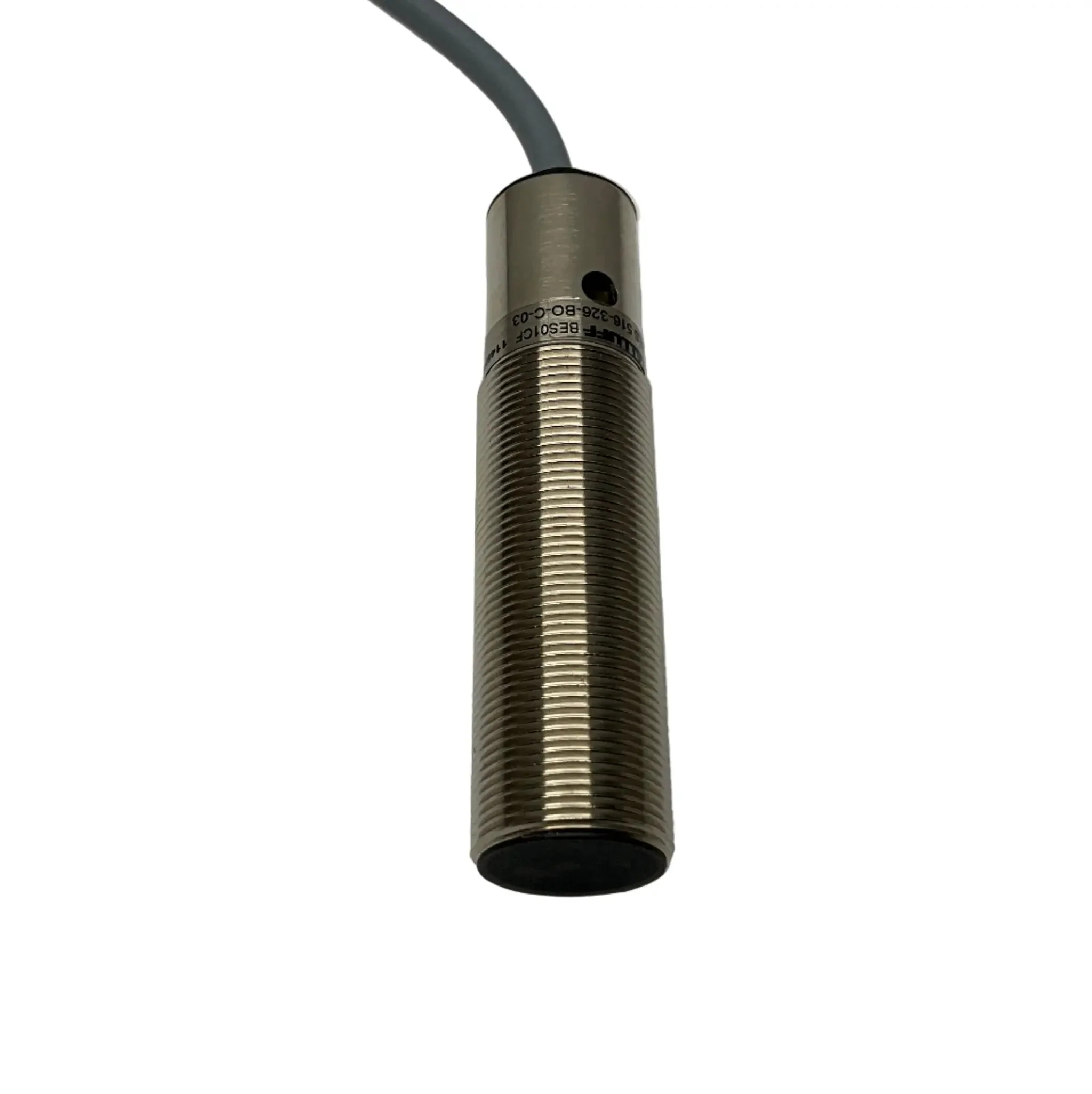

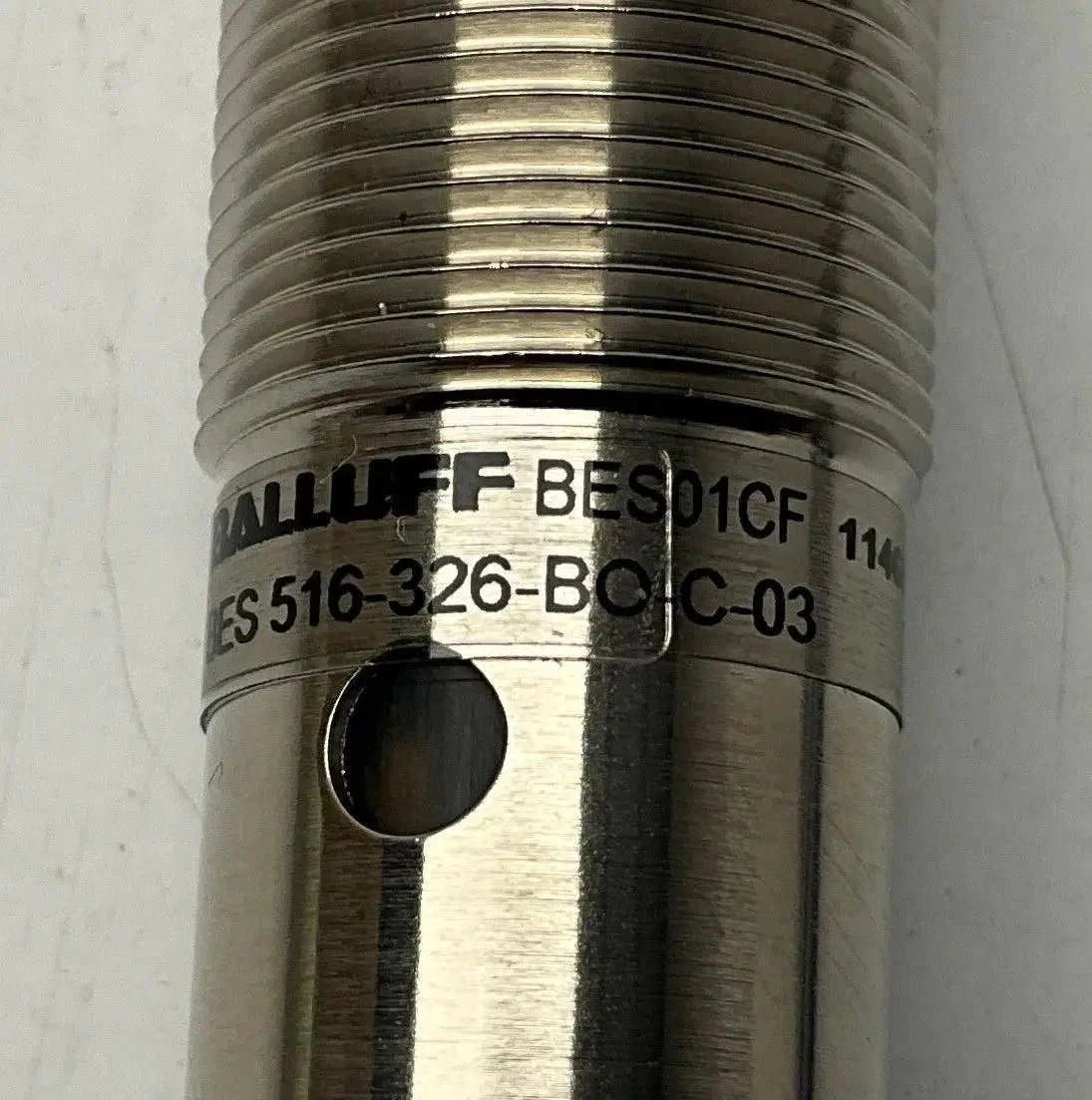

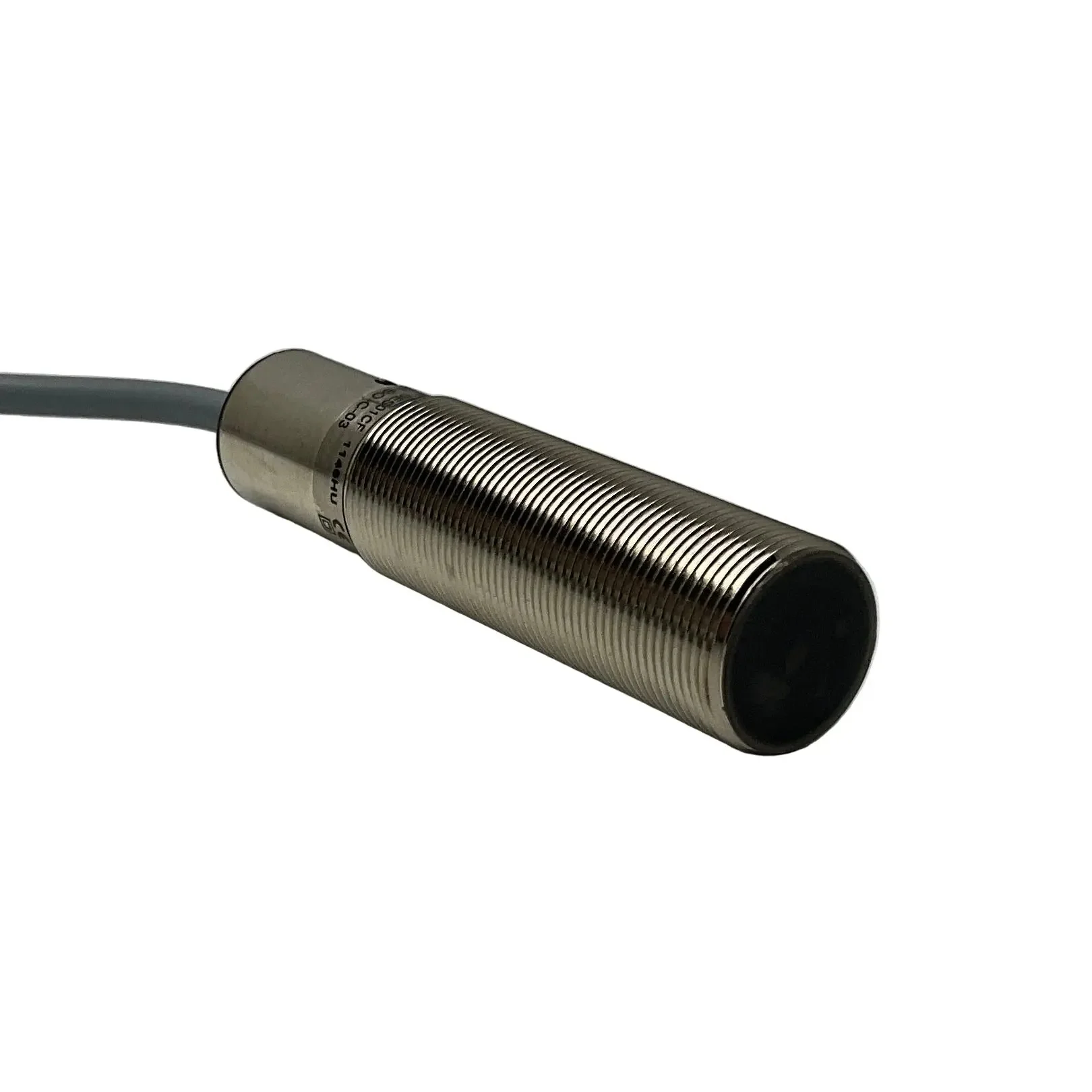

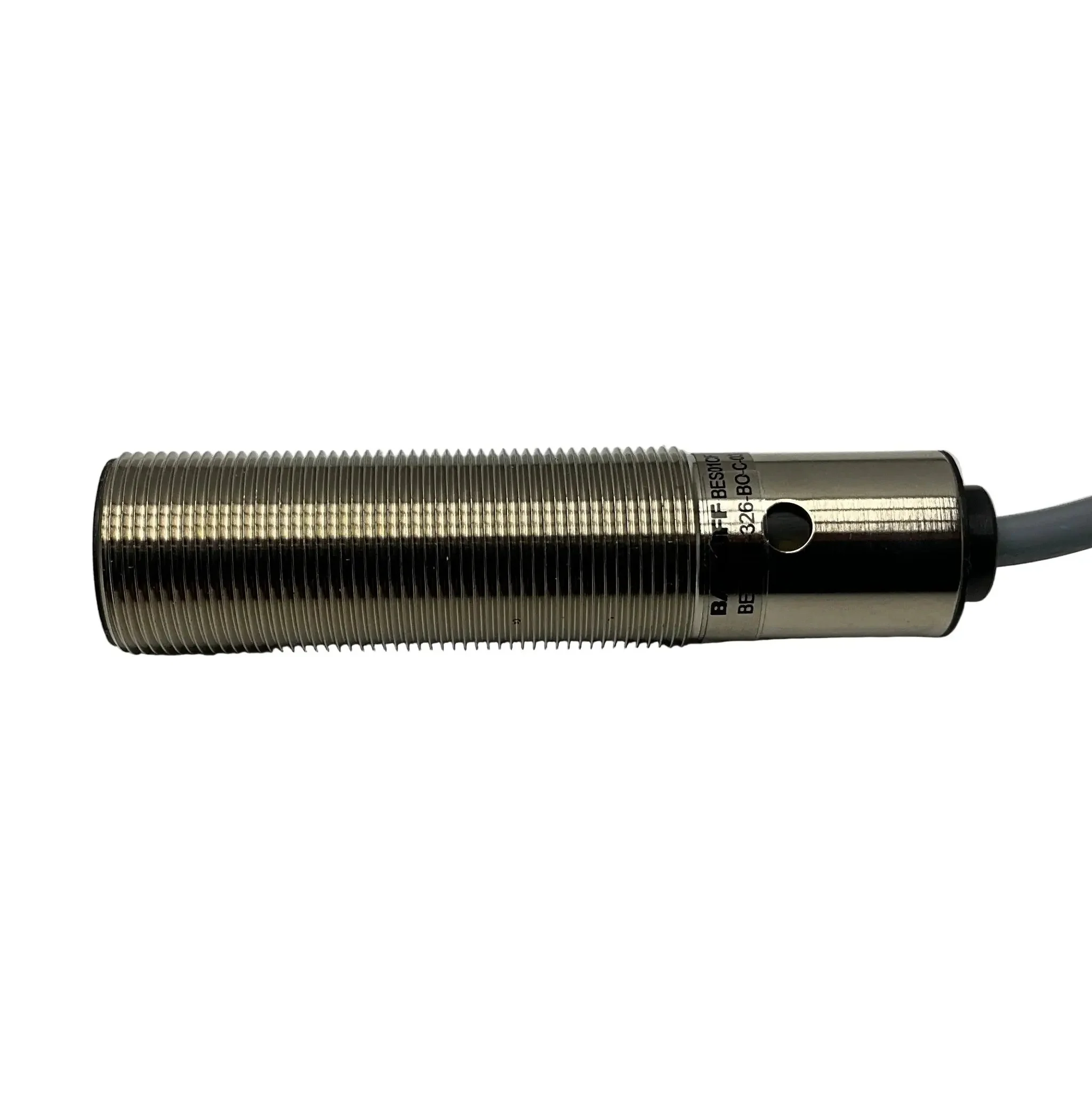

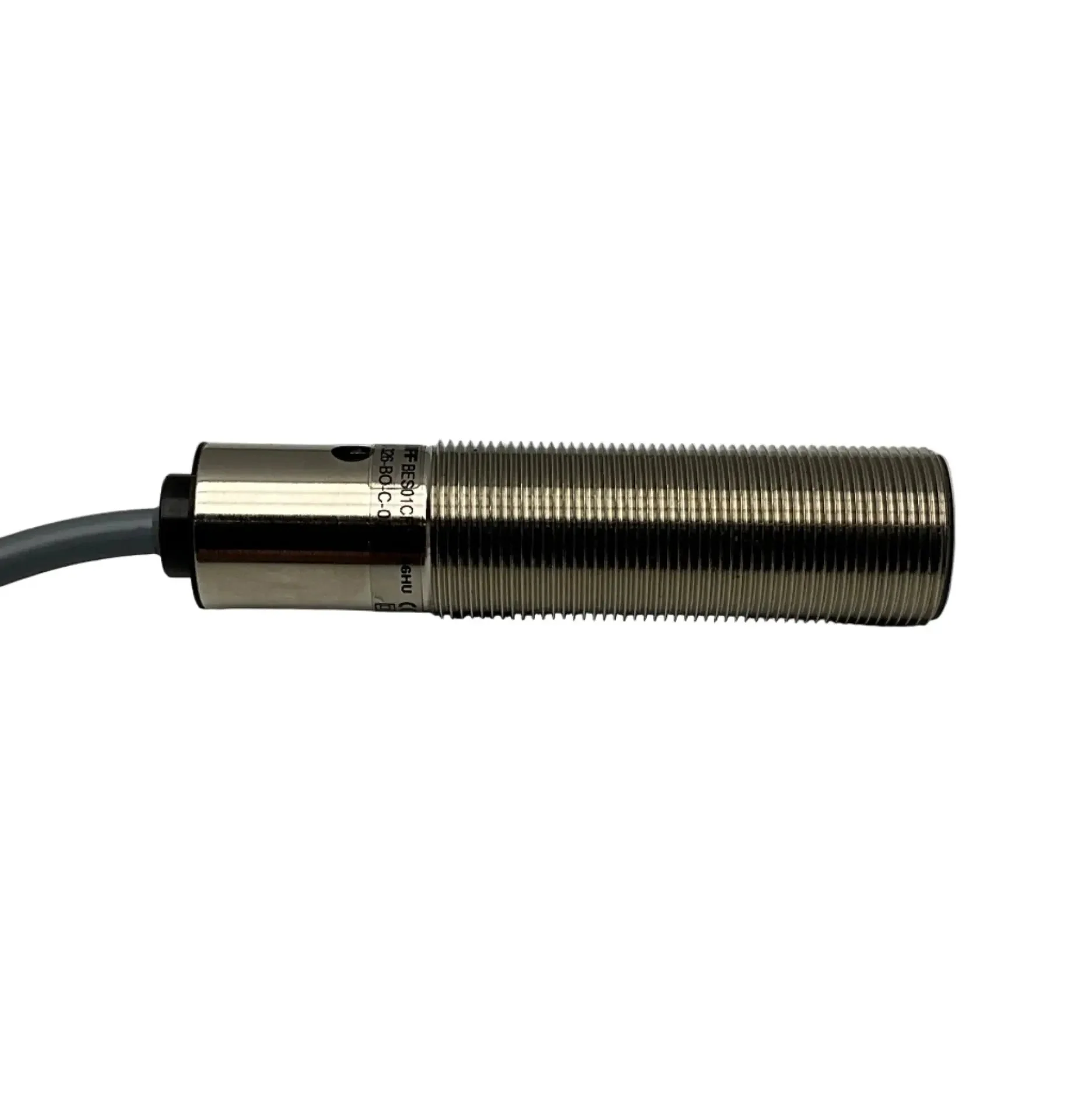

Balluff BES01CF Inductive Proximity Sensor - BES 516-326-B0-C-03

Brand: Balluff
Model: BES01CF
Type: Inductive Proximity Sensor
Part Number: BES 516-326-B0-C-03

Technical Specs:
- Sensor Type: Inductive proximity switch
- Housing Style: M18x1 threaded barrel
- Installation: Flush mounting
- Sensing Range: 5 mm
- Switching Output: PNP normally open (NO)
- Switching Frequency: 900 Hz
- Housing Material: Brass, nickel-plated
- Sensing Surface Material: PA 12 (Polyamide 12)
- Connection: Cable, 3.00 m, PVC, 3-wire
- Operating Voltage (Ub): 10 to 30 V DC
- Ambient Temperature Range: -25°C to 70°C
- Enclosure Rating: IP68
- Additional Features:
  - Robust threaded barrel design for secure mounting
  - LED indicators for output status
  - Short-circuit, overload, and reverse polarity protection
- Certifications: CE, cULus, EAC, WEEE

-Discontinued

Dimension:
- Diameter: 18 mm
- Length: 76.5 mm

Weight: 160 g

Country of Origin: Germany

HS Code: 8536.50
