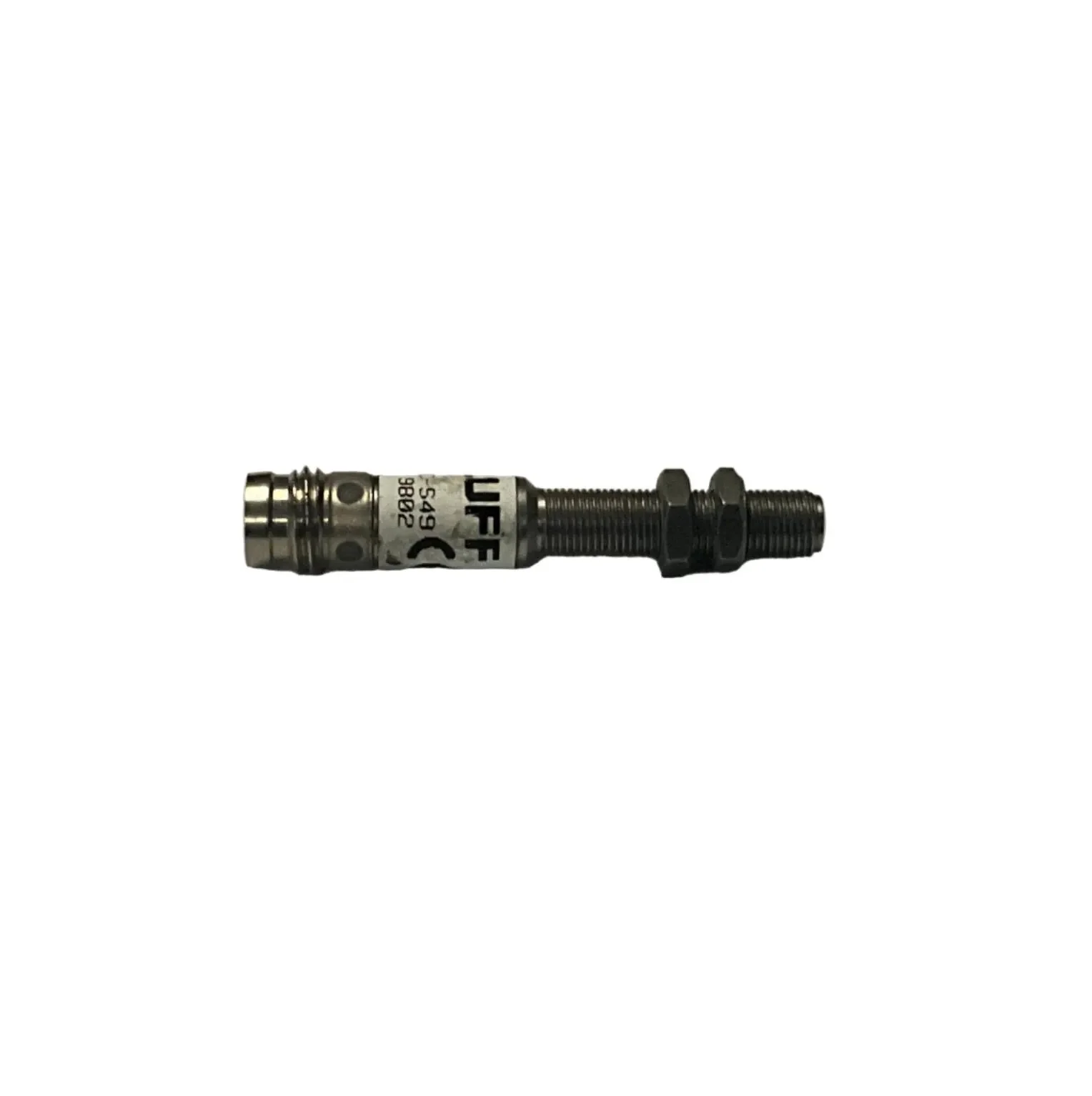

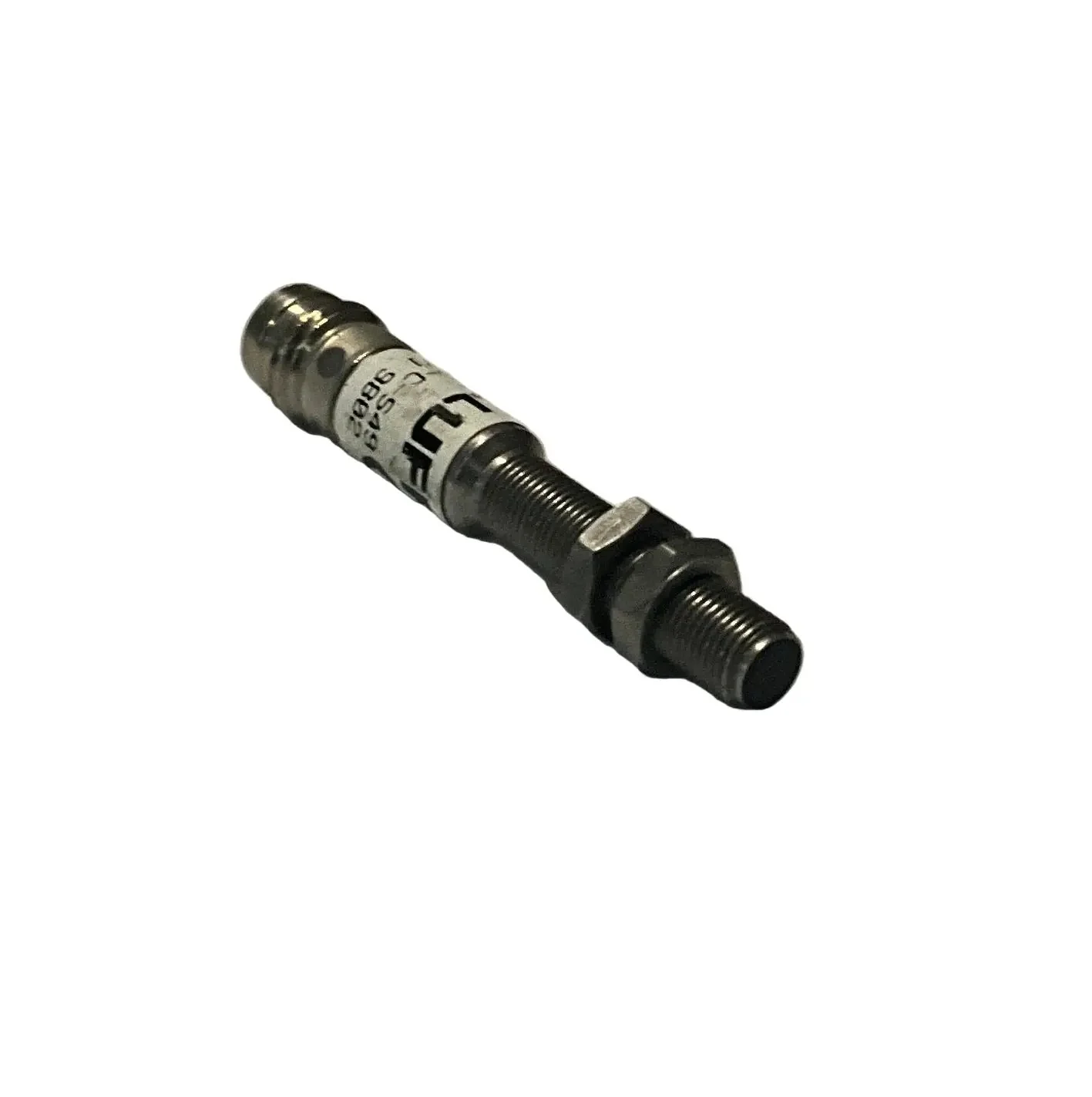

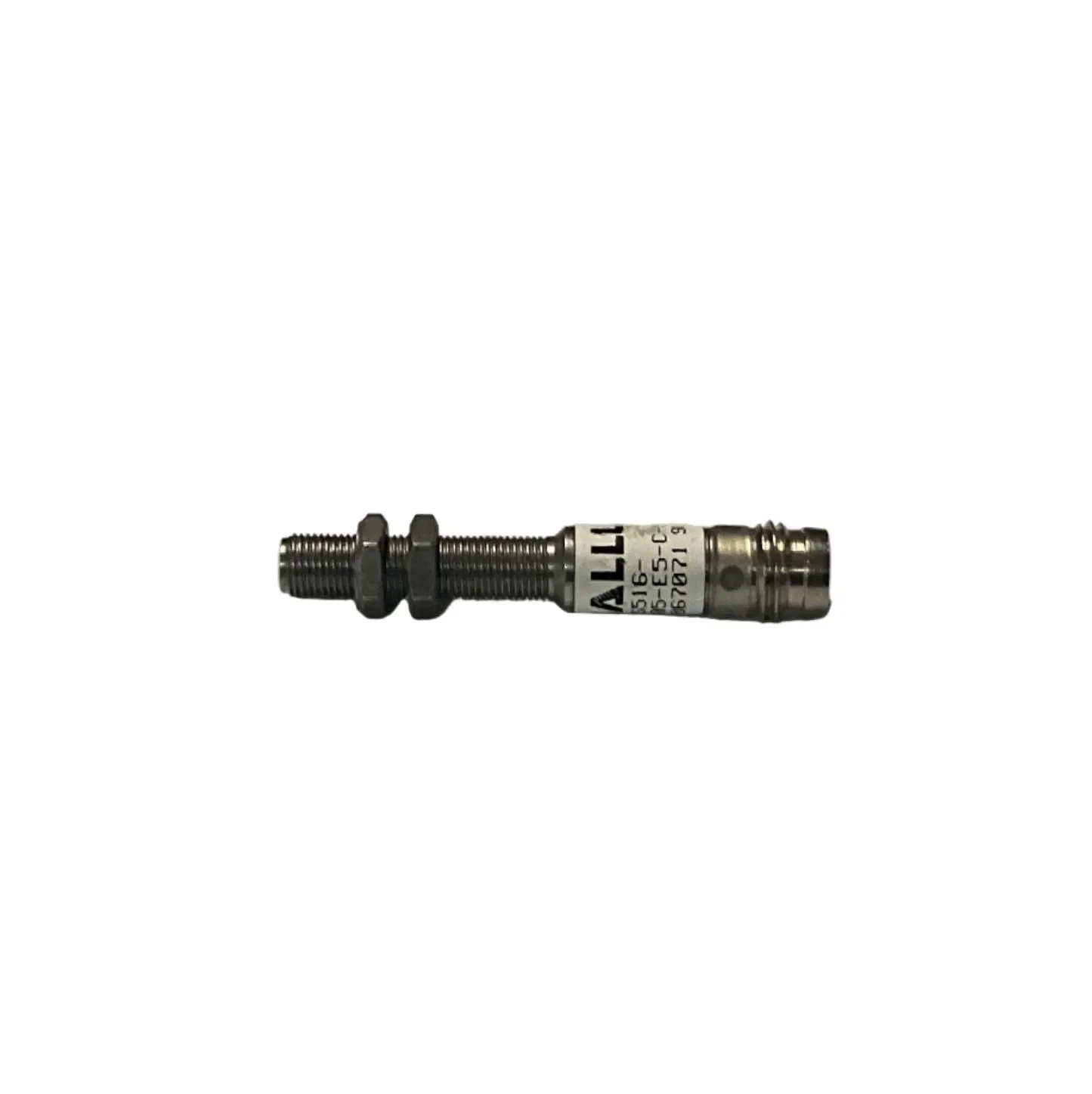

Balluff BES516-3005-E5-C-S49 Inductive Proximity Sensor

Brand: Balluff
Part Number: BES516‑3005‑E5‑C‑S49
Type: Inductive Proximity Sensor – Cylindrical, Threaded (M5 × 0.5)

Detection (Sensing) Distance: 0.8 mm
Housing: Stainless Steel; Size Ø 5 mm × 41 mm
Mounting Type: Flush mounting
Switching Output: PNP, Normally Open (NO)
Switching Frequency: 5 kHz maximum
Supply Voltage: 10–30 V DC
Switching Current: up to 100 mA

Protection Features:
  - IP67 rated
  - Short‑circuit protection
  - Reverse‑polarity protection
Operating Temperature Range: −25 °C to +70 °C
Connection: M8 × 1 Male Connector, 3‑pin
Standards & Approvals: cULus, CE, UKCA, WEEE compliant
Body Style: Threaded Barrel, shielded
Country of Origin: China

HS Code: 8536.50

Weight: 10g
