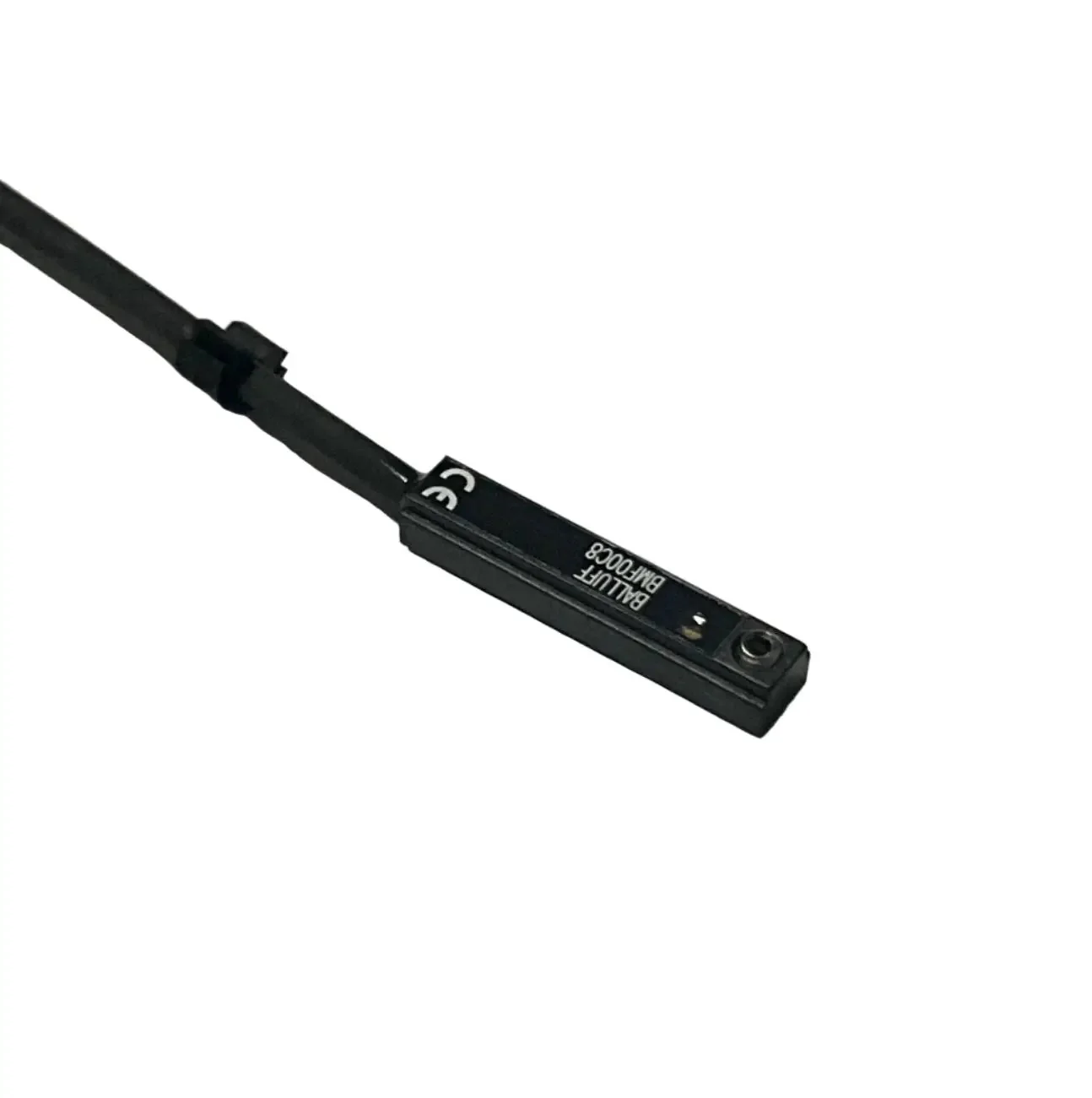

Balluff BMF 307K-PS-C-2-SA2-S49-02 Magnetic Field Sensor

Brand: Balluff
Part Number: BMF 307K‑PS‑C‑2‑SA2‑S49‑02 (BMF00C8)
Type: Magnetic Field Sensor for T‑slot Cylinders, Single Switch‑Point

Slot Type: T‑slot (fits into cylinder slot)
Dimensions: 29 × 6.2 × 4.4 mm
Principle of Operation: Magnetic field detection

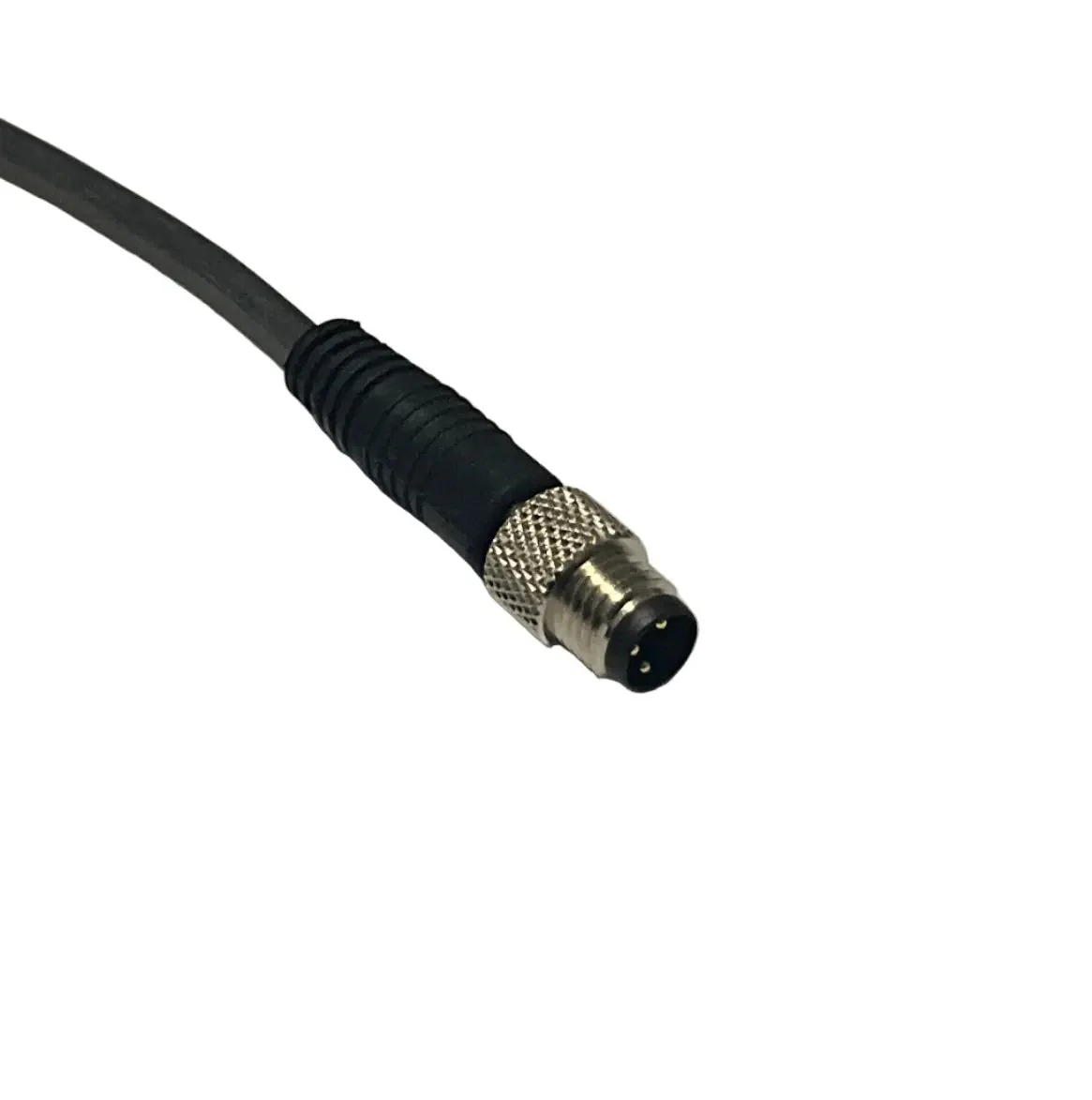

Connection: M8 × 1 mm, male, 3‑pin

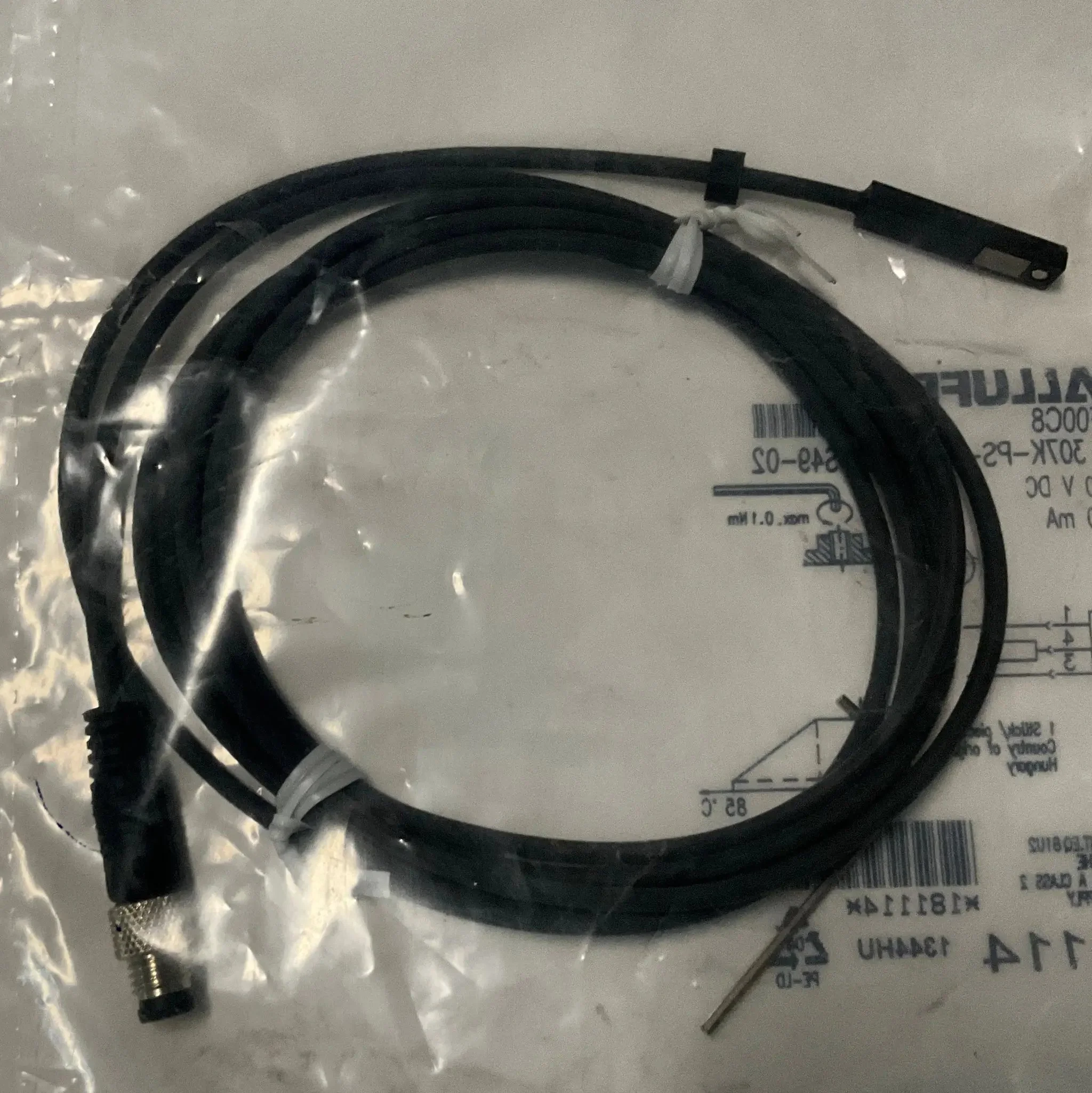

Cable: PUR, length approx. 0.2 m
Housing Material: Liquid Crystal Polymer (LCP)
Switching Output: PNP, Normally Open (NO)
Operating Voltage (Ub): 10 … 30 V DC
Switching Frequency: up to 10 000 Hz
Ambient Operating Temperature: –25 °C to +85 °C
Ingress Protection: IP67
Approvals / Conformity: CE, cULus, UKCA, WEEE
Switching Field Strength (Ha): approx. 2 kA/m
Rated Operating Current: up to 200 mA
No‑Load Current (Io max): approx. 10 mA

Weight: approx. 50 g

Country of origin: Germany

HS Code: 90318
