Balluff Rotary Cam Switch BSW 819-493-06K3

Balluff Rotary Cam Switch BSW 819-493-06K3

NEW Balluff Rotary Cam Switch BSW 819-493-06K3
  • Principle of operation Rotary cam switch
  • Component Mechanical rotary cam switch
  • Version Snap contact
  • Dimension 185 x 140 x 187 mm
  • Housing material Aluminum, Anodized
  • Switching element 1-6. Switch position: BSE 44.0
  • Material contacts 1-6. Switch position: Silver, gold plated
  • Cable entries, number 4 threaded exit M25
  • Cam rings 1-6. Switch position: 180°
  • Drive type right
  • Speed max. 200 1/min
  • Speed monitor None
  • Rated operating voltage Ue 1-6. Switch position: 250 V AC
  • Continuous current 1-6. Switch position: 6 A
  • Ambient temperature -5...80 °C
  • Approval/Conformity CE, WEEE
$324.83

Original: $1,082.77

-70%
Balluff Rotary Cam Switch BSW 819-493-06K3—

$1,082.77

$324.83

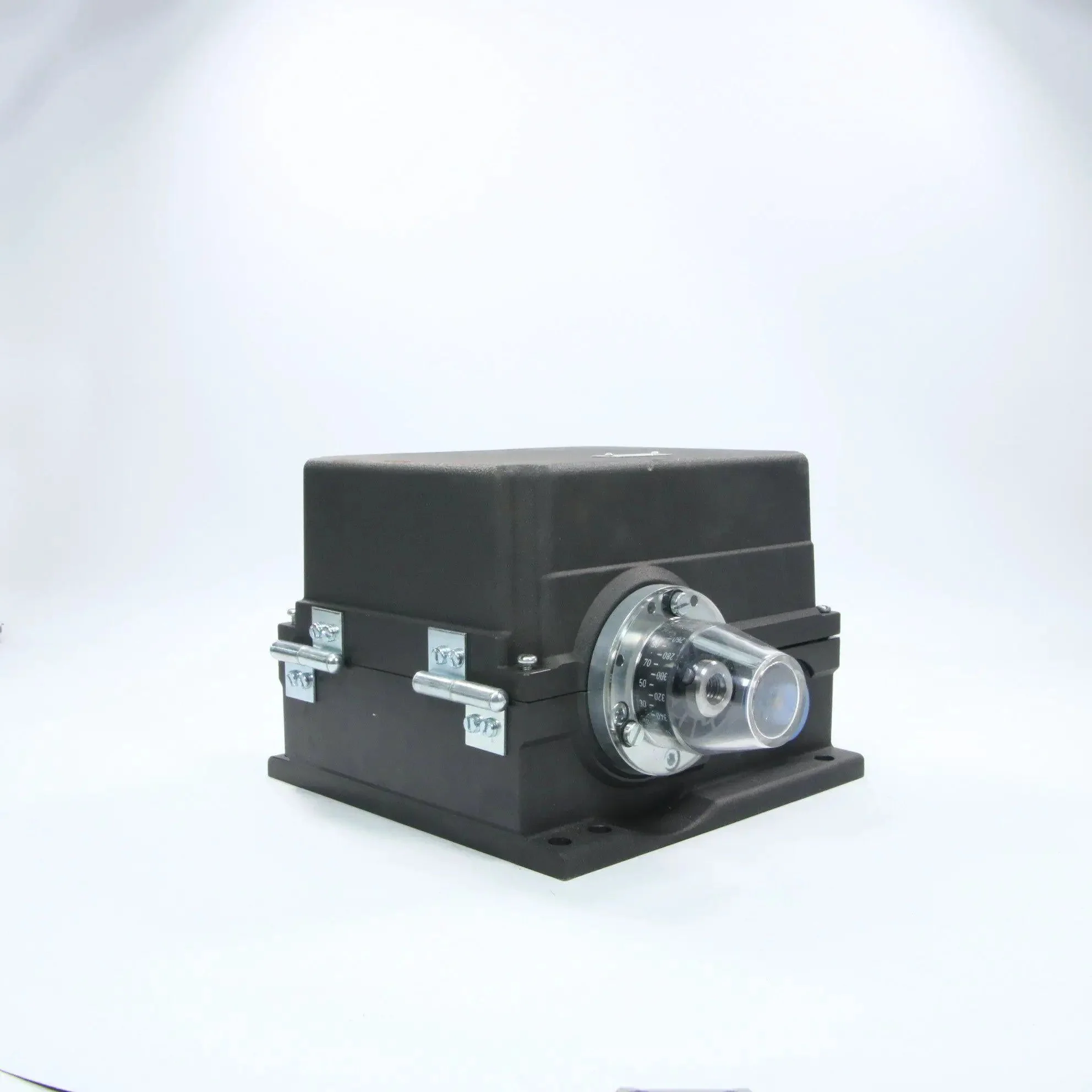

Product image 1

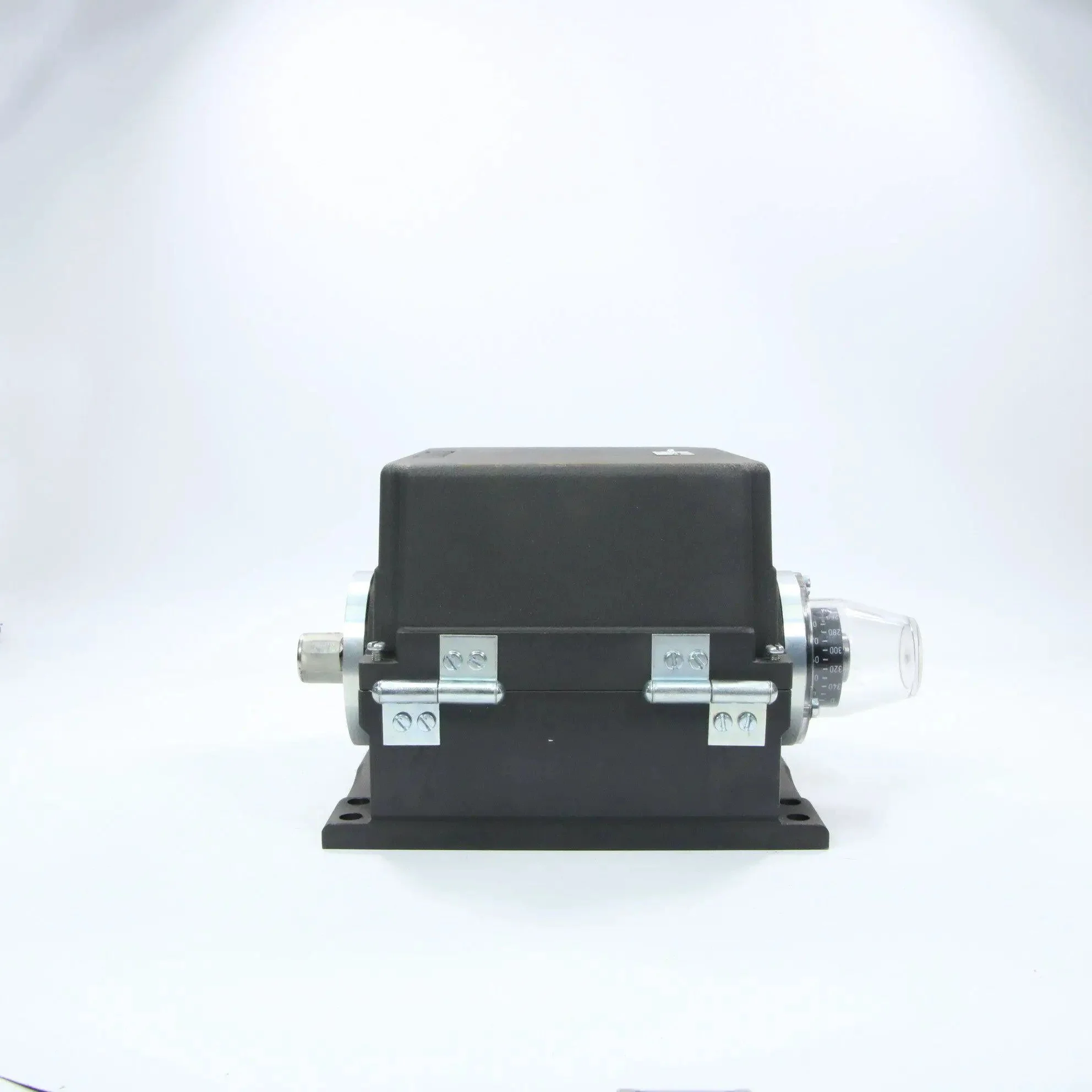

Product image 2

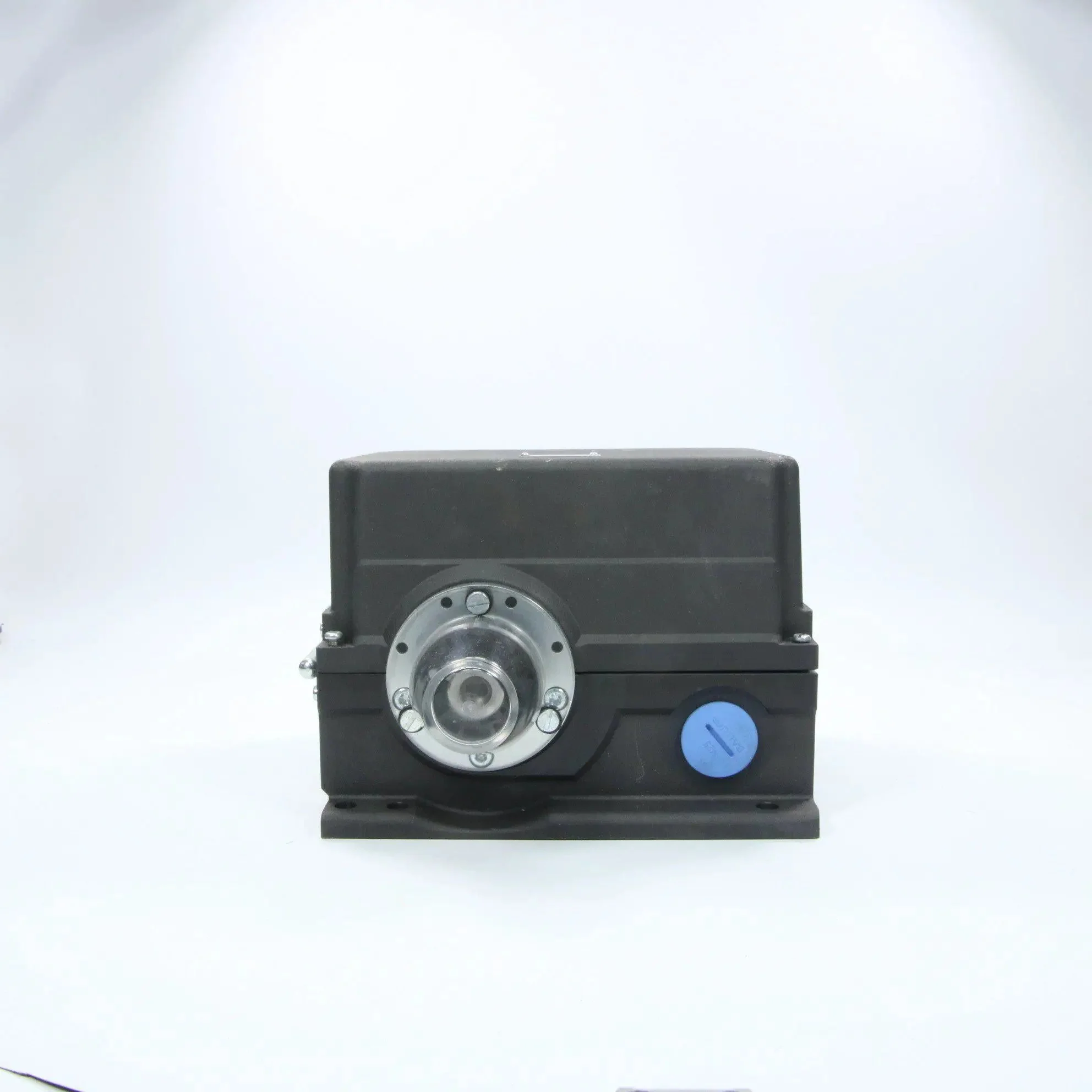

Product image 3
Product image 4

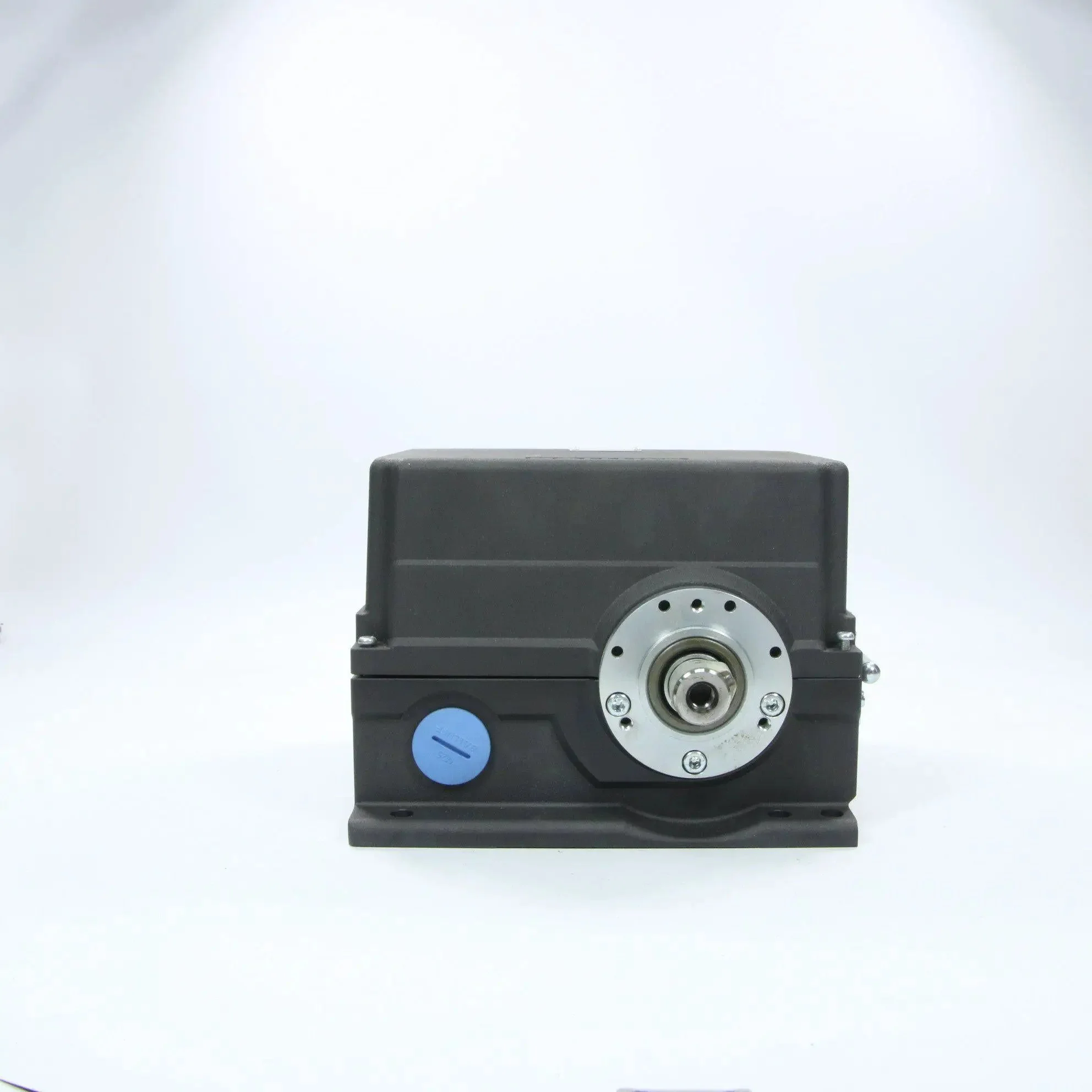

Product image 5

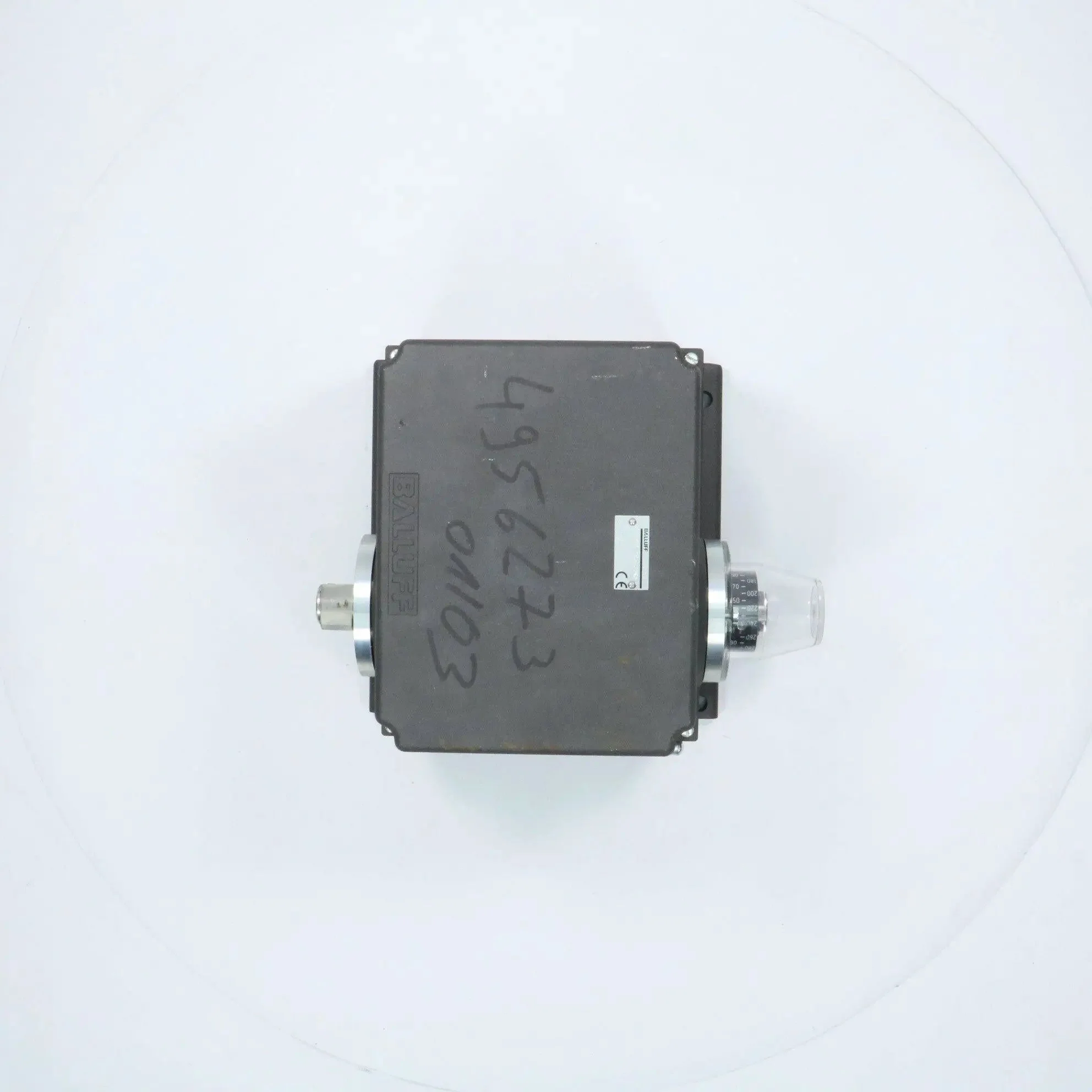

Product image 6

Description

NEW Balluff Rotary Cam Switch BSW 819-493-06K3
  • Principle of operation Rotary cam switch
  • Component Mechanical rotary cam switch
  • Version Snap contact
  • Dimension 185 x 140 x 187 mm
  • Housing material Aluminum, Anodized
  • Switching element 1-6. Switch position: BSE 44.0
  • Material contacts 1-6. Switch position: Silver, gold plated
  • Cable entries, number 4 threaded exit M25
  • Cam rings 1-6. Switch position: 180°
  • Drive type right
  • Speed max. 200 1/min
  • Speed monitor None
  • Rated operating voltage Ue 1-6. Switch position: 250 V AC
  • Continuous current 1-6. Switch position: 6 A
  • Ambient temperature -5...80 °C
  • Approval/Conformity CE, WEEE
