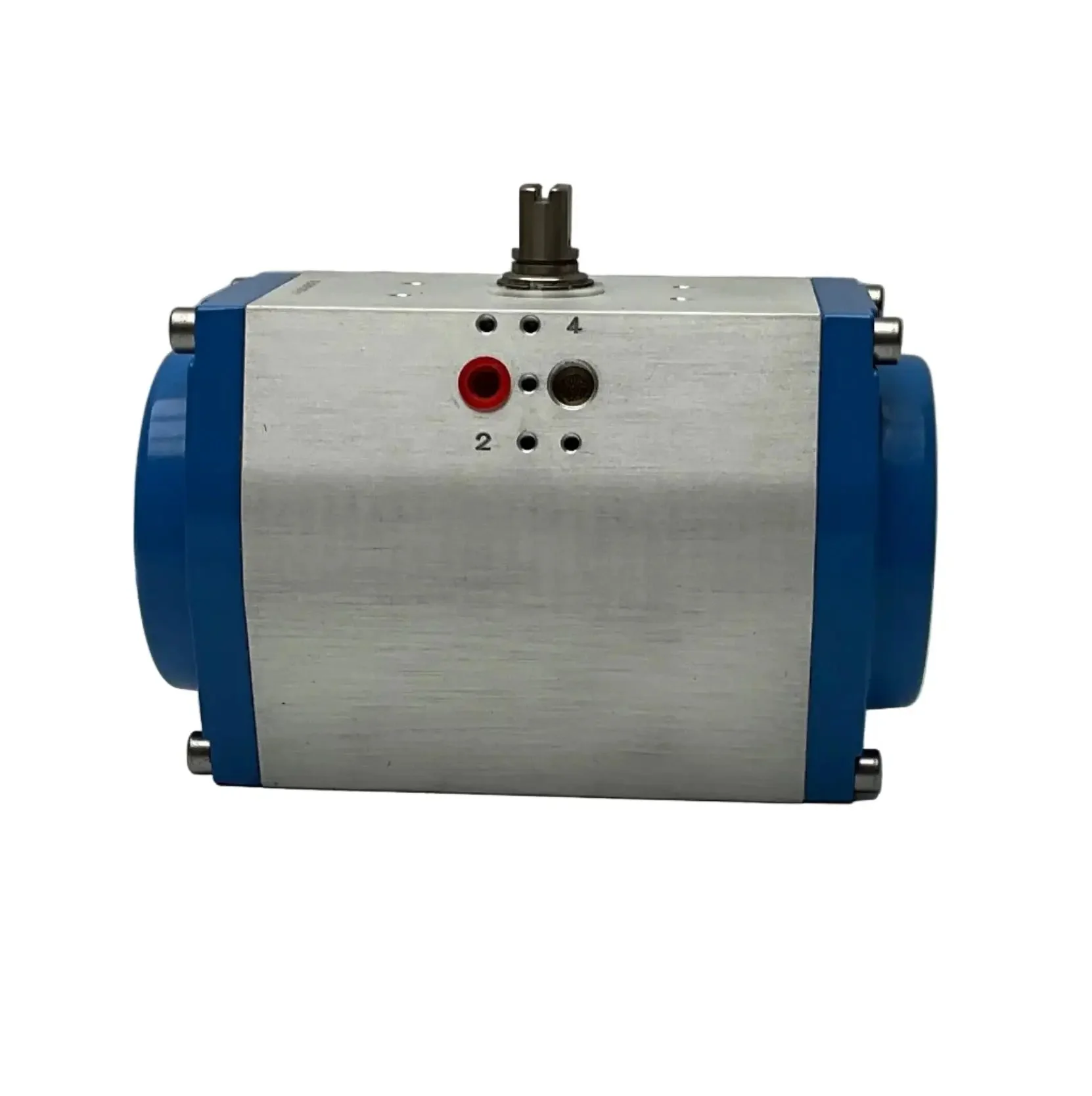

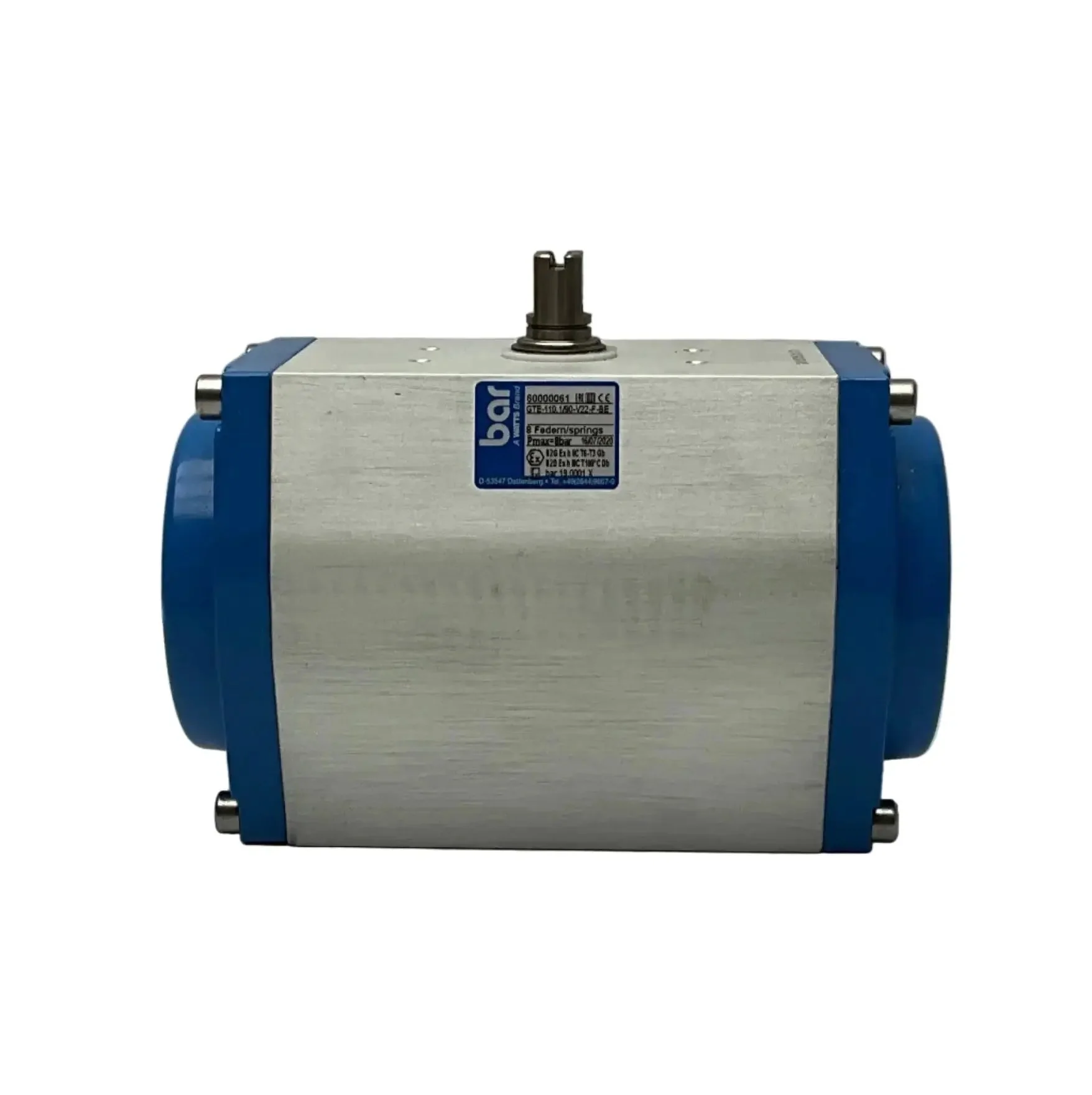

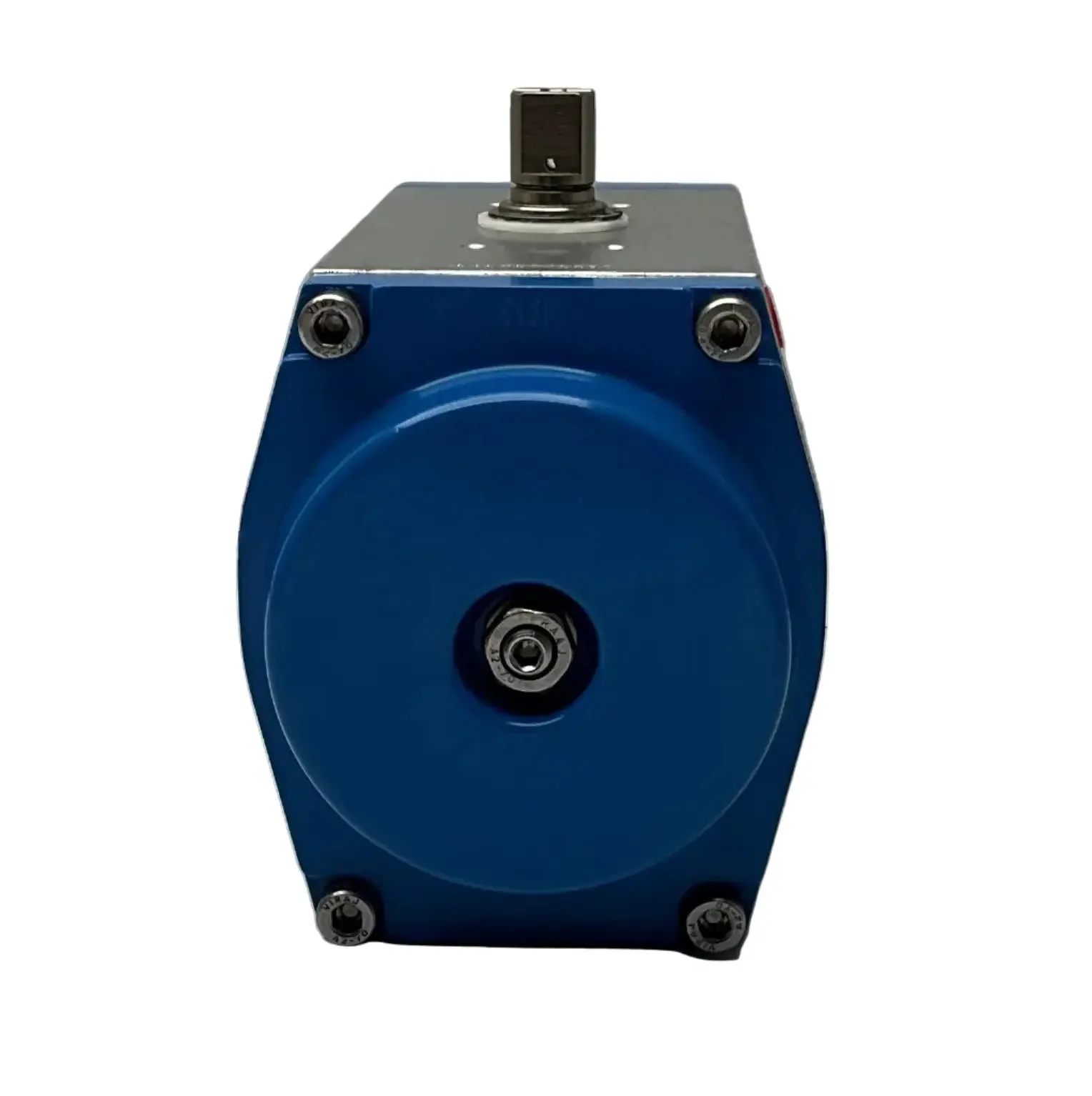

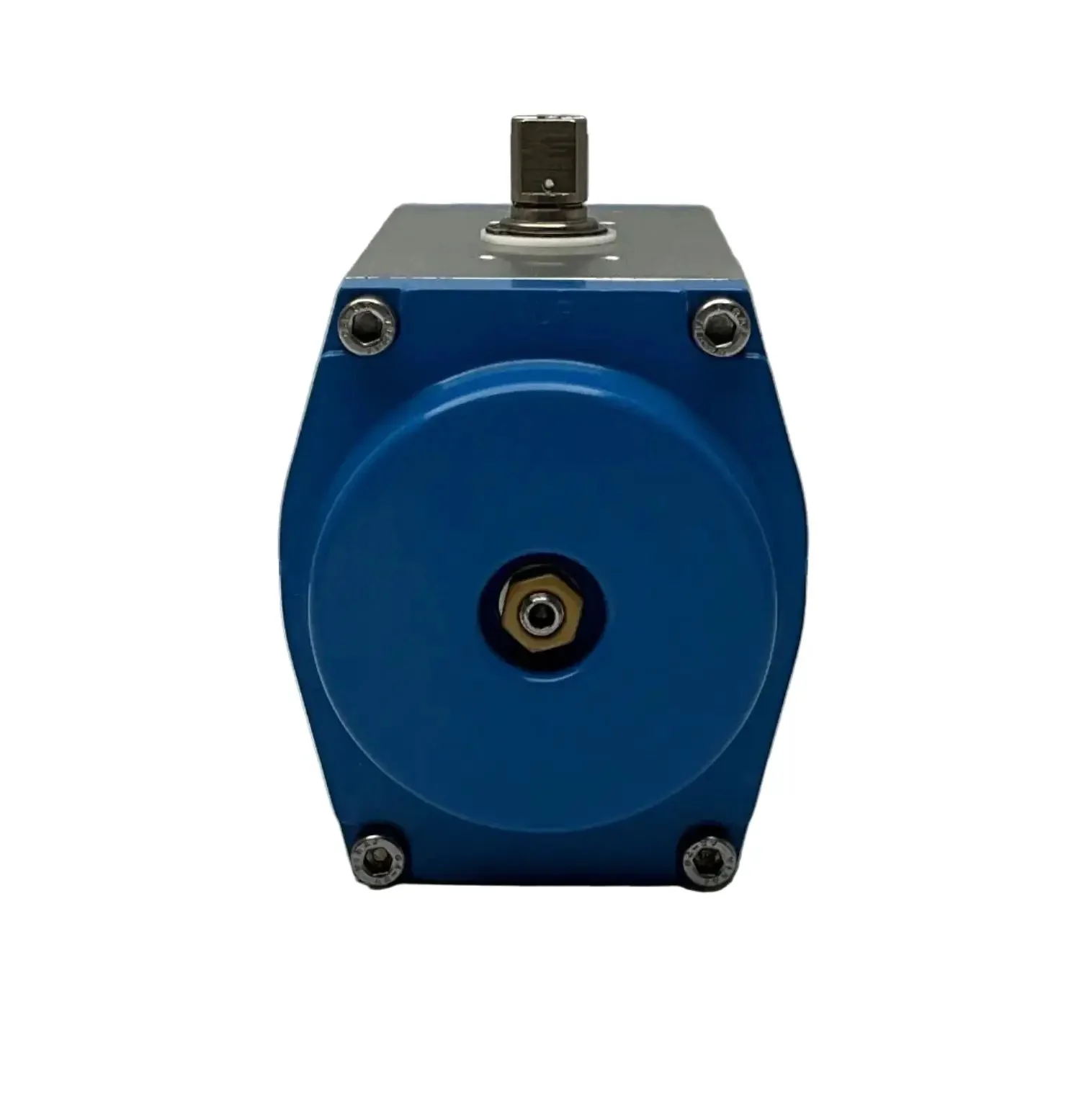

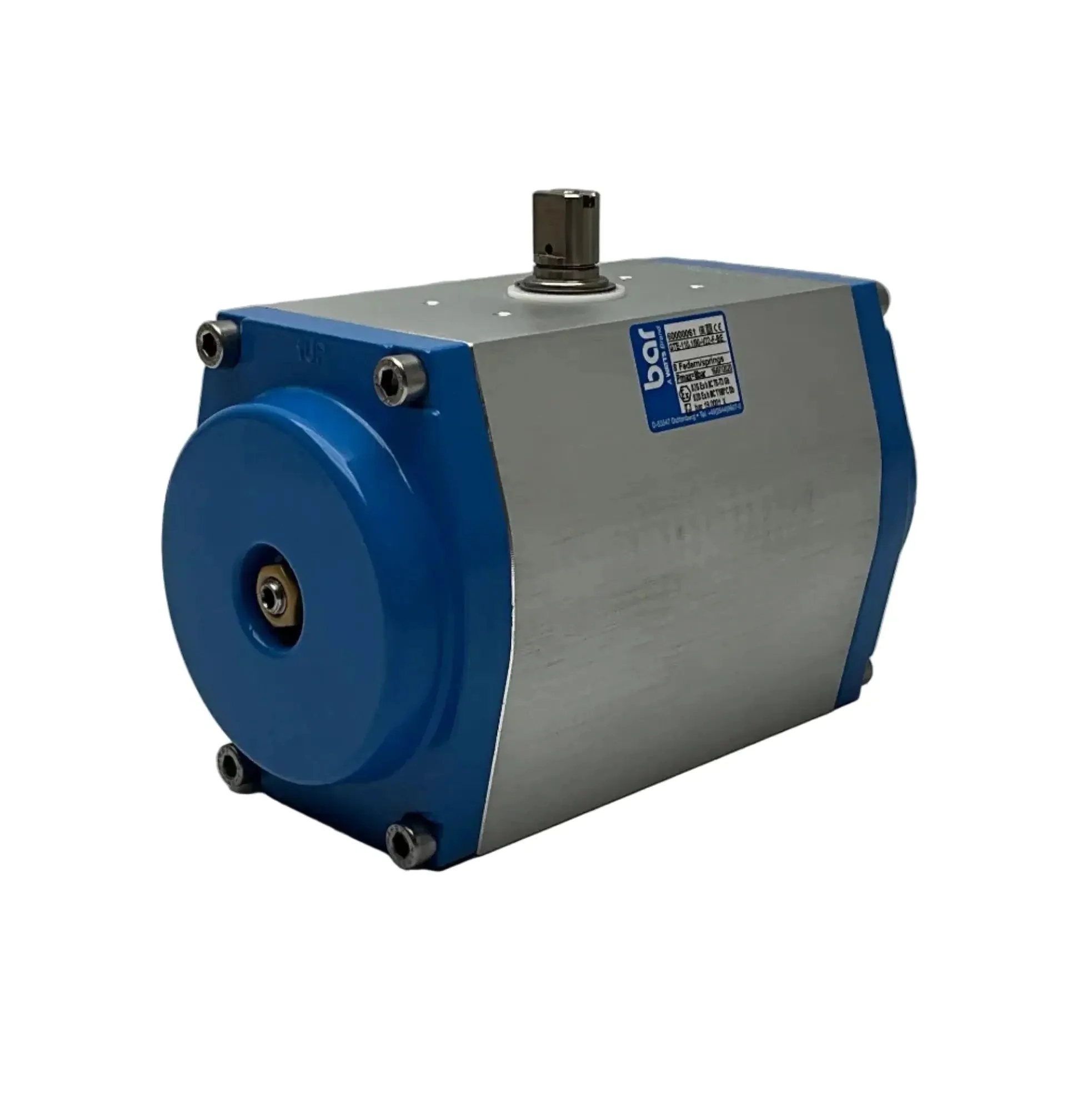

Bar GmbH GTE-110.1/90-V22-F-BE Pneumatic Twin Piston Actuator

- Brand: BAR GmbH (bar pneumatische Steuerungssysteme GmbH)
- Model: GTE-110.1/90-V22-F-BE
- Type: Pneumatic Twin-Piston Quarter-Turn Actuator

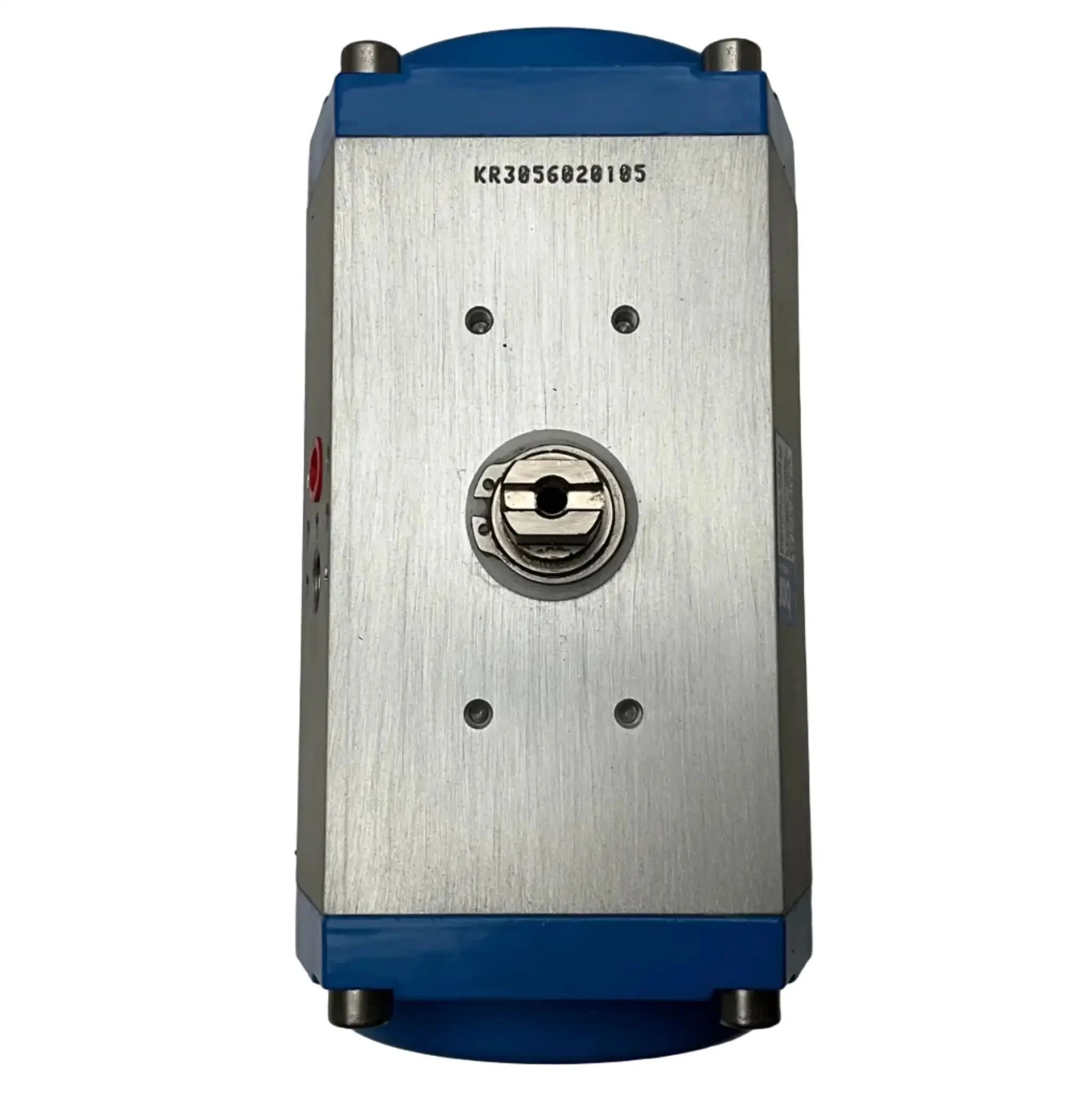

- Part Number: KR3056020105

- Technical Specs:
- Actuator Type: Single-acting (spring return) pneumatic twin-piston actuator
- Nominal Pivoting Angle: 90°
- Pinion Design: V22
- Mounting Version: F
- Limit Adjustment: Type BE
- Max Control Pressure: 8 bar
- Temperature Range: -20°C to +80°C
- Housing Material: Anodized aluminum alloy
- Caps: Aluminum alloy, epoxy coated
- Seals: NBR

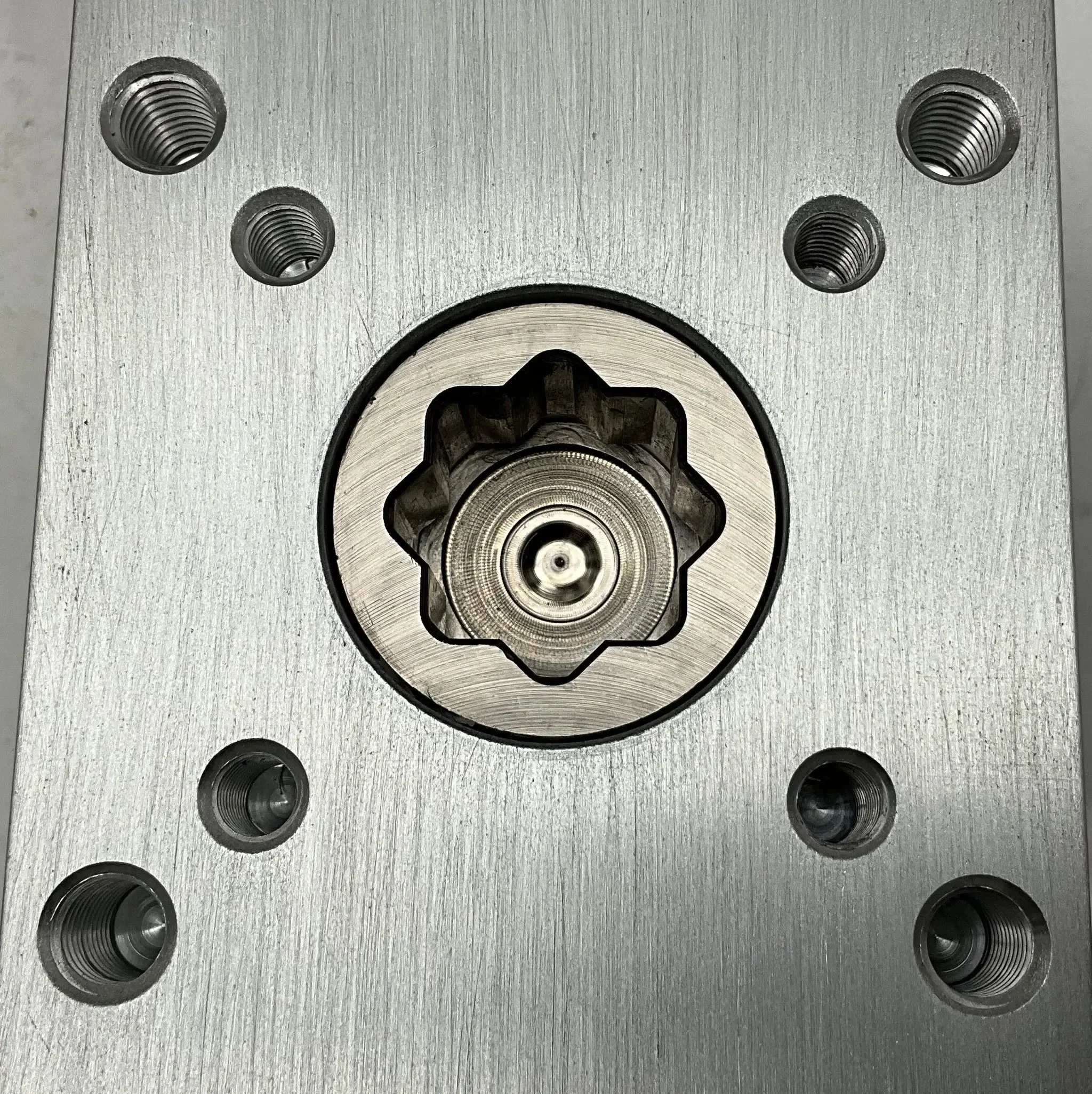

- Standards: Interface actuator/valve acc. to VDI/VDE 3845
- Installation Position: Any
- Control Medium: Filtered air
- Additional Features:
  - Rack-and-pinion design with self-centering piston guidance
  - Superior wear resistance through slide bearings

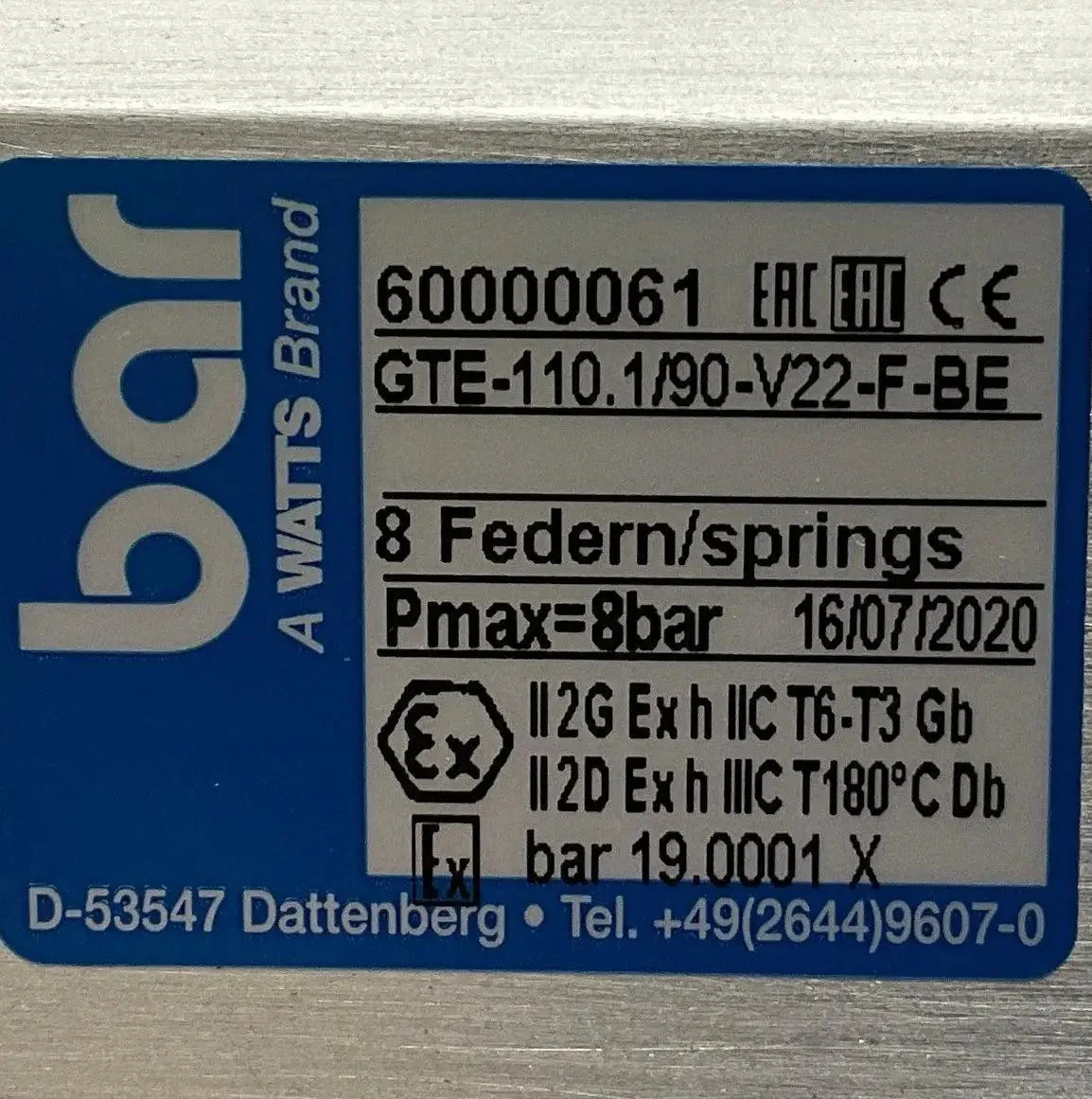

  - Atex rated II 2G Ex h IIC T6-T3 Gb
  - Safety springs for reliable spring return
  - Reversible rotation
  - Low noise operation

Dimensions: 230 X 130 X 180 MM

Weight: 5.6 kg

Country of Origin: Germany

HS Code: 8412.31
