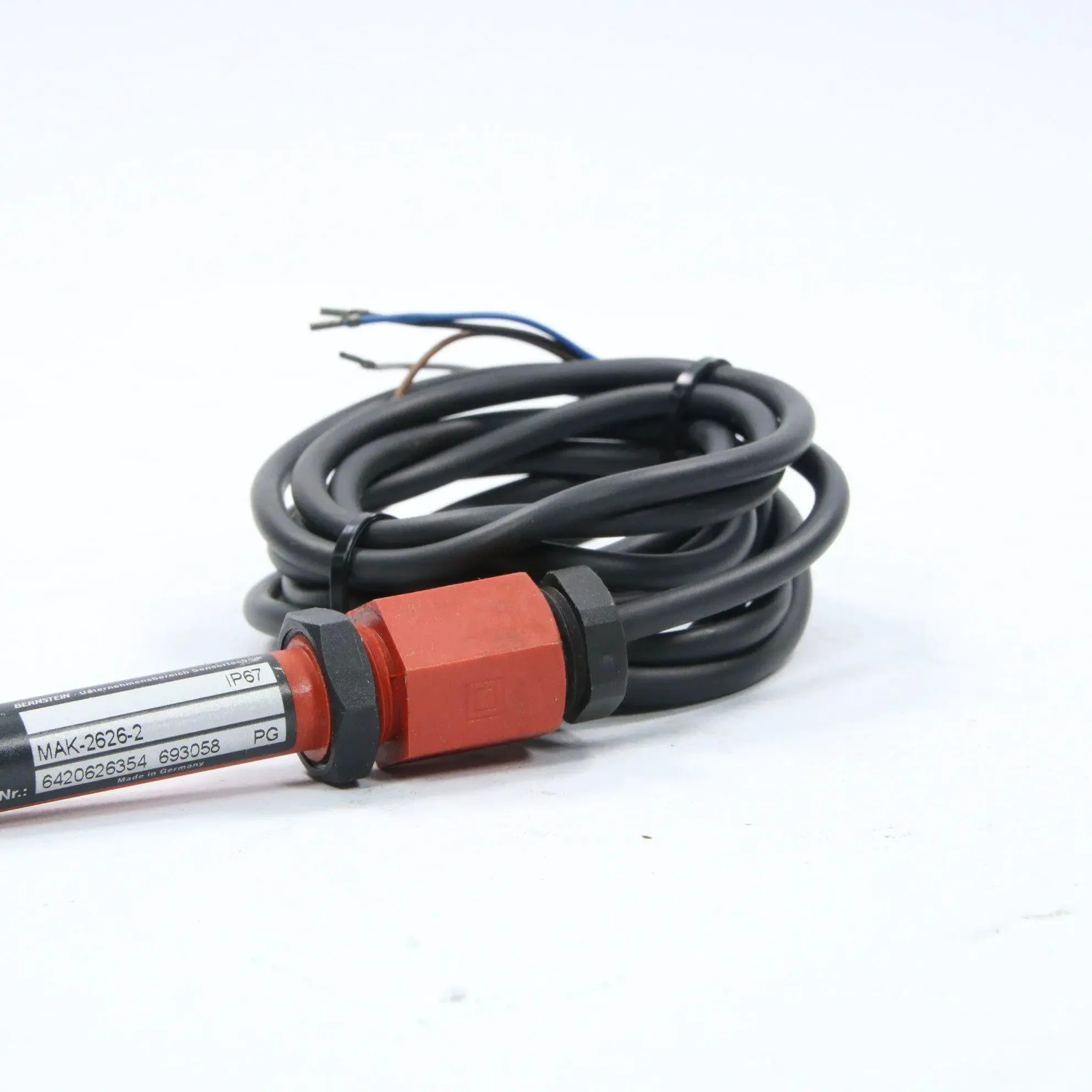

Bernstein MAK 2626-2 Magnetic Switch

Bernstein MAK 2626-2 Magnetic Switch

• Switching function N.O., N.C combined
• Reference magnet T-62 N/S (6301262039)
• Assured operating distance - ON Sao 16 mm
• Assured operating distance - OFF Sar 40 mm
• Repeat accuracy R ± 0,1 mm, under same geometrical conditions at the same temperature
• Utilization category DC-12
• Frequency of operating cycles f 1 Hz
• Max. voltage 30 V DC
• Max. switching current 0,25 A
• Max. switching capacity 5 W
• Protection class acc. to EN 61558 III (safety extra-low voltage)
• Note Combinations of switching voltage and switching current must not exceed the maximum switching capacity
