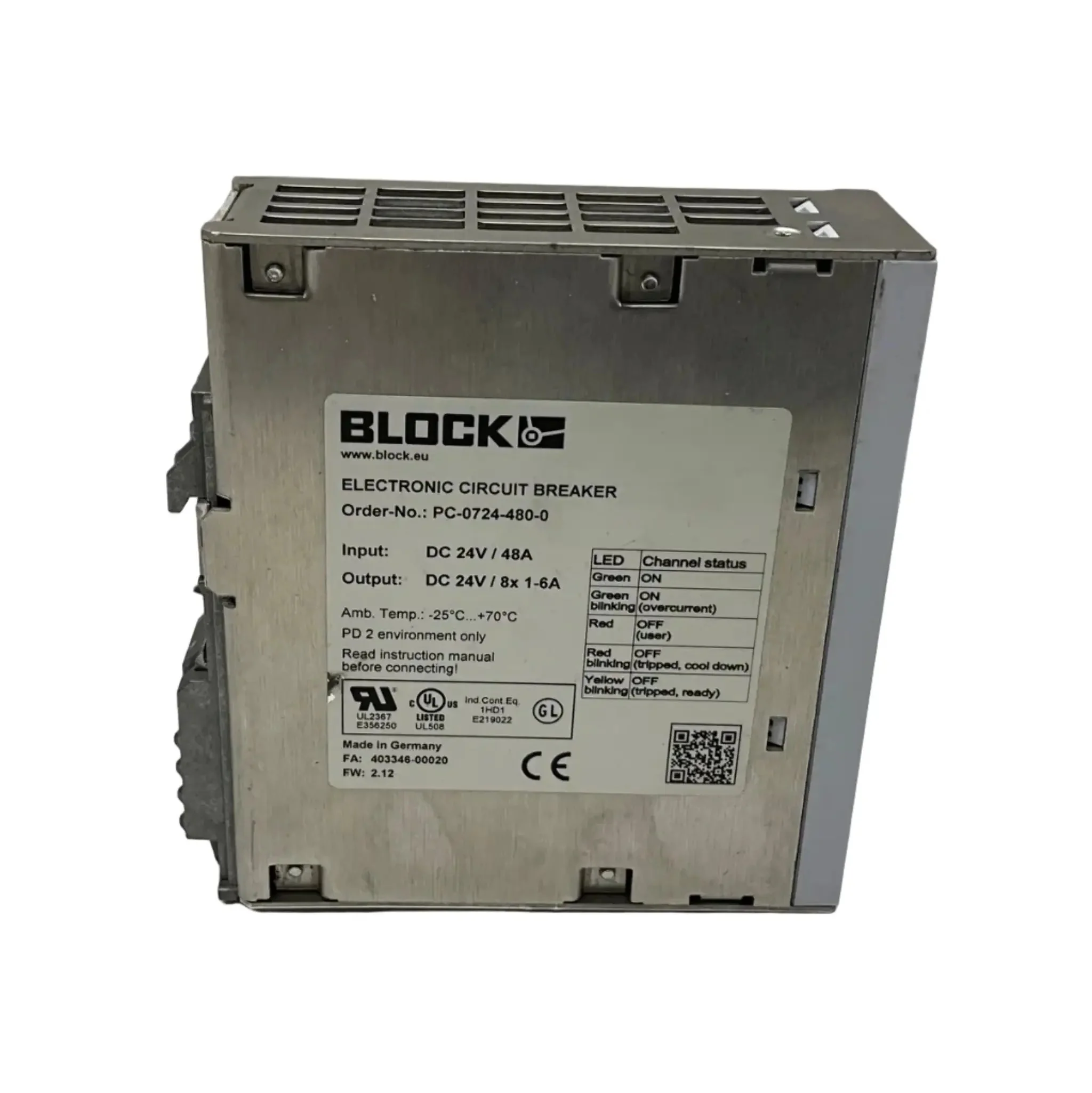

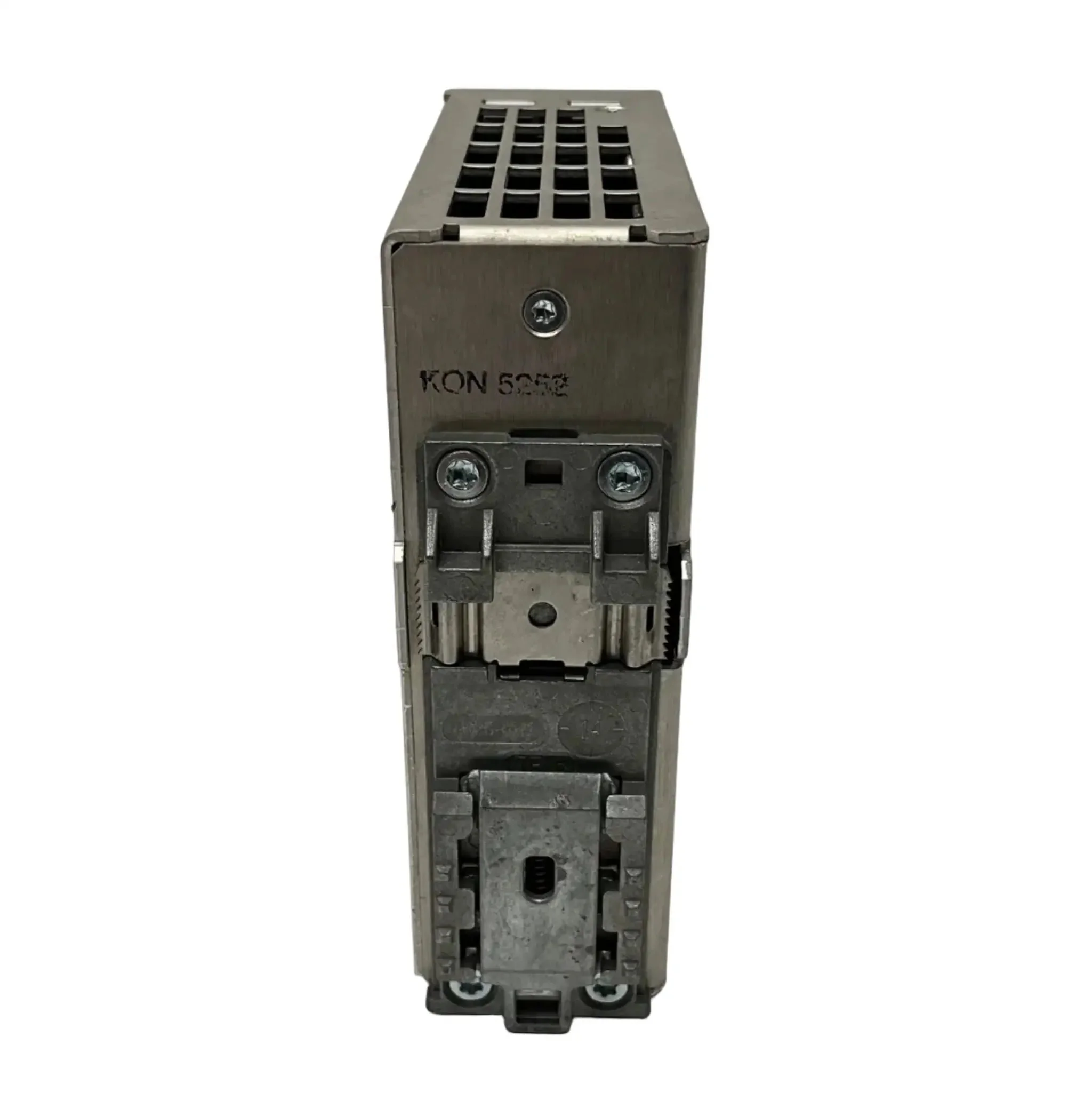

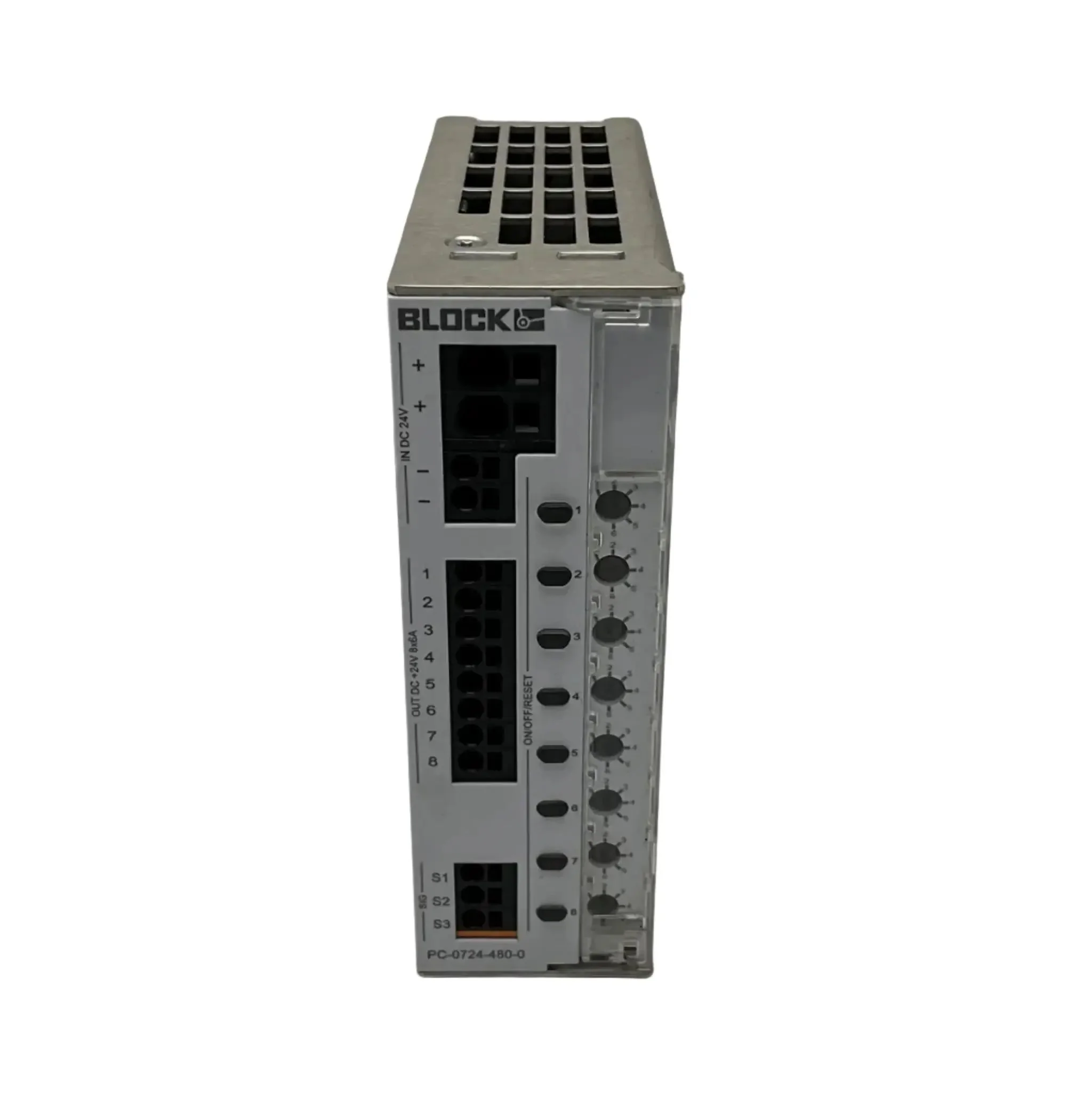

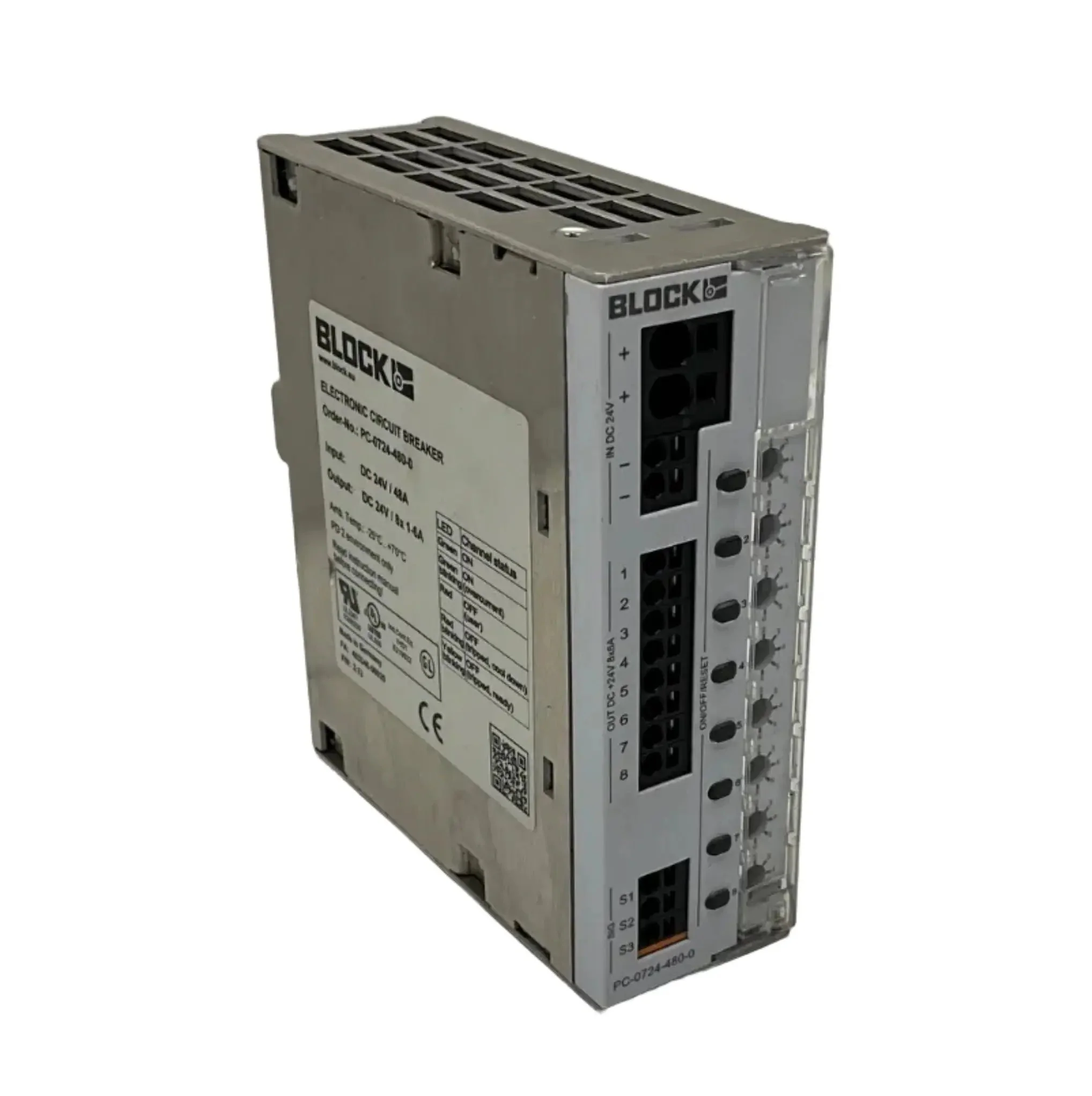

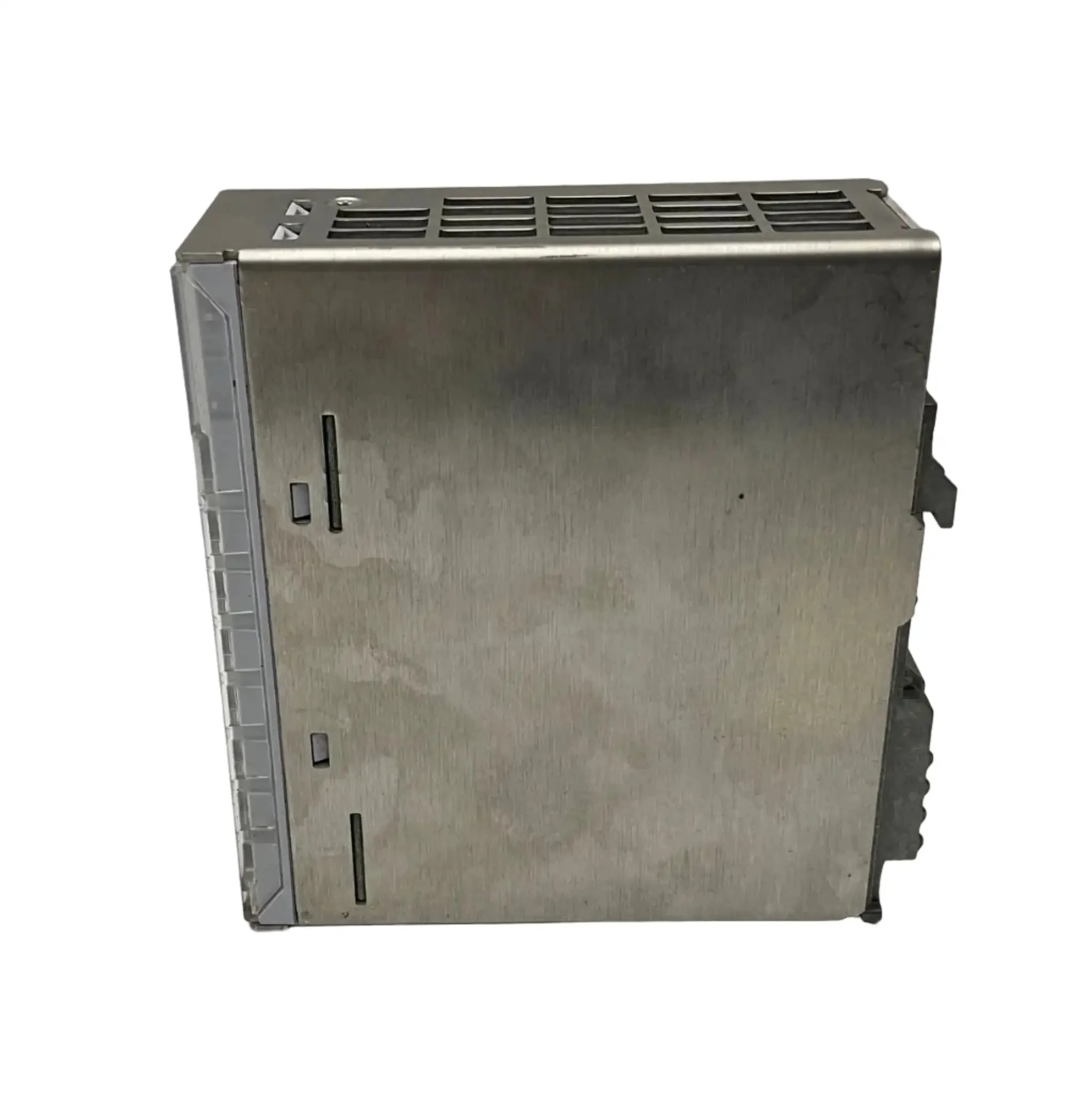

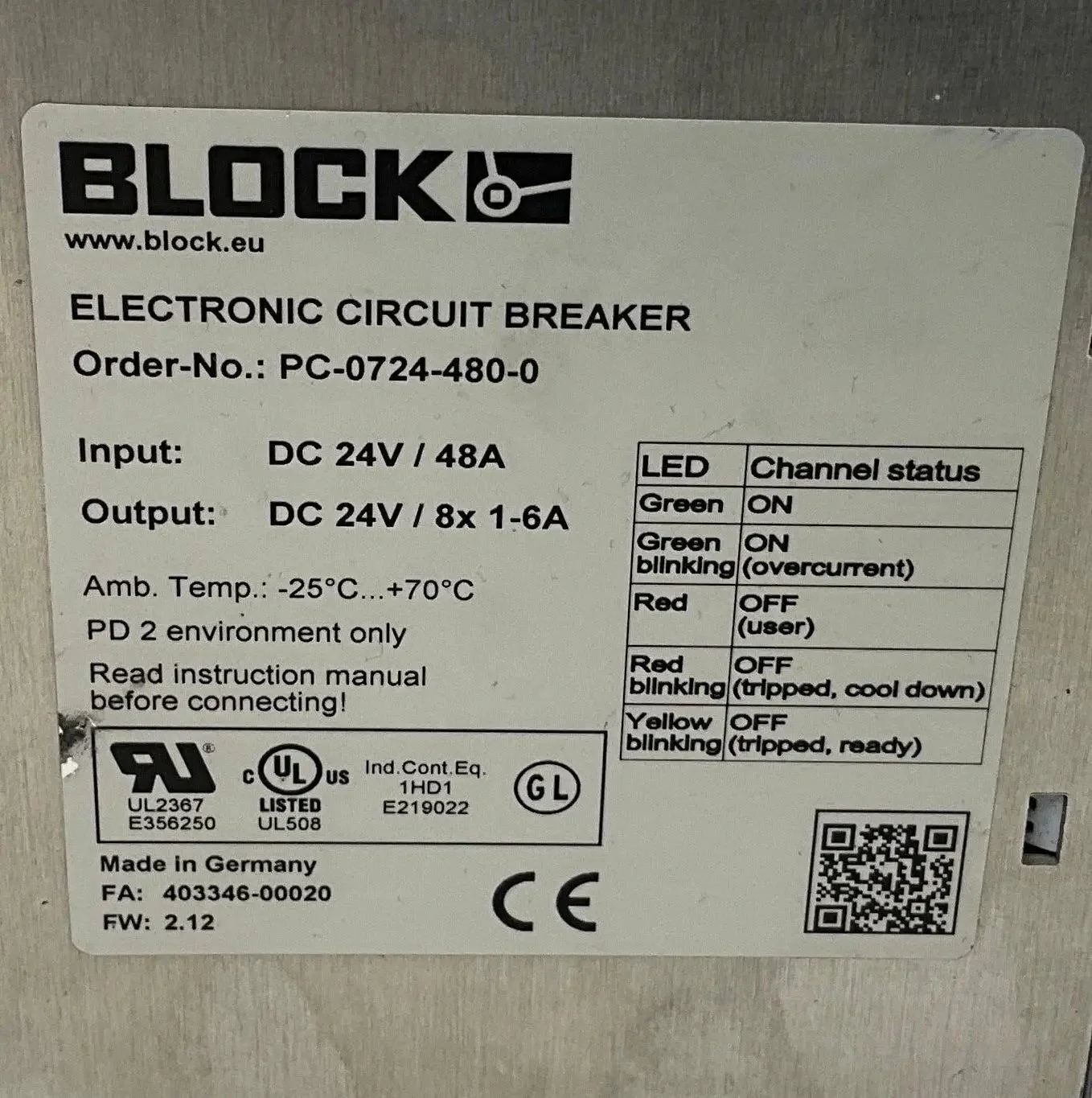

Block PC-0724-480-0 Electronic Circuit Breaker

- Brand: Block (Block Transformatoren-Elektronik GmbH)
- Model: PC-0724-480-0
- Type: Electronic Circuit Breaker (Multi-Channel)
- Part Number: PC-0724-480-0

Technical Specs:
- Function: 8-channel electronic circuit breaker for DC power distribution and protection, with individual channel current adjustment
- Number of Channels: 8
- Input Voltage: 24 V DC
- Total Input Current: Max 48 A
- Output per Channel: Adjustable 1-6 A
- Tripping Characteristic: Thermo-magnetic
- Trip Time: 500 ms (for overload/short circuit)
- Overload/Short Circuit Protection: Yes, per channel; allows brief peaks, switches off longer overloads
- Connection Type: Push-in terminals
- Mounting: DIN rail (TS 35)
- Width: 42 mm
- Operating Temperature: -25°C to +70°C
- Enclosure Rating: IP20
- Dimensions: 42 x 125 x 125 mm

- Weight: 450 g


- Country of Origin: Germany

- HS Code: 8536.30
