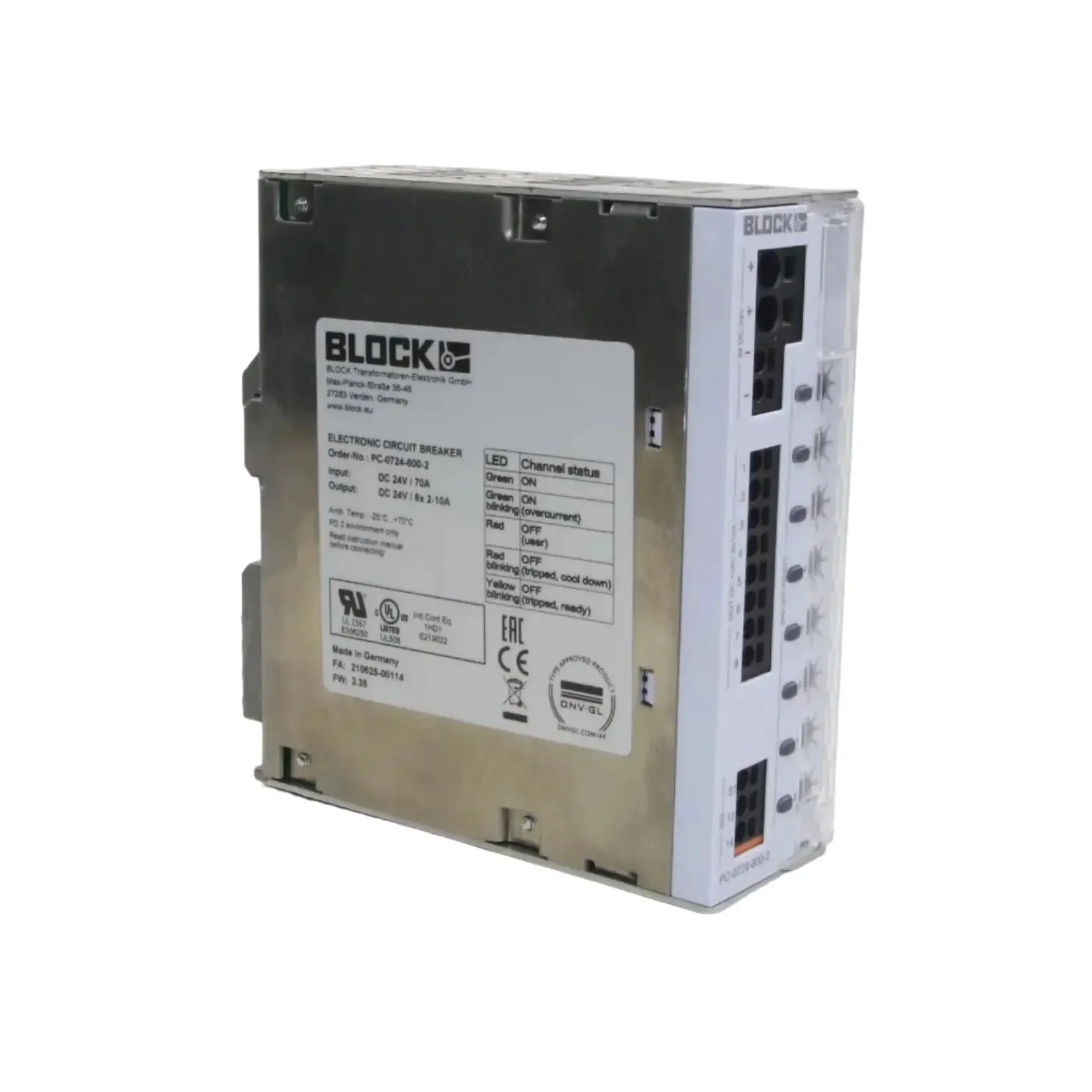

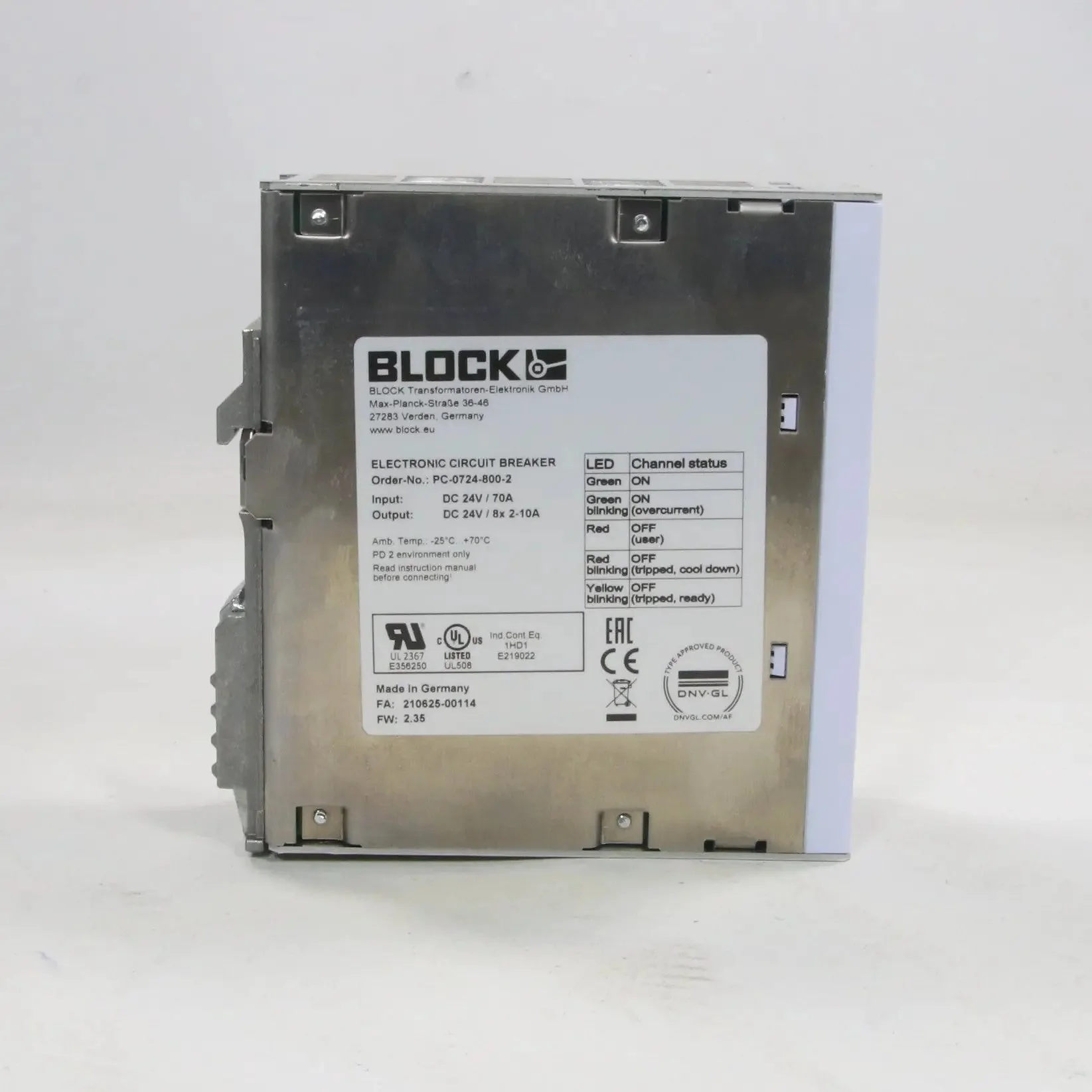

Block PC-0724-800-2 Electronic 8-Channel Circuit Breaker

Brand: BLOCK Transformatoren-Elektronik GmbH

Model: PC-0724-800-2

Series: Economy Smart

Type: Electronic 8-Channel Circuit Breaker

Part number: PC-0724-800-2

Technical specifications:
- Input rated voltage: 24 V DC
- Input voltage range: 18–30 V DC
- Max. continuous current of the module: 70 A
- Max. continuous current per feed terminal (+): 40 A

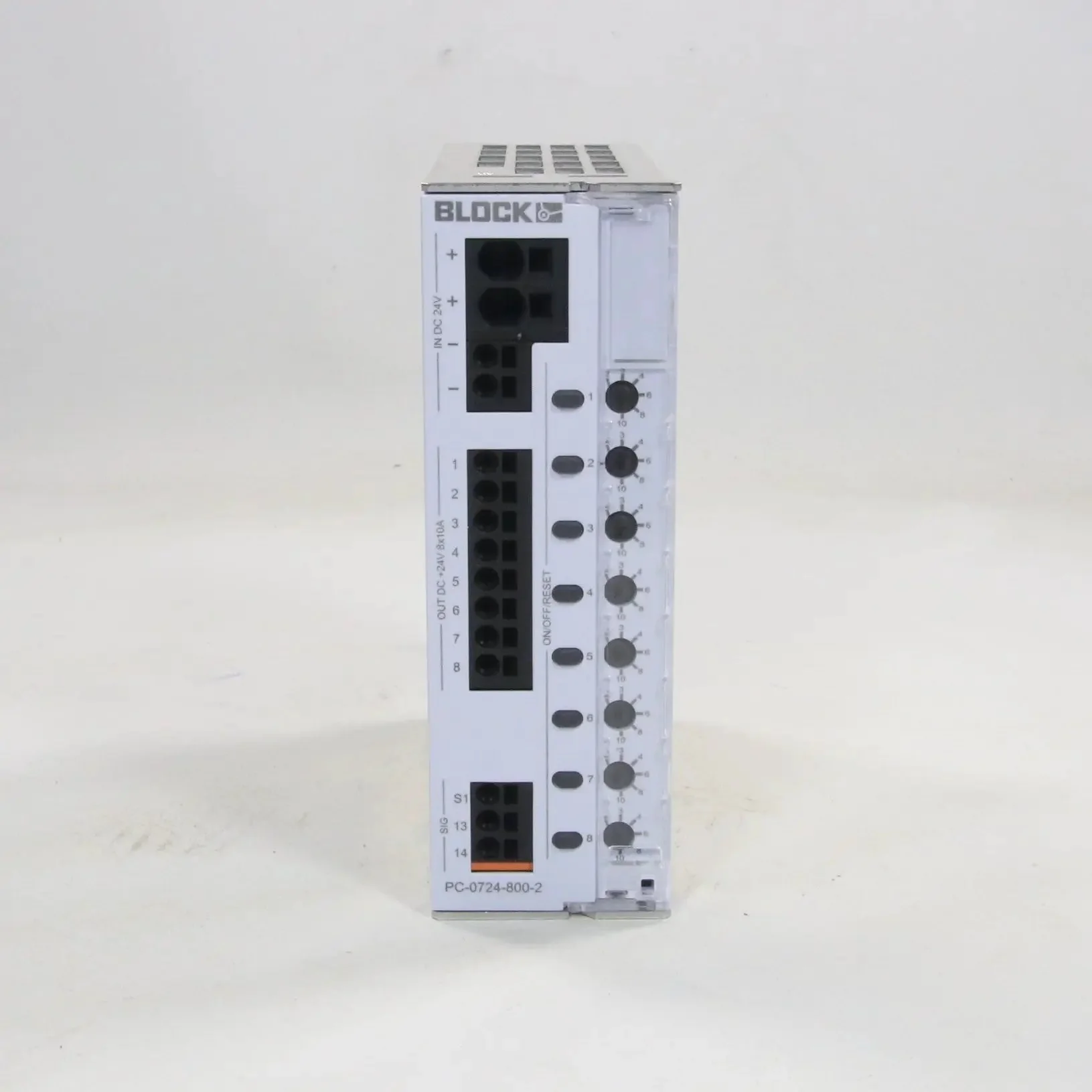

- Output channels: 8 channels
- Output voltage: 24 V DC / 8 x 2 - 10A
- Protection: Electronic with thermo-magnetic characteristic

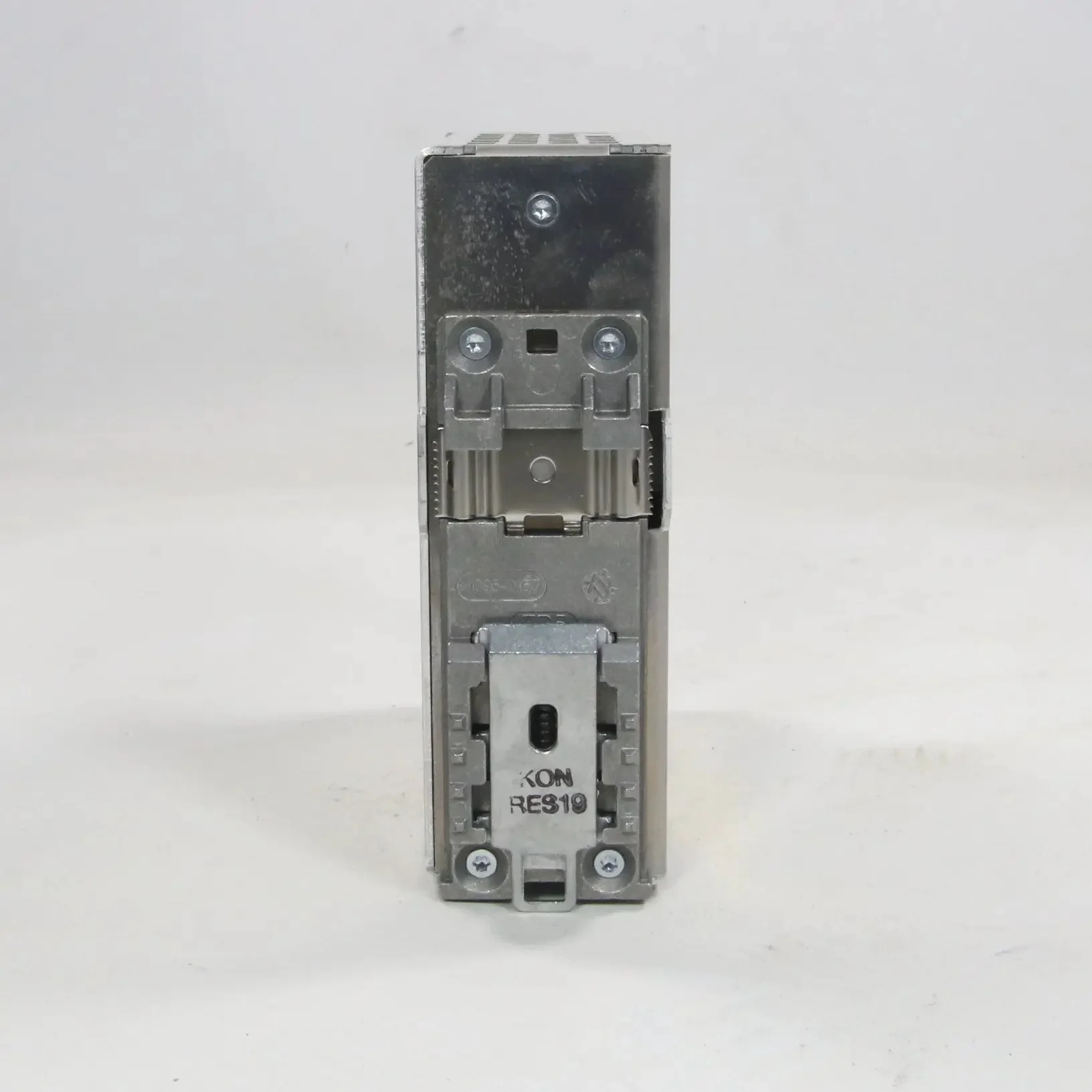

- Features: Adjustable tripping current per channel; ability to switch on high capacitive loads; potential-free contact; sequential/load-dependent switch-on possible; status indication; DIN rail mount (TS35)
- Terminals: Push-In
- Additional: Reliable selective disconnection of overloads/short circuits; suitable for control cabinets, machinery, and industrial 24 V DC systems
- Standards: Compliant with relevant IEC/EN standards for electronic circuit breakers

Weight: 500 g

Dimensions: 130 x 50 x 150 mm

Country of origin: Germany

HS code: 8536.20
