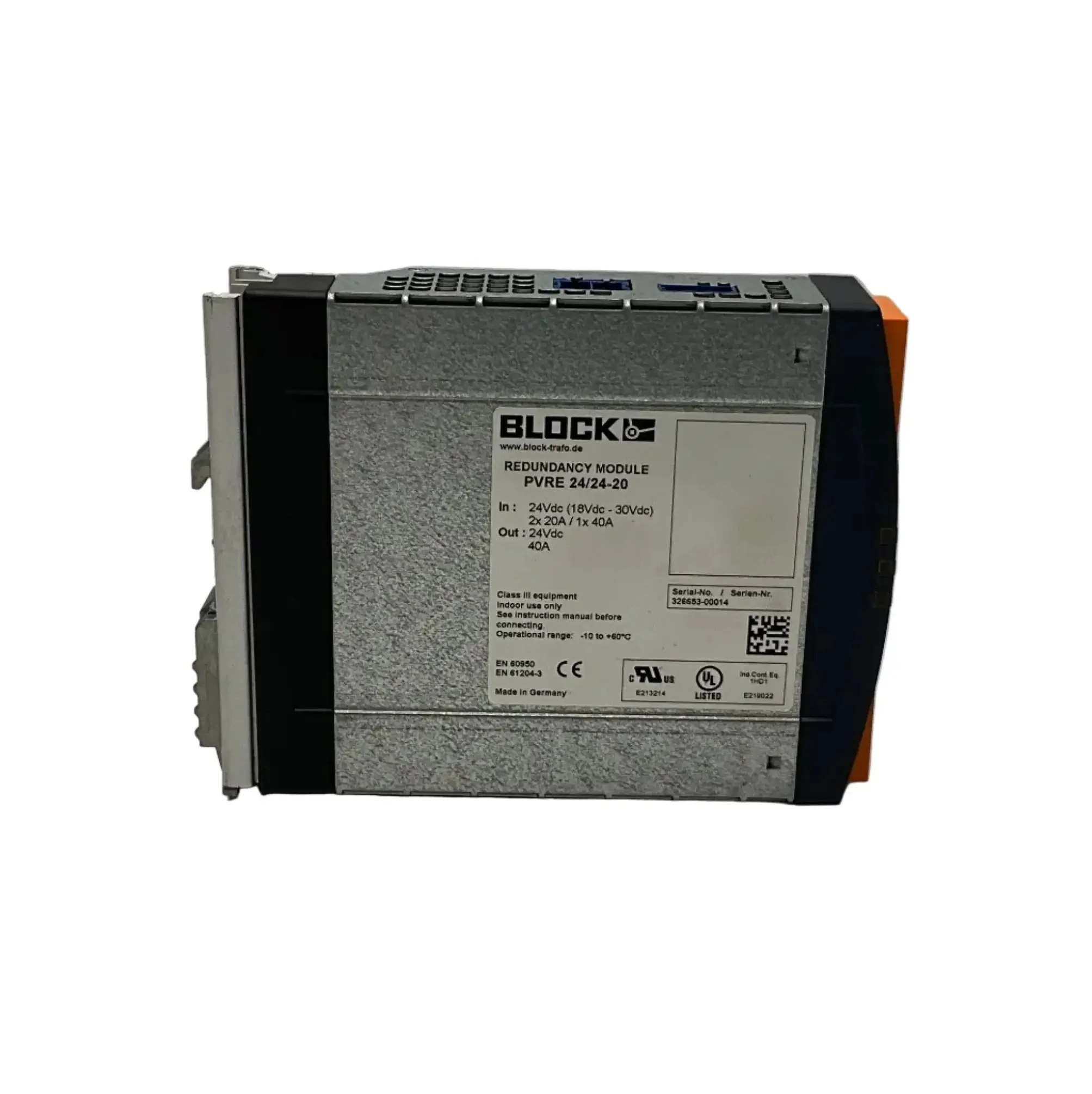

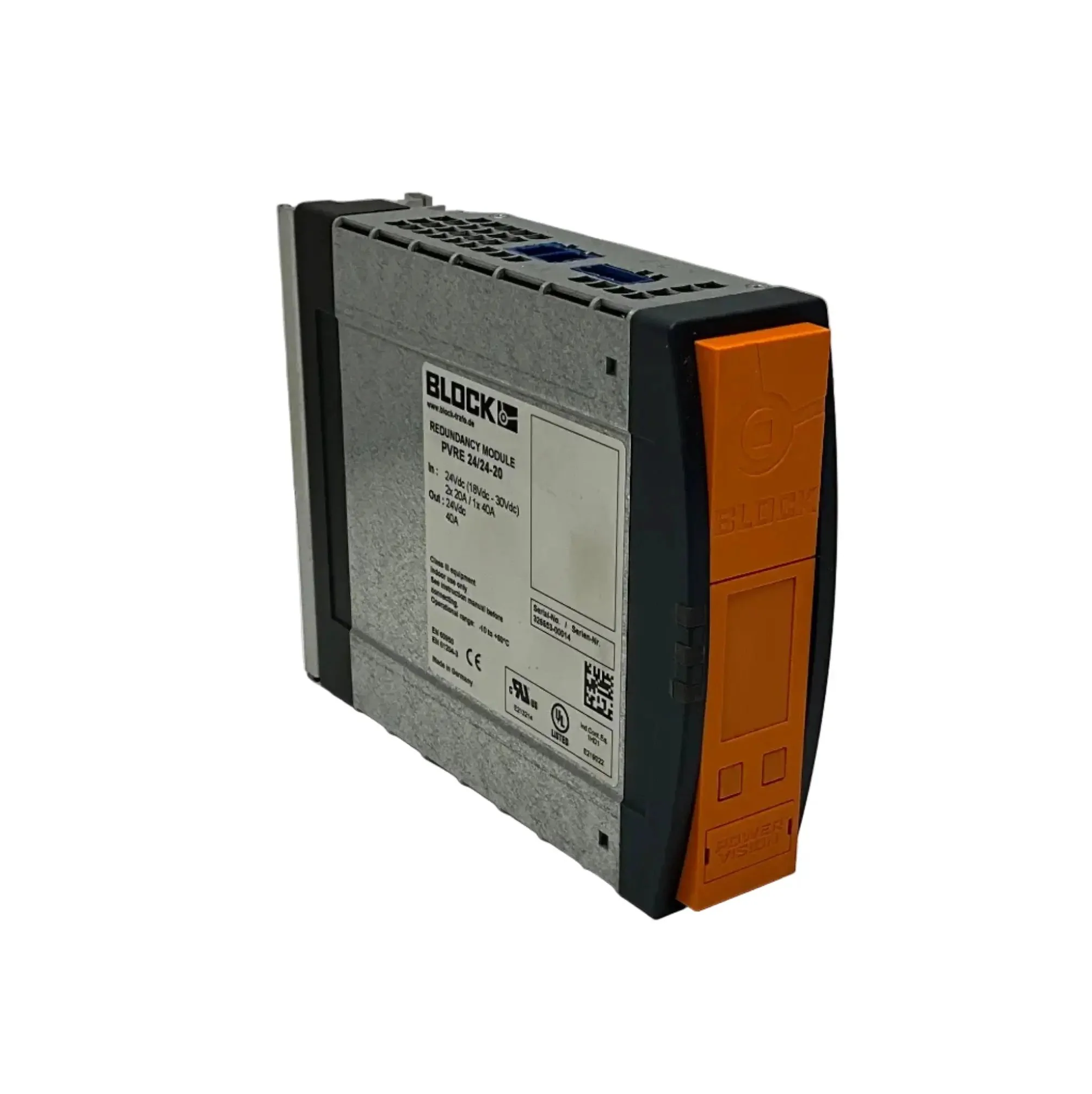

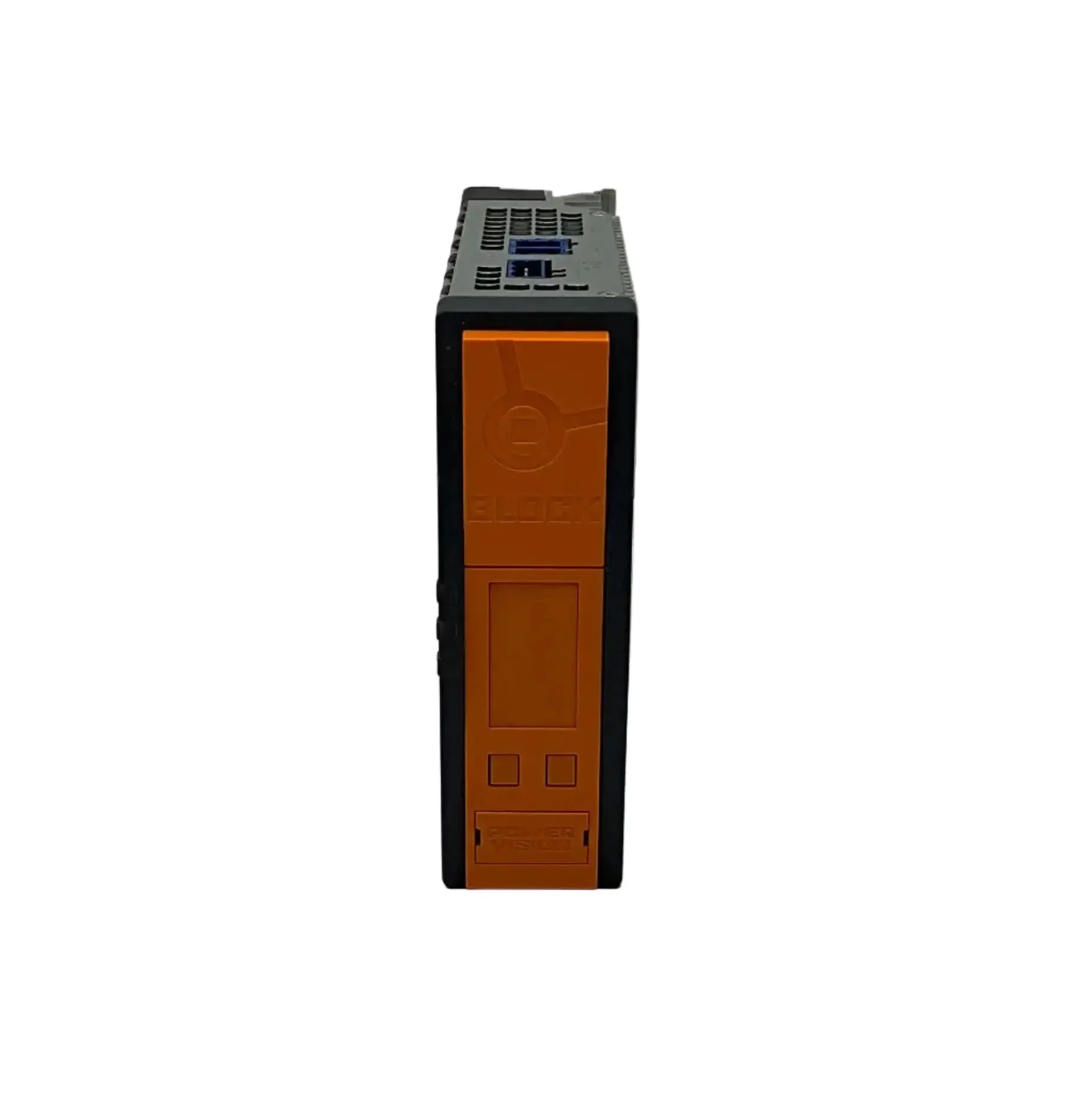

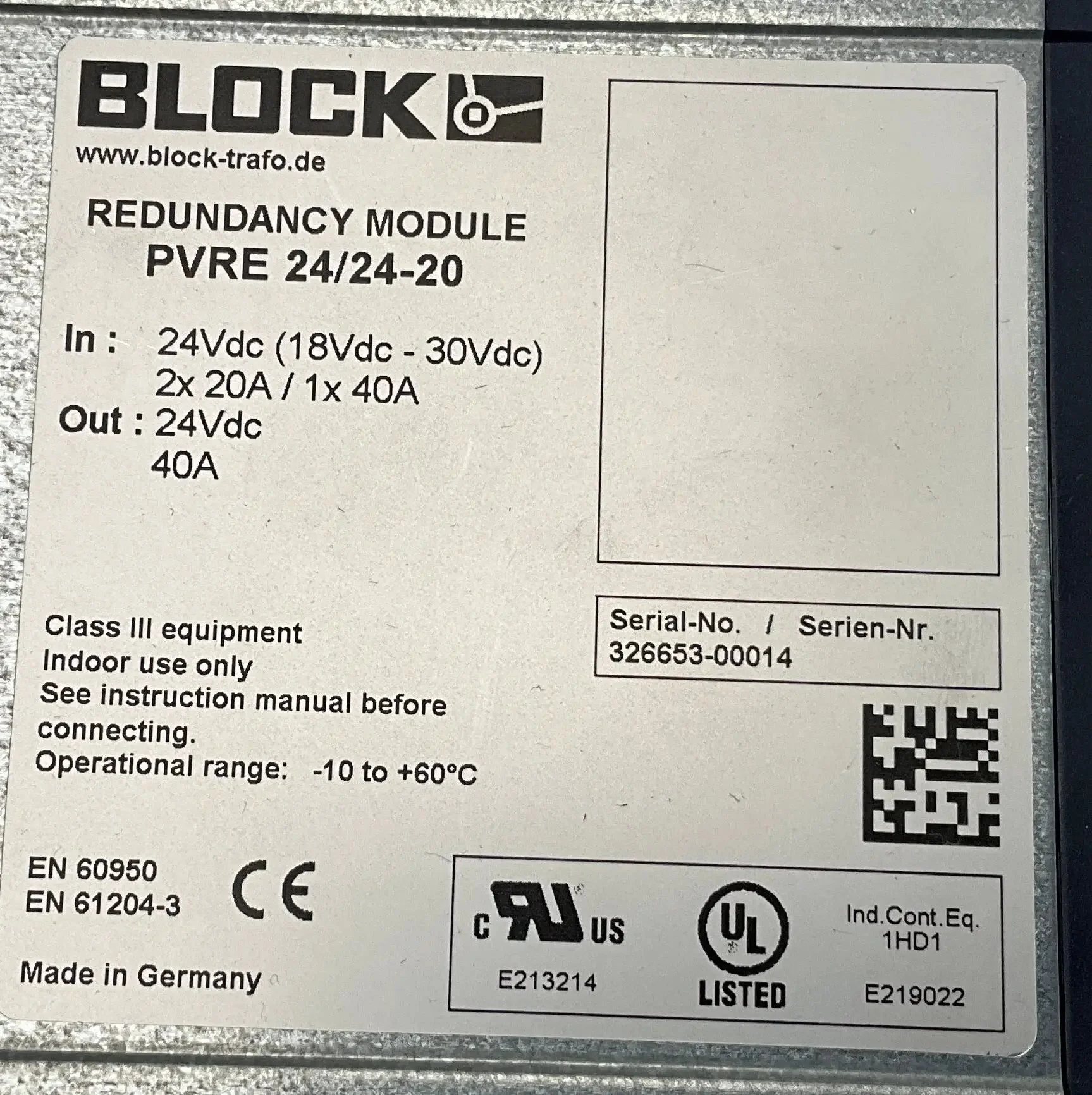

Block PVRE 24/24-20 Redundancy Module

- Brand: Block (Block Transformatoren-Elektronik GmbH)
- Model: PVRE 24/24-20
- Type: Redundancy Module
- Part Number: PVRE 24/24-20

Technical Specs:
- Function: Diode-based redundancy module for decoupling two 24 V DC power supplies to create a redundant, fail-safe 24 V DC supply system
- Input: 2 x 24 V DC (nominal), range typically 18-30 V DC
- Output: 1 x 24 V DC, max 20 A continuous
- Voltage Drop: Approx. 0.7-1 V
- Decoupling: Integrated diodes
- Connection: Push terminals (plug in)
- Mounting: DIN rail (TS 35)
- Enclosure Rating: IP20
- Operating Temperature: -25°C to +70°C
- Additional Features: Compact design, maintenance-free, compatible with Block power supplies like PVSB/PVSE/PVSL series
- Status: Discontinued

Dimensions: 170 x 130 x 40 mm

Weight: 800 g

Country of Origin: Germany

HS Code: 8543.70
