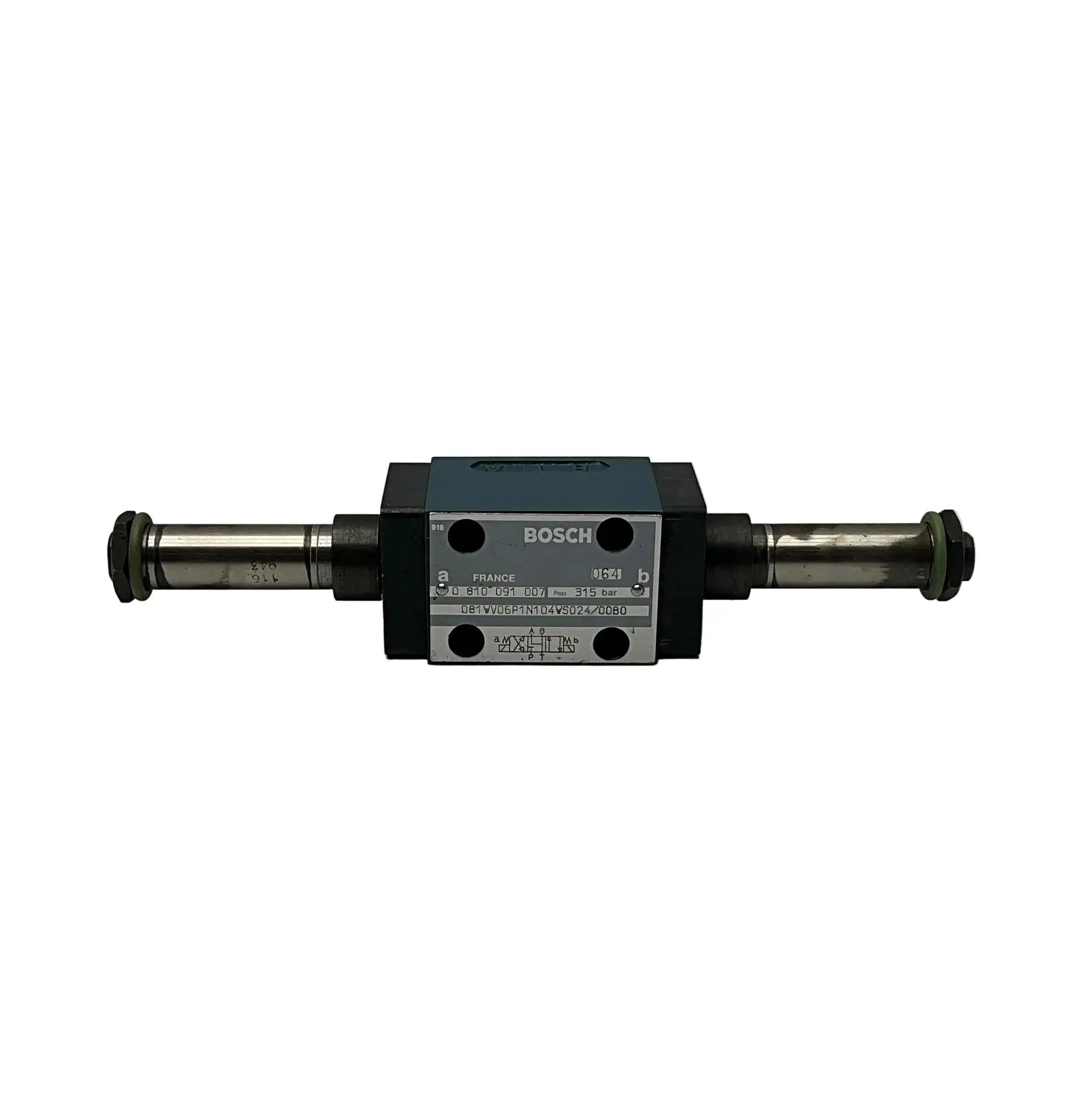

Bosch Rexroth 0 810 091 007 Directional Control Valve

Brand: Bosch Rexroth
Model: 918
Type: Directional Control Valve
Part Number: 0 810 091 007

Technical Specs:
- Valve Type: 4/2-way directional control valve
- Product Number: 081WV06P1N104WS024/00B0
- Maximum Operating Pressure: 315 bar
- Flow Rate: Up to 60 L/min
- Spool Type: P, V
- Switching Time: ≤ 30 ms
- Leakage: Internal, minimal < 1 cm³/min at 210 bar
- Fluid: Hydraulic oil (mineral-based HLP to DIN 51524 Part 2)
- Viscosity Range: 10 to 500 mm²/s
- Filtration: ≥ 10 µm (ISO 4406:1999, 19/17/14)
- Ambient Temperature Range: -20°C to +60°C
- Media Temperature Range: -20°C to +80°C
- Mounting: Subplate mounting (ISO 4401-03-02-0-05, CETOP 3)
- Ports: P, A, B, R
- Additional Features:
  - Compact design with low power consumption
  - Soft shifting to reduce pressure peaks
  - High reliability in demanding environments
- Certifications: CE compliant

Dimensions:

Weight: 1.6 kg

Country of Origin: Germany

HS Code: 8481.20
