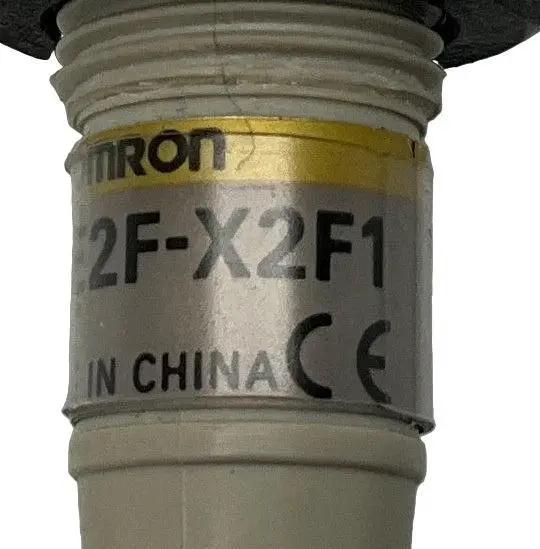

Omron E2F-X2F1 Proximity Switch

Brand: Omron
Model: E2F-X2F1
Type: Inductive Proximity Switch
Part Number: E2F-X2F1

Technical Specs:
- Sensor Type: Inductive proximity switch
- Sensing Distance: 2 mm (0.08 in) ±10%
- Installation: Shielded (flush mounting)
- Output Type: PNP, Normally Open (NO)
- Switching Frequency: 1.5 kHz
- Supply Voltage: 12 to 24 V DC
- Current Consumption: ≤13 mA
- Response Time: <0.5 ms
- Housing Material: Polyarylate resin
- Sensing Surface Material: Polyarylate resin

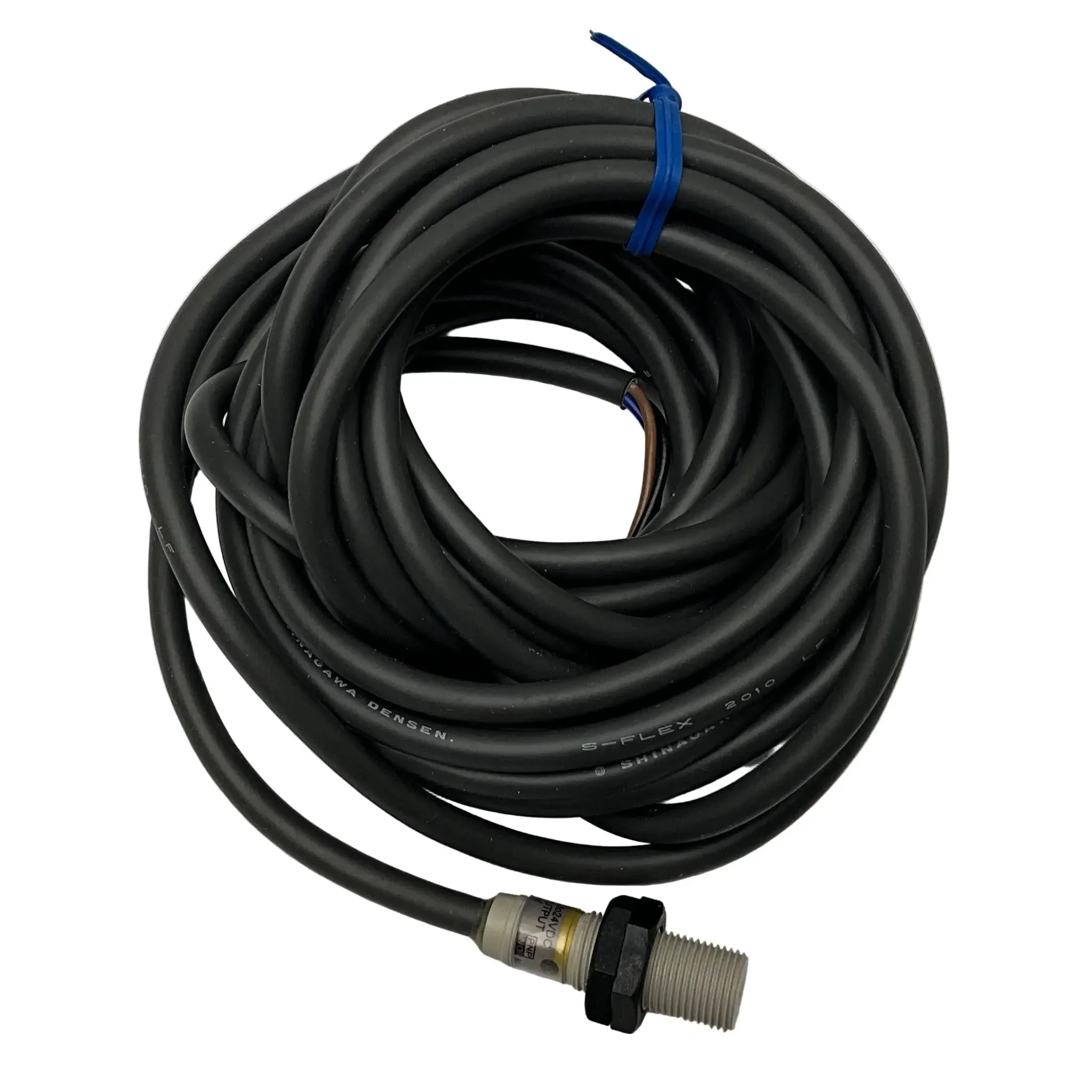

- Electrical Connection: Pre-wired, 5 m PVC cable (3-wire)
- Protection Rating: IP68
- Operating Temperature Range: -25°C to 70°C
- Storage Temperature Range: -40°C to 85°C
- Ambient Humidity: 35% to 95% RH (non-condensing)
- Vibration Resistance: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, Z directions
- Shock Resistance: 1000 m/s² (100G) for 10 times each in X, Y, Z directions
- Additional Features:
  - Excellent water resistance
  - Mutual interference prevention
  - Compact M8 threaded barrel design
  - LED indicator for operation status
  - Short-circuit and reverse polarity protection
- Certifications: CE, UL

Dimensions:
- Thread Size: M8 x 1
- Length: Approximately 39 mm
- Diameter: 8 mm

Weight: 300 g

Country of Origin: China

HS Code: 8536.50
