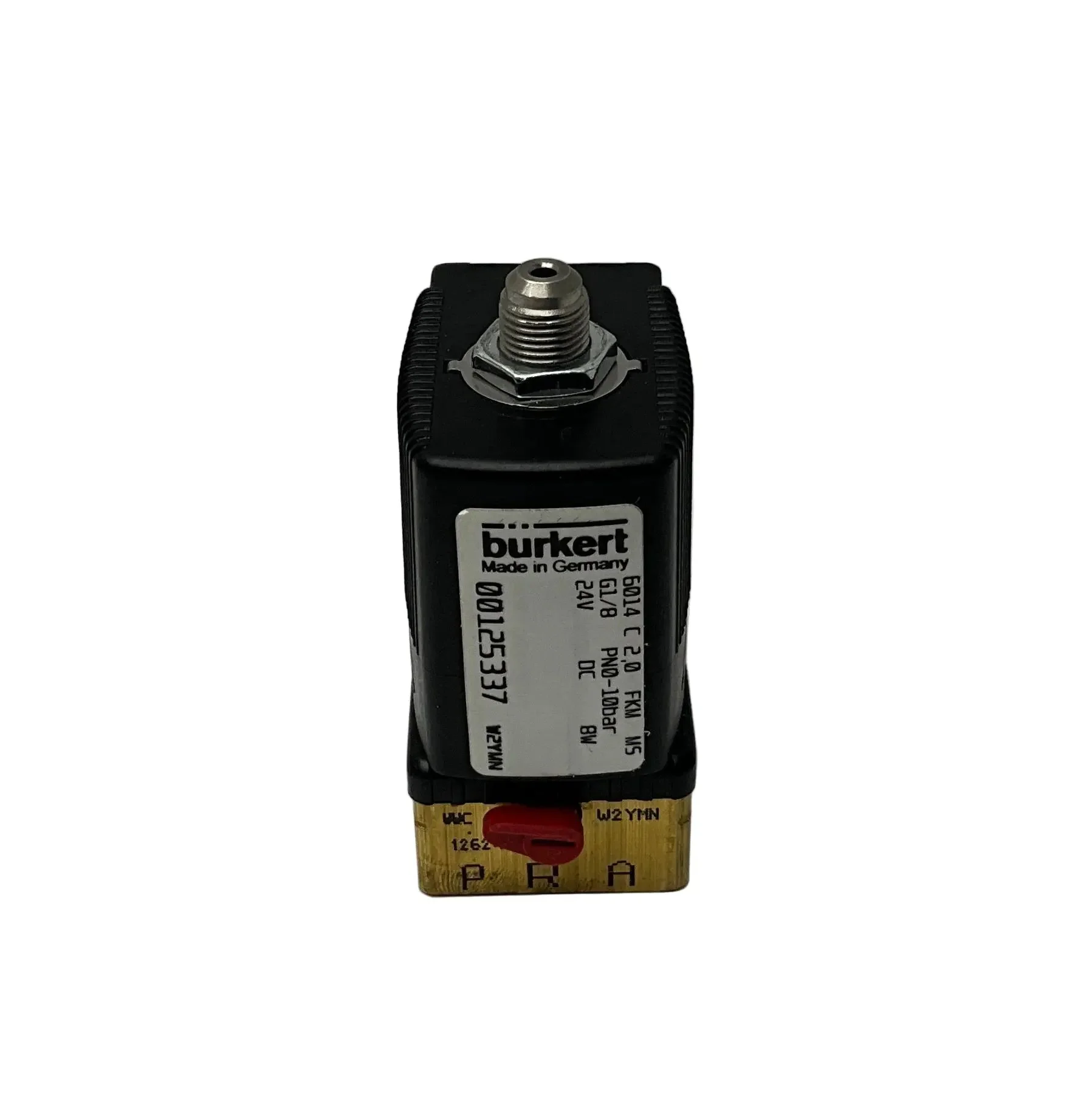

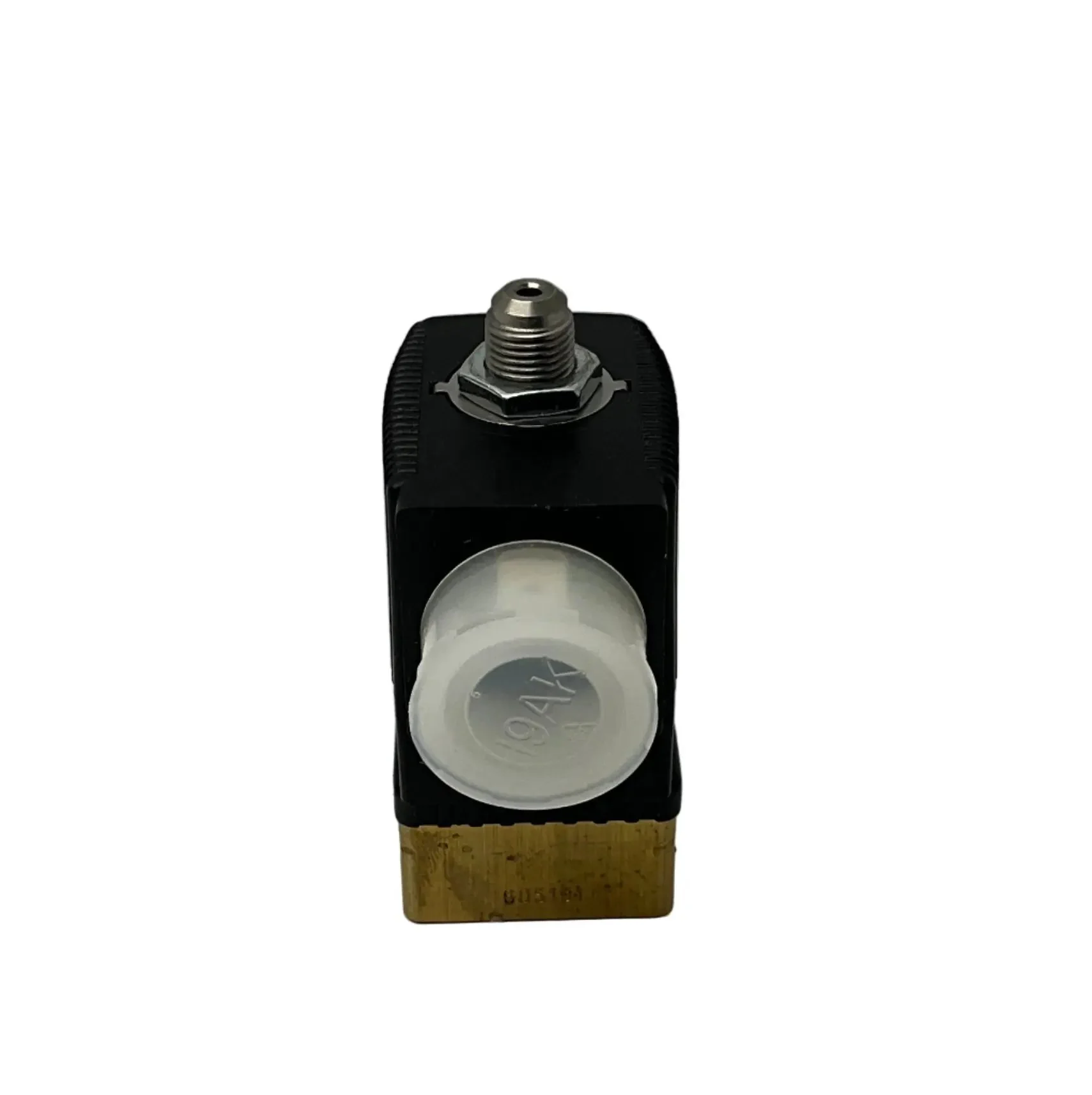

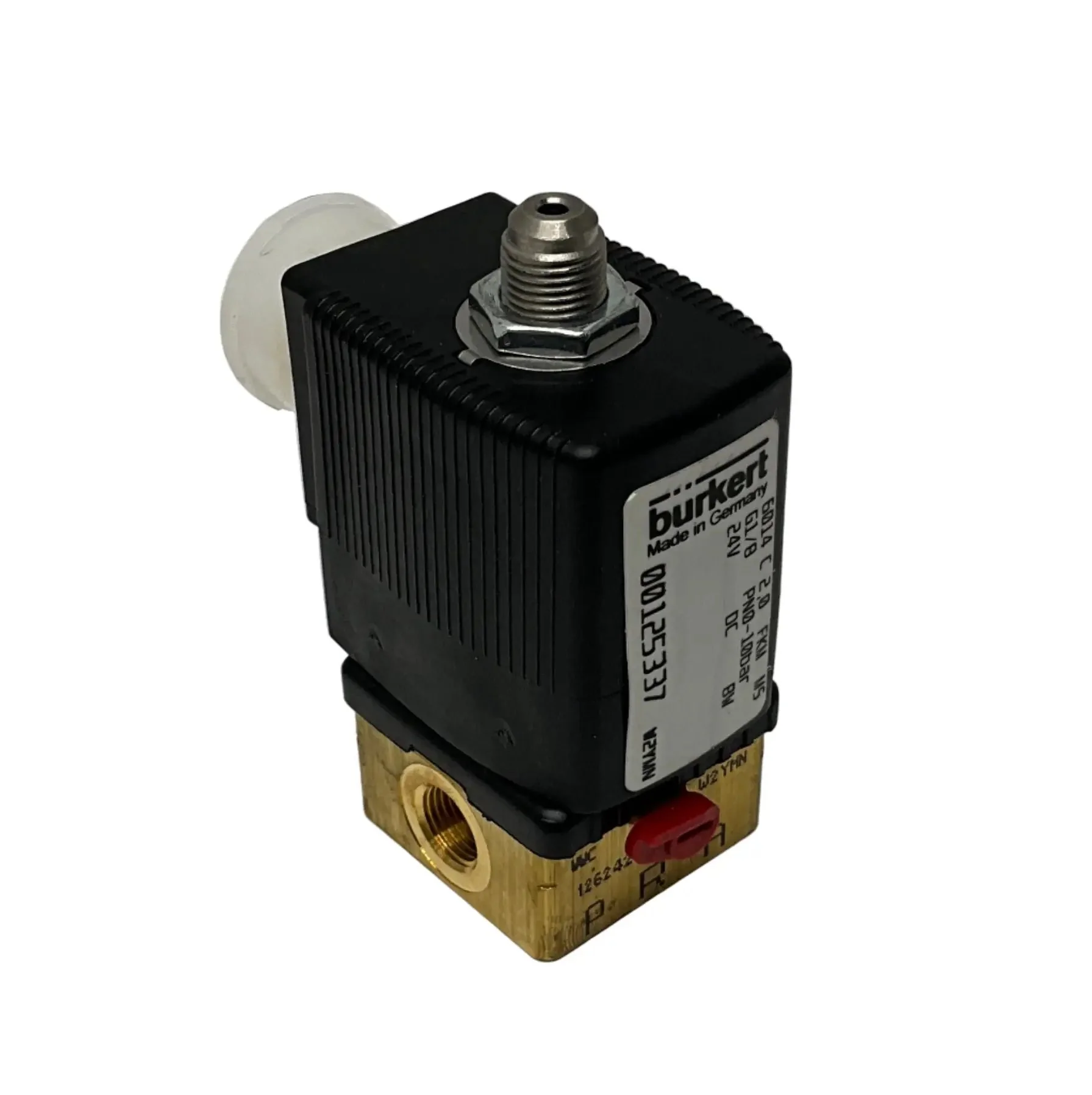

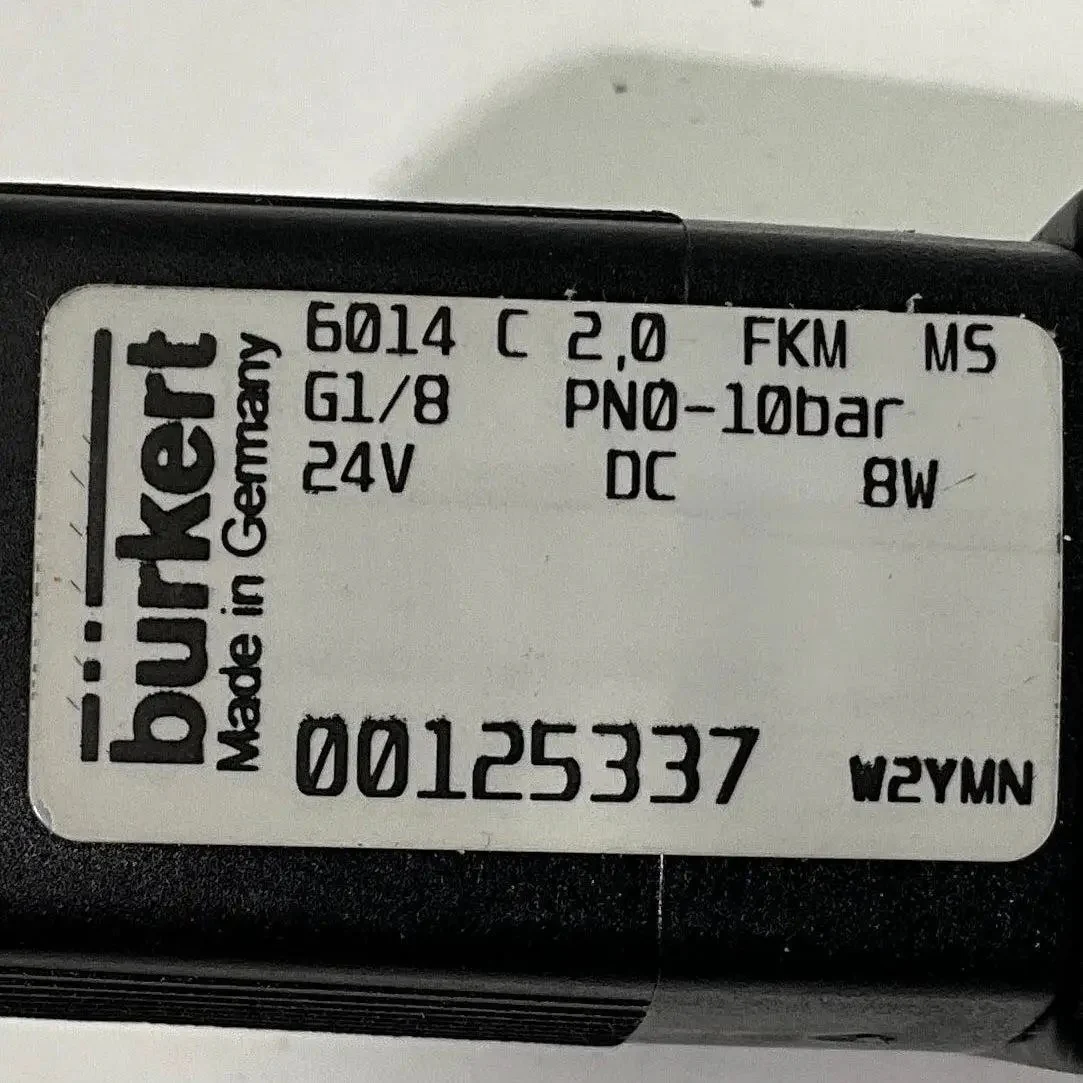

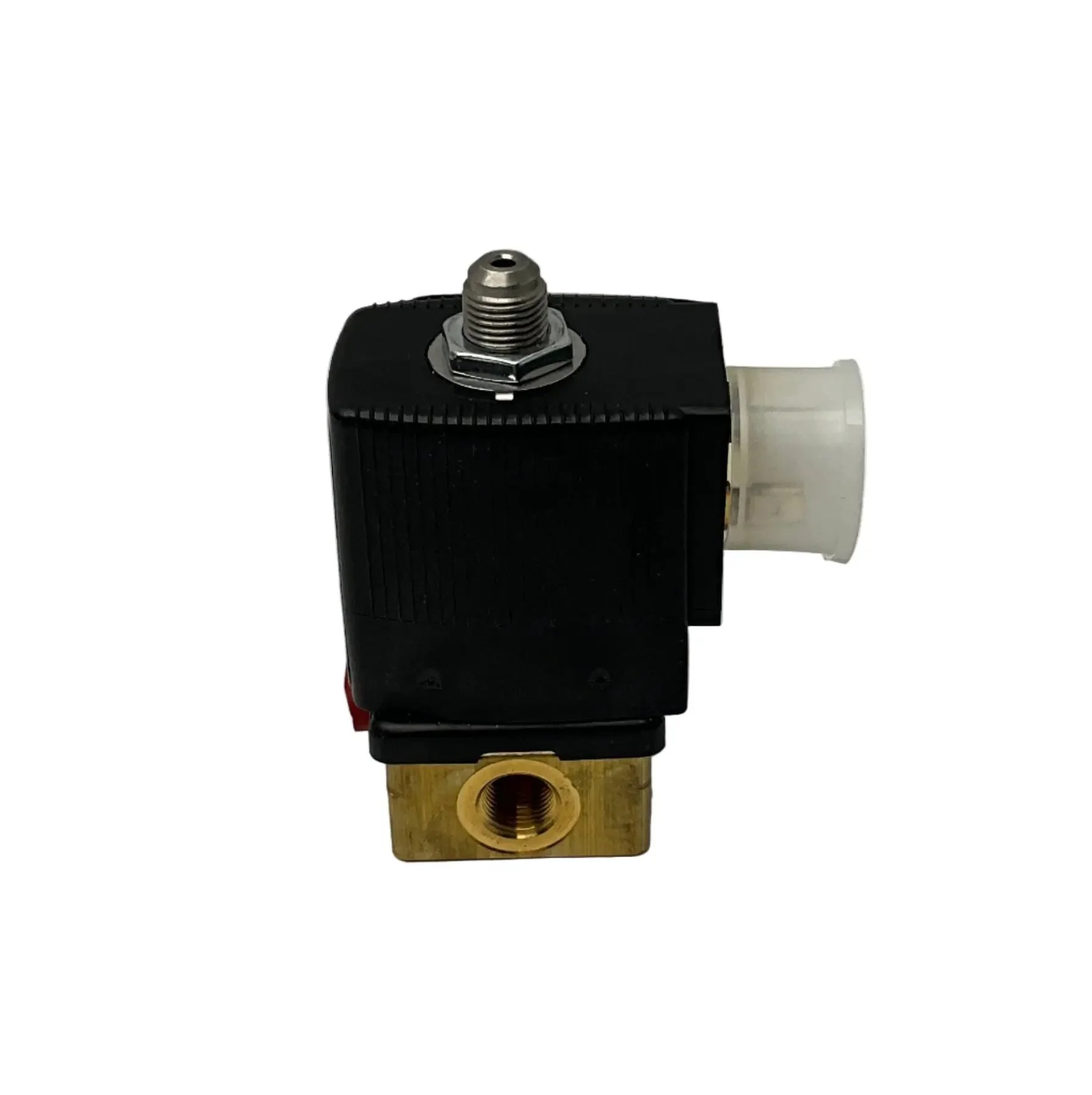

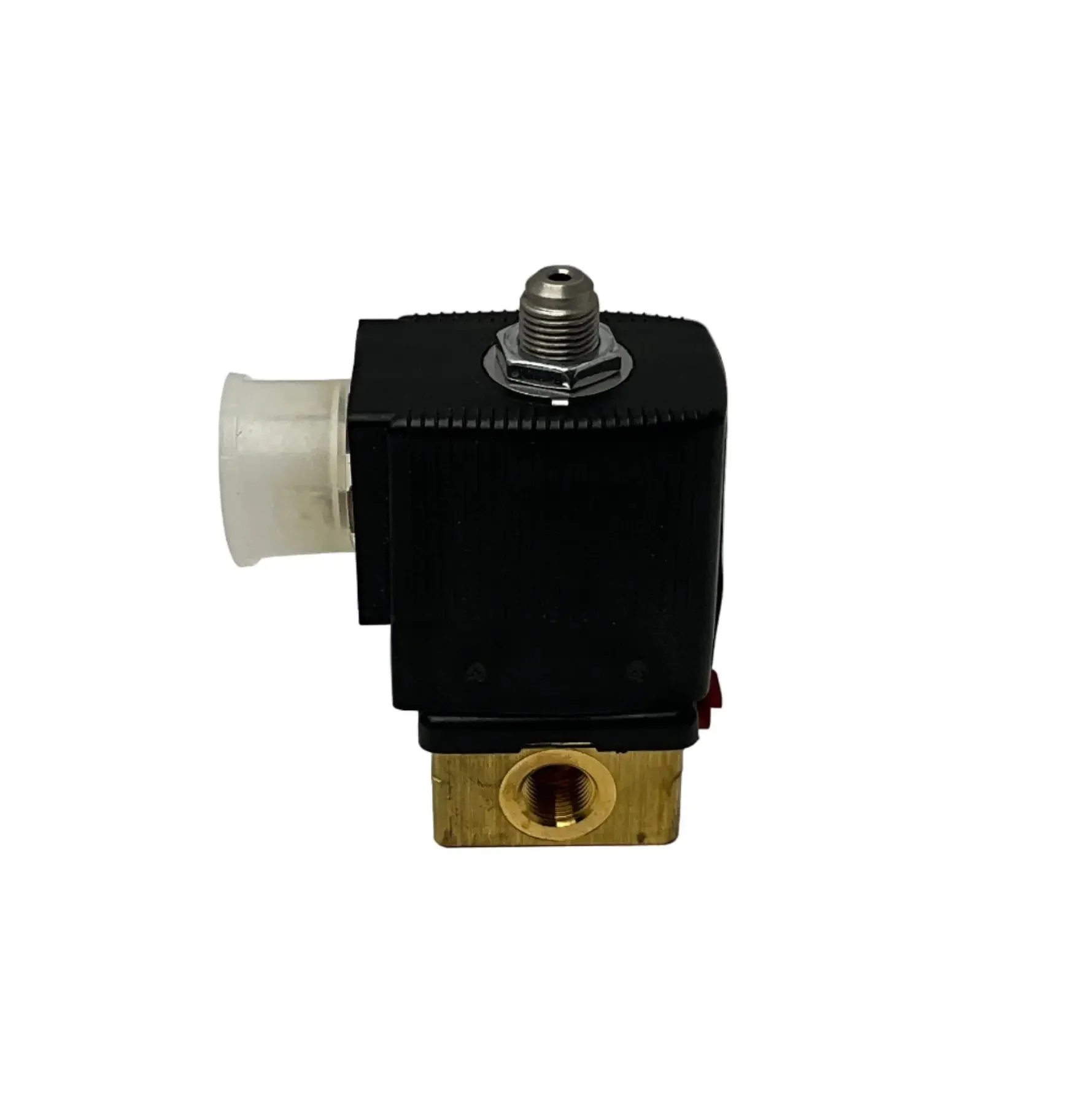

Burkert 6014 Solenoid Valve - 00125337
Brand: Burkert
Model: 6014
Type: Solenoid Valve (Direct-Acting Plunger Valve)
Part Number: 00125337
Technical Specs:
- Valve Type: 3/2-way direct-acting plunger valve
- Circuit Function: C (normally closed; inlet port 1 (P/NC), outlet port 2 (A/OUT) connected with exhaust port 3 (R/NO))
- Orifice Size: 2.0 mm
- Pressure Range: 0 to 10 bar
- Body Material: Brass
- Seal Material: FKM
- Port Connection: G 1/8
- Voltage: 24 V DC
- Power Consumption: 8 W
- Media: Neutral gases and liquids
- Media Temperature Range: -10°C to +100°C
- Ambient Temperature Range: -10°C to +55°C
- Duty Cycle: 100%
- Protection Rating: IP65
- Electrical Connection: Cable plug, Form A (DIN EN 175301-803)
- Additional Features:
- Vibration-proof bolted coil system for durability
- Compact design for space-saving applications
- Certifications: CE compliant
Dimensions:
- Overall Size: 75 x 60 x 32 mm
- Thread: G 1/8
- Weight: 400 g
- Country of Origin: Germany
- HS Code: 8481.80
Original: $78.33
-70%$78.33
$23.50
Description
Brand: Burkert
Model: 6014
Type: Solenoid Valve (Direct-Acting Plunger Valve)
Part Number: 00125337
Technical Specs:
- Valve Type: 3/2-way direct-acting plunger valve
- Circuit Function: C (normally closed; inlet port 1 (P/NC), outlet port 2 (A/OUT) connected with exhaust port 3 (R/NO))
- Orifice Size: 2.0 mm
- Pressure Range: 0 to 10 bar
- Body Material: Brass
- Seal Material: FKM
- Port Connection: G 1/8
- Voltage: 24 V DC
- Power Consumption: 8 W
- Media: Neutral gases and liquids
- Media Temperature Range: -10°C to +100°C
- Ambient Temperature Range: -10°C to +55°C
- Duty Cycle: 100%
- Protection Rating: IP65
- Electrical Connection: Cable plug, Form A (DIN EN 175301-803)
- Additional Features:
- Vibration-proof bolted coil system for durability
- Compact design for space-saving applications
- Certifications: CE compliant
Dimensions:
- Overall Size: 75 x 60 x 32 mm
- Thread: G 1/8
- Weight: 400 g
- Country of Origin: Germany
- HS Code: 8481.80
