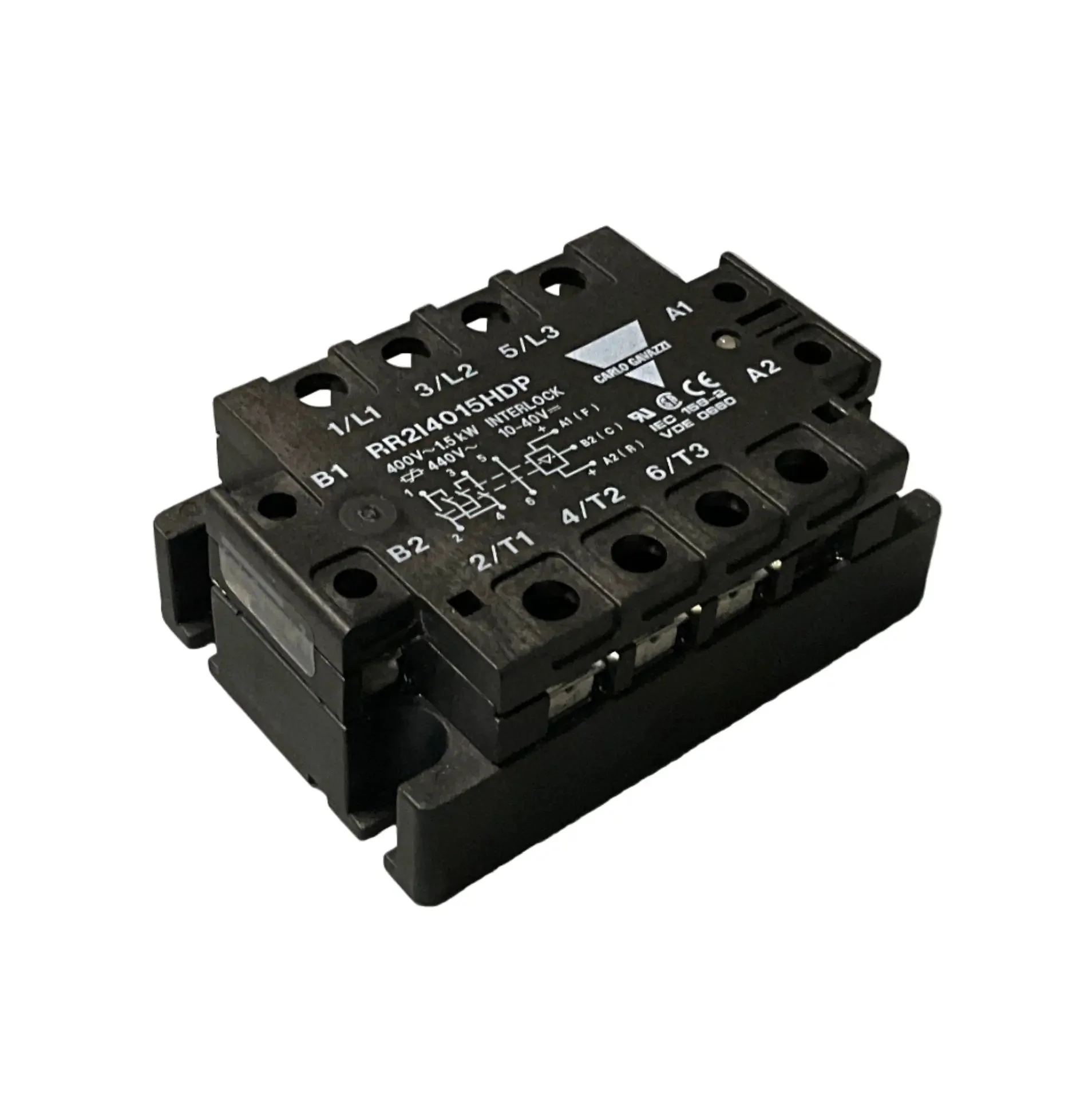

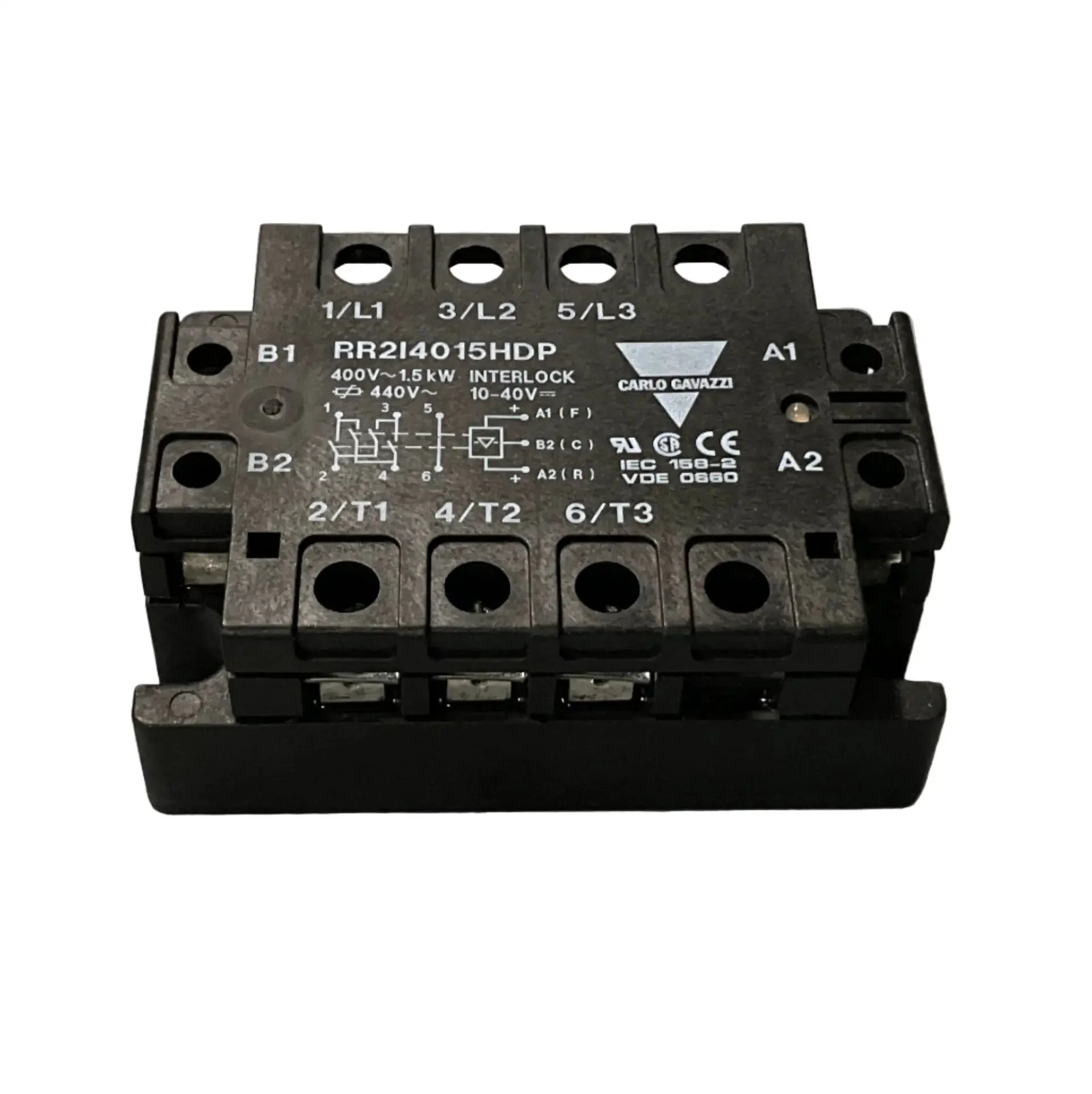

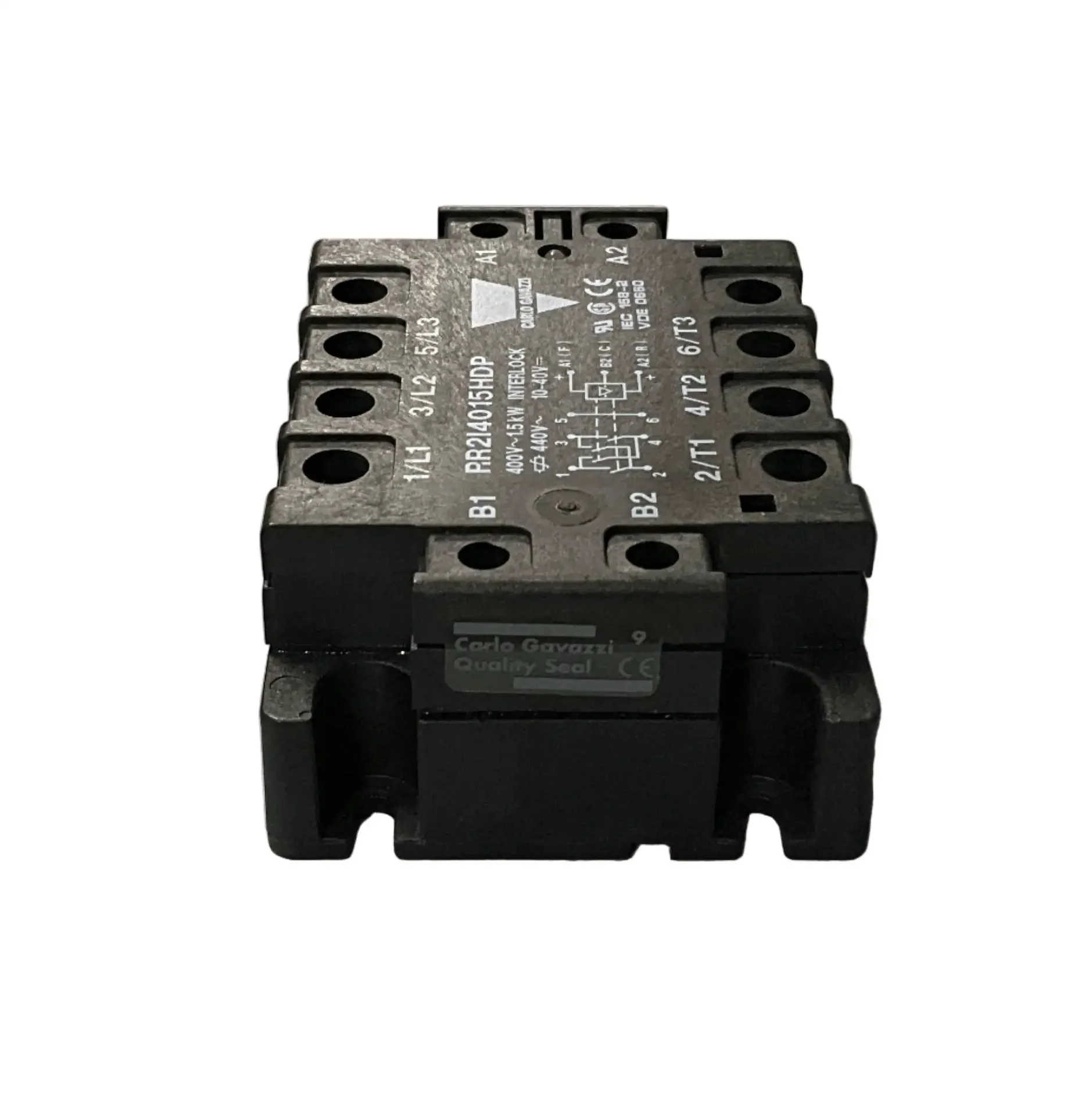

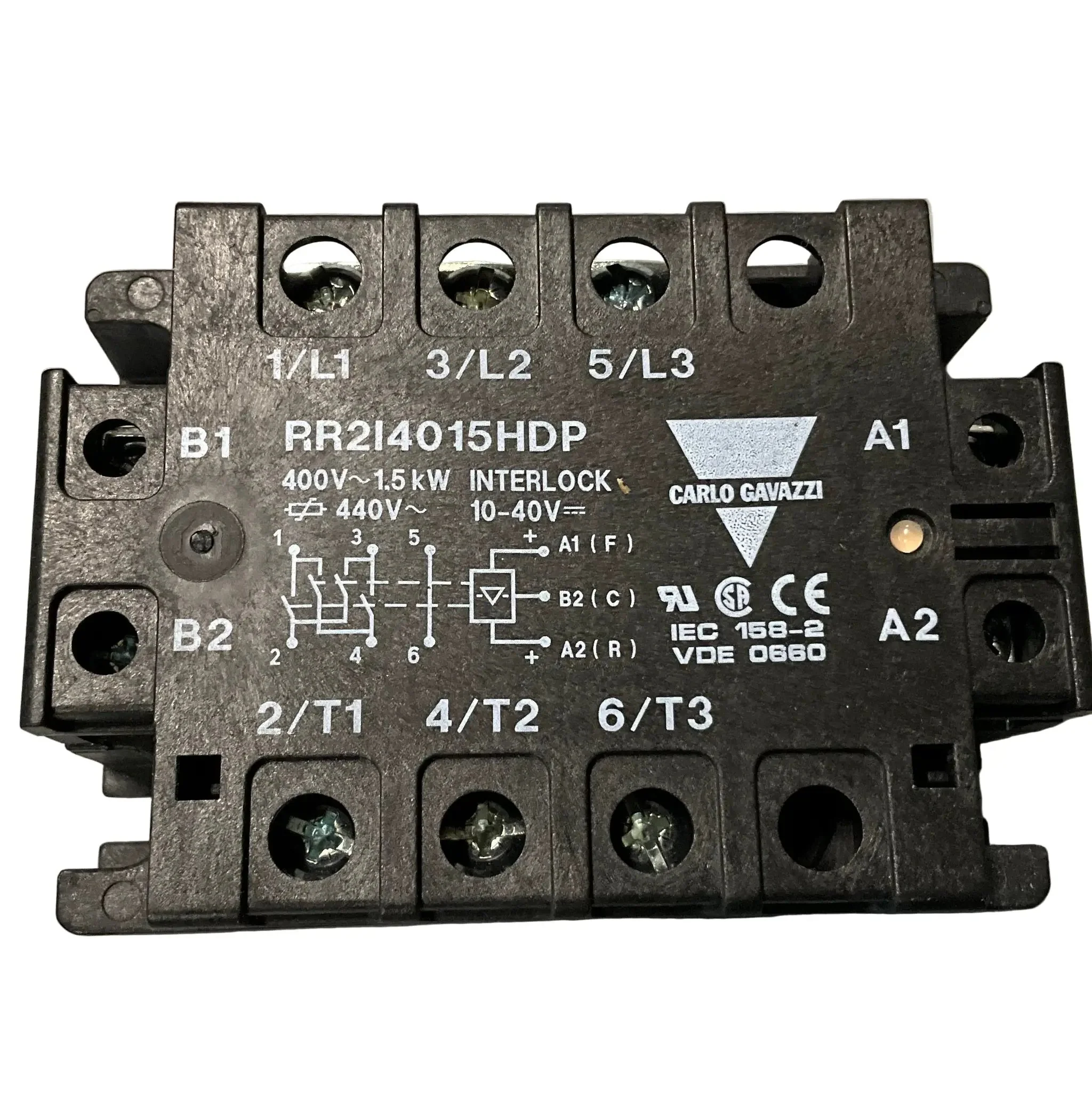

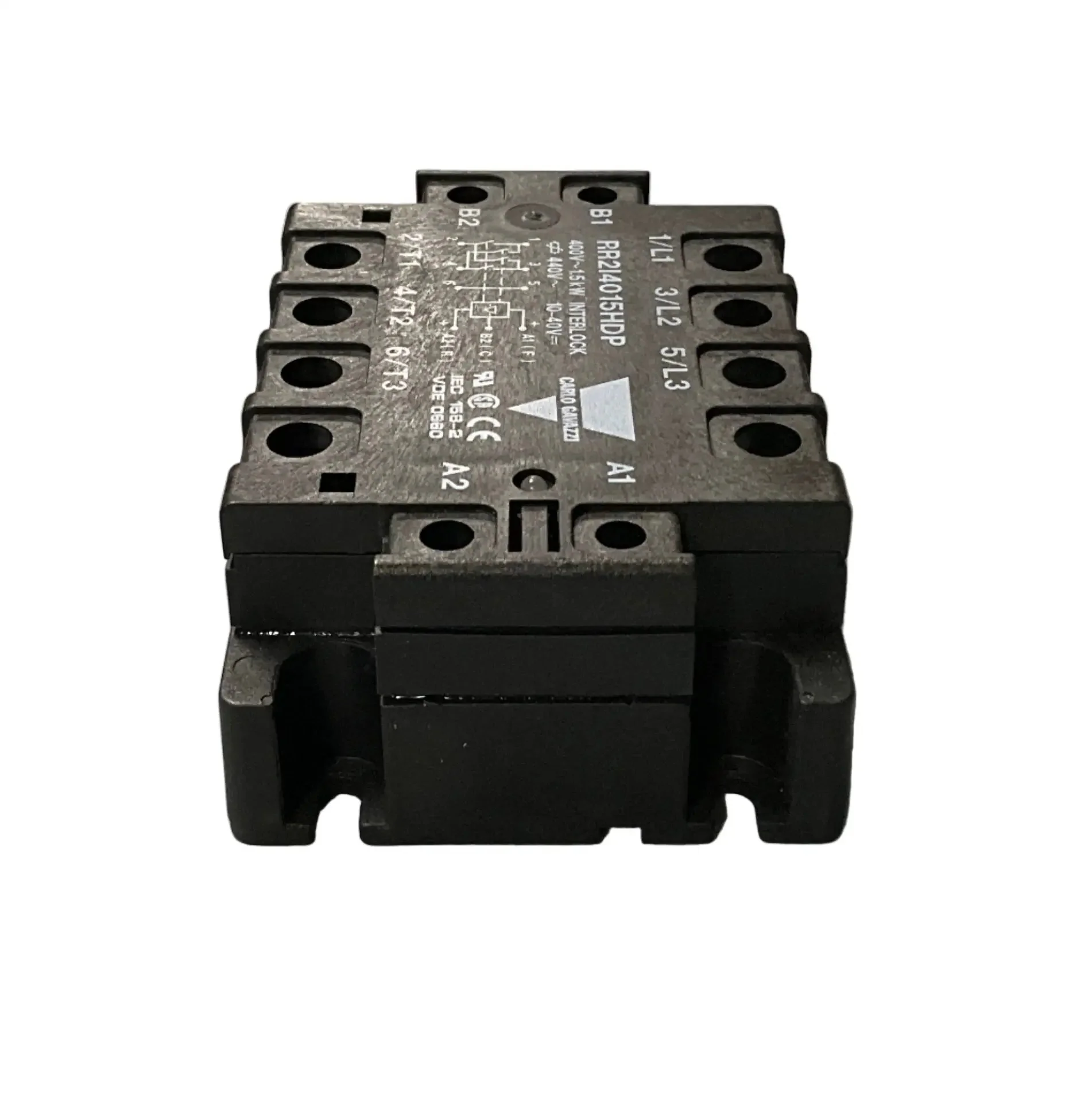

Carlo Gavazzi RR2I4015HDP Solid State 3 Phase Relay
Brand: Carlo Gavazzi
Model: RR2I4015HDP
Type: Solid State Relay (2-Phase Motor Reversing Controller)
Part Number: RR2I4015HDP
Technical Specs:
- Function: 2-phase motor reversing solid state relay with interlock function
- Operational Voltage: 400 V AC (RMS) (range: 42 to 440 V AC, 50/60 Hz)
- Control Voltage: 10 to 40 V DC
- Rated Power: 1.5 kW (2 hp at 400 V AC)
- Rated Operational Current:
- AC-53a (Motor Load): 5 A
- AC-51 (Resistive Load): 25 A
- Switching Type: Zero-crossing
- Output Configuration: 2-pole switching (controls two phases of a 3-phase load)
- Electrical Connection: Screw terminals
- Input Terminals: 12-18 AWG
- Output Terminals: 10-14 AWG
- Protection Features:
- Built-in varistor for transient overvoltage protection
- Interlock circuitry to prevent simultaneous switching of both directions
- Indication: Dual-color LED
- Insulation Voltage: 4 kV RMS
- Enclosure Rating: IP20
- Operating Temperature Range: -20°C to 70°C
- Ambient Temperature for Rated Current: 40°C
- Additional Features:

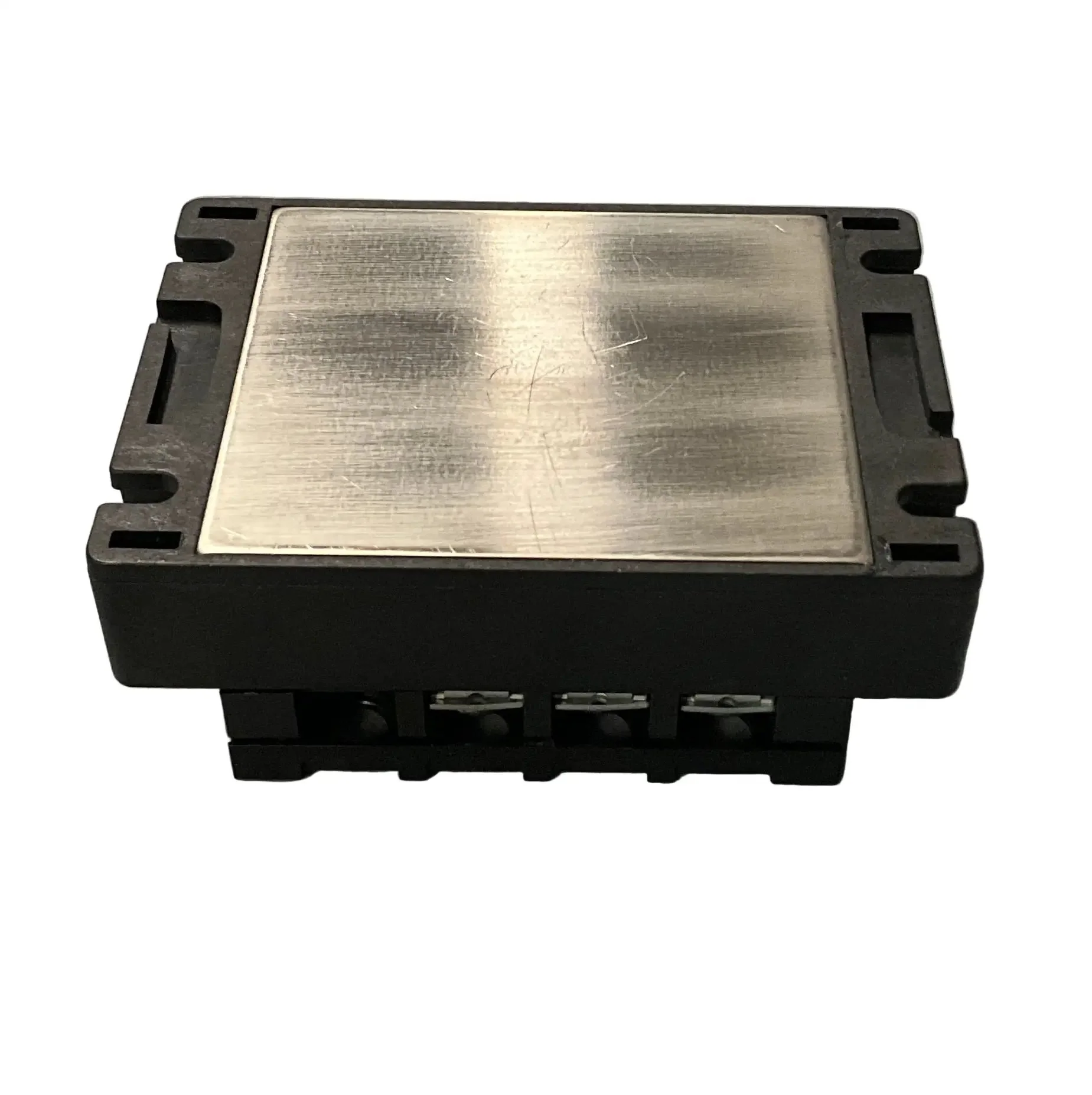

- Direct copper bonding (DCB) substrate for enhanced thermal performance and reliability
- Compact design for space-saving installation
- No moving parts, ensuring maintenance-free operation
- Certifications: CE, cULus
Dimensions: 120 x 80 x 45 mm
Weight: 500g
Country of Origin: Malta
HS Code: 8536.49
