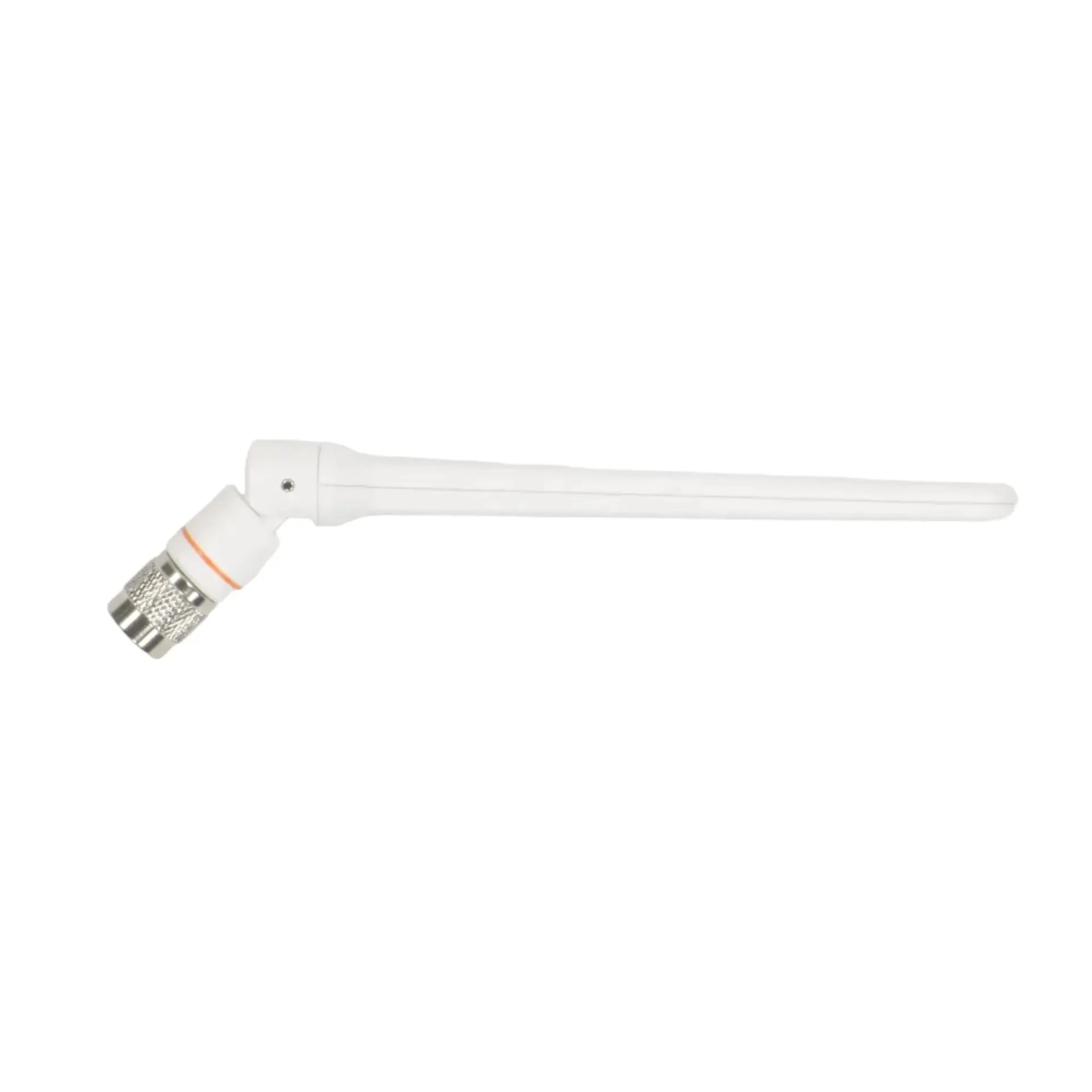

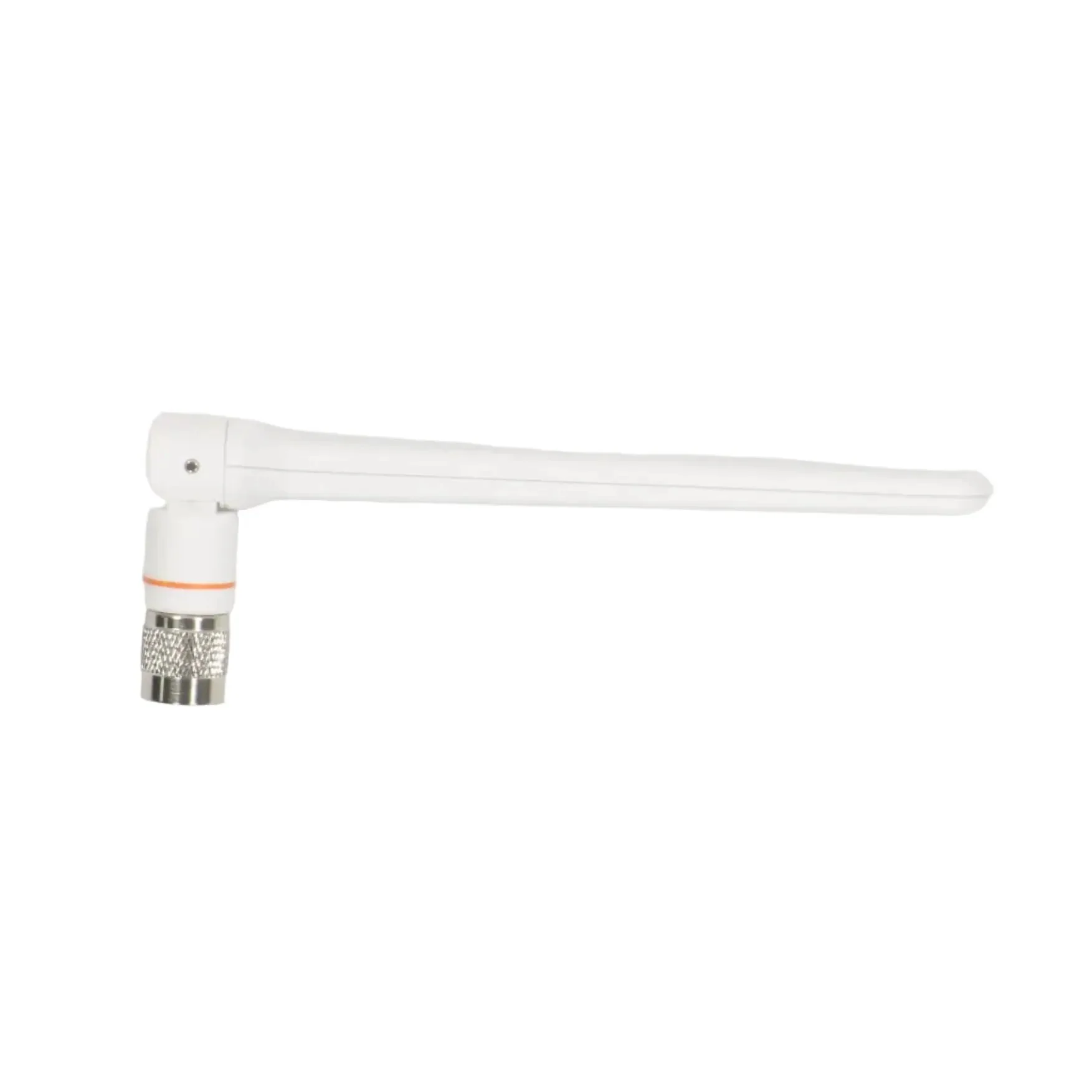

Cisco AIR-ANT2524DW-R Swivel Dipole Antenna

- Brand: Cisco
- Model: AIR-ANT2524DW-R
- Type: Dual-Band Swivel-Mount Dipole Antenna (Rubber Duck)
- Part number: 07-1147-01
  - Frequency Range: 2.4 GHz and 5 GHz (dual-band)
  - Gain:
    – 2.4 GHz: 2 dBi
    – 5 GHz: 4 dBi
  - Radiation Pattern: Omnidirectional
  - Polarisation: Linear, vertical
  - VSWR: ≤ 2:1
  - Connector: RP-TNC male (standard for Cisco APs)
  - Articulation: 360° rotation + 0°/45°/90° tilt (swivel dipole)
  - Colour: White
  - Length: 168 mm
  - Diameter: 20 mm
  - Weight: 43 g
  - Operating Temperature: –30 °C to +70 °C
  - Compatibility: All Cisco Aironet access points with RP-TNC antenna ports (1600, 1700, 2600, 2700, 3600, 3700, 3800, 9100 series, etc.)
  - Regulatory Domain: Universal

- Dimensions: 168 mm × 20 mm
- Weight: 43 g
- Country of Origin: Malaysia
- HS Code: 851771
