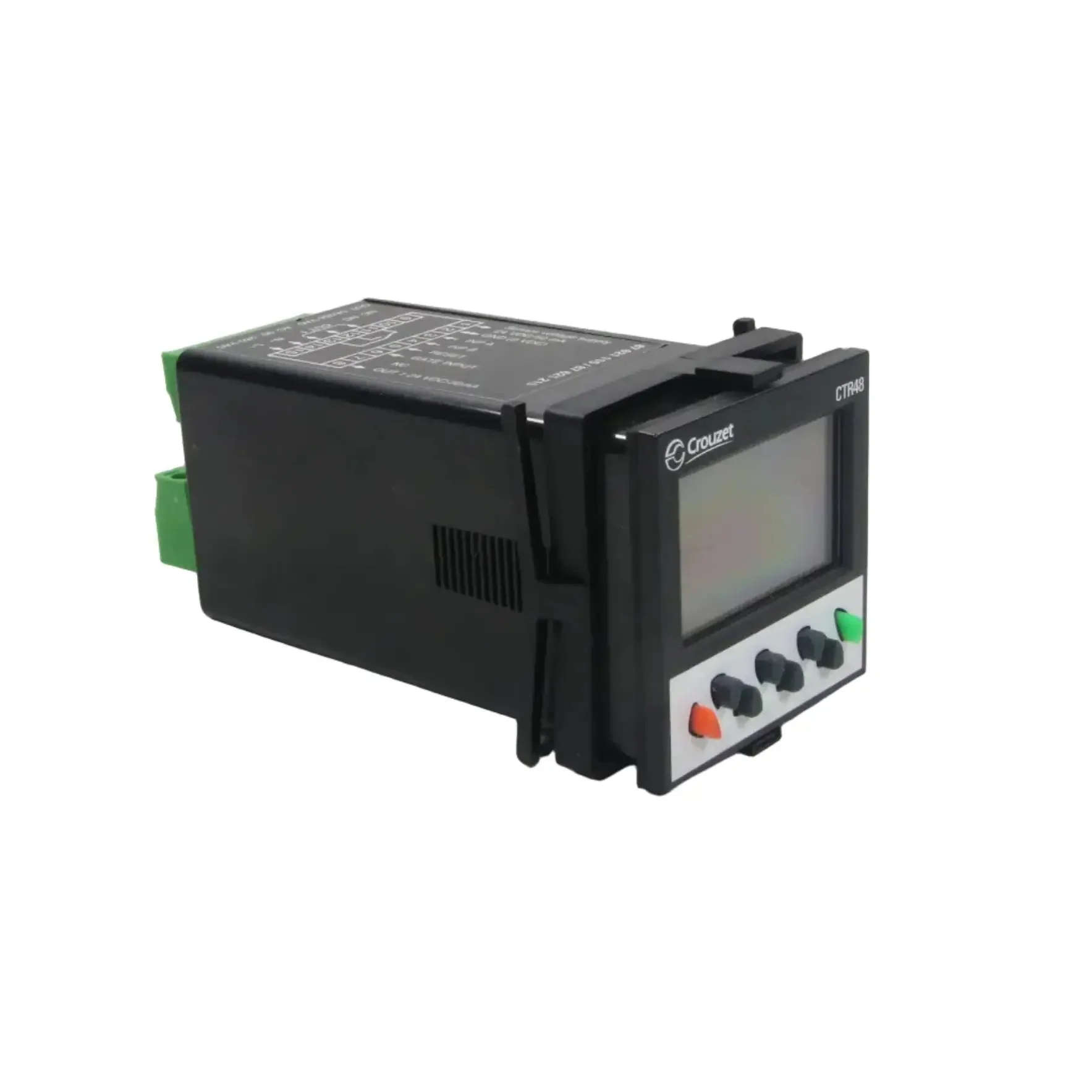

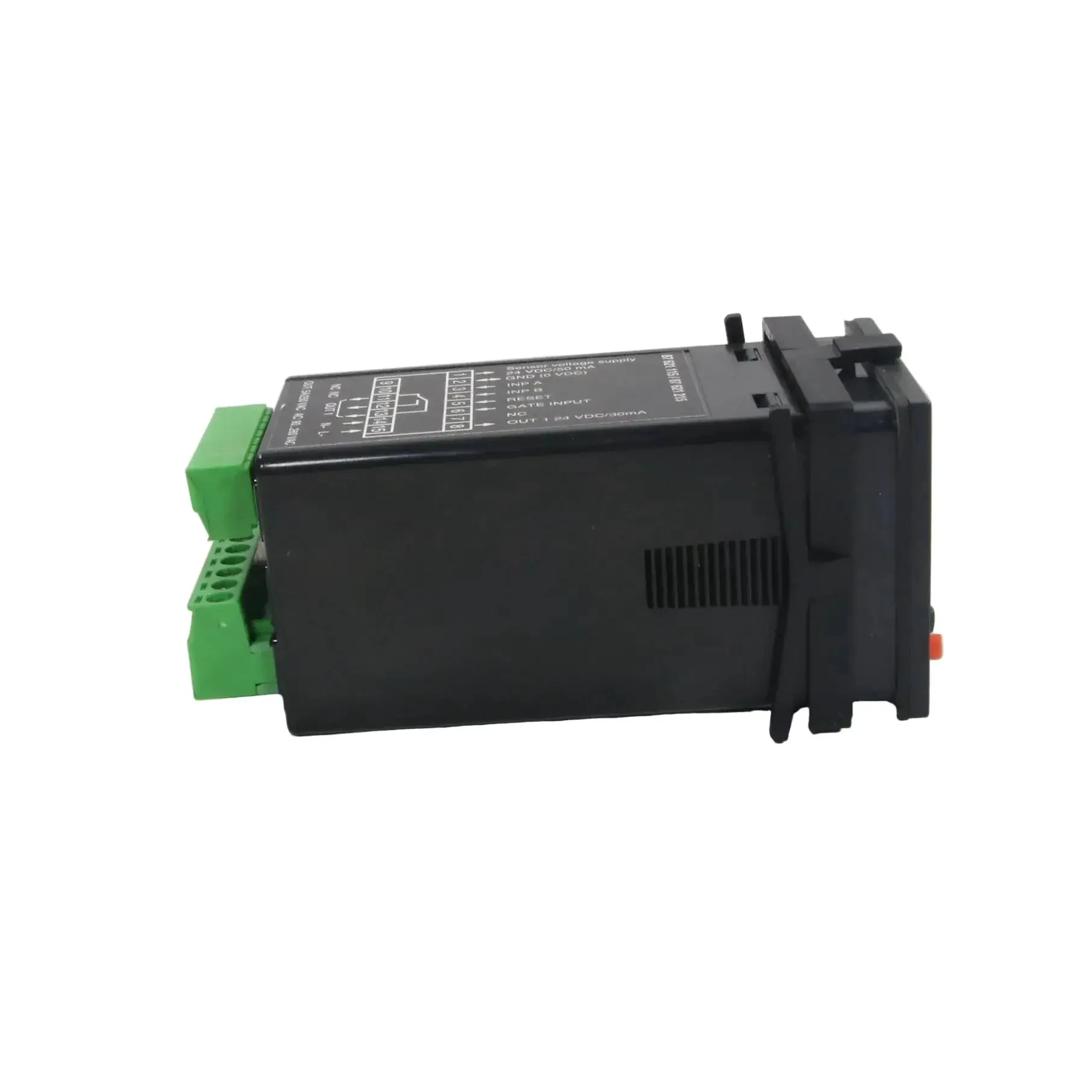

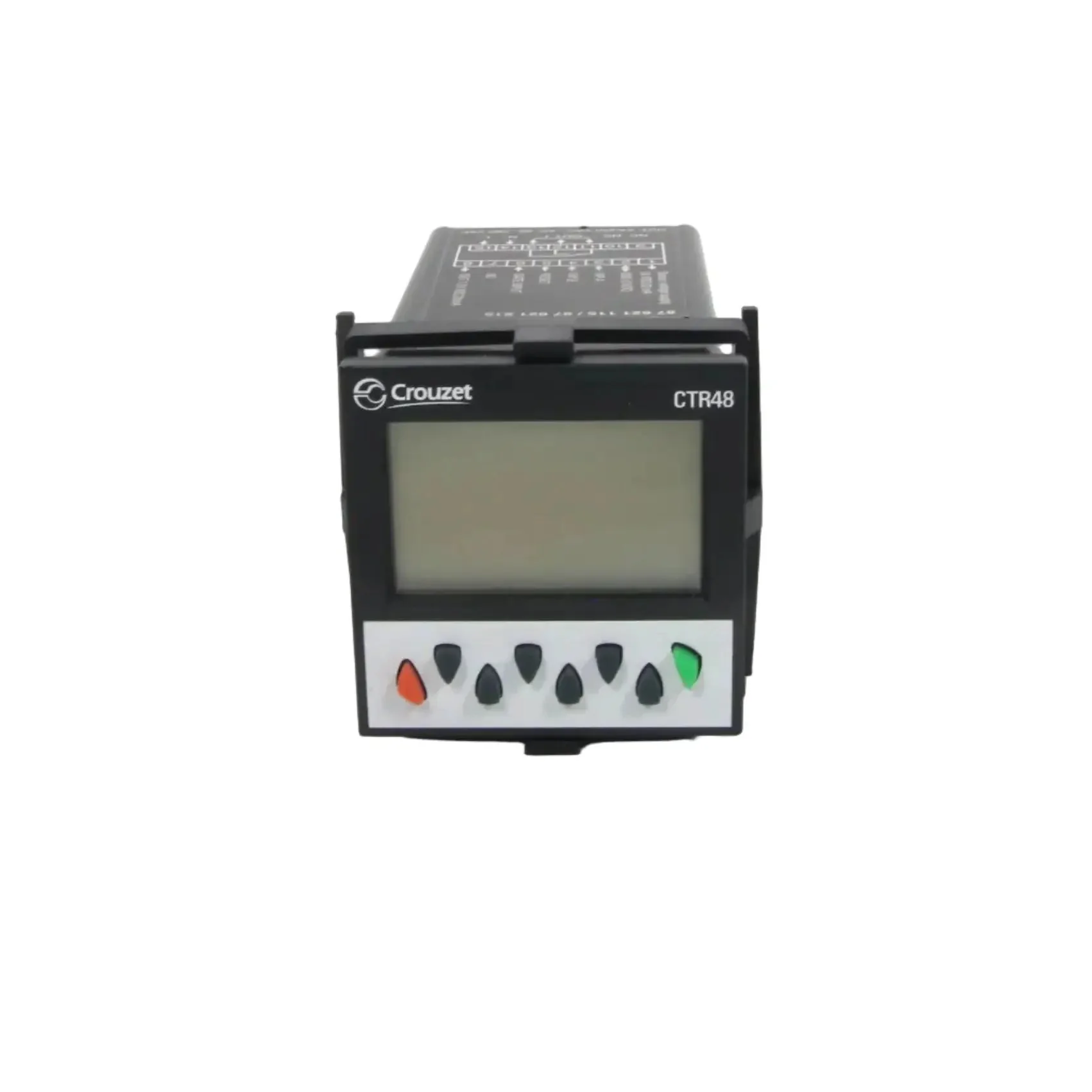

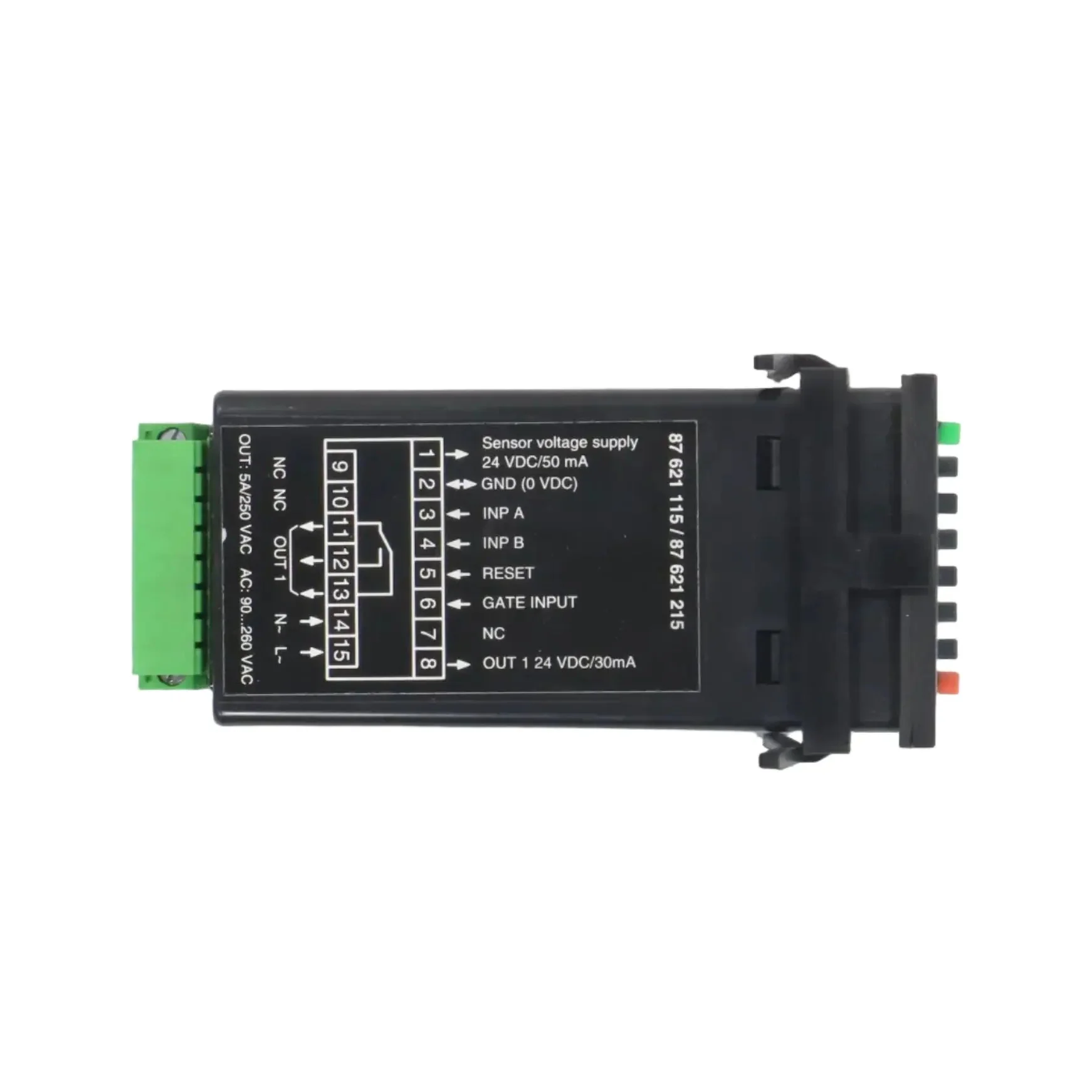

Crouzet CTR48 Multifunction Counter

- Brand: Crouzet
- Model: CTR48
- Part Number: 87621115
- Type: Multifunction Preset Counter
- Technical Specifications:
  - Display: 2-line, 6-digit LCD with backlight
  - Supply Voltage: AC: 100...240 VAC N~, AC: 24 VAC N~, DC: 10...30VDC
  - Power Consumption: < 5 VA / 3 W
  - Inputs:
    – 2 x NPN/PNP
    – Max frequency: 40 kHz
  - Outputs:
    – 1 x relay 5 A / 250 V AC
    – 1 x NPN open collector (100 mA)
  - Functions:
    – Counter
    – Tachometer
    – Timer (up to 999999 h)
    – Time preset
    – Batch counter
  - Presets: 2 programmable presets
  - Programming: Front keypad
  - Memory: Non-volatile (EEPROM)
  - Protection Rating: IP65 front panel
  - Mounting: Panel mount
  - Operating Temperature: –10 °C to +60 °C
  - Certifications: CE, UL, cUL
  - Features: Multi-voltage, multi-function, backlight
- Dimensions: 48 mm × 48 mm × 105 mm
- Weight: 140 g
- Country of Origin: Germany
- HS Code: 902910
