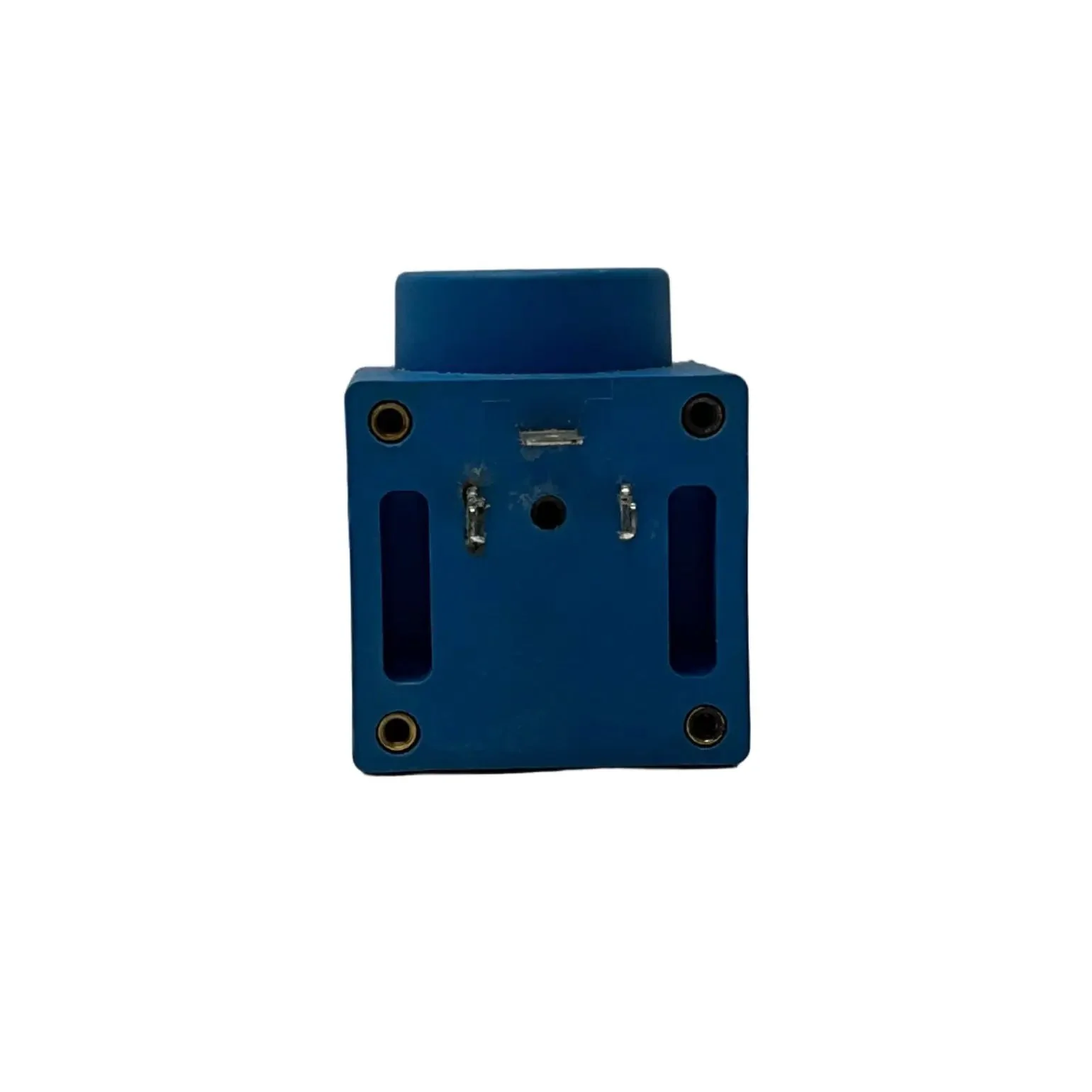

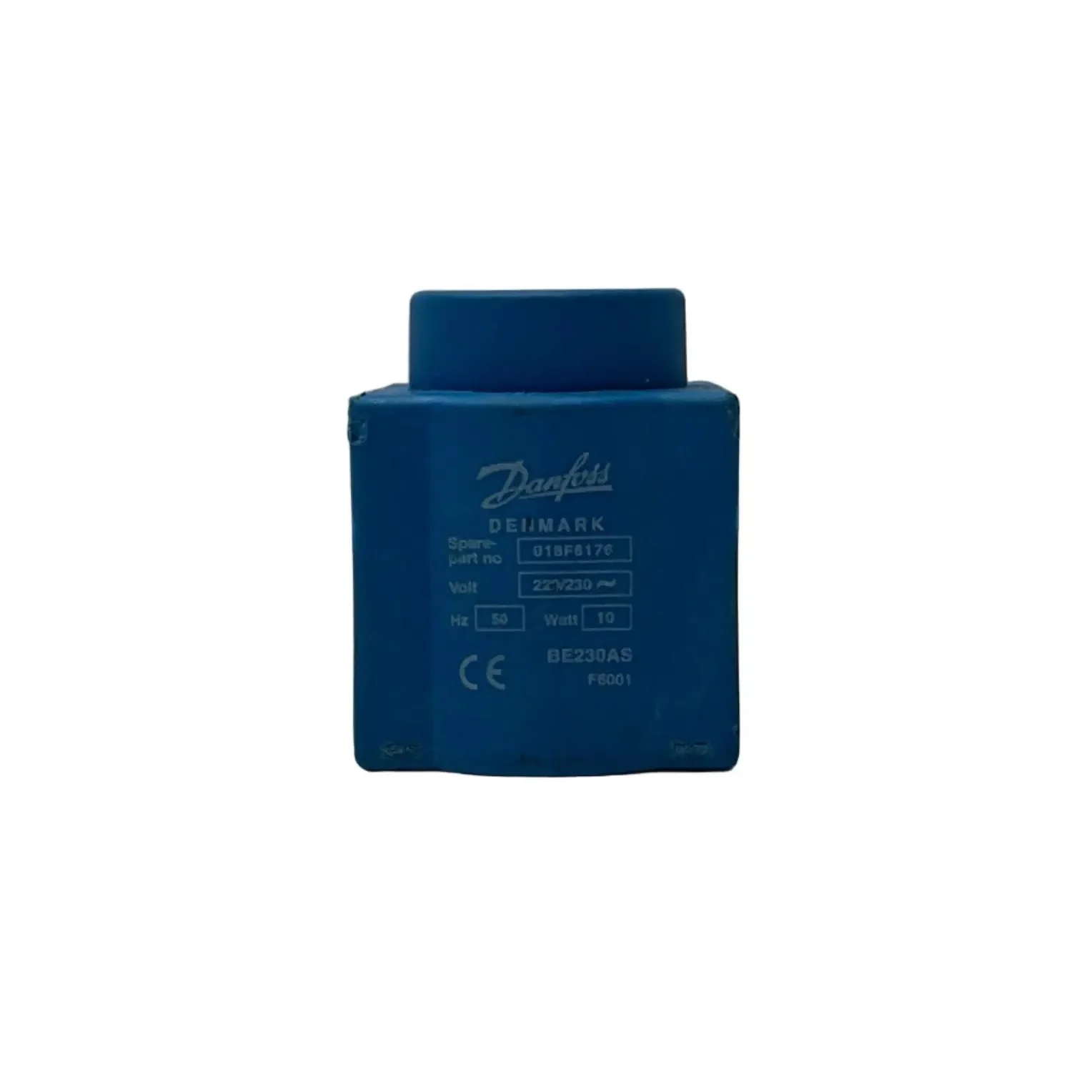

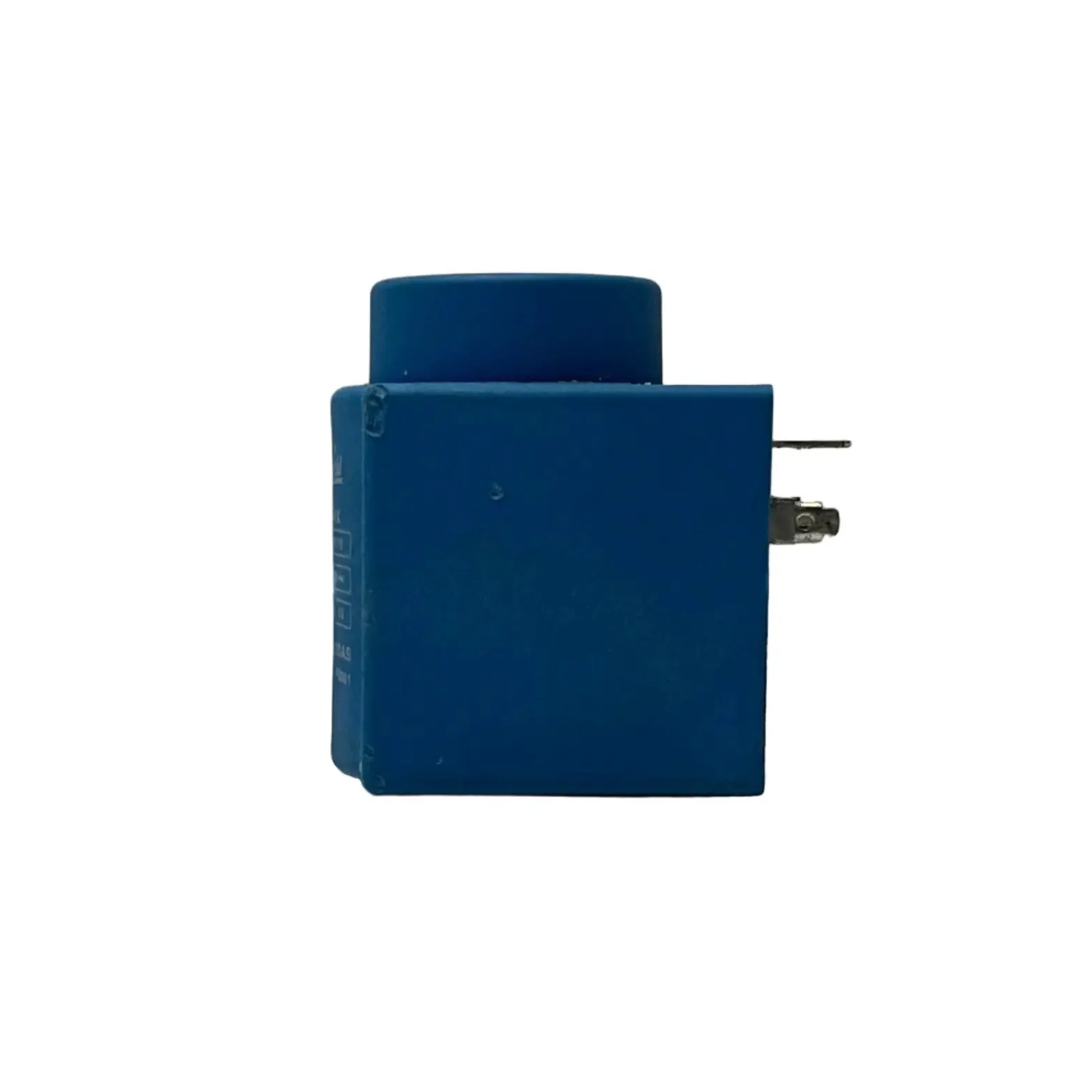

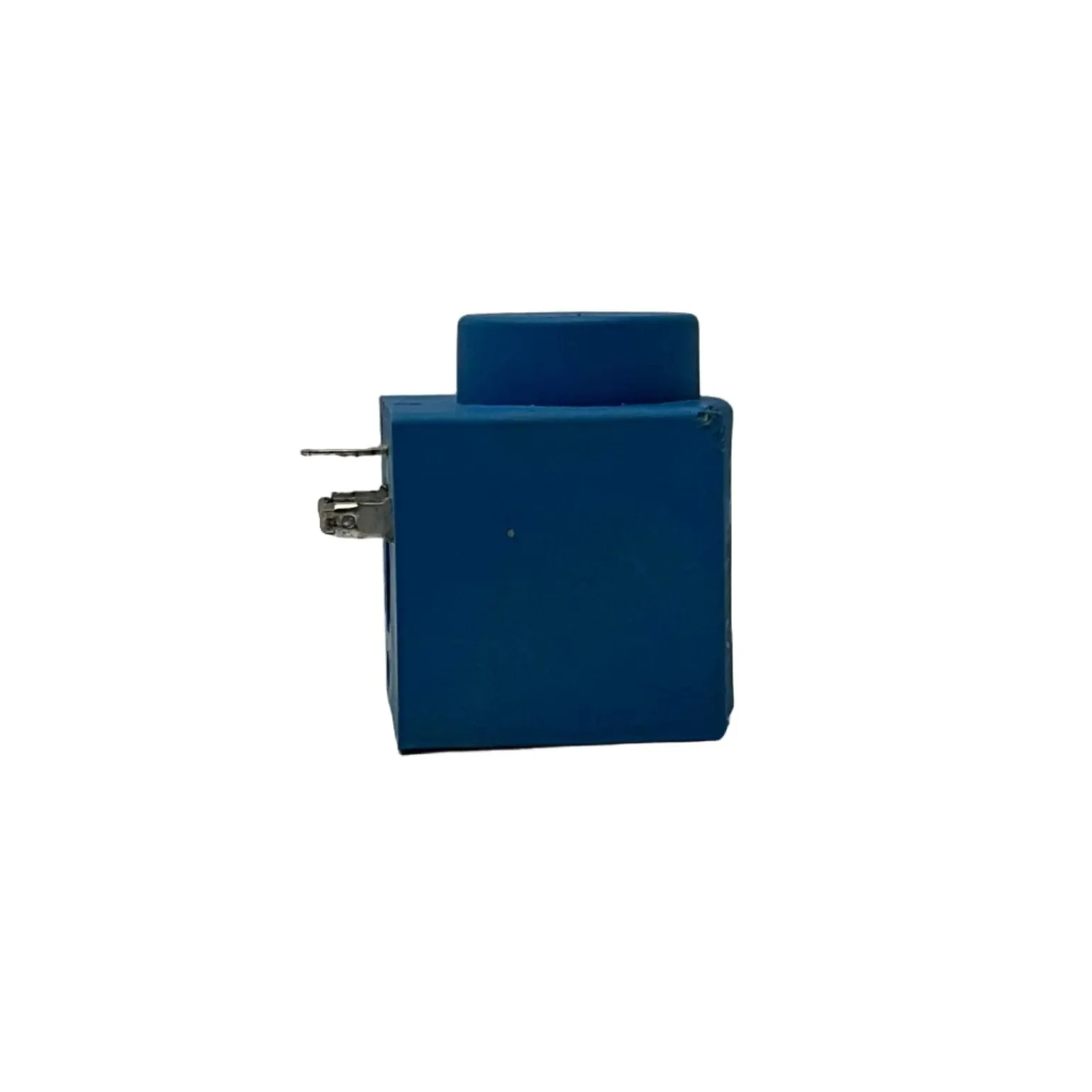

Danfoss BE230AS Solenoid Coil - 018F6176

Brand: Danfoss
Model: BE230AS
Type: Solenoid Coil
Part Number: 018F6176

Technical Specs:
- Coil Type: BE230AS for demanding applications
- Voltage: 220-230 V AC
- Frequency: 50 Hz
- Power Consumption: 10 W (holding power), 21 VA (holding), 44 VA (starting current)
- Insulation Class: H
- Electrical Connection: DIN Spade + Cap (DIN 43650-A)
- Enclosure Rating: IP20
- Ambient Temperature Range: -40°C to +80°C
- Voltage Tolerance: +10%/-15% (AC coils), ±10% (universal 50/60 Hz coils)
- Actuator Size: 13.5 mm
- Additional Features:
  - Clip-on system for easy mounting and removal without tools (dismount with screwdriver)
  - Encapsulated coil for long operating life in humid and temperature-fluctuating environments
  - Protective caps to prevent unintentional contact
- Certifications: CE compliant

Dimensions: 70 x 60 x 45 mm

Weight: 270 g

Country of Origin: Denmark

HS Code: 8505.90
